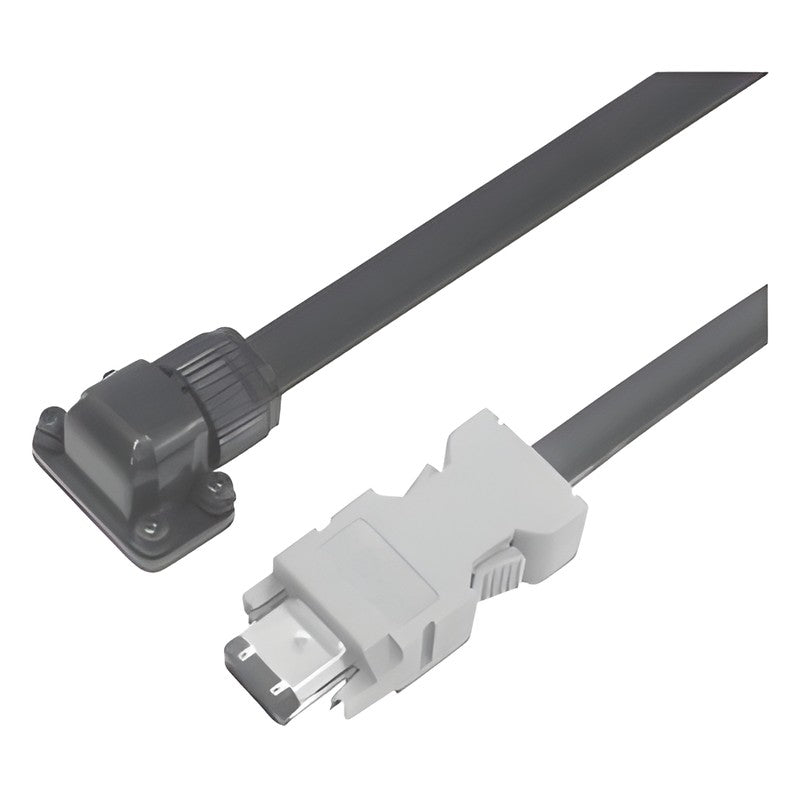

Samwon ACT SWO-CR1A Encoder Cable for Omron 1S 3000 r/min 100~750W

Encoder Cable for Omron 1S servo motors (3000 r/min 100~750W).

Key features

Encoder Cables for Omron 1S servo motors 3000 r/min 100~750W
Built to the recommended specifications in Omron user manuals and catalogs (some equivalent parts used)
Fixed, moving (flex-rated) and custom-specified cables can be made
Cable length can be specified freely; custom lengths in 100 mm steps
Small-quantity orders (from 1 piece) and short lead times

Specifications

Amplifier Connector	MOLEX 55100-0670 or equivalent
Encoder Connector	JAE JN6FR07SM1 or equivalent
Fixed Cable	UL2464 twist pair shielded, PVC insulation cable
Moving Cable	PROTERIAL (formerly Hitachi Metals) RT-FLEX UL2464 twist pair shielded, ETFE insulation cable
Max. Transmission Length	50M
Cable Color	Black
Length Tolerance	+50 to +100 mm

SWO-CR1A003C		Cable: Fixed \| Length: 3M \| Omron Model: R88A-CR1A003C
SWO-CR1A005C		Cable: Fixed \| Length: 5M \| Omron Model: R88A-CR1A005C
SWO-CR1A010C		Cable: Fixed \| Length: 10M \| Omron Model: R88A-CR1A010C
SWO-CR1A015C		Cable: Fixed \| Length: 15M \| Omron Model: R88A-CR1A015C
SWO-CR1A020C		Cable: Fixed \| Length: 20M \| Omron Model: R88A-CR1A020C
SWO-CR1A030C		Cable: Fixed \| Length: 30M \| Omron Model: R88A-CR1A030C
SWO-CR1A040C		Cable: Fixed \| Length: 40M \| Omron Model: R88A-CR1A040C
SWO-CR1A050C		Cable: Fixed \| Length: 50M \| Omron Model: R88A-CR1A050C
SWO-CR1A003CF		Cable: Moving \| Length: 3M \| Omron Model: R88A-CR1A003CF
SWO-CR1A005CF		Cable: Moving \| Length: 5M \| Omron Model: R88A-CR1A005CF
SWO-CR1A010CF		Cable: Moving \| Length: 10M \| Omron Model: R88A-CR1A010CF
SWO-CR1A015CF		Cable: Moving \| Length: 15M \| Omron Model: R88A-CR1A015CF
SWO-CR1A020CF		Cable: Moving \| Length: 20M \| Omron Model: R88A-CR1A020CF
SWO-CR1A030CF		Cable: Moving \| Length: 30M \| Omron Model: R88A-CR1A030CF
SWO-CR1A040CF		Cable: Moving \| Length: 40M \| Omron Model: R88A-CR1A040CF
SWO-CR1A050CF		Cable: Moving \| Length: 50M \| Omron Model: R88A-CR1A050CF

Encoder CablesSamwon ACT

16 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT SWO-CR1A Encoder Cable for Omron 1S 3000 r/min 100~750W

Brand Samwon ACT·Encoder Cables

Available part numbers (16)

SWO-CR1A003C, SWO-CR1A005C, SWO-CR1A010C, SWO-CR1A015C, SWO-CR1A020C, SWO-CR1A030C, SWO-CR1A040C, SWO-CR1A050C, SWO-CR1A003CF, SWO-CR1A005CF + 6 more — see full table ↓

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
