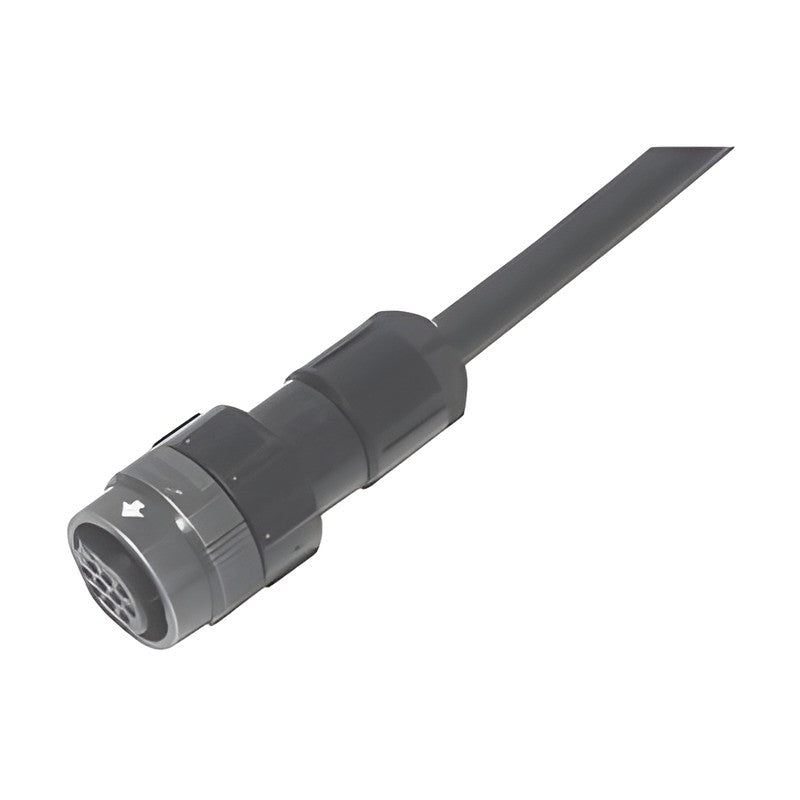

Samwon ACT SWO-CR1B Encoder Cable for Omron 1S 3000 r/min 1kW+, 2000/1000 r/min

Encoder Cable for Omron 1S servo motors (3000 r/min 1kW+, 2000/1000 r/min).

Key features

Encoder Cables for Omron 1S servo motors 3000 r/min 1kW+, 2000/1000 r/min
Built to the recommended specifications in Omron user manuals and catalogs (some equivalent parts used)
Fixed, moving (flex-rated) and custom-specified cables can be made
Cable length can be specified freely; custom lengths in 100 mm steps
Small-quantity orders (from 1 piece) and short lead times

Specifications

Amplifier Connector	MOLEX 55100-0670 or equivalent
Encoder Connector	JAE JN1DS10SL2
Fixed Cable	UL2464 twist pair shielded, PVC insulation cable
Moving Cable	PROTERIAL (formerly Hitachi Metals) RT-FLEX UL2464 twist pair shielded, ETFE insulation cable
Max. Transmission Length	50M
Cable Color	Black
Length Tolerance	+50 to +100 mm

SWO-CR1B003N		Cable: Fixed \| Length: 3M \| Omron Model: R88A-CR1B003N
SWO-CR1B005N		Cable: Fixed \| Length: 5M \| Omron Model: R88A-CR1B005N
SWO-CR1B010N		Cable: Fixed \| Length: 10M \| Omron Model: R88A-CR1B010N
SWO-CR1B015N		Cable: Fixed \| Length: 15M \| Omron Model: R88A-CR1B015N
SWO-CR1B020N		Cable: Fixed \| Length: 20M \| Omron Model: R88A-CR1B020N
SWO-CR1B030N		Cable: Fixed \| Length: 30M \| Omron Model: R88A-CR1B030N
SWO-CR1B040N		Cable: Fixed \| Length: 40M \| Omron Model: R88A-CR1B040N
SWO-CR1B050N		Cable: Fixed \| Length: 50M \| Omron Model: R88A-CR1B050N
SWO-CR1B003NF		Cable: Moving \| Length: 3M \| Omron Model: R88A-CR1B003NF
SWO-CR1B005NF		Cable: Moving \| Length: 5M \| Omron Model: R88A-CR1B005NF
SWO-CR1B010NF		Cable: Moving \| Length: 10M \| Omron Model: R88A-CR1B010NF
SWO-CR1B015NF		Cable: Moving \| Length: 15M \| Omron Model: R88A-CR1B015NF
SWO-CR1B020NF		Cable: Moving \| Length: 20M \| Omron Model: R88A-CR1B020NF
SWO-CR1B030NF		Cable: Moving \| Length: 30M \| Omron Model: R88A-CR1B030NF
SWO-CR1B040NF		Cable: Moving \| Length: 40M \| Omron Model: R88A-CR1B040NF
SWO-CR1B050NF		Cable: Moving \| Length: 50M \| Omron Model: R88A-CR1B050NF

Encoder CablesSamwon ACT

16 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT SWO-CR1B Encoder Cable for Omron 1S 3000 r/min 1kW+, 2000/1000 r/min

Brand Samwon ACT·Encoder Cables

Available part numbers (16)

SWO-CR1B003N, SWO-CR1B005N, SWO-CR1B010N, SWO-CR1B015N, SWO-CR1B020N, SWO-CR1B030N, SWO-CR1B040N, SWO-CR1B050N, SWO-CR1B003NF, SWO-CR1B005NF + 6 more — see full table ↓

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
