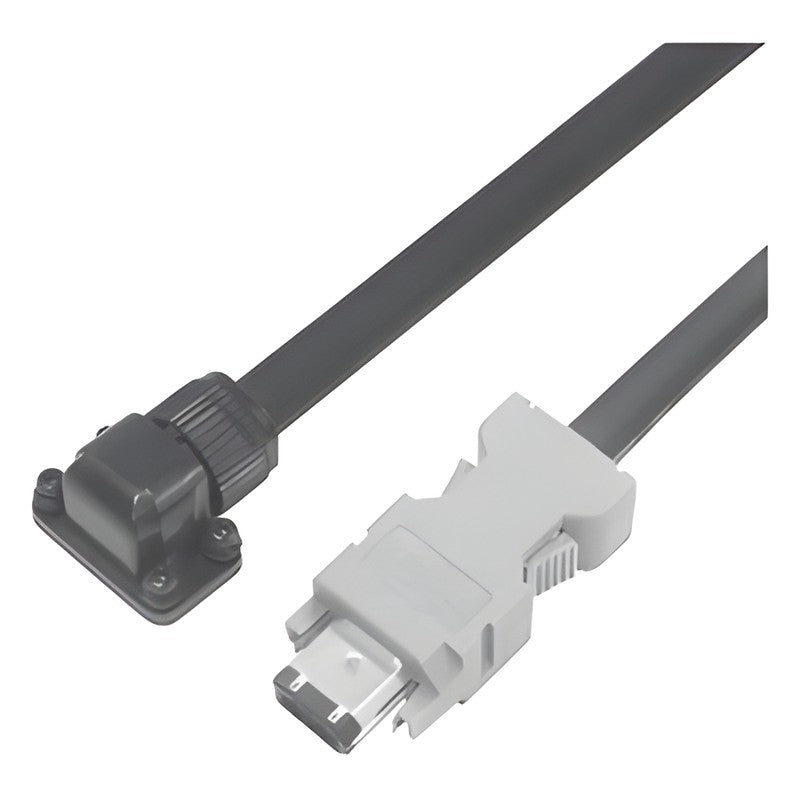

Samwon ACT SWP-MFECA-D Incremental Encoder Cable for Panasonic A6 MSMF/MHMF/MQMF, A5 MSME

Samwon ACT SWP-MFECA-D Incremental Encoder Cable for Panasonic A6 MSMF/MHMF/MQMF, A5 MSME

Incremental Encoder Cable for Panasonic MINAS A6 MSMF, MHMF 50W~1.0kW, MQMF 100~400W and A5 MSME 50~750W connector-type servo motors.

Key features

  • Incremental Encoder Cables for Panasonic MINAS A6 MSMF, MHMF 50W~1.0kW, MQMF 100~400W and A5 MSME 50~750W connector-type servo motors
  • Built to the recommended specifications in Panasonic user manuals and catalogs (some equivalent parts used)
  • Fixed, moving (flex-rated) and custom-specified cables can be made
  • Cable length can be specified freely; custom lengths in 100 mm steps
  • Small-quantity orders (from 1 piece) and short lead times

Specifications

Amplifier Connector MOLEX 55100-0670 or equivalent
Encoder Connector JAE JN6FR07SM1 or equivalent
Fixed Cable UL2464 twist pair shielded, PVC insulation cable
Moving Cable PROTERIAL (formerly Hitachi Metals) RT-FLEX UL2464 twist pair shielded, ETFE insulation cable
Max. Transmission Length 20M
Length Tolerance +50 to +100 mm
SWP-MFECA0030TJD Cable: Fixed | Lead-Out: Load side | Length: 3M | Panasonic Model: MFECA0030TJD
SWP-MFECA0050TJD Cable: Fixed | Lead-Out: Load side | Length: 5M | Panasonic Model: MFECA0050TJD
SWP-MFECA0100TJD Cable: Fixed | Lead-Out: Load side | Length: 10M | Panasonic Model: MFECA0100TJD
SWP-MFECA0150TJD Cable: Fixed | Lead-Out: Load side | Length: 15M
SWP-MFECA0200TJD Cable: Fixed | Lead-Out: Load side | Length: 20M | Panasonic Model: MFECA0200TJD
SWP-MFECA0030TKD Cable: Fixed | Lead-Out: Opposite load side | Length: 3M | Panasonic Model: MFECA0030TKD
SWP-MFECA0050TKD Cable: Fixed | Lead-Out: Opposite load side | Length: 5M | Panasonic Model: MFECA0050TKD
SWP-MFECA0100TKD Cable: Fixed | Lead-Out: Opposite load side | Length: 10M | Panasonic Model: MFECA0100TKD
SWP-MFECA0150TKD Cable: Fixed | Lead-Out: Opposite load side | Length: 15M
SWP-MFECA0200TKD Cable: Fixed | Lead-Out: Opposite load side | Length: 20M | Panasonic Model: MFECA0200TKD
SWP-MFECA0030MJD Cable: Moving | Lead-Out: Load side | Length: 3M | Panasonic Model: MFECA0030MJD
SWP-MFECA0050MJD Cable: Moving | Lead-Out: Load side | Length: 5M | Panasonic Model: MFECA0050MJD
SWP-MFECA0100MJD Cable: Moving | Lead-Out: Load side | Length: 10M | Panasonic Model: MFECA0100MJD
SWP-MFECA0150MJD Cable: Moving | Lead-Out: Load side | Length: 15M
SWP-MFECA0200MJD Cable: Moving | Lead-Out: Load side | Length: 20M | Panasonic Model: MFECA0200MJD
SWP-MFECA0030MKD Cable: Moving | Lead-Out: Opposite load side | Length: 3M | Panasonic Model: MFECA0030MKD
SWP-MFECA0050MKD Cable: Moving | Lead-Out: Opposite load side | Length: 5M | Panasonic Model: MFECA0050MKD
SWP-MFECA0100MKD Cable: Moving | Lead-Out: Opposite load side | Length: 10M | Panasonic Model: MFECA0100MKD
SWP-MFECA0150MKD Cable: Moving | Lead-Out: Opposite load side | Length: 15M
SWP-MFECA0200MKD Cable: Moving | Lead-Out: Opposite load side | Length: 20M | Panasonic Model: MFECA0200MKD
Encoder CablesSamwon ACT
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT SWP-MFECA-D Incremental Encoder Cable for Panasonic A6 MSMF/MHMF/MQMF, A5 MSME

Brand Samwon ACT·Encoder Cables

Available part numbers (20)

SWP-MFECA0030TJD, SWP-MFECA0050TJD, SWP-MFECA0100TJD, SWP-MFECA0150TJD, SWP-MFECA0200TJD, SWP-MFECA0030TKD, SWP-MFECA0050TKD, SWP-MFECA0100TKD, SWP-MFECA0150TKD, SWP-MFECA0200TKD + 10 more — see full table ↓
