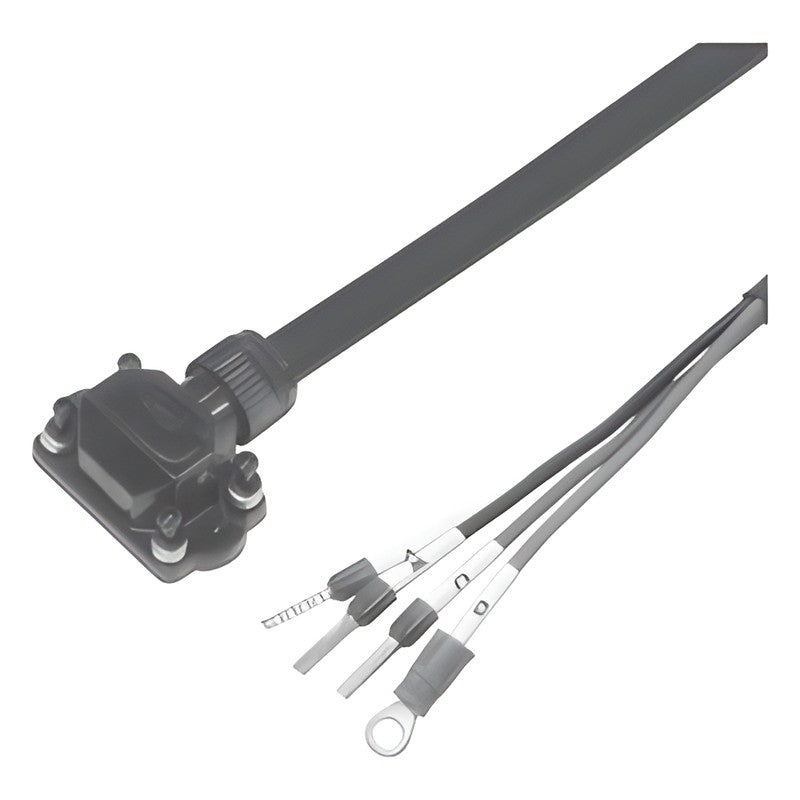

Samwon ACT SWP-MFMCA Power Cable for Panasonic MINAS A6 MSMF, A5 MSME

Samwon ACT SWP-MFMCA Power Cable for Panasonic MINAS A6 MSMF, A5 MSME

Power Cable for Panasonic MINAS A6 MSMF 50W~1.0kW and A5 MSME 50~750W connector-type servo motors.

Key features

  • Power Cables for Panasonic MINAS A6 MSMF 50W~1.0kW and A5 MSME 50~750W connector-type servo motors
  • Built to the recommended specifications in Panasonic user manuals and catalogs (some equivalent parts used)
  • Fixed, moving (flex-rated) and custom-specified cables can be made
  • Cable length can be specified freely; custom lengths in 100 mm steps
  • Small-quantity orders (from 1 piece) and short lead times

Specifications

Motor Connector JAE JN8FT04SJ1 or equivalent
Fixed Cable UL2464 PVC insulation cable
Moving Cable PROTERIAL (formerly Hitachi Metals) RT-FLEX UL2464, ETFE insulation cable
Max. Transmission Length 30M
Length Tolerance +50 to +100 mm
SWP-MFMCA0030RJD Cable: Fixed | Lead-Out: Load side | Length: 3M | Panasonic Model: MFMCA0030RJD
SWP-MFMCA0050RJD Cable: Fixed | Lead-Out: Load side | Length: 5M | Panasonic Model: MFMCA0050RJD
SWP-MFMCA0100RJD Cable: Fixed | Lead-Out: Load side | Length: 10M | Panasonic Model: MFMCA0100RJD
SWP-MFMCA0150RJD Cable: Fixed | Lead-Out: Load side | Length: 15M
SWP-MFMCA0200RJD Cable: Fixed | Lead-Out: Load side | Length: 20M | Panasonic Model: MFMCA0200RJD
SWP-MFMCA0030RKD Cable: Fixed | Lead-Out: Opposite load side | Length: 3M | Panasonic Model: MFMCA0030RKD
SWP-MFMCA0050RKD Cable: Fixed | Lead-Out: Opposite load side | Length: 5M | Panasonic Model: MFMCA0050RKD
SWP-MFMCA0100RKD Cable: Fixed | Lead-Out: Opposite load side | Length: 10M | Panasonic Model: MFMCA0100RKD
SWP-MFMCA0150RKD Cable: Fixed | Lead-Out: Opposite load side | Length: 15M
SWP-MFMCA0200RKD Cable: Fixed | Lead-Out: Opposite load side | Length: 20M | Panasonic Model: MFMCA0200RKD
SWP-MFMCA0030NJD Cable: Moving | Lead-Out: Load side | Length: 3M | Panasonic Model: MFMCA0030NJD
SWP-MFMCA0050NJD Cable: Moving | Lead-Out: Load side | Length: 5M | Panasonic Model: MFMCA0050NJD
SWP-MFMCA0100NJD Cable: Moving | Lead-Out: Load side | Length: 10M | Panasonic Model: MFMCA0100NJD
SWP-MFMCA0150NJD Cable: Moving | Lead-Out: Load side | Length: 15M
SWP-MFMCA0200NJD Cable: Moving | Lead-Out: Load side | Length: 20M | Panasonic Model: MFECA0200NJD
SWP-MFMCA0030NKD Cable: Moving | Lead-Out: Opposite load side | Length: 3M | Panasonic Model: MFMCA0030NKD
SWP-MFMCA0050NKD Cable: Moving | Lead-Out: Opposite load side | Length: 5M | Panasonic Model: MFMCA0050NKD
SWP-MFMCA0100NKD Cable: Moving | Lead-Out: Opposite load side | Length: 10M | Panasonic Model: MFMCA0100NKD
SWP-MFMCA0150NKD Cable: Moving | Lead-Out: Opposite load side | Length: 15M
SWP-MFMCA0200NKD Cable: Moving | Lead-Out: Opposite load side | Length: 20M | Panasonic Model: MFMCA0200NKD
Servo CablesSamwon ACT
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT SWP-MFMCA Power Cable for Panasonic MINAS A6 MSMF, A5 MSME

Brand Samwon ACT·Servo Cables

Available part numbers (20)

SWP-MFMCA0030RJD, SWP-MFMCA0050RJD, SWP-MFMCA0100RJD, SWP-MFMCA0150RJD, SWP-MFMCA0200RJD, SWP-MFMCA0030RKD, SWP-MFMCA0050RKD, SWP-MFMCA0100RKD, SWP-MFMCA0150RKD, SWP-MFMCA0200RKD + 10 more — see full table ↓

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SWP-MFMCA0030RJDCable: Fixed | Lead-Out: Load side | Length: 3M | Panasonic Model: MFMCA0030RJD
SWP-MFMCA0050RJDCable: Fixed | Lead-Out: Load side | Length: 5M | Panasonic Model: MFMCA0050RJD
SWP-MFMCA0100RJDCable: Fixed | Lead-Out: Load side | Length: 10M | Panasonic Model: MFMCA0100RJD
SWP-MFMCA0150RJDCable: Fixed | Lead-Out: Load side | Length: 15M
SWP-MFMCA0200RJDCable: Fixed | Lead-Out: Load side | Length: 20M | Panasonic Model: MFMCA0200RJD
SWP-MFMCA0030RKDCable: Fixed | Lead-Out: Opposite load side | Length: 3M | Panasonic Model: MFMCA0030RKD
SWP-MFMCA0050RKDCable: Fixed | Lead-Out: Opposite load side | Length: 5M | Panasonic Model: MFMCA0050RKD
SWP-MFMCA0100RKDCable: Fixed | Lead-Out: Opposite load side | Length: 10M | Panasonic Model: MFMCA0100RKD
SWP-MFMCA0150RKDCable: Fixed | Lead-Out: Opposite load side | Length: 15M
SWP-MFMCA0200RKDCable: Fixed | Lead-Out: Opposite load side | Length: 20M | Panasonic Model: MFMCA0200RKD
SWP-MFMCA0030NJDCable: Moving | Lead-Out: Load side | Length: 3M | Panasonic Model: MFMCA0030NJD
SWP-MFMCA0050NJDCable: Moving | Lead-Out: Load side | Length: 5M | Panasonic Model: MFMCA0050NJD
SWP-MFMCA0100NJDCable: Moving | Lead-Out: Load side | Length: 10M | Panasonic Model: MFMCA0100NJD
SWP-MFMCA0150NJDCable: Moving | Lead-Out: Load side | Length: 15M
SWP-MFMCA0200NJDCable: Moving | Lead-Out: Load side | Length: 20M | Panasonic Model: MFECA0200NJD
SWP-MFMCA0030NKDCable: Moving | Lead-Out: Opposite load side | Length: 3M | Panasonic Model: MFMCA0030NKD
SWP-MFMCA0050NKDCable: Moving | Lead-Out: Opposite load side | Length: 5M | Panasonic Model: MFMCA0050NKD
SWP-MFMCA0100NKDCable: Moving | Lead-Out: Opposite load side | Length: 10M | Panasonic Model: MFMCA0100NKD
SWP-MFMCA0150NKDCable: Moving | Lead-Out: Opposite load side | Length: 15M
SWP-MFMCA0200NKDCable: Moving | Lead-Out: Opposite load side | Length: 20M | Panasonic Model: MFMCA0200NKD
