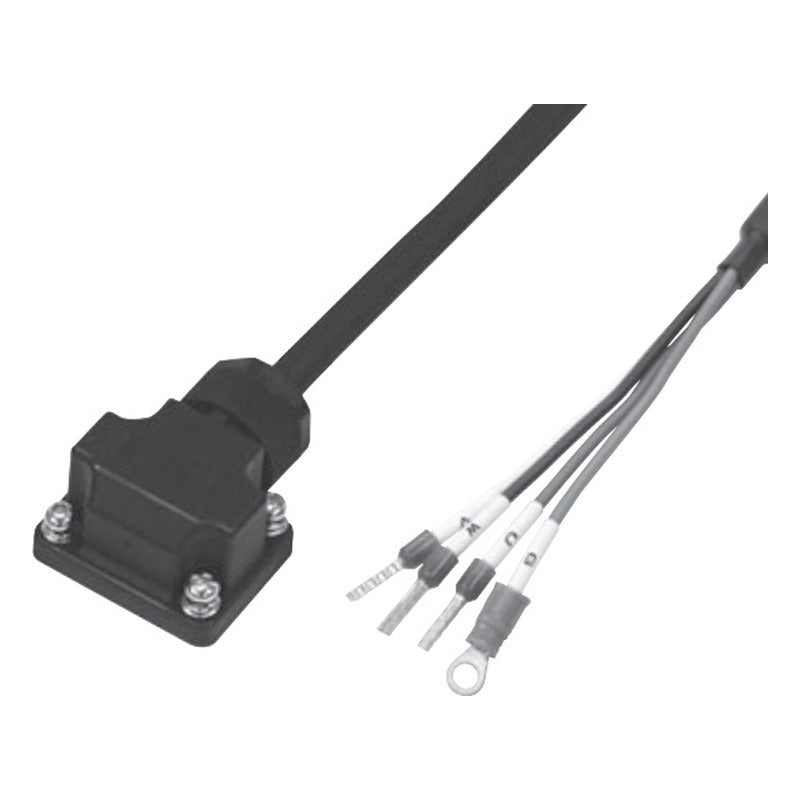

Samwon ACT SWP-MFMCA-UD Power Cable for Panasonic MINAS A6 MHMF 50W/100W

Samwon ACT SWP-MFMCA-UD Power Cable for Panasonic MINAS A6 MHMF 50W/100W

Power Cable for Panasonic MINAS A6 MHMF 50W and 100W servo motors.

Key features

  • Power Cables for Panasonic MINAS A6 MHMF 50W and 100W servo motors
  • Built to the recommended specifications in Panasonic user manuals and catalogs (some equivalent parts used)
  • Fixed, moving (flex-rated) and custom-specified cables can be made
  • Cable length can be specified freely; custom lengths in 100 mm steps
  • Small-quantity orders (from 1 piece) and short lead times

Specifications

Motor Connector JAE JN11FH06SN2 or equivalent
Fixed Cable UL2464 PVC insulation cable
Moving Cable PROTERIAL (formerly Hitachi Metals) RT-FLEX UL2464, ETFE insulation cable
Max. Transmission Length 30M
Length Tolerance +50 to +100 mm
SWP-MFMCA0037UFD-L Cable: Fixed | Lead-Out: Load side | Length: 3M
SWP-MFMCA0057UFD-L Cable: Fixed | Lead-Out: Load side | Length: 5M
SWP-MFMCA0107UFD-L Cable: Fixed | Lead-Out: Load side | Length: 10M
SWP-MFMCA0157UFD-L Cable: Fixed | Lead-Out: Load side | Length: 15M
SWP-MFMCA0207UFD-L Cable: Fixed | Lead-Out: Load side | Length: 20M
SWP-MFMCA0037UGD-L Cable: Fixed | Lead-Out: Opposite load side | Length: 3M
SWP-MFMCA0057UGD-L Cable: Fixed | Lead-Out: Opposite load side | Length: 5M
SWP-MFMCA0107UGD-L Cable: Fixed | Lead-Out: Opposite load side | Length: 10M
SWP-MFMCA0157UGD-L Cable: Fixed | Lead-Out: Opposite load side | Length: 15M
SWP-MFMCA0207UGD-L Cable: Fixed | Lead-Out: Opposite load side | Length: 20M
SWP-MFMCA0037UFD-H Cable: Moving | Lead-Out: Load side | Length: 3M | Panasonic Model: MFMCA0037UFD
SWP-MFMCA0057UFD-H Cable: Moving | Lead-Out: Load side | Length: 5M | Panasonic Model: MFMCA0057UFD
SWP-MFMCA0107UFD-H Cable: Moving | Lead-Out: Load side | Length: 10M | Panasonic Model: MFMCA0107UFD
SWP-MFMCA0157UFD-H Cable: Moving | Lead-Out: Load side | Length: 15M
SWP-MFMCA0207UFD-H Cable: Moving | Lead-Out: Load side | Length: 20M | Panasonic Model: MFMCA0207UFD
SWP-MFMCA0037UGD-H Cable: Moving | Lead-Out: Opposite load side | Length: 3M | Panasonic Model: MFMCA0037UGD
SWP-MFMCA0057UGD-H Cable: Moving | Lead-Out: Opposite load side | Length: 5M | Panasonic Model: MFMCA0057UGD
SWP-MFMCA0107UGD-H Cable: Moving | Lead-Out: Opposite load side | Length: 10M | Panasonic Model: MFMCA0107UGD
SWP-MFMCA0157UGD-H Cable: Moving | Lead-Out: Opposite load side | Length: 15M
SWP-MFMCA0207UGD-H Cable: Moving | Lead-Out: Opposite load side | Length: 20M | Panasonic Model: MFMCA0207UGD
Servo CablesSamwon ACT
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT SWP-MFMCA-UD Power Cable for Panasonic MINAS A6 MHMF 50W/100W

Brand Samwon ACT·Servo Cables

Available part numbers (20)

SWP-MFMCA0037UFD-L, SWP-MFMCA0057UFD-L, SWP-MFMCA0107UFD-L, SWP-MFMCA0157UFD-L, SWP-MFMCA0207UFD-L, SWP-MFMCA0037UGD-L, SWP-MFMCA0057UGD-L, SWP-MFMCA0107UGD-L, SWP-MFMCA0157UGD-L, SWP-MFMCA0207UGD-L + 10 more — see full table ↓

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SWP-MFMCA0037UFD-LCable: Fixed | Lead-Out: Load side | Length: 3M
SWP-MFMCA0057UFD-LCable: Fixed | Lead-Out: Load side | Length: 5M
SWP-MFMCA0107UFD-LCable: Fixed | Lead-Out: Load side | Length: 10M
SWP-MFMCA0157UFD-LCable: Fixed | Lead-Out: Load side | Length: 15M
SWP-MFMCA0207UFD-LCable: Fixed | Lead-Out: Load side | Length: 20M
SWP-MFMCA0037UGD-LCable: Fixed | Lead-Out: Opposite load side | Length: 3M
SWP-MFMCA0057UGD-LCable: Fixed | Lead-Out: Opposite load side | Length: 5M
SWP-MFMCA0107UGD-LCable: Fixed | Lead-Out: Opposite load side | Length: 10M
SWP-MFMCA0157UGD-LCable: Fixed | Lead-Out: Opposite load side | Length: 15M
SWP-MFMCA0207UGD-LCable: Fixed | Lead-Out: Opposite load side | Length: 20M
SWP-MFMCA0037UFD-HCable: Moving | Lead-Out: Load side | Length: 3M | Panasonic Model: MFMCA0037UFD
SWP-MFMCA0057UFD-HCable: Moving | Lead-Out: Load side | Length: 5M | Panasonic Model: MFMCA0057UFD
SWP-MFMCA0107UFD-HCable: Moving | Lead-Out: Load side | Length: 10M | Panasonic Model: MFMCA0107UFD
SWP-MFMCA0157UFD-HCable: Moving | Lead-Out: Load side | Length: 15M
SWP-MFMCA0207UFD-HCable: Moving | Lead-Out: Load side | Length: 20M | Panasonic Model: MFMCA0207UFD
SWP-MFMCA0037UGD-HCable: Moving | Lead-Out: Opposite load side | Length: 3M | Panasonic Model: MFMCA0037UGD
SWP-MFMCA0057UGD-HCable: Moving | Lead-Out: Opposite load side | Length: 5M | Panasonic Model: MFMCA0057UGD
SWP-MFMCA0107UGD-HCable: Moving | Lead-Out: Opposite load side | Length: 10M | Panasonic Model: MFMCA0107UGD
SWP-MFMCA0157UGD-HCable: Moving | Lead-Out: Opposite load side | Length: 15M
SWP-MFMCA0207UGD-HCable: Moving | Lead-Out: Opposite load side | Length: 20M | Panasonic Model: MFMCA0207UGD
