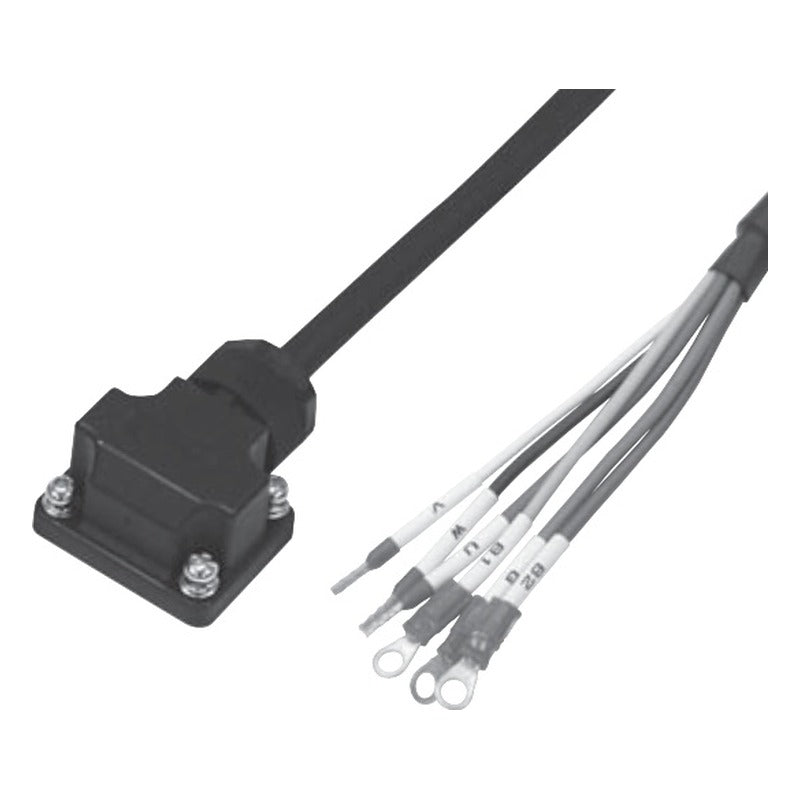

Samwon ACT SWP-MFMCA-VD Power + Brake Cable for Panasonic MINAS A6 MHMF 50W/100W

Samwon ACT SWP-MFMCA-VD Power + Brake Cable for Panasonic MINAS A6 MHMF 50W/100W

Power + Brake Cable for Panasonic MINAS A6 MHMF 50W and 100W servo motors.

Key features

  • Power + Brake Cables for Panasonic MINAS A6 MHMF 50W and 100W servo motors
  • Built to the recommended specifications in Panasonic user manuals and catalogs (some equivalent parts used)
  • Fixed, moving (flex-rated) and custom-specified cables can be made
  • Cable length can be specified freely; custom lengths in 100 mm steps
  • Small-quantity orders (from 1 piece) and short lead times

Specifications

Motor Connector JAE JN11FH06SN2 or equivalent
Fixed Cable UL2464 PVC insulation cable
Moving Cable PROTERIAL (formerly Hitachi Metals) RT-FLEX UL2464, ETFE insulation cable
Max. Transmission Length 30M
Length Tolerance +50 to +100 mm
SWP-MFMCA0037VFD-L Cable: Fixed | Lead-Out: Load side | Length: 3M
SWP-MFMCA0057VFD-L Cable: Fixed | Lead-Out: Load side | Length: 5M
SWP-MFMCA0107VFD-L Cable: Fixed | Lead-Out: Load side | Length: 10M
SWP-MFMCA0157VFD-L Cable: Fixed | Lead-Out: Load side | Length: 15M
SWP-MFMCA0207VFD-L Cable: Fixed | Lead-Out: Load side | Length: 20M
SWP-MFMCA0037VGD-L Cable: Fixed | Lead-Out: Opposite load side | Length: 3M
SWP-MFMCA0057VGD-L Cable: Fixed | Lead-Out: Opposite load side | Length: 5M
SWP-MFMCA0107VGD-L Cable: Fixed | Lead-Out: Opposite load side | Length: 10M
SWP-MFMCA0157VGD-L Cable: Fixed | Lead-Out: Opposite load side | Length: 15M
SWP-MFMCA0207VGD-L Cable: Fixed | Lead-Out: Opposite load side | Length: 20M
SWP-MFMCA0037VFD-H Cable: Moving | Lead-Out: Load side | Length: 3M | Panasonic Model: MFMCA0037VFD
SWP-MFMCA0057VFD-H Cable: Moving | Lead-Out: Load side | Length: 5M | Panasonic Model: MFMCA0057VFD
SWP-MFMCA0107VFD-H Cable: Moving | Lead-Out: Load side | Length: 10M | Panasonic Model: MFMCA0107VFD
SWP-MFMCA0157VFD-H Cable: Moving | Lead-Out: Load side | Length: 15M
SWP-MFMCA0207VFD-H Cable: Moving | Lead-Out: Load side | Length: 20M | Panasonic Model: MFMCA0207VFD
SWP-MFMCA0037VGD-H Cable: Moving | Lead-Out: Opposite load side | Length: 3M | Panasonic Model: MFMCA0037VGD
SWP-MFMCA0057VGD-H Cable: Moving | Lead-Out: Opposite load side | Length: 5M | Panasonic Model: MFMCA0057VGD
SWP-MFMCA0107VGD-H Cable: Moving | Lead-Out: Opposite load side | Length: 10M | Panasonic Model: MFMCA0107VGD
SWP-MFMCA0157VGD-H Cable: Moving | Lead-Out: Opposite load side | Length: 15M
SWP-MFMCA0207VGD-H Cable: Moving | Lead-Out: Opposite load side | Length: 20M | Panasonic Model: MFMCA0207VGD
Servo CablesSamwon ACT
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT SWP-MFMCA-VD Power + Brake Cable for Panasonic MINAS A6 MHMF 50W/100W

Brand Samwon ACT·Servo Cables

Available part numbers (20)

SWP-MFMCA0037VFD-L, SWP-MFMCA0057VFD-L, SWP-MFMCA0107VFD-L, SWP-MFMCA0157VFD-L, SWP-MFMCA0207VFD-L, SWP-MFMCA0037VGD-L, SWP-MFMCA0057VGD-L, SWP-MFMCA0107VGD-L, SWP-MFMCA0157VGD-L, SWP-MFMCA0207VGD-L + 10 more — see full table ↓

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SWP-MFMCA0037VFD-LCable: Fixed | Lead-Out: Load side | Length: 3M
SWP-MFMCA0057VFD-LCable: Fixed | Lead-Out: Load side | Length: 5M
SWP-MFMCA0107VFD-LCable: Fixed | Lead-Out: Load side | Length: 10M
SWP-MFMCA0157VFD-LCable: Fixed | Lead-Out: Load side | Length: 15M
SWP-MFMCA0207VFD-LCable: Fixed | Lead-Out: Load side | Length: 20M
SWP-MFMCA0037VGD-LCable: Fixed | Lead-Out: Opposite load side | Length: 3M
SWP-MFMCA0057VGD-LCable: Fixed | Lead-Out: Opposite load side | Length: 5M
SWP-MFMCA0107VGD-LCable: Fixed | Lead-Out: Opposite load side | Length: 10M
SWP-MFMCA0157VGD-LCable: Fixed | Lead-Out: Opposite load side | Length: 15M
SWP-MFMCA0207VGD-LCable: Fixed | Lead-Out: Opposite load side | Length: 20M
SWP-MFMCA0037VFD-HCable: Moving | Lead-Out: Load side | Length: 3M | Panasonic Model: MFMCA0037VFD
SWP-MFMCA0057VFD-HCable: Moving | Lead-Out: Load side | Length: 5M | Panasonic Model: MFMCA0057VFD
SWP-MFMCA0107VFD-HCable: Moving | Lead-Out: Load side | Length: 10M | Panasonic Model: MFMCA0107VFD
SWP-MFMCA0157VFD-HCable: Moving | Lead-Out: Load side | Length: 15M
SWP-MFMCA0207VFD-HCable: Moving | Lead-Out: Load side | Length: 20M | Panasonic Model: MFMCA0207VFD
SWP-MFMCA0037VGD-HCable: Moving | Lead-Out: Opposite load side | Length: 3M | Panasonic Model: MFMCA0037VGD
SWP-MFMCA0057VGD-HCable: Moving | Lead-Out: Opposite load side | Length: 5M | Panasonic Model: MFMCA0057VGD
SWP-MFMCA0107VGD-HCable: Moving | Lead-Out: Opposite load side | Length: 10M | Panasonic Model: MFMCA0107VGD
SWP-MFMCA0157VGD-HCable: Moving | Lead-Out: Opposite load side | Length: 15M
SWP-MFMCA0207VGD-HCable: Moving | Lead-Out: Opposite load side | Length: 20M | Panasonic Model: MFMCA0207VGD

Need a different model, or a part not listed here? Send us your parts list →
