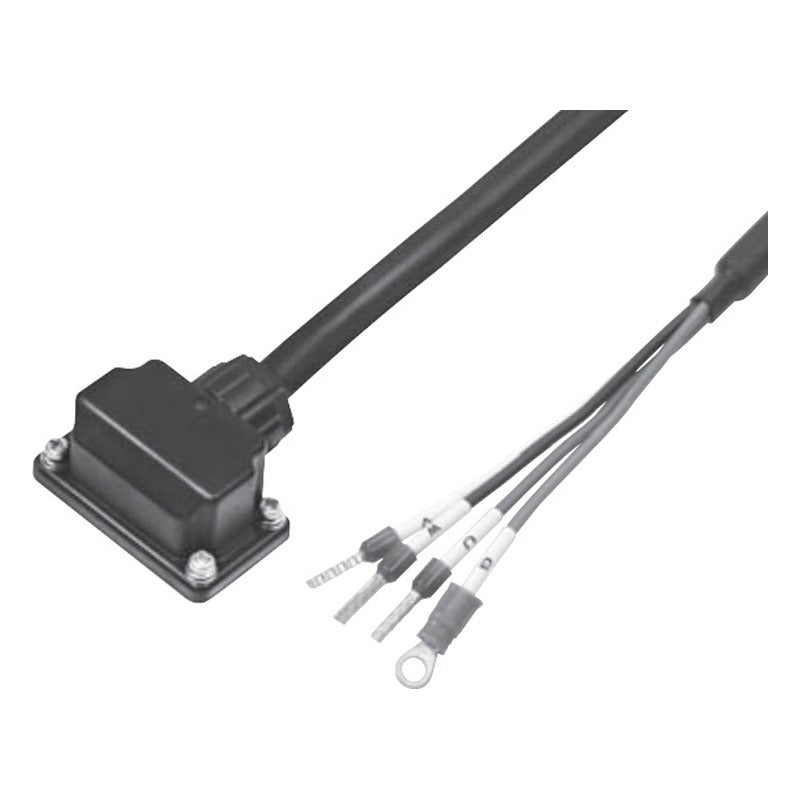

Samwon ACT SWP-MFMCA-WD/UD Power Cable for Panasonic A6 MQMF/MHMF 0.1~1.0kW

Samwon ACT SWP-MFMCA-WD/UD Power Cable for Panasonic A6 MQMF/MHMF 0.1~1.0kW

Power Cable for Panasonic MINAS A6 MQMF 100~400W and MHMF 200W~1.0kW connector-type servo motors.

Key features

  • Power Cables for Panasonic MINAS A6 MQMF 100~400W and MHMF 200W~1.0kW connector-type servo motors
  • Built to the recommended specifications in Panasonic user manuals and catalogs (some equivalent parts used)
  • Fixed, moving (flex-rated) and custom-specified cables can be made
  • Cable length can be specified freely; custom lengths in 100 mm steps
  • Small-quantity orders (from 1 piece) and short lead times

Specifications

Motor Connector JAE JN11FH06SN1 or equivalent
Fixed Cable UL2464 PVC insulation cable
Moving Cable PROTERIAL (formerly Hitachi Metals) RT-FLEX UL2464, ETFE insulation cable
Max. Transmission Length 30M
Length Tolerance +50 to +100 mm
SWP-MFMCA0030WFD Cable: Fixed | Lead-Out: Load side | Length: 3M | Panasonic Model: MFMCA0030WFD
SWP-MFMCA0050WFD Cable: Fixed | Lead-Out: Load side | Length: 5M | Panasonic Model: MFMCA0050WFD
SWP-MFMCA0100WFD Cable: Fixed | Lead-Out: Load side | Length: 10M | Panasonic Model: MFMCA0100WFD
SWP-MFMCA0150WFD Cable: Fixed | Lead-Out: Load side | Length: 15M
SWP-MFMCA0200WFD Cable: Fixed | Lead-Out: Load side | Length: 20M | Panasonic Model: MFMCA0200WFD
SWP-MFMCA0030WGD Cable: Fixed | Lead-Out: Opposite load side | Length: 3M | Panasonic Model: MFMCA0030WGD
SWP-MFMCA0050WGD Cable: Fixed | Lead-Out: Opposite load side | Length: 5M | Panasonic Model: MFMCA0050WGD
SWP-MFMCA0100WGD Cable: Fixed | Lead-Out: Opposite load side | Length: 10M | Panasonic Model: MFMCA0100WGD
SWP-MFMCA0150WGD Cable: Fixed | Lead-Out: Opposite load side | Length: 15M
SWP-MFMCA0200WGD Cable: Fixed | Lead-Out: Opposite load side | Length: 20M | Panasonic Model: MFMCA0200WGD
SWP-MFMCA0030UFD Cable: Moving | Lead-Out: Load side | Length: 3M | Panasonic Model: MFMCA0030UFD
SWP-MFMCA0050UFD Cable: Moving | Lead-Out: Load side | Length: 5M | Panasonic Model: MFMCA0050UFD
SWP-MFMCA0100UFD Cable: Moving | Lead-Out: Load side | Length: 10M | Panasonic Model: MFMCA0100UFD
SWP-MFMCA0150UFD Cable: Moving | Lead-Out: Load side | Length: 15M
SWP-MFMCA0200UFD Cable: Moving | Lead-Out: Load side | Length: 20M | Panasonic Model: MFMCA0200UFD
SWP-MFMCA0030UGD Cable: Moving | Lead-Out: Opposite load side | Length: 3M | Panasonic Model: MFMCA0030UGD
SWP-MFMCA0050UGD Cable: Moving | Lead-Out: Opposite load side | Length: 5M | Panasonic Model: MFMCA0050UGD
SWP-MFMCA0100UGD Cable: Moving | Lead-Out: Opposite load side | Length: 10M | Panasonic Model: MFMCA0100UGD
SWP-MFMCA0150UGD Cable: Moving | Lead-Out: Opposite load side | Length: 15M
SWP-MFMCA0200UGD Cable: Moving | Lead-Out: Opposite load side | Length: 20M | Panasonic Model: MFMCA0200UGD
Servo CablesSamwon ACT
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT SWP-MFMCA-WD/UD Power Cable for Panasonic A6 MQMF/MHMF 0.1~1.0kW

Brand Samwon ACT·Servo Cables

Available part numbers (20)

SWP-MFMCA0030WFD, SWP-MFMCA0050WFD, SWP-MFMCA0100WFD, SWP-MFMCA0150WFD, SWP-MFMCA0200WFD, SWP-MFMCA0030WGD, SWP-MFMCA0050WGD, SWP-MFMCA0100WGD, SWP-MFMCA0150WGD, SWP-MFMCA0200WGD + 10 more — see full table ↓

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SWP-MFMCA0030WFDCable: Fixed | Lead-Out: Load side | Length: 3M | Panasonic Model: MFMCA0030WFD
SWP-MFMCA0050WFDCable: Fixed | Lead-Out: Load side | Length: 5M | Panasonic Model: MFMCA0050WFD
SWP-MFMCA0100WFDCable: Fixed | Lead-Out: Load side | Length: 10M | Panasonic Model: MFMCA0100WFD
SWP-MFMCA0150WFDCable: Fixed | Lead-Out: Load side | Length: 15M
SWP-MFMCA0200WFDCable: Fixed | Lead-Out: Load side | Length: 20M | Panasonic Model: MFMCA0200WFD
SWP-MFMCA0030WGDCable: Fixed | Lead-Out: Opposite load side | Length: 3M | Panasonic Model: MFMCA0030WGD
SWP-MFMCA0050WGDCable: Fixed | Lead-Out: Opposite load side | Length: 5M | Panasonic Model: MFMCA0050WGD
SWP-MFMCA0100WGDCable: Fixed | Lead-Out: Opposite load side | Length: 10M | Panasonic Model: MFMCA0100WGD
SWP-MFMCA0150WGDCable: Fixed | Lead-Out: Opposite load side | Length: 15M
SWP-MFMCA0200WGDCable: Fixed | Lead-Out: Opposite load side | Length: 20M | Panasonic Model: MFMCA0200WGD
SWP-MFMCA0030UFDCable: Moving | Lead-Out: Load side | Length: 3M | Panasonic Model: MFMCA0030UFD
SWP-MFMCA0050UFDCable: Moving | Lead-Out: Load side | Length: 5M | Panasonic Model: MFMCA0050UFD
SWP-MFMCA0100UFDCable: Moving | Lead-Out: Load side | Length: 10M | Panasonic Model: MFMCA0100UFD
SWP-MFMCA0150UFDCable: Moving | Lead-Out: Load side | Length: 15M
SWP-MFMCA0200UFDCable: Moving | Lead-Out: Load side | Length: 20M | Panasonic Model: MFMCA0200UFD
SWP-MFMCA0030UGDCable: Moving | Lead-Out: Opposite load side | Length: 3M | Panasonic Model: MFMCA0030UGD
SWP-MFMCA0050UGDCable: Moving | Lead-Out: Opposite load side | Length: 5M | Panasonic Model: MFMCA0050UGD
SWP-MFMCA0100UGDCable: Moving | Lead-Out: Opposite load side | Length: 10M | Panasonic Model: MFMCA0100UGD
SWP-MFMCA0150UGDCable: Moving | Lead-Out: Opposite load side | Length: 15M
SWP-MFMCA0200UGDCable: Moving | Lead-Out: Opposite load side | Length: 20M | Panasonic Model: MFMCA0200UGD
