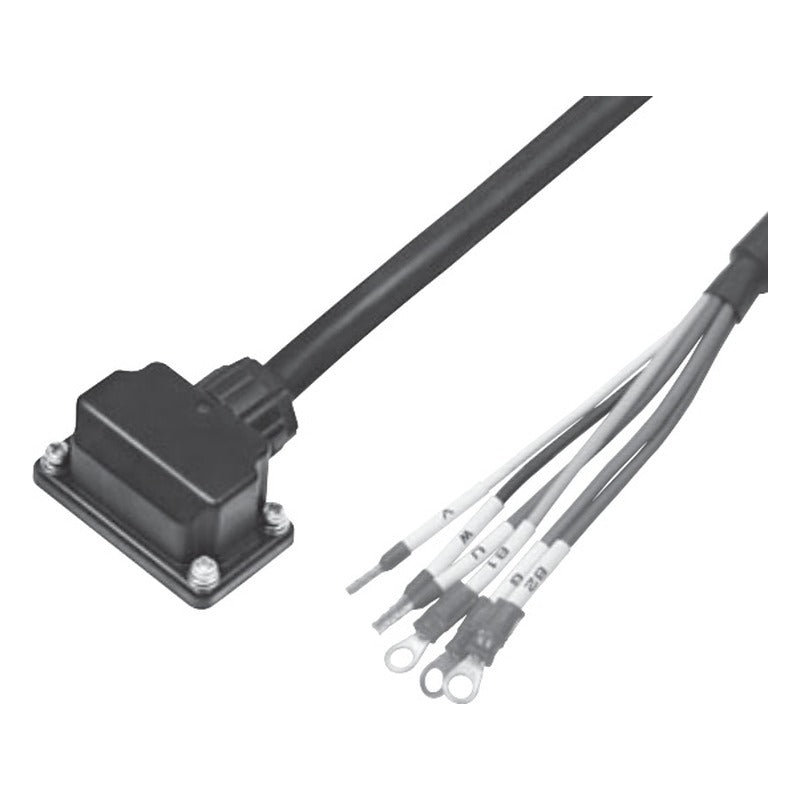

Samwon ACT SWP-MFMCA-XD/VD Power + Brake Cable for Panasonic A6 MQMF/MHMF 0.1~1.0kW

Samwon ACT SWP-MFMCA-XD/VD Power + Brake Cable for Panasonic A6 MQMF/MHMF 0.1~1.0kW

Power + Brake Cable for Panasonic MINAS A6 MQMF 100~400W and MHMF 200W~1.0kW connector-type servo motors.

Key features

  • Power + Brake Cables for Panasonic MINAS A6 MQMF 100~400W and MHMF 200W~1.0kW connector-type servo motors
  • Built to the recommended specifications in Panasonic user manuals and catalogs (some equivalent parts used)
  • Fixed, moving (flex-rated) and custom-specified cables can be made
  • Cable length can be specified freely; custom lengths in 100 mm steps
  • Small-quantity orders (from 1 piece) and short lead times

Specifications

Motor Connector JAE JN11FH06SN1 or equivalent
Fixed Cable UL2464 PVC insulation cable
Moving Cable PROTERIAL (formerly Hitachi Metals) RT-FLEX UL2464, ETFE insulation cable
Max. Transmission Length 50M
Length Tolerance +50 to +100 mm
SWP-MFMCA0030XFD Cable: Fixed | Lead-Out: Load side | Length: 3M | Panasonic Model: MFMCA0030XFD
SWP-MFMCA0050XFD Cable: Fixed | Lead-Out: Load side | Length: 5M | Panasonic Model: MFMCA0050XFD
SWP-MFMCA0100XFD Cable: Fixed | Lead-Out: Load side | Length: 10M | Panasonic Model: MFMCA0100XFD
SWP-MFMCA0150XFD Cable: Fixed | Lead-Out: Load side | Length: 15M
SWP-MFMCA0200XFD Cable: Fixed | Lead-Out: Load side | Length: 20M | Panasonic Model: MFMCA0200XFD
SWP-MFMCA0030XGD Cable: Fixed | Lead-Out: Opposite load side | Length: 3M | Panasonic Model: MFMCA0030XGD
SWP-MFMCA0050XGD Cable: Fixed | Lead-Out: Opposite load side | Length: 5M | Panasonic Model: MFMCA0050XGD
SWP-MFMCA0100XGD Cable: Fixed | Lead-Out: Opposite load side | Length: 10M | Panasonic Model: MFMCA0100XGD
SWP-MFMCA0150XGD Cable: Fixed | Lead-Out: Opposite load side | Length: 15M
SWP-MFMCA0200XGD Cable: Fixed | Lead-Out: Opposite load side | Length: 20M | Panasonic Model: MFMCA0200XGD
SWP-MFMCA0030VFD Cable: Moving | Lead-Out: Load side | Length: 3M | Panasonic Model: MFMCA0030VFD
SWP-MFMCA0050VFD Cable: Moving | Lead-Out: Load side | Length: 5M | Panasonic Model: MFMCA0050VFD
SWP-MFMCA0100VFD Cable: Moving | Lead-Out: Load side | Length: 10M | Panasonic Model: MFMCA0100VFD
SWP-MFMCA0150VFD Cable: Moving | Lead-Out: Load side | Length: 15M
SWP-MFMCA0200VFD Cable: Moving | Lead-Out: Load side | Length: 20M | Panasonic Model: MFMCA0200VFD
SWP-MFMCA0030VGD Cable: Moving | Lead-Out: Opposite load side | Length: 3M | Panasonic Model: MFMCA0030VGD
SWP-MFMCA0050VGD Cable: Moving | Lead-Out: Opposite load side | Length: 5M | Panasonic Model: MFMCA0050VGD
SWP-MFMCA0100VGD Cable: Moving | Lead-Out: Opposite load side | Length: 10M | Panasonic Model: MFMCA0100VGD
SWP-MFMCA0150VGD Cable: Moving | Lead-Out: Opposite load side | Length: 15M
SWP-MFMCA0200VGD Cable: Moving | Lead-Out: Opposite load side | Length: 20M | Panasonic Model: MFMCA0200VGD
Servo CablesSamwon ACT
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT SWP-MFMCA-XD/VD Power + Brake Cable for Panasonic A6 MQMF/MHMF 0.1~1.0kW

Brand Samwon ACT·Servo Cables

Available part numbers (20)

SWP-MFMCA0030XFD, SWP-MFMCA0050XFD, SWP-MFMCA0100XFD, SWP-MFMCA0150XFD, SWP-MFMCA0200XFD, SWP-MFMCA0030XGD, SWP-MFMCA0050XGD, SWP-MFMCA0100XGD, SWP-MFMCA0150XGD, SWP-MFMCA0200XGD + 10 more — see full table ↓

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SWP-MFMCA0030XFDCable: Fixed | Lead-Out: Load side | Length: 3M | Panasonic Model: MFMCA0030XFD
SWP-MFMCA0050XFDCable: Fixed | Lead-Out: Load side | Length: 5M | Panasonic Model: MFMCA0050XFD
SWP-MFMCA0100XFDCable: Fixed | Lead-Out: Load side | Length: 10M | Panasonic Model: MFMCA0100XFD
SWP-MFMCA0150XFDCable: Fixed | Lead-Out: Load side | Length: 15M
SWP-MFMCA0200XFDCable: Fixed | Lead-Out: Load side | Length: 20M | Panasonic Model: MFMCA0200XFD
SWP-MFMCA0030XGDCable: Fixed | Lead-Out: Opposite load side | Length: 3M | Panasonic Model: MFMCA0030XGD
SWP-MFMCA0050XGDCable: Fixed | Lead-Out: Opposite load side | Length: 5M | Panasonic Model: MFMCA0050XGD
SWP-MFMCA0100XGDCable: Fixed | Lead-Out: Opposite load side | Length: 10M | Panasonic Model: MFMCA0100XGD
SWP-MFMCA0150XGDCable: Fixed | Lead-Out: Opposite load side | Length: 15M
SWP-MFMCA0200XGDCable: Fixed | Lead-Out: Opposite load side | Length: 20M | Panasonic Model: MFMCA0200XGD
SWP-MFMCA0030VFDCable: Moving | Lead-Out: Load side | Length: 3M | Panasonic Model: MFMCA0030VFD
SWP-MFMCA0050VFDCable: Moving | Lead-Out: Load side | Length: 5M | Panasonic Model: MFMCA0050VFD
SWP-MFMCA0100VFDCable: Moving | Lead-Out: Load side | Length: 10M | Panasonic Model: MFMCA0100VFD
SWP-MFMCA0150VFDCable: Moving | Lead-Out: Load side | Length: 15M
SWP-MFMCA0200VFDCable: Moving | Lead-Out: Load side | Length: 20M | Panasonic Model: MFMCA0200VFD
SWP-MFMCA0030VGDCable: Moving | Lead-Out: Opposite load side | Length: 3M | Panasonic Model: MFMCA0030VGD
SWP-MFMCA0050VGDCable: Moving | Lead-Out: Opposite load side | Length: 5M | Panasonic Model: MFMCA0050VGD
SWP-MFMCA0100VGDCable: Moving | Lead-Out: Opposite load side | Length: 10M | Panasonic Model: MFMCA0100VGD
SWP-MFMCA0150VGDCable: Moving | Lead-Out: Opposite load side | Length: 15M
SWP-MFMCA0200VGDCable: Moving | Lead-Out: Opposite load side | Length: 20M | Panasonic Model: MFMCA0200VGD
