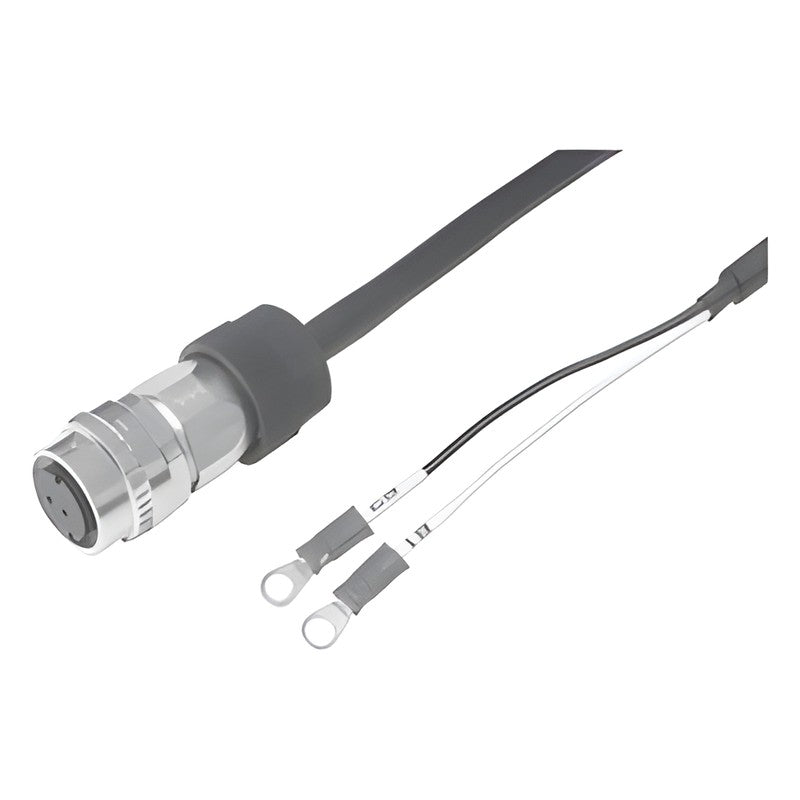

Samwon ACT SWY-BKCNS1 Brake Cable for Yaskawa Sigma-X SGMXA-15A~70A/SGMXG-09A~1EA

Samwon ACT SWY-BKCNS1 Brake Cable for Yaskawa Sigma-X SGMXA-15A~70A/SGMXG-09A~1EA

Separate brake cable for Yaskawa Sigma-X SGMXA-15A~70A and SGMXG-09A~1EA rotary servo motors, with straight or space-saving elbow motor connector.

Key features

  • Brake cables for Yaskawa Sigma-X SGMXA-15A~70A and SGMXG-09A~1EA, to be used together with the power cable
  • Built to the recommended specifications in Yaskawa user manuals and catalogs (some equivalent parts used)
  • Fixed, moving (flex-rated) and custom-specified cables can be made
  • Cable length can be specified freely; custom lengths in 100 mm steps
  • Small-quantity orders (from 1 piece) and short lead times

Specifications

Motor Connector Straight DDK CM10-SP2S-M / elbow DDK CM10-AP2S-M or equivalent
Fixed Cable UL2464 PVC insulation cable
Moving Cable PROTERIAL RT-FLEX UL2464, ETFE insulation cable
Max. Transmission Length 50M
Length Tolerance +50 to +100 mm
SWY-BKCNS1-03L Connector: Straight (standard) | Cable: Fixed | Length: 3M
SWY-BKCNS1A-03L Connector: Space-saving elbow | Cable: Fixed | Length: 3M
SWY-BKCNS1-05L Connector: Straight (standard) | Cable: Fixed | Length: 5M
SWY-BKCNS1A-05L Connector: Space-saving elbow | Cable: Fixed | Length: 5M
SWY-BKCNS1-10L Connector: Straight (standard) | Cable: Fixed | Length: 10M
SWY-BKCNS1A-10L Connector: Space-saving elbow | Cable: Fixed | Length: 10M
SWY-BKCNS1-15L Connector: Straight (standard) | Cable: Fixed | Length: 15M
SWY-BKCNS1A-15L Connector: Space-saving elbow | Cable: Fixed | Length: 15M
SWY-BKCNS1-20L Connector: Straight (standard) | Cable: Fixed | Length: 20M
SWY-BKCNS1A-20L Connector: Space-saving elbow | Cable: Fixed | Length: 20M
SWY-BKCNS1-30L Connector: Straight (standard) | Cable: Fixed | Length: 30M
SWY-BKCNS1A-30L Connector: Space-saving elbow | Cable: Fixed | Length: 30M
SWY-BKCNS1-40L Connector: Straight (standard) | Cable: Fixed | Length: 40M
SWY-BKCNS1A-40L Connector: Space-saving elbow | Cable: Fixed | Length: 40M
SWY-BKCNS1-50L Connector: Straight (standard) | Cable: Fixed | Length: 50M
SWY-BKCNS1A-50L Connector: Space-saving elbow | Cable: Fixed | Length: 50M
SWY-BKCNS1-03H Connector: Straight (standard) | Cable: Moving | Length: 3M
SWY-BKCNS1A-03H Connector: Space-saving elbow | Cable: Moving | Length: 3M
SWY-BKCNS1-05H Connector: Straight (standard) | Cable: Moving | Length: 5M
SWY-BKCNS1A-05H Connector: Space-saving elbow | Cable: Moving | Length: 5M
SWY-BKCNS1-10H Connector: Straight (standard) | Cable: Moving | Length: 10M
SWY-BKCNS1A-10H Connector: Space-saving elbow | Cable: Moving | Length: 10M
SWY-BKCNS1-15H Connector: Straight (standard) | Cable: Moving | Length: 15M
SWY-BKCNS1A-15H Connector: Space-saving elbow | Cable: Moving | Length: 15M
SWY-BKCNS1-20H Connector: Straight (standard) | Cable: Moving | Length: 20M
SWY-BKCNS1A-20H Connector: Space-saving elbow | Cable: Moving | Length: 20M
SWY-BKCNS1-30H Connector: Straight (standard) | Cable: Moving | Length: 30M
SWY-BKCNS1A-30H Connector: Space-saving elbow | Cable: Moving | Length: 30M
SWY-BKCNS1-40H Connector: Straight (standard) | Cable: Moving | Length: 40M
SWY-BKCNS1A-40H Connector: Space-saving elbow | Cable: Moving | Length: 40M
SWY-BKCNS1-50H Connector: Straight (standard) | Cable: Moving | Length: 50M
SWY-BKCNS1A-50H Connector: Space-saving elbow | Cable: Moving | Length: 50M
Servo CablesSamwon ACT
32 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT SWY-BKCNS1 Brake Cable for Yaskawa Sigma-X SGMXA-15A~70A/SGMXG-09A~1EA

Brand Samwon ACT·Servo Cables

Available part numbers (32)

SWY-BKCNS1-03L, SWY-BKCNS1A-03L, SWY-BKCNS1-05L, SWY-BKCNS1A-05L, SWY-BKCNS1-10L, SWY-BKCNS1A-10L, SWY-BKCNS1-15L, SWY-BKCNS1A-15L, SWY-BKCNS1-20L, SWY-BKCNS1A-20L + 22 more — see full table ↓

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SWY-BKCNS1-03LConnector: Straight (standard) | Cable: Fixed | Length: 3M
SWY-BKCNS1A-03LConnector: Space-saving elbow | Cable: Fixed | Length: 3M
SWY-BKCNS1-05LConnector: Straight (standard) | Cable: Fixed | Length: 5M
SWY-BKCNS1A-05LConnector: Space-saving elbow | Cable: Fixed | Length: 5M
SWY-BKCNS1-10LConnector: Straight (standard) | Cable: Fixed | Length: 10M
SWY-BKCNS1A-10LConnector: Space-saving elbow | Cable: Fixed | Length: 10M
SWY-BKCNS1-15LConnector: Straight (standard) | Cable: Fixed | Length: 15M
SWY-BKCNS1A-15LConnector: Space-saving elbow | Cable: Fixed | Length: 15M
SWY-BKCNS1-20LConnector: Straight (standard) | Cable: Fixed | Length: 20M
SWY-BKCNS1A-20LConnector: Space-saving elbow | Cable: Fixed | Length: 20M
SWY-BKCNS1-30LConnector: Straight (standard) | Cable: Fixed | Length: 30M
SWY-BKCNS1A-30LConnector: Space-saving elbow | Cable: Fixed | Length: 30M
SWY-BKCNS1-40LConnector: Straight (standard) | Cable: Fixed | Length: 40M
SWY-BKCNS1A-40LConnector: Space-saving elbow | Cable: Fixed | Length: 40M
SWY-BKCNS1-50LConnector: Straight (standard) | Cable: Fixed | Length: 50M
SWY-BKCNS1A-50LConnector: Space-saving elbow | Cable: Fixed | Length: 50M
SWY-BKCNS1-03HConnector: Straight (standard) | Cable: Moving | Length: 3M
SWY-BKCNS1A-03HConnector: Space-saving elbow | Cable: Moving | Length: 3M
SWY-BKCNS1-05HConnector: Straight (standard) | Cable: Moving | Length: 5M
SWY-BKCNS1A-05HConnector: Space-saving elbow | Cable: Moving | Length: 5M
SWY-BKCNS1-10HConnector: Straight (standard) | Cable: Moving | Length: 10M
SWY-BKCNS1A-10HConnector: Space-saving elbow | Cable: Moving | Length: 10M
SWY-BKCNS1-15HConnector: Straight (standard) | Cable: Moving | Length: 15M
SWY-BKCNS1A-15HConnector: Space-saving elbow | Cable: Moving | Length: 15M
SWY-BKCNS1-20HConnector: Straight (standard) | Cable: Moving | Length: 20M
SWY-BKCNS1A-20HConnector: Space-saving elbow | Cable: Moving | Length: 20M
SWY-BKCNS1-30HConnector: Straight (standard) | Cable: Moving | Length: 30M
SWY-BKCNS1A-30HConnector: Space-saving elbow | Cable: Moving | Length: 30M
SWY-BKCNS1-40HConnector: Straight (standard) | Cable: Moving | Length: 40M
SWY-BKCNS1A-40HConnector: Space-saving elbow | Cable: Moving | Length: 40M
SWY-BKCNS1-50HConnector: Straight (standard) | Cable: Moving | Length: 50M
SWY-BKCNS1A-50HConnector: Space-saving elbow | Cable: Moving | Length: 50M
