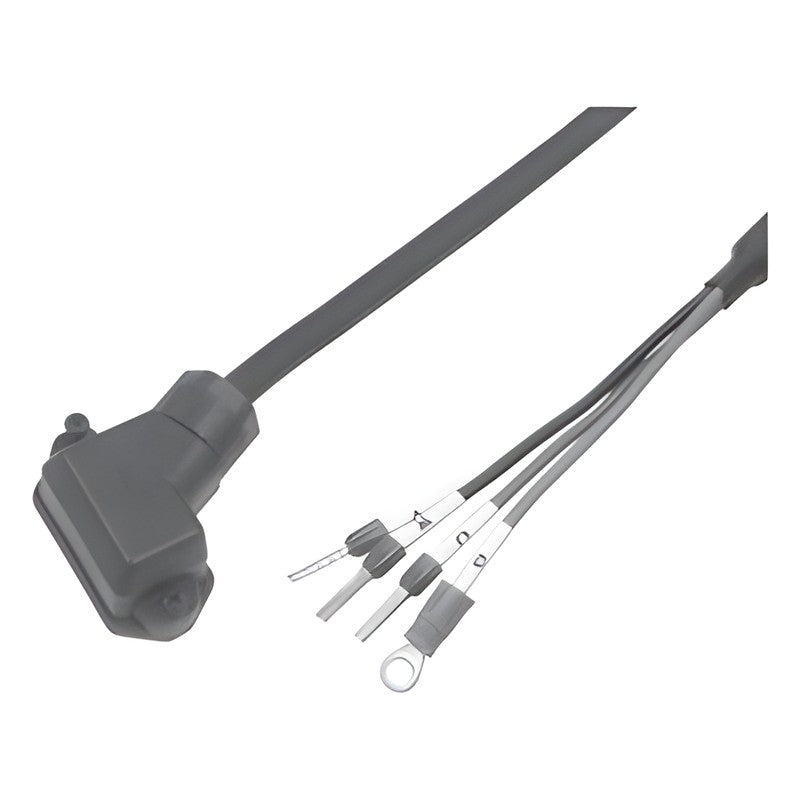

Samwon ACT SWY-C7M Power / Brake Cable for Yaskawa Sigma-7 SGM7J/SGM7A-A5~10A

Samwon ACT SWY-C7M Power / Brake Cable for Yaskawa Sigma-7 SGM7J/SGM7A-A5~10A

Power cable and power cable with integrated brake wires for Yaskawa Sigma-7 SGM7J and SGM7A-A5~10A rotary servo motors.

Key features

  • Power and power + brake cables for Yaskawa Sigma-7 SGM7J, SGM7A-A5~10A
  • Built to the recommended specifications in Yaskawa user manuals and catalogs (some equivalent parts used)
  • Fixed, moving (flex-rated) and custom-specified cables can be made
  • Cable length can be specified freely; custom lengths in 100 mm steps
  • Small-quantity orders (from 1 piece) and short lead times

Specifications

Motor Power Connector (50W~150W) JST J17S-06FMH-7KL-M-CF or equivalent
Motor Power Connector (200W~600W) JST J27S-06FMH-7KL-M-CF or equivalent
Motor Power Connector (750W~1.0kW) JST J37S-06FMH-8KL-M-CF or equivalent
Fixed Cable UL2464 PVC insulation cable
Moving Cable PROTERIAL (formerly Hitachi Metals) RT-FLEX UL2464 twist pair shielded, ETFE insulation cable
Max. Transmission Length 50M
Length Tolerance +50 to +100 mm
SWY-C7M10F-03-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 3M | Yaskawa Model: JZSP-C7M10F-03-E
SWY-C7M12F-03-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 3M | Yaskawa Model: JZSP-C7M12F-03-E
SWY-C7M20F-03-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 3M | Yaskawa Model: JZSP-C7M20F-03-E
SWY-C7M22F-03-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 3M | Yaskawa Model: JZSP-C7M22F-03-E
SWY-C7M10F-05-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 5M | Yaskawa Model: JZSP-C7M10F-05-E
SWY-C7M12F-05-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 5M | Yaskawa Model: JZSP-C7M12F-05-E
SWY-C7M20F-05-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 5M | Yaskawa Model: JZSP-C7M20F-05-E
SWY-C7M22F-05-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 5M | Yaskawa Model: JZSP-C7M22F-05-E
SWY-C7M10F-10-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 10M | Yaskawa Model: JZSP-C7M10F-10-E
SWY-C7M12F-10-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 10M | Yaskawa Model: JZSP-C7M12F-10-E
SWY-C7M20F-10-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 10M | Yaskawa Model: JZSP-C7M20F-10-E
SWY-C7M22F-10-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 10M | Yaskawa Model: JZSP-C7M22F-10-E
SWY-C7M10F-15-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 15M | Yaskawa Model: JZSP-C7M10F-15-E
SWY-C7M12F-15-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 15M | Yaskawa Model: JZSP-C7M12F-15-E
SWY-C7M20F-15-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 15M | Yaskawa Model: JZSP-C7M20F-15-E
SWY-C7M22F-15-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 15M | Yaskawa Model: JZSP-C7M22F-15-E
SWY-C7M10F-20-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 20M | Yaskawa Model: JZSP-C7M10F-20-E
SWY-C7M12F-20-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 20M | Yaskawa Model: JZSP-C7M12F-20-E
SWY-C7M20F-20-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 20M | Yaskawa Model: JZSP-C7M20F-20-E
SWY-C7M22F-20-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 20M | Yaskawa Model: JZSP-C7M22F-20-E
SWY-C7M10F-30-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 30M | Yaskawa Model: JZSP-C7M10F-30-E
SWY-C7M12F-30-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 30M | Yaskawa Model: JZSP-C7M12F-30-E
SWY-C7M20F-30-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 30M | Yaskawa Model: JZSP-C7M20F-30-E
SWY-C7M22F-30-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 30M | Yaskawa Model: JZSP-C7M22F-30-E
SWY-C7M10F-40-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 40M | Yaskawa Model: JZSP-C7M10F-40-E
SWY-C7M12F-40-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 40M | Yaskawa Model: JZSP-C7M12F-40-E
SWY-C7M20F-40-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 40M | Yaskawa Model: JZSP-C7M20F-40-E
SWY-C7M22F-40-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 40M | Yaskawa Model: JZSP-C7M22F-40-E
SWY-C7M10F-50-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 50M | Yaskawa Model: JZSP-C7M10F-50-E
SWY-C7M12F-50-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 50M | Yaskawa Model: JZSP-C7M12F-50-E
SWY-C7M20F-50-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 50M | Yaskawa Model: JZSP-C7M20F-50-E
SWY-C7M22F-50-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 50M | Yaskawa Model: JZSP-C7M22F-50-E
SWY-C7M10G-03-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 3M | Yaskawa Model: JZSP-C7M10G-03-E
SWY-C7M12G-03-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 3M | Yaskawa Model: JZSP-C7M12G-03-E
SWY-C7M20G-03-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 3M | Yaskawa Model: JZSP-C7M20G-03-E
SWY-C7M22G-03-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 3M | Yaskawa Model: JZSP-C7M22G-03-E
SWY-C7M10G-05-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 5M | Yaskawa Model: JZSP-C7M10G-05-E
SWY-C7M12G-05-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 5M | Yaskawa Model: JZSP-C7M12G-05-E
SWY-C7M20G-05-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 5M | Yaskawa Model: JZSP-C7M20G-05-E
SWY-C7M22G-05-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 5M | Yaskawa Model: JZSP-C7M22G-05-E
SWY-C7M10G-10-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 10M | Yaskawa Model: JZSP-C7M10G-10-E
SWY-C7M12G-10-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 10M | Yaskawa Model: JZSP-C7M12G-10-E
SWY-C7M20G-10-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 10M | Yaskawa Model: JZSP-C7M20G-10-E
SWY-C7M22G-10-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 10M | Yaskawa Model: JZSP-C7M22G-10-E
SWY-C7M10G-15-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 15M | Yaskawa Model: JZSP-C7M10G-15-E
SWY-C7M12G-15-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 15M | Yaskawa Model: JZSP-C7M12G-15-E
SWY-C7M20G-15-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 15M | Yaskawa Model: JZSP-C7M20G-15-E
SWY-C7M22G-15-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 15M | Yaskawa Model: JZSP-C7M22G-15-E
SWY-C7M10G-20-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 20M | Yaskawa Model: JZSP-C7M10G-20-E
SWY-C7M12G-20-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 20M | Yaskawa Model: JZSP-C7M12G-20-E
SWY-C7M20G-20-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 20M | Yaskawa Model: JZSP-C7M20G-20-E
SWY-C7M22G-20-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 20M | Yaskawa Model: JZSP-C7M22G-20-E
SWY-C7M10G-30-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 30M | Yaskawa Model: JZSP-C7M10G-30-E
SWY-C7M12G-30-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 30M | Yaskawa Model: JZSP-C7M12G-30-E
SWY-C7M20G-30-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 30M | Yaskawa Model: JZSP-C7M20G-30-E
SWY-C7M22G-30-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 30M | Yaskawa Model: JZSP-C7M22G-30-E
SWY-C7M10G-40-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 40M | Yaskawa Model: JZSP-C7M10G-40-E
SWY-C7M12G-40-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 40M | Yaskawa Model: JZSP-C7M12G-40-E
SWY-C7M20G-40-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 40M | Yaskawa Model: JZSP-C7M20G-40-E
SWY-C7M22G-40-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 40M | Yaskawa Model: JZSP-C7M22G-40-E
SWY-C7M10G-50-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 50M | Yaskawa Model: JZSP-C7M10G-50-E
SWY-C7M12G-50-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 50M | Yaskawa Model: JZSP-C7M12G-50-E
SWY-C7M20G-50-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 50M | Yaskawa Model: JZSP-C7M20G-50-E
SWY-C7M22G-50-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 50M | Yaskawa Model: JZSP-C7M22G-50-E
SWY-C7M30F-03-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 3M | Yaskawa Model: JZSP-C7M30F-03-E
SWY-C7M32F-03-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 3M | Yaskawa Model: JZSP-C7M32F-03-E
SWY-C7M30F-05-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 5M | Yaskawa Model: JZSP-C7M30F-05-E
SWY-C7M32F-05-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 5M | Yaskawa Model: JZSP-C7M32F-05-E
SWY-C7M30F-10-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 10M | Yaskawa Model: JZSP-C7M30F-10-E
SWY-C7M32F-10-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 10M | Yaskawa Model: JZSP-C7M32F-10-E
SWY-C7M30F-15-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 15M | Yaskawa Model: JZSP-C7M30F-15-E
SWY-C7M32F-15-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 15M | Yaskawa Model: JZSP-C7M32F-15-E
SWY-C7M30F-20-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 20M | Yaskawa Model: JZSP-C7M30F-20-E
SWY-C7M32F-20-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 20M | Yaskawa Model: JZSP-C7M32F-20-E
SWY-C7M30F-30-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 30M | Yaskawa Model: JZSP-C7M30F-30-E
SWY-C7M32F-30-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 30M | Yaskawa Model: JZSP-C7M32F-30-E
SWY-C7M30F-40-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 40M | Yaskawa Model: JZSP-C7M30F-40-E
SWY-C7M32F-40-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 40M | Yaskawa Model: JZSP-C7M32F-40-E
SWY-C7M30F-50-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 50M | Yaskawa Model: JZSP-C7M30F-50-E
SWY-C7M32F-50-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 50M | Yaskawa Model: JZSP-C7M32F-50-E
SWY-C7M30G-03-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 3M | Yaskawa Model: JZSP-C7M30G-03-E
SWY-C7M32G-03-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 3M | Yaskawa Model: JZSP-C7M32G-03-E
SWY-C7M30G-05-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 5M | Yaskawa Model: JZSP-C7M30G-05-E
SWY-C7M32G-05-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 5M | Yaskawa Model: JZSP-C7M32G-05-E
SWY-C7M30G-10-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 10M | Yaskawa Model: JZSP-C7M30G-10-E
SWY-C7M32G-10-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 10M | Yaskawa Model: JZSP-C7M32G-10-E
SWY-C7M30G-15-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 15M | Yaskawa Model: JZSP-C7M30G-15-E
SWY-C7M32G-15-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 15M | Yaskawa Model: JZSP-C7M32G-15-E
SWY-C7M30G-20-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 20M | Yaskawa Model: JZSP-C7M30G-20-E
SWY-C7M32G-20-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 20M | Yaskawa Model: JZSP-C7M32G-20-E
SWY-C7M30G-30-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 30M | Yaskawa Model: JZSP-C7M30G-30-E
SWY-C7M32G-30-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 30M | Yaskawa Model: JZSP-C7M32G-30-E
SWY-C7M30G-40-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 40M | Yaskawa Model: JZSP-C7M30G-40-E
SWY-C7M32G-40-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 40M | Yaskawa Model: JZSP-C7M32G-40-E
SWY-C7M30G-50-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 50M | Yaskawa Model: JZSP-C7M30G-50-E
SWY-C7M32G-50-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 50M | Yaskawa Model: JZSP-C7M32G-50-E
SWY-C7M13F-03-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 3M | Yaskawa Model: JZSP-C7M13F-03-E
SWY-C7M14F-03-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 3M | Yaskawa Model: JZSP-C7M14F-03-E
SWY-C7M23F-03-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 3M | Yaskawa Model: JZSP-C7M23F-03-E
SWY-C7M24F-03-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 3M | Yaskawa Model: JZSP-C7M24F-03-E
SWY-C7M13F-05-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 5M | Yaskawa Model: JZSP-C7M13F-05-E
SWY-C7M14F-05-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 5M | Yaskawa Model: JZSP-C7M14F-05-E
SWY-C7M23F-05-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 5M | Yaskawa Model: JZSP-C7M23F-05-E
SWY-C7M24F-05-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 5M | Yaskawa Model: JZSP-C7M24F-05-E
SWY-C7M13F-13-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 10M | Yaskawa Model: JZSP-C7M13F-13-E
SWY-C7M14F-10-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 10M | Yaskawa Model: JZSP-C7M14F-10-E
SWY-C7M23F-10-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 10M | Yaskawa Model: JZSP-C7M23F-10-E
SWY-C7M24F-10-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 10M | Yaskawa Model: JZSP-C7M24F-10-E
SWY-C7M13F-15-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 15M | Yaskawa Model: JZSP-C7M13F-15-E
SWY-C7M14F-15-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 15M | Yaskawa Model: JZSP-C7M14F-15-E
SWY-C7M23F-15-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 15M | Yaskawa Model: JZSP-C7M23F-15-E
SWY-C7M24F-15-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 15M | Yaskawa Model: JZSP-C7M24F-15-E
SWY-C7M13F-20-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 20M | Yaskawa Model: JZSP-C7M13F-20-E
SWY-C7M14F-20-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 20M | Yaskawa Model: JZSP-C7M14F-20-E
SWY-C7M23F-23-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 20M | Yaskawa Model: JZSP-C7M23F-23-E
SWY-C7M24F-20-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 20M | Yaskawa Model: JZSP-C7M24F-20-E
SWY-C7M13F-30-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 30M | Yaskawa Model: JZSP-C7M13F-30-E
SWY-C7M14F-30-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 30M | Yaskawa Model: JZSP-C7M14F-30-E
SWY-C7M23F-30-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 30M | Yaskawa Model: JZSP-C7M23F-30-E
SWY-C7M24F-30-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 30M | Yaskawa Model: JZSP-C7M24F-30-E
SWY-C7M13F-40-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 40M | Yaskawa Model: JZSP-C7M13F-40-E
SWY-C7M14F-40-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 40M | Yaskawa Model: JZSP-C7M14F-40-E
SWY-C7M23F-40-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 40M | Yaskawa Model: JZSP-C7M23F-40-E
SWY-C7M24F-40-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 40M | Yaskawa Model: JZSP-C7M24F-40-E
SWY-C7M13F-50-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 50M | Yaskawa Model: JZSP-C7M13F-50-E
SWY-C7M14F-50-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 50M | Yaskawa Model: JZSP-C7M14F-50-E
SWY-C7M23F-50-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 50M | Yaskawa Model: JZSP-C7M23F-50-E
SWY-C7M24F-50-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 50M | Yaskawa Model: JZSP-C7M24F-50-E
SWY-C7M13G-03-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 3M | Yaskawa Model: JZSP-C7M13G-03-E
SWY-C7M14G-03-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 3M | Yaskawa Model: JZSP-C7M14G-03-E
SWY-C7M23G-03-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 3M | Yaskawa Model: JZSP-C7M23G-03-E
SWY-C7M24G-03-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 3M | Yaskawa Model: JZSP-C7M24G-03-E
SWY-C7M13G-05-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 5M | Yaskawa Model: JZSP-C7M13G-05-E
SWY-C7M14G-05-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 5M | Yaskawa Model: JZSP-C7M14G-05-E
SWY-C7M23G-05-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 5M | Yaskawa Model: JZSP-C7M23G-05-E
SWY-C7M24G-05-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 5M | Yaskawa Model: JZSP-C7M24G-05-E
SWY-C7M13G-13-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 10M | Yaskawa Model: JZSP-C7M13G-13-E
SWY-C7M14G-10-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 10M | Yaskawa Model: JZSP-C7M14G-10-E
SWY-C7M23G-10-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 10M | Yaskawa Model: JZSP-C7M23G-10-E
SWY-C7M24G-10-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 10M | Yaskawa Model: JZSP-C7M24G-10-E
SWY-C7M13G-15-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 15M | Yaskawa Model: JZSP-C7M13G-15-E
SWY-C7M14G-15-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 15M | Yaskawa Model: JZSP-C7M14G-15-E
SWY-C7M23G-15-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 15M | Yaskawa Model: JZSP-C7M23G-15-E
SWY-C7M24G-15-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 15M | Yaskawa Model: JZSP-C7M24G-15-E
SWY-C7M13G-20-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 20M | Yaskawa Model: JZSP-C7M13G-20-E
SWY-C7M14G-20-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 20M | Yaskawa Model: JZSP-C7M14G-20-E
SWY-C7M23G-23-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 20M | Yaskawa Model: JZSP-C7M23G-23-E
SWY-C7M24G-20-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 20M | Yaskawa Model: JZSP-C7M24G-20-E
SWY-C7M13G-30-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 30M | Yaskawa Model: JZSP-C7M13G-30-E
SWY-C7M14G-30-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 30M | Yaskawa Model: JZSP-C7M14G-30-E
SWY-C7M23G-30-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 30M | Yaskawa Model: JZSP-C7M23G-30-E
SWY-C7M24G-30-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 30M | Yaskawa Model: JZSP-C7M24G-30-E
SWY-C7M13G-40-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 40M | Yaskawa Model: JZSP-C7M13G-40-E
SWY-C7M14G-40-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 40M | Yaskawa Model: JZSP-C7M14G-40-E
SWY-C7M23G-40-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 40M | Yaskawa Model: JZSP-C7M23G-40-E
SWY-C7M24G-40-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 40M | Yaskawa Model: JZSP-C7M24G-40-E
SWY-C7M13G-50-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 50M | Yaskawa Model: JZSP-C7M13G-50-E
SWY-C7M14G-50-E Motor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 50M | Yaskawa Model: JZSP-C7M14G-50-E
SWY-C7M23G-50-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 50M | Yaskawa Model: JZSP-C7M23G-50-E
SWY-C7M24G-50-E Motor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 50M | Yaskawa Model: JZSP-C7M24G-50-E
SWY-C7M33F-03-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 3M | Yaskawa Model: JZSP-C7M33F-03-E
SWY-C7M34F-03-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 3M | Yaskawa Model: JZSP-C7M34F-03-E
SWY-C7M33F-05-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 5M | Yaskawa Model: JZSP-C7M33F-05-E
SWY-C7M34F-05-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 5M | Yaskawa Model: JZSP-C7M34F-05-E
SWY-C7M33F-10-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 10M | Yaskawa Model: JZSP-C7M33F-10-E
SWY-C7M34F-10-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 10M | Yaskawa Model: JZSP-C7M34F-10-E
SWY-C7M33F-15-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 15M | Yaskawa Model: JZSP-C7M33F-15-E
SWY-C7M34F-15-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 15M | Yaskawa Model: JZSP-C7M34F-15-E
SWY-C7M33F-20-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 20M | Yaskawa Model: JZSP-C7M33F-20-E
SWY-C7M34F-20-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 20M | Yaskawa Model: JZSP-C7M34F-20-E
SWY-C7M33F-33-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 30M | Yaskawa Model: JZSP-C7M33F-33-E
SWY-C7M34F-30-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 30M | Yaskawa Model: JZSP-C7M34F-30-E
SWY-C7M33F-40-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 40M | Yaskawa Model: JZSP-C7M33F-40-E
SWY-C7M34F-40-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 40M | Yaskawa Model: JZSP-C7M34F-40-E
SWY-C7M33F-50-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 50M | Yaskawa Model: JZSP-C7M33F-50-E
SWY-C7M34F-50-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 50M | Yaskawa Model: JZSP-C7M34F-50-E
SWY-C7M33G-03-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 3M | Yaskawa Model: JZSP-C7M33G-03-E
SWY-C7M34G-03-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 3M | Yaskawa Model: JZSP-C7M34G-03-E
SWY-C7M33G-05-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 5M | Yaskawa Model: JZSP-C7M33G-05-E
SWY-C7M34G-05-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 5M | Yaskawa Model: JZSP-C7M34G-05-E
SWY-C7M33G-10-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 10M | Yaskawa Model: JZSP-C7M33G-10-E
SWY-C7M34G-10-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 10M | Yaskawa Model: JZSP-C7M34G-10-E
SWY-C7M33G-15-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 15M | Yaskawa Model: JZSP-C7M33G-15-E
SWY-C7M34G-15-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 15M | Yaskawa Model: JZSP-C7M34G-15-E
SWY-C7M33G-20-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 20M | Yaskawa Model: JZSP-C7M33G-20-E
SWY-C7M34G-20-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 20M | Yaskawa Model: JZSP-C7M34G-20-E
SWY-C7M33G-33-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 30M | Yaskawa Model: JZSP-C7M33G-33-E
SWY-C7M34G-30-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 30M | Yaskawa Model: JZSP-C7M34G-30-E
SWY-C7M33G-40-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 40M | Yaskawa Model: JZSP-C7M33G-40-E
SWY-C7M34G-40-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 40M | Yaskawa Model: JZSP-C7M34G-40-E
SWY-C7M33G-50-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 50M | Yaskawa Model: JZSP-C7M33G-50-E
SWY-C7M34G-50-E Motor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 50M | Yaskawa Model: JZSP-C7M34G-50-E
Servo CablesSamwon ACT
192 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT SWY-C7M Power / Brake Cable for Yaskawa Sigma-7 SGM7J/SGM7A-A5~10A

Brand Samwon ACT·Servo Cables

Available part numbers (192)

SWY-C7M10F-03-E, SWY-C7M12F-03-E, SWY-C7M20F-03-E, SWY-C7M22F-03-E, SWY-C7M10F-05-E, SWY-C7M12F-05-E, SWY-C7M20F-05-E, SWY-C7M22F-05-E, SWY-C7M10F-10-E, SWY-C7M12F-10-E + 182 more — see full table ↓

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SWY-C7M10F-03-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 3M | Yaskawa Model: JZSP-C7M10F-03-E
SWY-C7M12F-03-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 3M | Yaskawa Model: JZSP-C7M12F-03-E
SWY-C7M20F-03-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 3M | Yaskawa Model: JZSP-C7M20F-03-E
SWY-C7M22F-03-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 3M | Yaskawa Model: JZSP-C7M22F-03-E
SWY-C7M10F-05-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 5M | Yaskawa Model: JZSP-C7M10F-05-E
SWY-C7M12F-05-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 5M | Yaskawa Model: JZSP-C7M12F-05-E
SWY-C7M20F-05-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 5M | Yaskawa Model: JZSP-C7M20F-05-E
SWY-C7M22F-05-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 5M | Yaskawa Model: JZSP-C7M22F-05-E
SWY-C7M10F-10-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 10M | Yaskawa Model: JZSP-C7M10F-10-E
SWY-C7M12F-10-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 10M | Yaskawa Model: JZSP-C7M12F-10-E
SWY-C7M20F-10-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 10M | Yaskawa Model: JZSP-C7M20F-10-E
SWY-C7M22F-10-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 10M | Yaskawa Model: JZSP-C7M22F-10-E
SWY-C7M10F-15-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 15M | Yaskawa Model: JZSP-C7M10F-15-E
SWY-C7M12F-15-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 15M | Yaskawa Model: JZSP-C7M12F-15-E
SWY-C7M20F-15-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 15M | Yaskawa Model: JZSP-C7M20F-15-E
SWY-C7M22F-15-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 15M | Yaskawa Model: JZSP-C7M22F-15-E
SWY-C7M10F-20-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 20M | Yaskawa Model: JZSP-C7M10F-20-E
SWY-C7M12F-20-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 20M | Yaskawa Model: JZSP-C7M12F-20-E
SWY-C7M20F-20-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 20M | Yaskawa Model: JZSP-C7M20F-20-E
SWY-C7M22F-20-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 20M | Yaskawa Model: JZSP-C7M22F-20-E
SWY-C7M10F-30-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 30M | Yaskawa Model: JZSP-C7M10F-30-E
SWY-C7M12F-30-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 30M | Yaskawa Model: JZSP-C7M12F-30-E
SWY-C7M20F-30-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 30M | Yaskawa Model: JZSP-C7M20F-30-E
SWY-C7M22F-30-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 30M | Yaskawa Model: JZSP-C7M22F-30-E
SWY-C7M10F-40-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 40M | Yaskawa Model: JZSP-C7M10F-40-E
SWY-C7M12F-40-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 40M | Yaskawa Model: JZSP-C7M12F-40-E
SWY-C7M20F-40-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 40M | Yaskawa Model: JZSP-C7M20F-40-E
SWY-C7M22F-40-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 40M | Yaskawa Model: JZSP-C7M22F-40-E
SWY-C7M10F-50-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 50M | Yaskawa Model: JZSP-C7M10F-50-E
SWY-C7M12F-50-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 50M | Yaskawa Model: JZSP-C7M12F-50-E
SWY-C7M20F-50-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 50M | Yaskawa Model: JZSP-C7M20F-50-E
SWY-C7M22F-50-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 50M | Yaskawa Model: JZSP-C7M22F-50-E
SWY-C7M10G-03-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 3M | Yaskawa Model: JZSP-C7M10G-03-E
SWY-C7M12G-03-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 3M | Yaskawa Model: JZSP-C7M12G-03-E
SWY-C7M20G-03-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 3M | Yaskawa Model: JZSP-C7M20G-03-E
SWY-C7M22G-03-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 3M | Yaskawa Model: JZSP-C7M22G-03-E
SWY-C7M10G-05-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 5M | Yaskawa Model: JZSP-C7M10G-05-E
SWY-C7M12G-05-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 5M | Yaskawa Model: JZSP-C7M12G-05-E
SWY-C7M20G-05-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 5M | Yaskawa Model: JZSP-C7M20G-05-E
SWY-C7M22G-05-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 5M | Yaskawa Model: JZSP-C7M22G-05-E
SWY-C7M10G-10-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 10M | Yaskawa Model: JZSP-C7M10G-10-E
SWY-C7M12G-10-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 10M | Yaskawa Model: JZSP-C7M12G-10-E
SWY-C7M20G-10-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 10M | Yaskawa Model: JZSP-C7M20G-10-E
SWY-C7M22G-10-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 10M | Yaskawa Model: JZSP-C7M22G-10-E
SWY-C7M10G-15-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 15M | Yaskawa Model: JZSP-C7M10G-15-E
SWY-C7M12G-15-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 15M | Yaskawa Model: JZSP-C7M12G-15-E
SWY-C7M20G-15-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 15M | Yaskawa Model: JZSP-C7M20G-15-E
SWY-C7M22G-15-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 15M | Yaskawa Model: JZSP-C7M22G-15-E
SWY-C7M10G-20-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 20M | Yaskawa Model: JZSP-C7M10G-20-E
SWY-C7M12G-20-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 20M | Yaskawa Model: JZSP-C7M12G-20-E
SWY-C7M20G-20-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 20M | Yaskawa Model: JZSP-C7M20G-20-E
SWY-C7M22G-20-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 20M | Yaskawa Model: JZSP-C7M22G-20-E
SWY-C7M10G-30-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 30M | Yaskawa Model: JZSP-C7M10G-30-E
SWY-C7M12G-30-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 30M | Yaskawa Model: JZSP-C7M12G-30-E
SWY-C7M20G-30-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 30M | Yaskawa Model: JZSP-C7M20G-30-E
SWY-C7M22G-30-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 30M | Yaskawa Model: JZSP-C7M22G-30-E
SWY-C7M10G-40-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 40M | Yaskawa Model: JZSP-C7M10G-40-E
SWY-C7M12G-40-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 40M | Yaskawa Model: JZSP-C7M12G-40-E
SWY-C7M20G-40-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 40M | Yaskawa Model: JZSP-C7M20G-40-E
SWY-C7M22G-40-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 40M | Yaskawa Model: JZSP-C7M22G-40-E
SWY-C7M10G-50-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 50M | Yaskawa Model: JZSP-C7M10G-50-E
SWY-C7M12G-50-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 50M | Yaskawa Model: JZSP-C7M12G-50-E
SWY-C7M20G-50-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 50M | Yaskawa Model: JZSP-C7M20G-50-E
SWY-C7M22G-50-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 50M | Yaskawa Model: JZSP-C7M22G-50-E
SWY-C7M30F-03-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 3M | Yaskawa Model: JZSP-C7M30F-03-E
SWY-C7M32F-03-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 3M | Yaskawa Model: JZSP-C7M32F-03-E
SWY-C7M30F-05-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 5M | Yaskawa Model: JZSP-C7M30F-05-E
SWY-C7M32F-05-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 5M | Yaskawa Model: JZSP-C7M32F-05-E
SWY-C7M30F-10-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 10M | Yaskawa Model: JZSP-C7M30F-10-E
SWY-C7M32F-10-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 10M | Yaskawa Model: JZSP-C7M32F-10-E
SWY-C7M30F-15-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 15M | Yaskawa Model: JZSP-C7M30F-15-E
SWY-C7M32F-15-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 15M | Yaskawa Model: JZSP-C7M32F-15-E
SWY-C7M30F-20-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 20M | Yaskawa Model: JZSP-C7M30F-20-E
SWY-C7M32F-20-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 20M | Yaskawa Model: JZSP-C7M32F-20-E
SWY-C7M30F-30-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 30M | Yaskawa Model: JZSP-C7M30F-30-E
SWY-C7M32F-30-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 30M | Yaskawa Model: JZSP-C7M32F-30-E
SWY-C7M30F-40-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 40M | Yaskawa Model: JZSP-C7M30F-40-E
SWY-C7M32F-40-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 40M | Yaskawa Model: JZSP-C7M32F-40-E
SWY-C7M30F-50-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Fixed | Lead-Out: Load side | Length: 50M | Yaskawa Model: JZSP-C7M30F-50-E
SWY-C7M32F-50-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Moving | Lead-Out: Load side | Length: 50M | Yaskawa Model: JZSP-C7M32F-50-E
SWY-C7M30G-03-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 3M | Yaskawa Model: JZSP-C7M30G-03-E
SWY-C7M32G-03-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 3M | Yaskawa Model: JZSP-C7M32G-03-E
SWY-C7M30G-05-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 5M | Yaskawa Model: JZSP-C7M30G-05-E
SWY-C7M32G-05-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 5M | Yaskawa Model: JZSP-C7M32G-05-E
SWY-C7M30G-10-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 10M | Yaskawa Model: JZSP-C7M30G-10-E
SWY-C7M32G-10-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 10M | Yaskawa Model: JZSP-C7M32G-10-E
SWY-C7M30G-15-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 15M | Yaskawa Model: JZSP-C7M30G-15-E
SWY-C7M32G-15-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 15M | Yaskawa Model: JZSP-C7M32G-15-E
SWY-C7M30G-20-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 20M | Yaskawa Model: JZSP-C7M30G-20-E
SWY-C7M32G-20-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 20M | Yaskawa Model: JZSP-C7M32G-20-E
SWY-C7M30G-30-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 30M | Yaskawa Model: JZSP-C7M30G-30-E
SWY-C7M32G-30-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 30M | Yaskawa Model: JZSP-C7M32G-30-E
SWY-C7M30G-40-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 40M | Yaskawa Model: JZSP-C7M30G-40-E
SWY-C7M32G-40-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 40M | Yaskawa Model: JZSP-C7M32G-40-E
SWY-C7M30G-50-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 50M | Yaskawa Model: JZSP-C7M30G-50-E
SWY-C7M32G-50-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power cable | Cable: Moving | Lead-Out: Opposite load side | Length: 50M | Yaskawa Model: JZSP-C7M32G-50-E
SWY-C7M13F-03-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 3M | Yaskawa Model: JZSP-C7M13F-03-E
SWY-C7M14F-03-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 3M | Yaskawa Model: JZSP-C7M14F-03-E
SWY-C7M23F-03-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 3M | Yaskawa Model: JZSP-C7M23F-03-E
SWY-C7M24F-03-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 3M | Yaskawa Model: JZSP-C7M24F-03-E
SWY-C7M13F-05-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 5M | Yaskawa Model: JZSP-C7M13F-05-E
SWY-C7M14F-05-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 5M | Yaskawa Model: JZSP-C7M14F-05-E
SWY-C7M23F-05-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 5M | Yaskawa Model: JZSP-C7M23F-05-E
SWY-C7M24F-05-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 5M | Yaskawa Model: JZSP-C7M24F-05-E
SWY-C7M13F-13-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 10M | Yaskawa Model: JZSP-C7M13F-13-E
SWY-C7M14F-10-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 10M | Yaskawa Model: JZSP-C7M14F-10-E
SWY-C7M23F-10-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 10M | Yaskawa Model: JZSP-C7M23F-10-E
SWY-C7M24F-10-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 10M | Yaskawa Model: JZSP-C7M24F-10-E
SWY-C7M13F-15-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 15M | Yaskawa Model: JZSP-C7M13F-15-E
SWY-C7M14F-15-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 15M | Yaskawa Model: JZSP-C7M14F-15-E
SWY-C7M23F-15-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 15M | Yaskawa Model: JZSP-C7M23F-15-E
SWY-C7M24F-15-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 15M | Yaskawa Model: JZSP-C7M24F-15-E
SWY-C7M13F-20-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 20M | Yaskawa Model: JZSP-C7M13F-20-E
SWY-C7M14F-20-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 20M | Yaskawa Model: JZSP-C7M14F-20-E
SWY-C7M23F-23-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 20M | Yaskawa Model: JZSP-C7M23F-23-E
SWY-C7M24F-20-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 20M | Yaskawa Model: JZSP-C7M24F-20-E
SWY-C7M13F-30-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 30M | Yaskawa Model: JZSP-C7M13F-30-E
SWY-C7M14F-30-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 30M | Yaskawa Model: JZSP-C7M14F-30-E
SWY-C7M23F-30-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 30M | Yaskawa Model: JZSP-C7M23F-30-E
SWY-C7M24F-30-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 30M | Yaskawa Model: JZSP-C7M24F-30-E
SWY-C7M13F-40-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 40M | Yaskawa Model: JZSP-C7M13F-40-E
SWY-C7M14F-40-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 40M | Yaskawa Model: JZSP-C7M14F-40-E
SWY-C7M23F-40-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 40M | Yaskawa Model: JZSP-C7M23F-40-E
SWY-C7M24F-40-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 40M | Yaskawa Model: JZSP-C7M24F-40-E
SWY-C7M13F-50-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 50M | Yaskawa Model: JZSP-C7M13F-50-E
SWY-C7M14F-50-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 50M | Yaskawa Model: JZSP-C7M14F-50-E
SWY-C7M23F-50-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 50M | Yaskawa Model: JZSP-C7M23F-50-E
SWY-C7M24F-50-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 50M | Yaskawa Model: JZSP-C7M24F-50-E
SWY-C7M13G-03-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 3M | Yaskawa Model: JZSP-C7M13G-03-E
SWY-C7M14G-03-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 3M | Yaskawa Model: JZSP-C7M14G-03-E
SWY-C7M23G-03-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 3M | Yaskawa Model: JZSP-C7M23G-03-E
SWY-C7M24G-03-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 3M | Yaskawa Model: JZSP-C7M24G-03-E
SWY-C7M13G-05-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 5M | Yaskawa Model: JZSP-C7M13G-05-E
SWY-C7M14G-05-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 5M | Yaskawa Model: JZSP-C7M14G-05-E
SWY-C7M23G-05-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 5M | Yaskawa Model: JZSP-C7M23G-05-E
SWY-C7M24G-05-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 5M | Yaskawa Model: JZSP-C7M24G-05-E
SWY-C7M13G-13-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 10M | Yaskawa Model: JZSP-C7M13G-13-E
SWY-C7M14G-10-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 10M | Yaskawa Model: JZSP-C7M14G-10-E
SWY-C7M23G-10-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 10M | Yaskawa Model: JZSP-C7M23G-10-E
SWY-C7M24G-10-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 10M | Yaskawa Model: JZSP-C7M24G-10-E
SWY-C7M13G-15-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 15M | Yaskawa Model: JZSP-C7M13G-15-E
SWY-C7M14G-15-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 15M | Yaskawa Model: JZSP-C7M14G-15-E
SWY-C7M23G-15-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 15M | Yaskawa Model: JZSP-C7M23G-15-E
SWY-C7M24G-15-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 15M | Yaskawa Model: JZSP-C7M24G-15-E
SWY-C7M13G-20-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 20M | Yaskawa Model: JZSP-C7M13G-20-E
SWY-C7M14G-20-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 20M | Yaskawa Model: JZSP-C7M14G-20-E
SWY-C7M23G-23-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 20M | Yaskawa Model: JZSP-C7M23G-23-E
SWY-C7M24G-20-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 20M | Yaskawa Model: JZSP-C7M24G-20-E
SWY-C7M13G-30-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 30M | Yaskawa Model: JZSP-C7M13G-30-E
SWY-C7M14G-30-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 30M | Yaskawa Model: JZSP-C7M14G-30-E
SWY-C7M23G-30-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 30M | Yaskawa Model: JZSP-C7M23G-30-E
SWY-C7M24G-30-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 30M | Yaskawa Model: JZSP-C7M24G-30-E
SWY-C7M13G-40-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 40M | Yaskawa Model: JZSP-C7M13G-40-E
SWY-C7M14G-40-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 40M | Yaskawa Model: JZSP-C7M14G-40-E
SWY-C7M23G-40-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 40M | Yaskawa Model: JZSP-C7M23G-40-E
SWY-C7M24G-40-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 40M | Yaskawa Model: JZSP-C7M24G-40-E
SWY-C7M13G-50-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 50M | Yaskawa Model: JZSP-C7M13G-50-E
SWY-C7M14G-50-EMotor: SGM7J-A5~C2 / SGM7A-A5~C2 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 50M | Yaskawa Model: JZSP-C7M14G-50-E
SWY-C7M23G-50-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 50M | Yaskawa Model: JZSP-C7M23G-50-E
SWY-C7M24G-50-EMotor: SGM7J-02~06 / SGM7A-02~06 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 50M | Yaskawa Model: JZSP-C7M24G-50-E
SWY-C7M33F-03-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 3M | Yaskawa Model: JZSP-C7M33F-03-E
SWY-C7M34F-03-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 3M | Yaskawa Model: JZSP-C7M34F-03-E
SWY-C7M33F-05-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 5M | Yaskawa Model: JZSP-C7M33F-05-E
SWY-C7M34F-05-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 5M | Yaskawa Model: JZSP-C7M34F-05-E
SWY-C7M33F-10-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 10M | Yaskawa Model: JZSP-C7M33F-10-E
SWY-C7M34F-10-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 10M | Yaskawa Model: JZSP-C7M34F-10-E
SWY-C7M33F-15-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 15M | Yaskawa Model: JZSP-C7M33F-15-E
SWY-C7M34F-15-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 15M | Yaskawa Model: JZSP-C7M34F-15-E
SWY-C7M33F-20-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 20M | Yaskawa Model: JZSP-C7M33F-20-E
SWY-C7M34F-20-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 20M | Yaskawa Model: JZSP-C7M34F-20-E
SWY-C7M33F-33-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 30M | Yaskawa Model: JZSP-C7M33F-33-E
SWY-C7M34F-30-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 30M | Yaskawa Model: JZSP-C7M34F-30-E
SWY-C7M33F-40-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 40M | Yaskawa Model: JZSP-C7M33F-40-E
SWY-C7M34F-40-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 40M | Yaskawa Model: JZSP-C7M34F-40-E
SWY-C7M33F-50-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Load side | Length: 50M | Yaskawa Model: JZSP-C7M33F-50-E
SWY-C7M34F-50-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Moving | Lead-Out: Load side | Length: 50M | Yaskawa Model: JZSP-C7M34F-50-E
SWY-C7M33G-03-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 3M | Yaskawa Model: JZSP-C7M33G-03-E
SWY-C7M34G-03-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 3M | Yaskawa Model: JZSP-C7M34G-03-E
SWY-C7M33G-05-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 5M | Yaskawa Model: JZSP-C7M33G-05-E
SWY-C7M34G-05-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 5M | Yaskawa Model: JZSP-C7M34G-05-E
SWY-C7M33G-10-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 10M | Yaskawa Model: JZSP-C7M33G-10-E
SWY-C7M34G-10-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 10M | Yaskawa Model: JZSP-C7M34G-10-E
SWY-C7M33G-15-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 15M | Yaskawa Model: JZSP-C7M33G-15-E
SWY-C7M34G-15-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 15M | Yaskawa Model: JZSP-C7M34G-15-E
SWY-C7M33G-20-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 20M | Yaskawa Model: JZSP-C7M33G-20-E
SWY-C7M34G-20-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 20M | Yaskawa Model: JZSP-C7M34G-20-E
SWY-C7M33G-33-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 30M | Yaskawa Model: JZSP-C7M33G-33-E
SWY-C7M34G-30-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 30M | Yaskawa Model: JZSP-C7M34G-30-E
SWY-C7M33G-40-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 40M | Yaskawa Model: JZSP-C7M33G-40-E
SWY-C7M34G-40-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 40M | Yaskawa Model: JZSP-C7M34G-40-E
SWY-C7M33G-50-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Fixed | Lead-Out: Opposite load side | Length: 50M | Yaskawa Model: JZSP-C7M33G-50-E
SWY-C7M34G-50-EMotor: SGM7J-08 / SGM7A-08, 10 | Type: Power + brake cable | Cable: Moving | Lead-Out: Opposite load side | Length: 50M | Yaskawa Model: JZSP-C7M34G-50-E

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Electrical & Lighting →
