• Samwon ACT SWY-CF1M Power / Brake Cable for Yaskawa Sigma-7 SGM7M-A1E~A3E/B3E~B9E
1 1

Samwon ACT SWY-CF1M Power / Brake Cable for Yaskawa Sigma-7 SGM7M-A1E~A3E/B3E~B9E

Samwon ACT SWY-CF1M Power / Brake Cable for Yaskawa Sigma-7 SGM7M-A1E~A3E/B3E~B9E

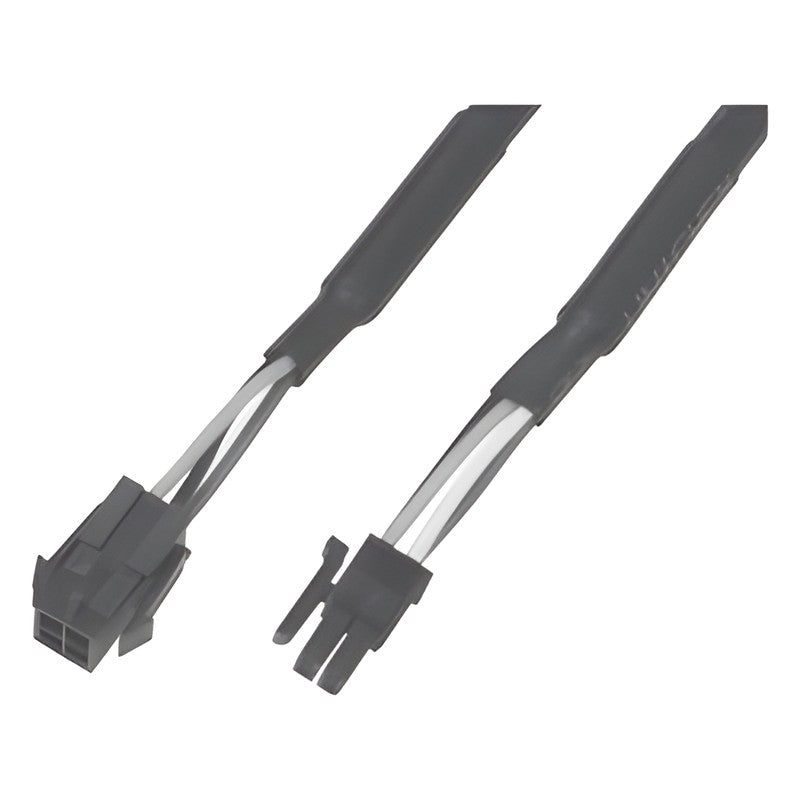

Power cable and power cable with integrated brake wires for Yaskawa Sigma-7 SGM7M-A1E~A3E and B3E~B9E rotary servo motors.

Key features

  • Power and power + brake cables for Yaskawa Sigma-7 SGM7M-A1E~A3E / B3E~B9E
  • Built to the recommended specifications in Yaskawa user manuals and catalogs (some equivalent parts used)
  • Fixed, moving (flex-rated) and custom-specified cables can be made
  • Cable length can be specified freely; custom lengths in 100 mm steps
  • Small-quantity orders (from 1 piece) and short lead times

Specifications

Motor Power Connector (power cable) MOLEX 43020-0400 or equivalent
Amplifier Connector MOLEX 43025-0400 or equivalent
Fixed Cable UL2464 PVC insulation cable
Moving Cable PROTERIAL (formerly Hitachi Metals) RT-FLEX UL2464, ETFE insulation cable
Max. Transmission Length 20M
Cable Color Black
Length Tolerance +50 to +100 mm
SWY-CF1M00-03-E Type: Power cable | Motor: SGM7M-A1E~A3E, B3E~B9E | Cable: Fixed | Length: 3M | Yaskawa Model: JZSP-CF1M00-03-E
SWY-CF1M00-05-E Type: Power cable | Motor: SGM7M-A1E~A3E, B3E~B9E | Cable: Fixed | Length: 5M | Yaskawa Model: JZSP-CF1M00-05-E
SWY-CF1M00-10-E Type: Power cable | Motor: SGM7M-A1E~A3E, B3E~B9E | Cable: Fixed | Length: 10M | Yaskawa Model: JZSP-CF1M00-10-E
SWY-CF1M00-15-E Type: Power cable | Motor: SGM7M-A1E~A3E, B3E~B9E | Cable: Fixed | Length: 15M | Yaskawa Model: JZSP-CF1M00-15-E
SWY-CF1M00-20-E Type: Power cable | Motor: SGM7M-A1E~A3E, B3E~B9E | Cable: Fixed | Length: 20M | Yaskawa Model: JZSP-CF1M00-20-E
SWY-CF1M20-03-E Type: Power cable | Motor: SGM7M-A1E~A3E, B3E~B9E | Cable: Moving | Length: 3M | Yaskawa Model: JZSP-CF1M20-03-E
SWY-CF1M20-05-E Type: Power cable | Motor: SGM7M-A1E~A3E, B3E~B9E | Cable: Moving | Length: 5M | Yaskawa Model: JZSP-CF1M20-05-E
SWY-CF1M20-10-E Type: Power cable | Motor: SGM7M-A1E~A3E, B3E~B9E | Cable: Moving | Length: 10M | Yaskawa Model: JZSP-CF1M20-10-E
SWY-CF1M20-15-E Type: Power cable | Motor: SGM7M-A1E~A3E, B3E~B9E | Cable: Moving | Length: 15M | Yaskawa Model: JZSP-CF1M20-15-E
SWY-CF1M20-20-E Type: Power cable | Motor: SGM7M-A1E~A3E, B3E~B9E | Cable: Moving | Length: 20M | Yaskawa Model: JZSP-CF1M20-20-E
SWY-CF1M10-03-E Type: Power + brake cable | Motor: SGM7M-A1E~A3E | Cable: Fixed | Length: 3M | Yaskawa Model: JZSP-CF1M10-03-E
SWY-CF1M10-05-E Type: Power + brake cable | Motor: SGM7M-A1E~A3E | Cable: Fixed | Length: 5M | Yaskawa Model: JZSP-CF1M10-05-E
SWY-CF1M10-10-E Type: Power + brake cable | Motor: SGM7M-A1E~A3E | Cable: Fixed | Length: 10M | Yaskawa Model: JZSP-CF1M10-10-E
SWY-CF1M10-15-E Type: Power + brake cable | Motor: SGM7M-A1E~A3E | Cable: Fixed | Length: 15M | Yaskawa Model: JZSP-CF1M10-15-E
SWY-CF1M10-20-E Type: Power + brake cable | Motor: SGM7M-A1E~A3E | Cable: Fixed | Length: 20M | Yaskawa Model: JZSP-CF1M10-20-E
SWY-CF1M30-03-E Type: Power + brake cable | Motor: SGM7M-A1E~A3E | Cable: Moving | Length: 3M | Yaskawa Model: JZSP-CF1M30-03-E
SWY-CF1M30-05-E Type: Power + brake cable | Motor: SGM7M-A1E~A3E | Cable: Moving | Length: 5M | Yaskawa Model: JZSP-CF1M30-05-E
SWY-CF1M30-10-E Type: Power + brake cable | Motor: SGM7M-A1E~A3E | Cable: Moving | Length: 10M | Yaskawa Model: JZSP-CF1M30-10-E
SWY-CF1M30-15-E Type: Power + brake cable | Motor: SGM7M-A1E~A3E | Cable: Moving | Length: 15M | Yaskawa Model: JZSP-CF1M30-15-E
SWY-CF1M30-20-E Type: Power + brake cable | Motor: SGM7M-A1E~A3E | Cable: Moving | Length: 20M | Yaskawa Model: JZSP-CF1M30-20-E
Servo CablesSamwon ACT
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT SWY-CF1M Power / Brake Cable for Yaskawa Sigma-7 SGM7M-A1E~A3E/B3E~B9E

Brand Samwon ACT·Servo Cables

Available part numbers (20)

SWY-CF1M00-03-E, SWY-CF1M00-05-E, SWY-CF1M00-10-E, SWY-CF1M00-15-E, SWY-CF1M00-20-E, SWY-CF1M20-03-E, SWY-CF1M20-05-E, SWY-CF1M20-10-E, SWY-CF1M20-15-E, SWY-CF1M20-20-E + 10 more — see full table ↓

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SWY-CF1M00-03-EType: Power cable | Motor: SGM7M-A1E~A3E, B3E~B9E | Cable: Fixed | Length: 3M | Yaskawa Model: JZSP-CF1M00-03-E
SWY-CF1M00-05-EType: Power cable | Motor: SGM7M-A1E~A3E, B3E~B9E | Cable: Fixed | Length: 5M | Yaskawa Model: JZSP-CF1M00-05-E
SWY-CF1M00-10-EType: Power cable | Motor: SGM7M-A1E~A3E, B3E~B9E | Cable: Fixed | Length: 10M | Yaskawa Model: JZSP-CF1M00-10-E
SWY-CF1M00-15-EType: Power cable | Motor: SGM7M-A1E~A3E, B3E~B9E | Cable: Fixed | Length: 15M | Yaskawa Model: JZSP-CF1M00-15-E
SWY-CF1M00-20-EType: Power cable | Motor: SGM7M-A1E~A3E, B3E~B9E | Cable: Fixed | Length: 20M | Yaskawa Model: JZSP-CF1M00-20-E
SWY-CF1M20-03-EType: Power cable | Motor: SGM7M-A1E~A3E, B3E~B9E | Cable: Moving | Length: 3M | Yaskawa Model: JZSP-CF1M20-03-E
SWY-CF1M20-05-EType: Power cable | Motor: SGM7M-A1E~A3E, B3E~B9E | Cable: Moving | Length: 5M | Yaskawa Model: JZSP-CF1M20-05-E
SWY-CF1M20-10-EType: Power cable | Motor: SGM7M-A1E~A3E, B3E~B9E | Cable: Moving | Length: 10M | Yaskawa Model: JZSP-CF1M20-10-E
SWY-CF1M20-15-EType: Power cable | Motor: SGM7M-A1E~A3E, B3E~B9E | Cable: Moving | Length: 15M | Yaskawa Model: JZSP-CF1M20-15-E
SWY-CF1M20-20-EType: Power cable | Motor: SGM7M-A1E~A3E, B3E~B9E | Cable: Moving | Length: 20M | Yaskawa Model: JZSP-CF1M20-20-E
SWY-CF1M10-03-EType: Power + brake cable | Motor: SGM7M-A1E~A3E | Cable: Fixed | Length: 3M | Yaskawa Model: JZSP-CF1M10-03-E
SWY-CF1M10-05-EType: Power + brake cable | Motor: SGM7M-A1E~A3E | Cable: Fixed | Length: 5M | Yaskawa Model: JZSP-CF1M10-05-E
SWY-CF1M10-10-EType: Power + brake cable | Motor: SGM7M-A1E~A3E | Cable: Fixed | Length: 10M | Yaskawa Model: JZSP-CF1M10-10-E
SWY-CF1M10-15-EType: Power + brake cable | Motor: SGM7M-A1E~A3E | Cable: Fixed | Length: 15M | Yaskawa Model: JZSP-CF1M10-15-E
SWY-CF1M10-20-EType: Power + brake cable | Motor: SGM7M-A1E~A3E | Cable: Fixed | Length: 20M | Yaskawa Model: JZSP-CF1M10-20-E
SWY-CF1M30-03-EType: Power + brake cable | Motor: SGM7M-A1E~A3E | Cable: Moving | Length: 3M | Yaskawa Model: JZSP-CF1M30-03-E
SWY-CF1M30-05-EType: Power + brake cable | Motor: SGM7M-A1E~A3E | Cable: Moving | Length: 5M | Yaskawa Model: JZSP-CF1M30-05-E
SWY-CF1M30-10-EType: Power + brake cable | Motor: SGM7M-A1E~A3E | Cable: Moving | Length: 10M | Yaskawa Model: JZSP-CF1M30-10-E
SWY-CF1M30-15-EType: Power + brake cable | Motor: SGM7M-A1E~A3E | Cable: Moving | Length: 15M | Yaskawa Model: JZSP-CF1M30-15-E
SWY-CF1M30-20-EType: Power + brake cable | Motor: SGM7M-A1E~A3E | Cable: Moving | Length: 20M | Yaskawa Model: JZSP-CF1M30-20-E
