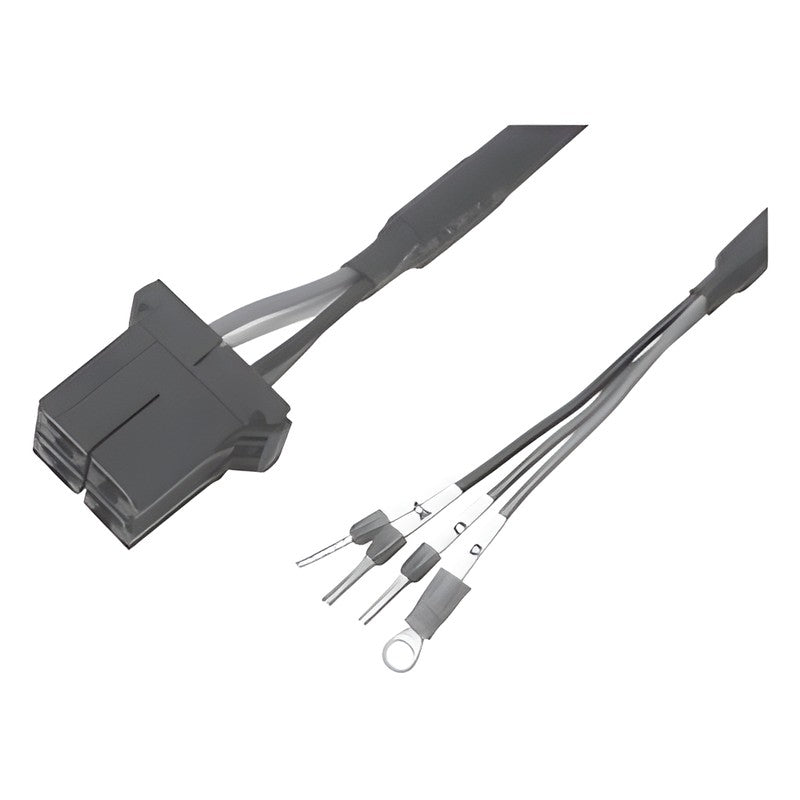

Samwon ACT SWY-CL2N/CLN423 Linear Motor Power Cable for Yaskawa Sigma-X SGLFW2-90A/1DA

Samwon ACT SWY-CL2N/CLN423 Linear Motor Power Cable for Yaskawa Sigma-X SGLFW2-90A/1DA

Moving-rated power cable for Yaskawa Sigma-X SGLFW2-90A and SGLFW2-1DA linear servo motors.

Key features

  • Power cables for Yaskawa Sigma-X linear servo motors SGLFW2-90A and SGLFW2-1DA
  • Built to the recommended specifications in Yaskawa user manuals and catalogs (some equivalent parts used)
  • Fixed, moving (flex-rated) and custom-specified cables can be made
  • Cable length can be specified freely; custom lengths in 100 mm steps
  • Small-quantity orders (from 1 piece) and short lead times

Specifications

Motor Power Connector Tyco Electronics 1-917807-2 or equivalent
Moving Cable PROTERIAL RT-FLEX UL2464 twist pair shielded, ETFE insulation cable
Max. Transmission Length 20M
Cable Color Black
Length Tolerance +50 to +100 mm
SWY-CL2N803-01-E Motor: SGLFW2-90A200A, -90A380A | Length: 1M | Yaskawa Model: JZSP-CL2N803-01-E
SWY-CL2N803-03-E Motor: SGLFW2-90A200A, -90A380A | Length: 3M | Yaskawa Model: JZSP-CL2N803-03-E
SWY-CL2N803-05-E Motor: SGLFW2-90A200A, -90A380A | Length: 5M | Yaskawa Model: JZSP-CL2N803-05-E
SWY-CL2N803-10-E Motor: SGLFW2-90A200A, -90A380A | Length: 10M | Yaskawa Model: JZSP-CL2N803-10-E
SWY-CL2N803-15-E Motor: SGLFW2-90A200A, -90A380A | Length: 15M | Yaskawa Model: JZSP-CL2N803-15-E
SWY-CL2N803-20-E Motor: SGLFW2-90A200A, -90A380A | Length: 20M | Yaskawa Model: JZSP-CL2N803-20-E
SWY-CL2N503-01-E Motor: SGLFW2-90A560A, -1DA380A, -1DA560A | Length: 1M | Yaskawa Model: JZSP-CL2N503-01-E
SWY-CL2N503-03-E Motor: SGLFW2-90A560A, -1DA380A, -1DA560A | Length: 3M | Yaskawa Model: JZSP-CL2N503-03-E
SWY-CL2N503-05-E Motor: SGLFW2-90A560A, -1DA380A, -1DA560A | Length: 5M | Yaskawa Model: JZSP-CL2N503-05-E
SWY-CL2N503-10-E Motor: SGLFW2-90A560A, -1DA380A, -1DA560A | Length: 10M | Yaskawa Model: JZSP-CL2N503-10-E
SWY-CL2N503-15-E Motor: SGLFW2-90A560A, -1DA380A, -1DA560A | Length: 15M | Yaskawa Model: JZSP-CL2N503-15-E
SWY-CL2N503-20-E Motor: SGLFW2-90A560A, -1DA380A, -1DA560A | Length: 20M | Yaskawa Model: JZSP-CL2N503-20-E
SWY-CLN423-01-E Motor: SGLFW2-90A200A□L□ | Length: 1M | Yaskawa Model: JZSP-CLN423-01-E
SWY-CLN423-03-E Motor: SGLFW2-90A200A□L□ | Length: 3M | Yaskawa Model: JZSP-CLN423-03-E
SWY-CLN423-05-E Motor: SGLFW2-90A200A□L□ | Length: 5M | Yaskawa Model: JZSP-CLN423-05-E
SWY-CLN423-10-E Motor: SGLFW2-90A200A□L□ | Length: 10M | Yaskawa Model: JZSP-CLN423-10-E
SWY-CLN423-15-E Motor: SGLFW2-90A200A□L□ | Length: 15M | Yaskawa Model: JZSP-CLN423-15-E
SWY-CLN423-20-E Motor: SGLFW2-90A200A□L□ | Length: 20M | Yaskawa Model: JZSP-CLN423-20-E
Servo CablesSamwon ACT
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT SWY-CL2N/CLN423 Linear Motor Power Cable for Yaskawa Sigma-X SGLFW2-90A/1DA

Brand Samwon ACT·Servo Cables

Available part numbers (18)

SWY-CL2N803-01-E, SWY-CL2N803-03-E, SWY-CL2N803-05-E, SWY-CL2N803-10-E, SWY-CL2N803-15-E, SWY-CL2N803-20-E, SWY-CL2N503-01-E, SWY-CL2N503-03-E, SWY-CL2N503-05-E, SWY-CL2N503-10-E + 8 more — see full table ↓

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SWY-CL2N803-01-EMotor: SGLFW2-90A200A, -90A380A | Length: 1M | Yaskawa Model: JZSP-CL2N803-01-E
SWY-CL2N803-03-EMotor: SGLFW2-90A200A, -90A380A | Length: 3M | Yaskawa Model: JZSP-CL2N803-03-E
SWY-CL2N803-05-EMotor: SGLFW2-90A200A, -90A380A | Length: 5M | Yaskawa Model: JZSP-CL2N803-05-E
SWY-CL2N803-10-EMotor: SGLFW2-90A200A, -90A380A | Length: 10M | Yaskawa Model: JZSP-CL2N803-10-E
SWY-CL2N803-15-EMotor: SGLFW2-90A200A, -90A380A | Length: 15M | Yaskawa Model: JZSP-CL2N803-15-E
SWY-CL2N803-20-EMotor: SGLFW2-90A200A, -90A380A | Length: 20M | Yaskawa Model: JZSP-CL2N803-20-E
SWY-CL2N503-01-EMotor: SGLFW2-90A560A, -1DA380A, -1DA560A | Length: 1M | Yaskawa Model: JZSP-CL2N503-01-E
SWY-CL2N503-03-EMotor: SGLFW2-90A560A, -1DA380A, -1DA560A | Length: 3M | Yaskawa Model: JZSP-CL2N503-03-E
SWY-CL2N503-05-EMotor: SGLFW2-90A560A, -1DA380A, -1DA560A | Length: 5M | Yaskawa Model: JZSP-CL2N503-05-E
SWY-CL2N503-10-EMotor: SGLFW2-90A560A, -1DA380A, -1DA560A | Length: 10M | Yaskawa Model: JZSP-CL2N503-10-E
SWY-CL2N503-15-EMotor: SGLFW2-90A560A, -1DA380A, -1DA560A | Length: 15M | Yaskawa Model: JZSP-CL2N503-15-E
SWY-CL2N503-20-EMotor: SGLFW2-90A560A, -1DA380A, -1DA560A | Length: 20M | Yaskawa Model: JZSP-CL2N503-20-E
SWY-CLN423-01-EMotor: SGLFW2-90A200A□L□ | Length: 1M | Yaskawa Model: JZSP-CLN423-01-E
SWY-CLN423-03-EMotor: SGLFW2-90A200A□L□ | Length: 3M | Yaskawa Model: JZSP-CLN423-03-E
SWY-CLN423-05-EMotor: SGLFW2-90A200A□L□ | Length: 5M | Yaskawa Model: JZSP-CLN423-05-E
SWY-CLN423-10-EMotor: SGLFW2-90A200A□L□ | Length: 10M | Yaskawa Model: JZSP-CLN423-10-E
SWY-CLN423-15-EMotor: SGLFW2-90A200A□L□ | Length: 15M | Yaskawa Model: JZSP-CLN423-15-E
SWY-CLN423-20-EMotor: SGLFW2-90A200A□L□ | Length: 20M | Yaskawa Model: JZSP-CLN423-20-E
