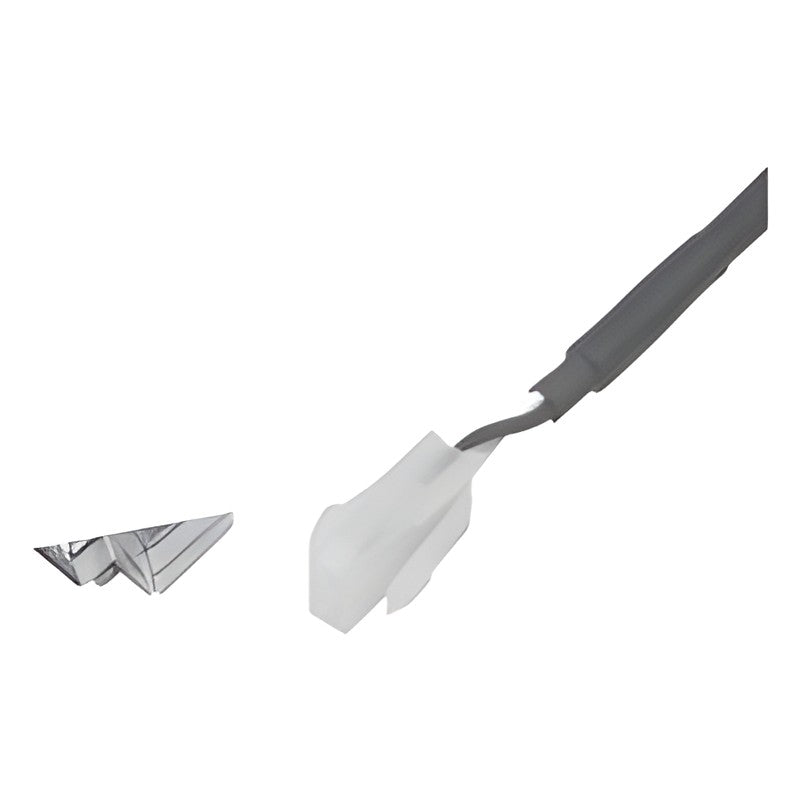

Samwon ACT SWY-CLL10/CL2L/CL2TH Linear Sensor Cables for Yaskawa Sigma-X

Samwon ACT SWY-CLL10/CL2L/CL2TH Linear Sensor Cables for Yaskawa Sigma-X

Moving-rated cables connecting the serial converter to the hall sensor or thermal protector of Yaskawa Sigma-X linear servo motors.

Key features

  • Hall sensor and thermal sensor cables for Yaskawa Sigma-X SGLGW, SGLTW and SGLFW2 linear servo motors
  • Built to the recommended specifications in Yaskawa user manuals and catalogs (some equivalent parts used)
  • Fixed, moving (flex-rated) and custom-specified cables can be made
  • Cable length can be specified freely; custom lengths in 100 mm steps
  • Small-quantity orders (from 1 piece) and short lead times

Specifications

Hall Sensor Connector DDK 17JE-13090 / SAMWON IDH-09H-C with stud or equivalent
Serial Converter Connector DDK 17JE-23090 / SAMWON IDH-09H-C or equivalent
Thermal Protector Connector MOLEX 5559-02P or equivalent
Moving Cable PROTERIAL RT-FLEX UL2464 twist pair shielded, ETFE insulation cable
Max. Transmission Length 15M
Length Tolerance +50 to +100 mm
SWY-CLL10-01/RFS-E Type: Serial converter - hall sensor (SGLGW, SGLTW) | Length: 1M | Yaskawa Model: JZSP-CLL10-01-E
SWY-CLL10-03/RFS-E Type: Serial converter - hall sensor (SGLGW, SGLTW) | Length: 3M | Yaskawa Model: JZSP-CLL10-03-E
SWY-CLL10-05/RFS-E Type: Serial converter - hall sensor (SGLGW, SGLTW) | Length: 5M | Yaskawa Model: JZSP-CLL10-05-E
SWY-CLL10-10/RFS-E Type: Serial converter - hall sensor (SGLGW, SGLTW) | Length: 10M | Yaskawa Model: JZSP-CLL10-10-E
SWY-CLL10-15/RFS-E Type: Serial converter - hall sensor (SGLGW, SGLTW) | Length: 15M | Yaskawa Model: JZSP-CLL10-15-E
SWY-CL2L100-01-E Type: Serial converter - hall sensor (SGLFW2 with integrated hall sensor) | Length: 1M | Yaskawa Model: JZSP-CL2L100-01-E
SWY-CL2L100-03-E Type: Serial converter - hall sensor (SGLFW2 with integrated hall sensor) | Length: 3M | Yaskawa Model: JZSP-CL2L100-03-E
SWY-CL2L100-05-E Type: Serial converter - hall sensor (SGLFW2 with integrated hall sensor) | Length: 5M | Yaskawa Model: JZSP-CL2L100-05-E
SWY-CL2L100-10-E Type: Serial converter - hall sensor (SGLFW2 with integrated hall sensor) | Length: 10M | Yaskawa Model: JZSP-CL2L100-10-E
SWY-CL2L100-15-E Type: Serial converter - hall sensor (SGLFW2 with integrated hall sensor) | Length: 15M | Yaskawa Model: JZSP-CL2L100-15-E
SWY-CL2TH00-01-E Type: Serial converter - thermal sensor (SGLFW2 without hall sensor) | Length: 1M | Yaskawa Model: JZSP-CL2TH00-01-E
SWY-CL2TH00-03-E Type: Serial converter - thermal sensor (SGLFW2 without hall sensor) | Length: 3M | Yaskawa Model: JZSP-CL2TH00-03-E
SWY-CL2TH00-05-E Type: Serial converter - thermal sensor (SGLFW2 without hall sensor) | Length: 5M | Yaskawa Model: JZSP-CL2TH00-05-E
SWY-CL2TH00-10-E Type: Serial converter - thermal sensor (SGLFW2 without hall sensor) | Length: 10M | Yaskawa Model: JZSP-CL2TH00-10-E
SWY-CL2TH00-15-E Type: Serial converter - thermal sensor (SGLFW2 without hall sensor) | Length: 15M | Yaskawa Model: JZSP-CL2TH00-15-E
Sensor CablesSamwon ACT
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT SWY-CLL10/CL2L/CL2TH Linear Sensor Cables for Yaskawa Sigma-X

Brand Samwon ACT·Sensor Cables

Available part numbers (15)

SWY-CLL10-01/RFS-E, SWY-CLL10-03/RFS-E, SWY-CLL10-05/RFS-E, SWY-CLL10-10/RFS-E, SWY-CLL10-15/RFS-E, SWY-CL2L100-01-E, SWY-CL2L100-03-E, SWY-CL2L100-05-E, SWY-CL2L100-10-E, SWY-CL2L100-15-E + 5 more — see full table ↓

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SWY-CLL10-01/RFS-EType: Serial converter - hall sensor (SGLGW, SGLTW) | Length: 1M | Yaskawa Model: JZSP-CLL10-01-E
SWY-CLL10-03/RFS-EType: Serial converter - hall sensor (SGLGW, SGLTW) | Length: 3M | Yaskawa Model: JZSP-CLL10-03-E
SWY-CLL10-05/RFS-EType: Serial converter - hall sensor (SGLGW, SGLTW) | Length: 5M | Yaskawa Model: JZSP-CLL10-05-E
SWY-CLL10-10/RFS-EType: Serial converter - hall sensor (SGLGW, SGLTW) | Length: 10M | Yaskawa Model: JZSP-CLL10-10-E
SWY-CLL10-15/RFS-EType: Serial converter - hall sensor (SGLGW, SGLTW) | Length: 15M | Yaskawa Model: JZSP-CLL10-15-E
SWY-CL2L100-01-EType: Serial converter - hall sensor (SGLFW2 with integrated hall sensor) | Length: 1M | Yaskawa Model: JZSP-CL2L100-01-E
SWY-CL2L100-03-EType: Serial converter - hall sensor (SGLFW2 with integrated hall sensor) | Length: 3M | Yaskawa Model: JZSP-CL2L100-03-E
SWY-CL2L100-05-EType: Serial converter - hall sensor (SGLFW2 with integrated hall sensor) | Length: 5M | Yaskawa Model: JZSP-CL2L100-05-E
SWY-CL2L100-10-EType: Serial converter - hall sensor (SGLFW2 with integrated hall sensor) | Length: 10M | Yaskawa Model: JZSP-CL2L100-10-E
SWY-CL2L100-15-EType: Serial converter - hall sensor (SGLFW2 with integrated hall sensor) | Length: 15M | Yaskawa Model: JZSP-CL2L100-15-E
SWY-CL2TH00-01-EType: Serial converter - thermal sensor (SGLFW2 without hall sensor) | Length: 1M | Yaskawa Model: JZSP-CL2TH00-01-E
SWY-CL2TH00-03-EType: Serial converter - thermal sensor (SGLFW2 without hall sensor) | Length: 3M | Yaskawa Model: JZSP-CL2TH00-03-E
SWY-CL2TH00-05-EType: Serial converter - thermal sensor (SGLFW2 without hall sensor) | Length: 5M | Yaskawa Model: JZSP-CL2TH00-05-E
SWY-CL2TH00-10-EType: Serial converter - thermal sensor (SGLFW2 without hall sensor) | Length: 10M | Yaskawa Model: JZSP-CL2TH00-10-E
SWY-CL2TH00-15-EType: Serial converter - thermal sensor (SGLFW2 without hall sensor) | Length: 15M | Yaskawa Model: JZSP-CL2TH00-15-E
