• Samwon ACT SWY-CLN/CL2N Linear Motor Power Cable for Yaskawa Sigma-X SGLGW/SGLTW/SGLFW2
1 1

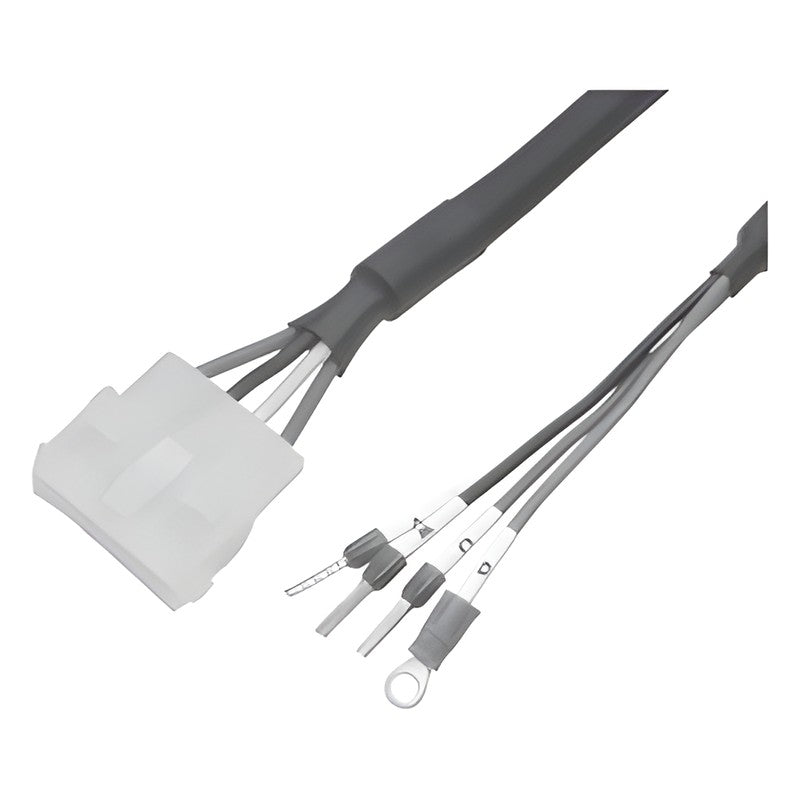

Samwon ACT SWY-CLN/CL2N Linear Motor Power Cable for Yaskawa Sigma-X SGLGW/SGLTW/SGLFW2

Samwon ACT SWY-CLN/CL2N Linear Motor Power Cable for Yaskawa Sigma-X SGLGW/SGLTW/SGLFW2

Moving-rated power cable for Yaskawa Sigma-X SGLGW, SGLTW-20A/35A and SGLFW2-30A/45A linear servo motors.

Key features

  • Power cables for Yaskawa Sigma-X linear servo motors SGLGW, SGLTW-20A/35A, SGLFW2-30A/45A
  • Built to the recommended specifications in Yaskawa user manuals and catalogs (some equivalent parts used)
  • Fixed, moving (flex-rated) and custom-specified cables can be made
  • Cable length can be specified freely; custom lengths in 100 mm steps
  • Small-quantity orders (from 1 piece) and short lead times

Specifications

Motor Power Connector Tyco Electronics AMP 350780-1 or equivalent
Moving Cable PROTERIAL RT-FLEX UL2464 twist pair shielded, ETFE insulation cable
Max. Transmission Length 20M
Cable Color Black
Length Tolerance +50 to +100 mm
SWY-CLN11-01-E Motor: SGLGW-30A, -40A, -60A | Length: 1M | Yaskawa Model: JZSP-CLN11-01-E
SWY-CLN11-03-E Motor: SGLGW-30A, -40A, -60A | Length: 3M | Yaskawa Model: JZSP-CLN11-03-E
SWY-CLN11-05-E Motor: SGLGW-30A, -40A, -60A | Length: 5M | Yaskawa Model: JZSP-CLN11-05-E
SWY-CLN11-10-E Motor: SGLGW-30A, -40A, -60A | Length: 10M | Yaskawa Model: JZSP-CLN11-10-E
SWY-CLN11-15-E Motor: SGLGW-30A, -40A, -60A | Length: 15M | Yaskawa Model: JZSP-CLN11-15-E
SWY-CLN11-20-E Motor: SGLGW-30A, -40A, -60A | Length: 20M | Yaskawa Model: JZSP-CLN11-20-E
SWY-CLN21-01-E Motor: SGLGW-90A, SGLTW-20A, -35A | Length: 1M | Yaskawa Model: JZSP-CLN21-01-E
SWY-CLN21-03-E Motor: SGLGW-90A, SGLTW-20A, -35A | Length: 3M | Yaskawa Model: JZSP-CLN21-03-E
SWY-CLN21-05-E Motor: SGLGW-90A, SGLTW-20A, -35A | Length: 5M | Yaskawa Model: JZSP-CLN21-05-E
SWY-CLN21-10-E Motor: SGLGW-90A, SGLTW-20A, -35A | Length: 10M | Yaskawa Model: JZSP-CLN21-10-E
SWY-CLN21-15-E Motor: SGLGW-90A, SGLTW-20A, -35A | Length: 15M | Yaskawa Model: JZSP-CLN21-15-E
SWY-CLN21-20-E Motor: SGLGW-90A, SGLTW-20A, -35A | Length: 20M | Yaskawa Model: JZSP-CLN21-20-E
SWY-CL2N703-01-E Motor: SGLFW2-30A070A, -30A120A, -30A230A | Length: 1M | Yaskawa Model: JZSP-CL2N703-01-E
SWY-CL2N703-03-E Motor: SGLFW2-30A070A, -30A120A, -30A230A | Length: 3M | Yaskawa Model: JZSP-CL2N703-03-E
SWY-CL2N703-05-E Motor: SGLFW2-30A070A, -30A120A, -30A230A | Length: 5M | Yaskawa Model: JZSP-CL2N703-05-E
SWY-CL2N703-10-E Motor: SGLFW2-30A070A, -30A120A, -30A230A | Length: 10M | Yaskawa Model: JZSP-CL2N703-10-E
SWY-CL2N703-15-E Motor: SGLFW2-30A070A, -30A120A, -30A230A | Length: 15M | Yaskawa Model: JZSP-CL2N703-15-E
SWY-CL2N703-20-E Motor: SGLFW2-30A070A, -30A120A, -30A230A | Length: 20M | Yaskawa Model: JZSP-CL2N703-20-E
SWY-CL2N603-01-E Motor: SGLFW2-45A200A, -45A380A | Length: 1M | Yaskawa Model: JZSP-CL2N603-01-E
SWY-CL2N603-03-E Motor: SGLFW2-45A200A, -45A380A | Length: 3M | Yaskawa Model: JZSP-CL2N603-03-E
SWY-CL2N603-05-E Motor: SGLFW2-45A200A, -45A380A | Length: 5M | Yaskawa Model: JZSP-CL2N603-05-E
SWY-CL2N603-10-E Motor: SGLFW2-45A200A, -45A380A | Length: 10M | Yaskawa Model: JZSP-CL2N603-10-E
SWY-CL2N603-15-E Motor: SGLFW2-45A200A, -45A380A | Length: 15M | Yaskawa Model: JZSP-CL2N603-15-E
SWY-CL2N603-20-E Motor: SGLFW2-45A200A, -45A380A | Length: 20M | Yaskawa Model: JZSP-CL2N603-20-E
Servo CablesSamwon ACT
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT SWY-CLN/CL2N Linear Motor Power Cable for Yaskawa Sigma-X SGLGW/SGLTW/SGLFW2

Brand Samwon ACT·Servo Cables

Available part numbers (24)

SWY-CLN11-01-E, SWY-CLN11-03-E, SWY-CLN11-05-E, SWY-CLN11-10-E, SWY-CLN11-15-E, SWY-CLN11-20-E, SWY-CLN21-01-E, SWY-CLN21-03-E, SWY-CLN21-05-E, SWY-CLN21-10-E + 14 more — see full table ↓

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SWY-CLN11-01-EMotor: SGLGW-30A, -40A, -60A | Length: 1M | Yaskawa Model: JZSP-CLN11-01-E
SWY-CLN11-03-EMotor: SGLGW-30A, -40A, -60A | Length: 3M | Yaskawa Model: JZSP-CLN11-03-E
SWY-CLN11-05-EMotor: SGLGW-30A, -40A, -60A | Length: 5M | Yaskawa Model: JZSP-CLN11-05-E
SWY-CLN11-10-EMotor: SGLGW-30A, -40A, -60A | Length: 10M | Yaskawa Model: JZSP-CLN11-10-E
SWY-CLN11-15-EMotor: SGLGW-30A, -40A, -60A | Length: 15M | Yaskawa Model: JZSP-CLN11-15-E
SWY-CLN11-20-EMotor: SGLGW-30A, -40A, -60A | Length: 20M | Yaskawa Model: JZSP-CLN11-20-E
SWY-CLN21-01-EMotor: SGLGW-90A, SGLTW-20A, -35A | Length: 1M | Yaskawa Model: JZSP-CLN21-01-E
SWY-CLN21-03-EMotor: SGLGW-90A, SGLTW-20A, -35A | Length: 3M | Yaskawa Model: JZSP-CLN21-03-E
SWY-CLN21-05-EMotor: SGLGW-90A, SGLTW-20A, -35A | Length: 5M | Yaskawa Model: JZSP-CLN21-05-E
SWY-CLN21-10-EMotor: SGLGW-90A, SGLTW-20A, -35A | Length: 10M | Yaskawa Model: JZSP-CLN21-10-E
SWY-CLN21-15-EMotor: SGLGW-90A, SGLTW-20A, -35A | Length: 15M | Yaskawa Model: JZSP-CLN21-15-E
SWY-CLN21-20-EMotor: SGLGW-90A, SGLTW-20A, -35A | Length: 20M | Yaskawa Model: JZSP-CLN21-20-E
SWY-CL2N703-01-EMotor: SGLFW2-30A070A, -30A120A, -30A230A | Length: 1M | Yaskawa Model: JZSP-CL2N703-01-E
SWY-CL2N703-03-EMotor: SGLFW2-30A070A, -30A120A, -30A230A | Length: 3M | Yaskawa Model: JZSP-CL2N703-03-E
SWY-CL2N703-05-EMotor: SGLFW2-30A070A, -30A120A, -30A230A | Length: 5M | Yaskawa Model: JZSP-CL2N703-05-E
SWY-CL2N703-10-EMotor: SGLFW2-30A070A, -30A120A, -30A230A | Length: 10M | Yaskawa Model: JZSP-CL2N703-10-E
SWY-CL2N703-15-EMotor: SGLFW2-30A070A, -30A120A, -30A230A | Length: 15M | Yaskawa Model: JZSP-CL2N703-15-E
SWY-CL2N703-20-EMotor: SGLFW2-30A070A, -30A120A, -30A230A | Length: 20M | Yaskawa Model: JZSP-CL2N703-20-E
SWY-CL2N603-01-EMotor: SGLFW2-45A200A, -45A380A | Length: 1M | Yaskawa Model: JZSP-CL2N603-01-E
SWY-CL2N603-03-EMotor: SGLFW2-45A200A, -45A380A | Length: 3M | Yaskawa Model: JZSP-CL2N603-03-E
SWY-CL2N603-05-EMotor: SGLFW2-45A200A, -45A380A | Length: 5M | Yaskawa Model: JZSP-CL2N603-05-E
SWY-CL2N603-10-EMotor: SGLFW2-45A200A, -45A380A | Length: 10M | Yaskawa Model: JZSP-CL2N603-10-E
SWY-CL2N603-15-EMotor: SGLFW2-45A200A, -45A380A | Length: 15M | Yaskawa Model: JZSP-CL2N603-15-E
SWY-CL2N603-20-EMotor: SGLFW2-45A200A, -45A380A | Length: 20M | Yaskawa Model: JZSP-CL2N603-20-E
