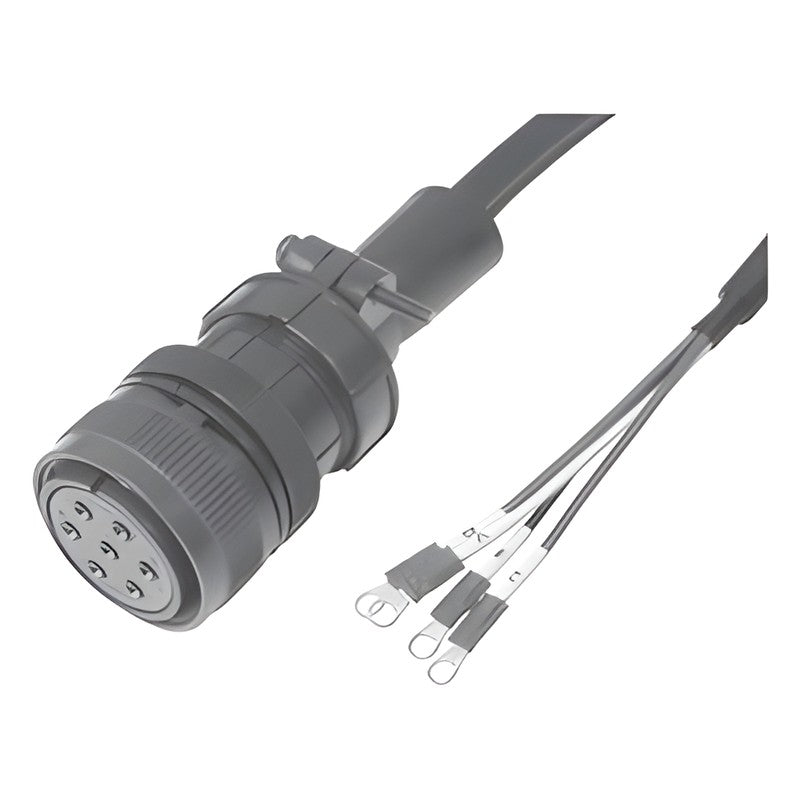

Samwon ACT SWY-CLN39 Linear Motor Power Cable for Yaskawa Sigma-X SGLTW-40A/80A

Moving-rated power cable with straight MS connector for Yaskawa Sigma-X SGLTW-40A and SGLTW-80A linear servo motors.

Key features

Power cables for Yaskawa Sigma-X linear servo motors SGLTW-40A/80A (straight connector; elbow type on request)
Built to the recommended specifications in Yaskawa user manuals and catalogs (some equivalent parts used)
Fixed, moving (flex-rated) and custom-specified cables can be made
Cable length can be specified freely; custom lengths in 100 mm steps
Small-quantity orders (from 1 piece) and short lead times

Specifications

Motor Power Connector	MS3106B 22-22S or equivalent
Moving Cable	TAIYO EXT-VP UL2501 cross-linked polyethylene insulation cable, IPA class 1
Max. Transmission Length	20M
Connector	Straight
Length Tolerance	+50 to +100 mm

SWY-CLN39-01-E		Length: 1M
SWY-CLN39-03-E		Length: 3M
SWY-CLN39-05-E		Length: 5M
SWY-CLN39-10-E		Length: 10M
SWY-CLN39-15-E		Length: 15M
SWY-CLN39-20-E		Length: 20M

Servo CablesSamwon ACT

6 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT SWY-CLN39 Linear Motor Power Cable for Yaskawa Sigma-X SGLTW-40A/80A

Brand Samwon ACT·Servo Cables

Available part numbers (6)

SWY-CLN39-01-E, SWY-CLN39-03-E, SWY-CLN39-05-E, SWY-CLN39-10-E, SWY-CLN39-15-E, SWY-CLN39-20-E

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
