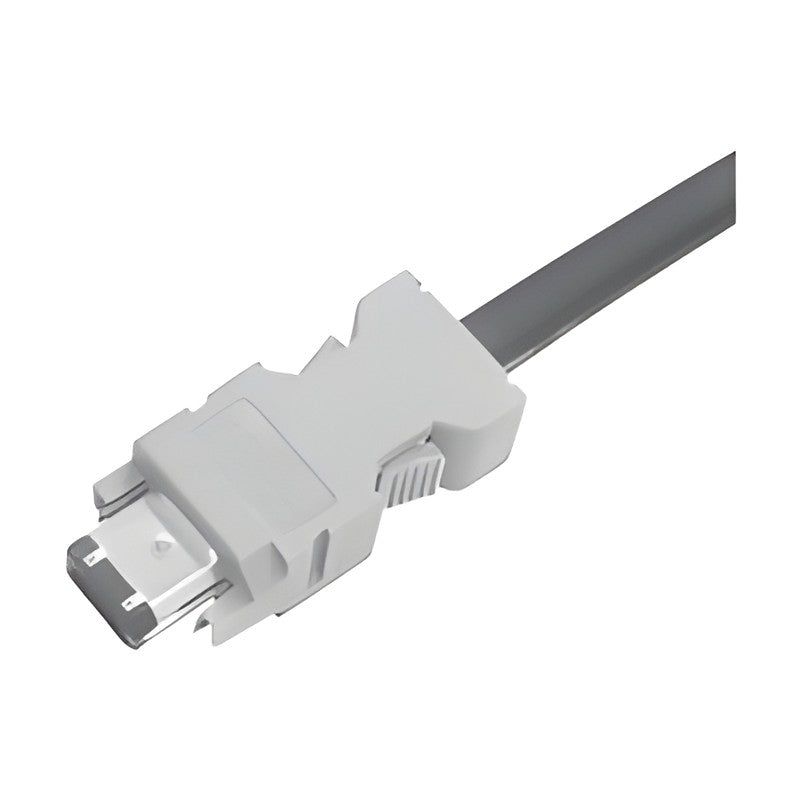

Samwon ACT SWY-CLP70/CLL Linear Serial Converter Cables for Yaskawa Sigma-X

Samwon ACT SWY-CLP70/CLL Linear Serial Converter Cables for Yaskawa Sigma-X

Moving-rated cables for the Yaskawa Sigma-X linear serial converter: converter CN1 to servo amplifier, and converter CN2 to linear scale (Renishaw or Heidenhain).

Key features

  • Serial converter connection cables for Yaskawa Sigma-X linear servo motors SGLGW, SGLFW2, SGLTW
  • Built to the recommended specifications in Yaskawa user manuals and catalogs (some equivalent parts used)
  • Fixed, moving (flex-rated) and custom-specified cables can be made
  • Cable length can be specified freely; custom lengths in 100 mm steps
  • Small-quantity orders (from 1 piece) and short lead times

Specifications

Amplifier Connector MOLEX 55100-0670 or equivalent
Serial Converter Connector CN1 DDK 17JE-23090 / SAMWON IDH-09H-C or equivalent
Linear Scale Connector DDK 17JE-13150 / SAMWON IDH-15H-C with stud or equivalent
Serial Converter Connector CN2 DDK 17JE-23150 / SAMWON IDH-15H-C or equivalent
Moving Cable PROTERIAL RT-FLEX UL2464 twist pair shielded, ETFE insulation cable
Max. Transmission Length 15M or 20M
Length Tolerance +50 to +100 mm
SWY-CLP70-01-E Type: Serial converter CN1 - servo amplifier | Length: 1M | Yaskawa Model: JZSP-CLP70-01-E
SWY-CLP70-03-E Type: Serial converter CN1 - servo amplifier | Length: 3M | Yaskawa Model: JZSP-CLP70-03-E
SWY-CLP70-05-E Type: Serial converter CN1 - servo amplifier | Length: 5M | Yaskawa Model: JZSP-CLP70-05-E
SWY-CLP70-10-E Type: Serial converter CN1 - servo amplifier | Length: 10M | Yaskawa Model: JZSP-CLP70-10-E
SWY-CLP70-15-E Type: Serial converter CN1 - servo amplifier | Length: 15M | Yaskawa Model: JZSP-CLP70-15-E
SWY-CLP70-20-E Type: Serial converter CN1 - servo amplifier | Length: 20M | Yaskawa Model: JZSP-CLP70-20-E
SWY-CLL00-01-E Type: Serial converter CN2 - linear scale (Renishaw) | Length: 1M | Yaskawa Model: JZSP-CLL00-01-E
SWY-CLL00-03-E Type: Serial converter CN2 - linear scale (Renishaw) | Length: 3M | Yaskawa Model: JZSP-CLL00-03-E
SWY-CLL00-05-E Type: Serial converter CN2 - linear scale (Renishaw) | Length: 5M | Yaskawa Model: JZSP-CLL00-05-E
SWY-CLL00-10-E Type: Serial converter CN2 - linear scale (Renishaw) | Length: 10M | Yaskawa Model: JZSP-CLL00-10-E
SWY-CLL00-15-E Type: Serial converter CN2 - linear scale (Renishaw) | Length: 15M | Yaskawa Model: JZSP-CLL00-15-E
SWY-CLL30-01-E Type: Serial converter CN2 - linear scale (Heidenhain) | Length: 1M | Yaskawa Model: JZSP-CLL30-01-E
SWY-CLL30-03-E Type: Serial converter CN2 - linear scale (Heidenhain) | Length: 3M | Yaskawa Model: JZSP-CLL30-03-E
SWY-CLL30-05-E Type: Serial converter CN2 - linear scale (Heidenhain) | Length: 5M | Yaskawa Model: JZSP-CLL30-05-E
SWY-CLL30-10-E Type: Serial converter CN2 - linear scale (Heidenhain) | Length: 10M | Yaskawa Model: JZSP-CLL30-10-E
SWY-CLL30-15-E Type: Serial converter CN2 - linear scale (Heidenhain) | Length: 15M | Yaskawa Model: JZSP-CLL30-15-E
Encoder CablesSamwon ACT
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT SWY-CLP70/CLL Linear Serial Converter Cables for Yaskawa Sigma-X

Brand Samwon ACT·Encoder Cables

Available part numbers (16)

SWY-CLP70-01-E, SWY-CLP70-03-E, SWY-CLP70-05-E, SWY-CLP70-10-E, SWY-CLP70-15-E, SWY-CLP70-20-E, SWY-CLL00-01-E, SWY-CLL00-03-E, SWY-CLL00-05-E, SWY-CLL00-10-E + 6 more — see full table ↓

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SWY-CLP70-01-EType: Serial converter CN1 - servo amplifier | Length: 1M | Yaskawa Model: JZSP-CLP70-01-E
SWY-CLP70-03-EType: Serial converter CN1 - servo amplifier | Length: 3M | Yaskawa Model: JZSP-CLP70-03-E
SWY-CLP70-05-EType: Serial converter CN1 - servo amplifier | Length: 5M | Yaskawa Model: JZSP-CLP70-05-E
SWY-CLP70-10-EType: Serial converter CN1 - servo amplifier | Length: 10M | Yaskawa Model: JZSP-CLP70-10-E
SWY-CLP70-15-EType: Serial converter CN1 - servo amplifier | Length: 15M | Yaskawa Model: JZSP-CLP70-15-E
SWY-CLP70-20-EType: Serial converter CN1 - servo amplifier | Length: 20M | Yaskawa Model: JZSP-CLP70-20-E
SWY-CLL00-01-EType: Serial converter CN2 - linear scale (Renishaw) | Length: 1M | Yaskawa Model: JZSP-CLL00-01-E
SWY-CLL00-03-EType: Serial converter CN2 - linear scale (Renishaw) | Length: 3M | Yaskawa Model: JZSP-CLL00-03-E
SWY-CLL00-05-EType: Serial converter CN2 - linear scale (Renishaw) | Length: 5M | Yaskawa Model: JZSP-CLL00-05-E
SWY-CLL00-10-EType: Serial converter CN2 - linear scale (Renishaw) | Length: 10M | Yaskawa Model: JZSP-CLL00-10-E
SWY-CLL00-15-EType: Serial converter CN2 - linear scale (Renishaw) | Length: 15M | Yaskawa Model: JZSP-CLL00-15-E
SWY-CLL30-01-EType: Serial converter CN2 - linear scale (Heidenhain) | Length: 1M | Yaskawa Model: JZSP-CLL30-01-E
SWY-CLL30-03-EType: Serial converter CN2 - linear scale (Heidenhain) | Length: 3M | Yaskawa Model: JZSP-CLL30-03-E
SWY-CLL30-05-EType: Serial converter CN2 - linear scale (Heidenhain) | Length: 5M | Yaskawa Model: JZSP-CLL30-05-E
SWY-CLL30-10-EType: Serial converter CN2 - linear scale (Heidenhain) | Length: 10M | Yaskawa Model: JZSP-CLL30-10-E
SWY-CLL30-15-EType: Serial converter CN2 - linear scale (Heidenhain) | Length: 15M | Yaskawa Model: JZSP-CLL30-15-E
