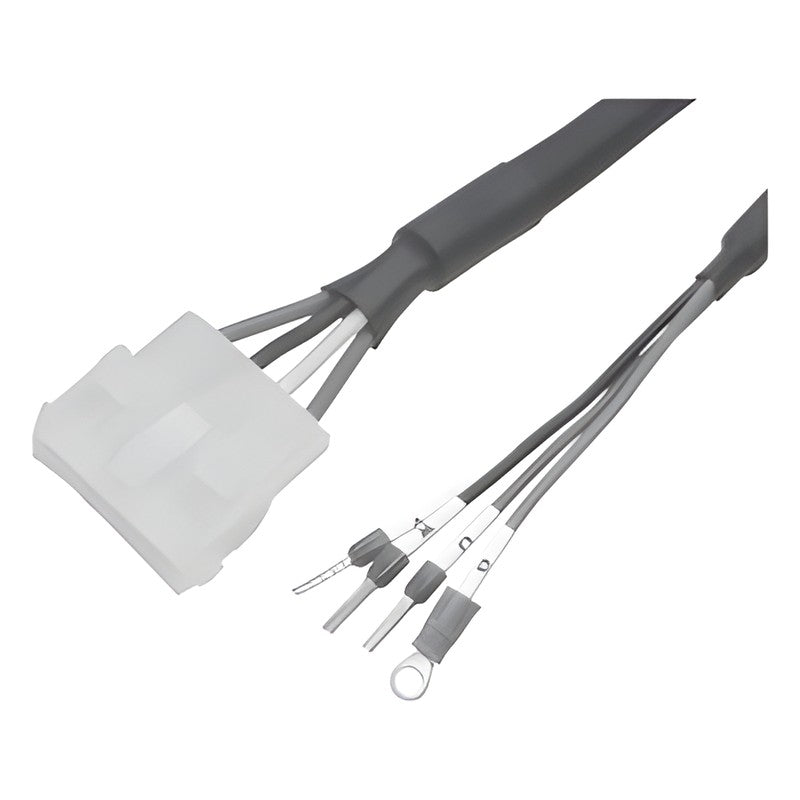

Samwon ACT SWY-CMM/C7DM/C7MDS Power Cable for Yaskawa Sigma-X SGM7D/SGM7E/SGM7F Flange4

Power cables for Yaskawa Sigma-X SGM7D and SGM7E/SGM7F (flange 4) direct drive servo motors.

Key features

Power cables for Yaskawa Sigma-X direct drive servo motors SGM7D, SGM7E and SGM7F flange 4
Built to the recommended specifications in Yaskawa user manuals and catalogs (some equivalent parts used)
Fixed, moving (flex-rated) and custom-specified cables can be made
Cable length can be specified freely; custom lengths in 100 mm steps
Small-quantity orders (from 1 piece) and short lead times

Specifications

Motor Power Connector	Tyco Electronics AMP 350780-1 or equivalent
Fixed Cable	VCTF PVC insulation cable
Moving Cable	PROTERIAL RT-FLEX UL2464 twist pair shielded, ETFE insulation cable
Max. Transmission Length	20M
Length Tolerance	+50 to +100 mm

SWY-C7DM21-03-E		Cable: Moving \| Motor: SGM7D-08G~45G, □□I, □□J \| Length: 3M \| Yaskawa Model: JZSP-C7DM21-03-E
SWY-C7DM21-05-E		Cable: Moving \| Motor: SGM7D-08G~45G, □□I, □□J \| Length: 5M \| Yaskawa Model: JZSP-C7DM21-05-E
SWY-C7DM21-10-E		Cable: Moving \| Motor: SGM7D-08G~45G, □□I, □□J \| Length: 10M \| Yaskawa Model: JZSP-C7DM21-10-E
SWY-C7DM21-15-E		Cable: Moving \| Motor: SGM7D-08G~45G, □□I, □□J \| Length: 15M \| Yaskawa Model: JZSP-C7DM21-15-E
SWY-C7DM21-20-E		Cable: Moving \| Motor: SGM7D-08G~45G, □□I, □□J \| Length: 20M \| Yaskawa Model: JZSP-C7DM21-20-E
SWY-C7MDS23-03-E		Cable: Moving \| Motor: SGM7E, SGM7F (flange 4) \| Length: 3M \| Yaskawa Model: JZSP-C7MDS23-03-E
SWY-C7MDS23-05-E		Cable: Moving \| Motor: SGM7E, SGM7F (flange 4) \| Length: 5M \| Yaskawa Model: JZSP-C7MDS23-05-E
SWY-C7MDS23-10-E		Cable: Moving \| Motor: SGM7E, SGM7F (flange 4) \| Length: 10M \| Yaskawa Model: JZSP-C7MDS23-10-E
SWY-C7MDS23-15-E		Cable: Moving \| Motor: SGM7E, SGM7F (flange 4) \| Length: 15M \| Yaskawa Model: JZSP-C7MDS23-15-E
SWY-C7MDS23-20-E		Cable: Moving \| Motor: SGM7E, SGM7F (flange 4) \| Length: 20M \| Yaskawa Model: JZSP-C7MDS23-20-E

Servo CablesSamwon ACT

10 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT SWY-CMM/C7DM/C7MDS Power Cable for Yaskawa Sigma-X SGM7D/SGM7E/SGM7F Flange4

Brand Samwon ACT·Servo Cables

Available part numbers (10)

SWY-C7DM21-03-E, SWY-C7DM21-05-E, SWY-C7DM21-10-E, SWY-C7DM21-15-E, SWY-C7DM21-20-E, SWY-C7MDS23-03-E, SWY-C7MDS23-05-E, SWY-C7MDS23-10-E, SWY-C7MDS23-15-E, SWY-C7MDS23-20-E

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
