Samwon ACT SWY-CMM Power + Brake Cable for Yaskawa Sigma-X SGMXP-08A/-15A

Samwon ACT SWY-CMM Power + Brake Cable for Yaskawa Sigma-X SGMXP-08A/-15A

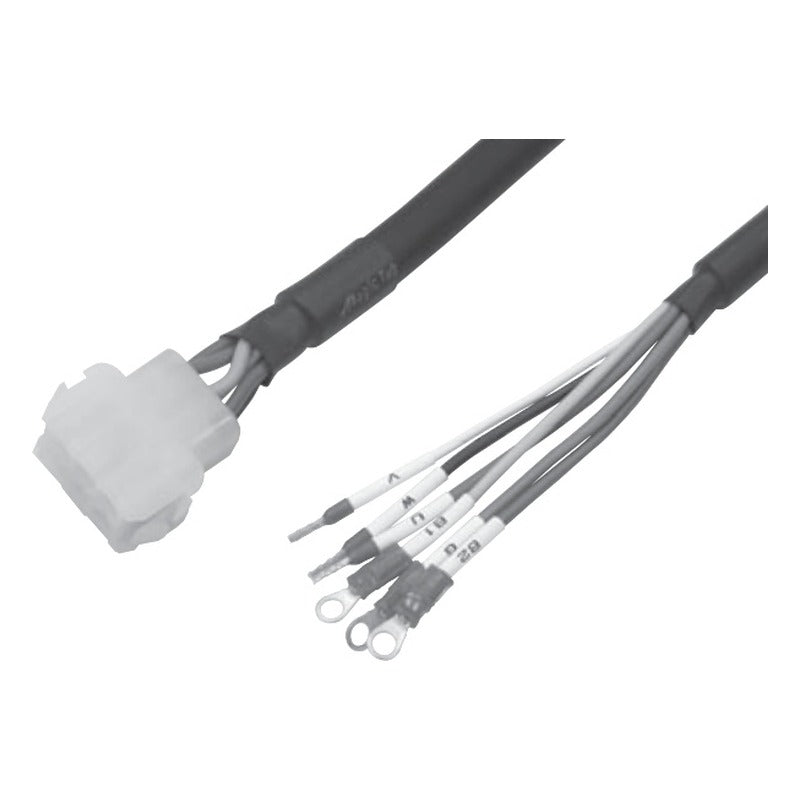

Power cable with integrated brake wires for Yaskawa Sigma-X SGMXP-08A and SGMXP-15A rotary servo motors.

Key features

  • Power + brake cables for Yaskawa Sigma-X SGMXP-08A and SGMXP-15A rotary servo motors
  • Built to the recommended specifications in Yaskawa user manuals and catalogs (some equivalent parts used)
  • Fixed, moving (flex-rated) and custom-specified cables can be made
  • Cable length can be specified freely; custom lengths in 100 mm steps
  • Small-quantity orders (from 1 piece) and short lead times

Specifications

Motor Power Connector Tyco Electronics AMP 350781-1 or equivalent
Fixed Cable UL2464 PVC insulation cable
Moving Cable PROTERIAL RT-FLEX UL2464, ETFE insulation cable
Max. Transmission Length 50M
Length Tolerance +50 to +100 mm
SWY-CMM10-03-E Motor: SGMXP-08A | Cable: Fixed | Length: 3M | Yaskawa Model: JZSP-CMM10-03-E
SWY-CMM11-03-E Motor: SGMXP-08A | Cable: Moving | Length: 3M | Yaskawa Model: JZSP-CMM11-03-E
SWY-CMM10-05-E Motor: SGMXP-08A | Cable: Fixed | Length: 5M | Yaskawa Model: JZSP-CMM10-05-E
SWY-CMM11-05-E Motor: SGMXP-08A | Cable: Moving | Length: 5M | Yaskawa Model: JZSP-CMM11-05-E
SWY-CMM10-10-E Motor: SGMXP-08A | Cable: Fixed | Length: 10M | Yaskawa Model: JZSP-CMM10-10-E
SWY-CMM11-10-E Motor: SGMXP-08A | Cable: Moving | Length: 10M | Yaskawa Model: JZSP-CMM11-10-E
SWY-CMM10-15-E Motor: SGMXP-08A | Cable: Fixed | Length: 15M | Yaskawa Model: JZSP-CMM10-15-E
SWY-CMM11-15-E Motor: SGMXP-08A | Cable: Moving | Length: 15M | Yaskawa Model: JZSP-CMM11-15-E
SWY-CMM10-20-E Motor: SGMXP-08A | Cable: Fixed | Length: 20M | Yaskawa Model: JZSP-CMM10-20-E
SWY-CMM11-20-E Motor: SGMXP-08A | Cable: Moving | Length: 20M | Yaskawa Model: JZSP-CMM11-20-E
SWY-CMM10-30-E Motor: SGMXP-08A | Cable: Fixed | Length: 30M | Yaskawa Model: JZSP-CMM10-30-E
SWY-CMM11-30-E Motor: SGMXP-08A | Cable: Moving | Length: 30M | Yaskawa Model: JZSP-CMM11-30-E
SWY-CMM10-40-E Motor: SGMXP-08A | Cable: Fixed | Length: 40M | Yaskawa Model: JZSP-CMM10-40-E
SWY-CMM11-40-E Motor: SGMXP-08A | Cable: Moving | Length: 40M | Yaskawa Model: JZSP-CMM11-40-E
SWY-CMM10-50-E Motor: SGMXP-08A | Cable: Fixed | Length: 50M | Yaskawa Model: JZSP-CMM10-50-E
SWY-CMM11-50-E Motor: SGMXP-08A | Cable: Moving | Length: 50M | Yaskawa Model: JZSP-CMM11-50-E
SWY-CMM30-03-E Motor: SGMXP-15A | Cable: Fixed | Length: 3M | Yaskawa Model: JZSP-CMM30-03-E
SWY-CMM31-03-E Motor: SGMXP-15A | Cable: Moving | Length: 3M
SWY-CMM30-05-E Motor: SGMXP-15A | Cable: Fixed | Length: 5M | Yaskawa Model: JZSP-CMM30-05-E
SWY-CMM31-05-E Motor: SGMXP-15A | Cable: Moving | Length: 5M
SWY-CMM30-10-E Motor: SGMXP-15A | Cable: Fixed | Length: 10M | Yaskawa Model: JZSP-CMM30-10-E
SWY-CMM31-10-E Motor: SGMXP-15A | Cable: Moving | Length: 10M
SWY-CMM30-15-E Motor: SGMXP-15A | Cable: Fixed | Length: 15M | Yaskawa Model: JZSP-CMM30-15-E
SWY-CMM31-15-E Motor: SGMXP-15A | Cable: Moving | Length: 15M
SWY-CMM30-20-E Motor: SGMXP-15A | Cable: Fixed | Length: 20M | Yaskawa Model: JZSP-CMM30-20-E
SWY-CMM31-20-E Motor: SGMXP-15A | Cable: Moving | Length: 20M
SWY-CMM30-30-E Motor: SGMXP-15A | Cable: Fixed | Length: 30M
SWY-CMM31-30-E Motor: SGMXP-15A | Cable: Moving | Length: 30M
SWY-CMM30-40-E Motor: SGMXP-15A | Cable: Fixed | Length: 40M
SWY-CMM31-40-E Motor: SGMXP-15A | Cable: Moving | Length: 40M
SWY-CMM30-50-E Motor: SGMXP-15A | Cable: Fixed | Length: 50M
SWY-CMM31-50-E Motor: SGMXP-15A | Cable: Moving | Length: 50M
Servo CablesSamwon ACT
32 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT SWY-CMM Power + Brake Cable for Yaskawa Sigma-X SGMXP-08A/-15A

Brand Samwon ACT·Servo Cables

Available part numbers (32)

SWY-CMM10-03-E, SWY-CMM11-03-E, SWY-CMM10-05-E, SWY-CMM11-05-E, SWY-CMM10-10-E, SWY-CMM11-10-E, SWY-CMM10-15-E, SWY-CMM11-15-E, SWY-CMM10-20-E, SWY-CMM11-20-E + 22 more — see full table ↓

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SWY-CMM10-03-EMotor: SGMXP-08A | Cable: Fixed | Length: 3M | Yaskawa Model: JZSP-CMM10-03-E
SWY-CMM11-03-EMotor: SGMXP-08A | Cable: Moving | Length: 3M | Yaskawa Model: JZSP-CMM11-03-E
SWY-CMM10-05-EMotor: SGMXP-08A | Cable: Fixed | Length: 5M | Yaskawa Model: JZSP-CMM10-05-E
SWY-CMM11-05-EMotor: SGMXP-08A | Cable: Moving | Length: 5M | Yaskawa Model: JZSP-CMM11-05-E
SWY-CMM10-10-EMotor: SGMXP-08A | Cable: Fixed | Length: 10M | Yaskawa Model: JZSP-CMM10-10-E
SWY-CMM11-10-EMotor: SGMXP-08A | Cable: Moving | Length: 10M | Yaskawa Model: JZSP-CMM11-10-E
SWY-CMM10-15-EMotor: SGMXP-08A | Cable: Fixed | Length: 15M | Yaskawa Model: JZSP-CMM10-15-E
SWY-CMM11-15-EMotor: SGMXP-08A | Cable: Moving | Length: 15M | Yaskawa Model: JZSP-CMM11-15-E
SWY-CMM10-20-EMotor: SGMXP-08A | Cable: Fixed | Length: 20M | Yaskawa Model: JZSP-CMM10-20-E
SWY-CMM11-20-EMotor: SGMXP-08A | Cable: Moving | Length: 20M | Yaskawa Model: JZSP-CMM11-20-E
SWY-CMM10-30-EMotor: SGMXP-08A | Cable: Fixed | Length: 30M | Yaskawa Model: JZSP-CMM10-30-E
SWY-CMM11-30-EMotor: SGMXP-08A | Cable: Moving | Length: 30M | Yaskawa Model: JZSP-CMM11-30-E
SWY-CMM10-40-EMotor: SGMXP-08A | Cable: Fixed | Length: 40M | Yaskawa Model: JZSP-CMM10-40-E
SWY-CMM11-40-EMotor: SGMXP-08A | Cable: Moving | Length: 40M | Yaskawa Model: JZSP-CMM11-40-E
SWY-CMM10-50-EMotor: SGMXP-08A | Cable: Fixed | Length: 50M | Yaskawa Model: JZSP-CMM10-50-E
SWY-CMM11-50-EMotor: SGMXP-08A | Cable: Moving | Length: 50M | Yaskawa Model: JZSP-CMM11-50-E
SWY-CMM30-03-EMotor: SGMXP-15A | Cable: Fixed | Length: 3M | Yaskawa Model: JZSP-CMM30-03-E
SWY-CMM31-03-EMotor: SGMXP-15A | Cable: Moving | Length: 3M
SWY-CMM30-05-EMotor: SGMXP-15A | Cable: Fixed | Length: 5M | Yaskawa Model: JZSP-CMM30-05-E
SWY-CMM31-05-EMotor: SGMXP-15A | Cable: Moving | Length: 5M
SWY-CMM30-10-EMotor: SGMXP-15A | Cable: Fixed | Length: 10M | Yaskawa Model: JZSP-CMM30-10-E
SWY-CMM31-10-EMotor: SGMXP-15A | Cable: Moving | Length: 10M
SWY-CMM30-15-EMotor: SGMXP-15A | Cable: Fixed | Length: 15M | Yaskawa Model: JZSP-CMM30-15-E
SWY-CMM31-15-EMotor: SGMXP-15A | Cable: Moving | Length: 15M
SWY-CMM30-20-EMotor: SGMXP-15A | Cable: Fixed | Length: 20M | Yaskawa Model: JZSP-CMM30-20-E
SWY-CMM31-20-EMotor: SGMXP-15A | Cable: Moving | Length: 20M
SWY-CMM30-30-EMotor: SGMXP-15A | Cable: Fixed | Length: 30M
SWY-CMM31-30-EMotor: SGMXP-15A | Cable: Moving | Length: 30M
SWY-CMM30-40-EMotor: SGMXP-15A | Cable: Fixed | Length: 40M
SWY-CMM31-40-EMotor: SGMXP-15A | Cable: Moving | Length: 40M
SWY-CMM30-50-EMotor: SGMXP-15A | Cable: Fixed | Length: 50M
SWY-CMM31-50-EMotor: SGMXP-15A | Cable: Moving | Length: 50M

Need a different model, or a part not listed here? Send us your parts list →
