• Samwon ACT SWY-CMM Power Cable for Yaskawa Sigma-X SGMXP-08A/-15A
1 1

Samwon ACT SWY-CMM Power Cable for Yaskawa Sigma-X SGMXP-08A/-15A

Samwon ACT SWY-CMM Power Cable for Yaskawa Sigma-X SGMXP-08A/-15A

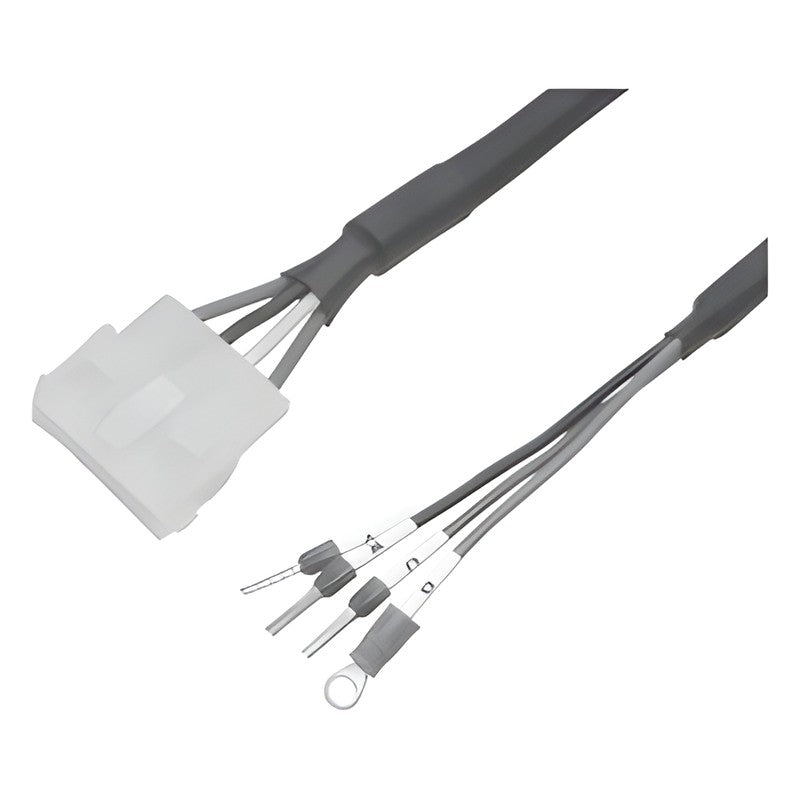

Power cable for Yaskawa Sigma-X SGMXP-08A and SGMXP-15A rotary servo motors.

Key features

  • Power cables for Yaskawa Sigma-X SGMXP-08A and SGMXP-15A rotary servo motors
  • Built to the recommended specifications in Yaskawa user manuals and catalogs (some equivalent parts used)
  • Fixed, moving (flex-rated) and custom-specified cables can be made
  • Cable length can be specified freely; custom lengths in 100 mm steps
  • Small-quantity orders (from 1 piece) and short lead times

Specifications

Motor Power Connector Tyco Electronics AMP 350781-1 or equivalent
Fixed Cable UL2464 PVC insulation cable
Moving Cable PROTERIAL RT-FLEX UL2464, ETFE insulation cable
Max. Transmission Length 50M
Length Tolerance +50 to +100 mm
SWY-CMM00-03-E Motor: SGMXP-08A | Cable: Fixed | Length: 3M | Yaskawa Model: JZSP-CMM00-03-E
SWY-CMM01-03-E Motor: SGMXP-08A | Cable: Moving | Length: 3M | Yaskawa Model: JZSP-CMM01-03-E
SWY-CMM00-05-E Motor: SGMXP-08A | Cable: Fixed | Length: 5M | Yaskawa Model: JZSP-CMM00-05-E
SWY-CMM01-05-E Motor: SGMXP-08A | Cable: Moving | Length: 5M | Yaskawa Model: JZSP-CMM01-05-E
SWY-CMM00-10-E Motor: SGMXP-08A | Cable: Fixed | Length: 10M | Yaskawa Model: JZSP-CMM00-10-E
SWY-CMM01-10-E Motor: SGMXP-08A | Cable: Moving | Length: 10M | Yaskawa Model: JZSP-CMM01-10-E
SWY-CMM00-15-E Motor: SGMXP-08A | Cable: Fixed | Length: 15M | Yaskawa Model: JZSP-CMM00-15-E
SWY-CMM01-15-E Motor: SGMXP-08A | Cable: Moving | Length: 15M | Yaskawa Model: JZSP-CMM01-15-E
SWY-CMM00-20-E Motor: SGMXP-08A | Cable: Fixed | Length: 20M | Yaskawa Model: JZSP-CMM00-20-E
SWY-CMM01-20-E Motor: SGMXP-08A | Cable: Moving | Length: 20M | Yaskawa Model: JZSP-CMM01-20-E
SWY-CMM00-30-E Motor: SGMXP-08A | Cable: Fixed | Length: 30M | Yaskawa Model: JZSP-CMM00-30-E
SWY-CMM01-30-E Motor: SGMXP-08A | Cable: Moving | Length: 30M | Yaskawa Model: JZSP-CMM01-30-E
SWY-CMM00-40-E Motor: SGMXP-08A | Cable: Fixed | Length: 40M | Yaskawa Model: JZSP-CMM00-40-E
SWY-CMM01-40-E Motor: SGMXP-08A | Cable: Moving | Length: 40M | Yaskawa Model: JZSP-CMM01-40-E
SWY-CMM00-50-E Motor: SGMXP-08A | Cable: Fixed | Length: 50M | Yaskawa Model: JZSP-CMM00-50-E
SWY-CMM01-50-E Motor: SGMXP-08A | Cable: Moving | Length: 50M | Yaskawa Model: JZSP-CMM01-50-E
SWY-CMM20-03-E Motor: SGMXP-15A | Cable: Fixed | Length: 3M | Yaskawa Model: JZSP-CMM20-03-E
SWY-CMM21-03-E Motor: SGMXP-15A | Cable: Moving | Length: 3M
SWY-CMM20-05-E Motor: SGMXP-15A | Cable: Fixed | Length: 5M | Yaskawa Model: JZSP-CMM20-05-E
SWY-CMM21-05-E Motor: SGMXP-15A | Cable: Moving | Length: 5M
SWY-CMM20-10-E Motor: SGMXP-15A | Cable: Fixed | Length: 10M | Yaskawa Model: JZSP-CMM20-10-E
SWY-CMM21-10-E Motor: SGMXP-15A | Cable: Moving | Length: 10M
SWY-CMM20-15-E Motor: SGMXP-15A | Cable: Fixed | Length: 15M | Yaskawa Model: JZSP-CMM20-15-E
SWY-CMM21-15-E Motor: SGMXP-15A | Cable: Moving | Length: 15M
SWY-CMM20-20-E Motor: SGMXP-15A | Cable: Fixed | Length: 20M | Yaskawa Model: JZSP-CMM20-20-E
SWY-CMM21-20-E Motor: SGMXP-15A | Cable: Moving | Length: 20M
SWY-CMM20-30-E Motor: SGMXP-15A | Cable: Fixed | Length: 30M
SWY-CMM21-30-E Motor: SGMXP-15A | Cable: Moving | Length: 30M
SWY-CMM20-40-E Motor: SGMXP-15A | Cable: Fixed | Length: 40M
SWY-CMM21-40-E Motor: SGMXP-15A | Cable: Moving | Length: 40M
SWY-CMM20-50-E Motor: SGMXP-15A | Cable: Fixed | Length: 50M
SWY-CMM21-50-E Motor: SGMXP-15A | Cable: Moving | Length: 50M
Servo CablesSamwon ACT
32 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT SWY-CMM Power Cable for Yaskawa Sigma-X SGMXP-08A/-15A

Brand Samwon ACT·Servo Cables

Available part numbers (32)

SWY-CMM00-03-E, SWY-CMM01-03-E, SWY-CMM00-05-E, SWY-CMM01-05-E, SWY-CMM00-10-E, SWY-CMM01-10-E, SWY-CMM00-15-E, SWY-CMM01-15-E, SWY-CMM00-20-E, SWY-CMM01-20-E + 22 more — see full table ↓

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SWY-CMM00-03-EMotor: SGMXP-08A | Cable: Fixed | Length: 3M | Yaskawa Model: JZSP-CMM00-03-E
SWY-CMM01-03-EMotor: SGMXP-08A | Cable: Moving | Length: 3M | Yaskawa Model: JZSP-CMM01-03-E
SWY-CMM00-05-EMotor: SGMXP-08A | Cable: Fixed | Length: 5M | Yaskawa Model: JZSP-CMM00-05-E
SWY-CMM01-05-EMotor: SGMXP-08A | Cable: Moving | Length: 5M | Yaskawa Model: JZSP-CMM01-05-E
SWY-CMM00-10-EMotor: SGMXP-08A | Cable: Fixed | Length: 10M | Yaskawa Model: JZSP-CMM00-10-E
SWY-CMM01-10-EMotor: SGMXP-08A | Cable: Moving | Length: 10M | Yaskawa Model: JZSP-CMM01-10-E
SWY-CMM00-15-EMotor: SGMXP-08A | Cable: Fixed | Length: 15M | Yaskawa Model: JZSP-CMM00-15-E
SWY-CMM01-15-EMotor: SGMXP-08A | Cable: Moving | Length: 15M | Yaskawa Model: JZSP-CMM01-15-E
SWY-CMM00-20-EMotor: SGMXP-08A | Cable: Fixed | Length: 20M | Yaskawa Model: JZSP-CMM00-20-E
SWY-CMM01-20-EMotor: SGMXP-08A | Cable: Moving | Length: 20M | Yaskawa Model: JZSP-CMM01-20-E
SWY-CMM00-30-EMotor: SGMXP-08A | Cable: Fixed | Length: 30M | Yaskawa Model: JZSP-CMM00-30-E
SWY-CMM01-30-EMotor: SGMXP-08A | Cable: Moving | Length: 30M | Yaskawa Model: JZSP-CMM01-30-E
SWY-CMM00-40-EMotor: SGMXP-08A | Cable: Fixed | Length: 40M | Yaskawa Model: JZSP-CMM00-40-E
SWY-CMM01-40-EMotor: SGMXP-08A | Cable: Moving | Length: 40M | Yaskawa Model: JZSP-CMM01-40-E
SWY-CMM00-50-EMotor: SGMXP-08A | Cable: Fixed | Length: 50M | Yaskawa Model: JZSP-CMM00-50-E
SWY-CMM01-50-EMotor: SGMXP-08A | Cable: Moving | Length: 50M | Yaskawa Model: JZSP-CMM01-50-E
SWY-CMM20-03-EMotor: SGMXP-15A | Cable: Fixed | Length: 3M | Yaskawa Model: JZSP-CMM20-03-E
SWY-CMM21-03-EMotor: SGMXP-15A | Cable: Moving | Length: 3M
SWY-CMM20-05-EMotor: SGMXP-15A | Cable: Fixed | Length: 5M | Yaskawa Model: JZSP-CMM20-05-E
SWY-CMM21-05-EMotor: SGMXP-15A | Cable: Moving | Length: 5M
SWY-CMM20-10-EMotor: SGMXP-15A | Cable: Fixed | Length: 10M | Yaskawa Model: JZSP-CMM20-10-E
SWY-CMM21-10-EMotor: SGMXP-15A | Cable: Moving | Length: 10M
SWY-CMM20-15-EMotor: SGMXP-15A | Cable: Fixed | Length: 15M | Yaskawa Model: JZSP-CMM20-15-E
SWY-CMM21-15-EMotor: SGMXP-15A | Cable: Moving | Length: 15M
SWY-CMM20-20-EMotor: SGMXP-15A | Cable: Fixed | Length: 20M | Yaskawa Model: JZSP-CMM20-20-E
SWY-CMM21-20-EMotor: SGMXP-15A | Cable: Moving | Length: 20M
SWY-CMM20-30-EMotor: SGMXP-15A | Cable: Fixed | Length: 30M
SWY-CMM21-30-EMotor: SGMXP-15A | Cable: Moving | Length: 30M
SWY-CMM20-40-EMotor: SGMXP-15A | Cable: Fixed | Length: 40M
SWY-CMM21-40-EMotor: SGMXP-15A | Cable: Moving | Length: 40M
SWY-CMM20-50-EMotor: SGMXP-15A | Cable: Fixed | Length: 50M
SWY-CMM21-50-EMotor: SGMXP-15A | Cable: Moving | Length: 50M
