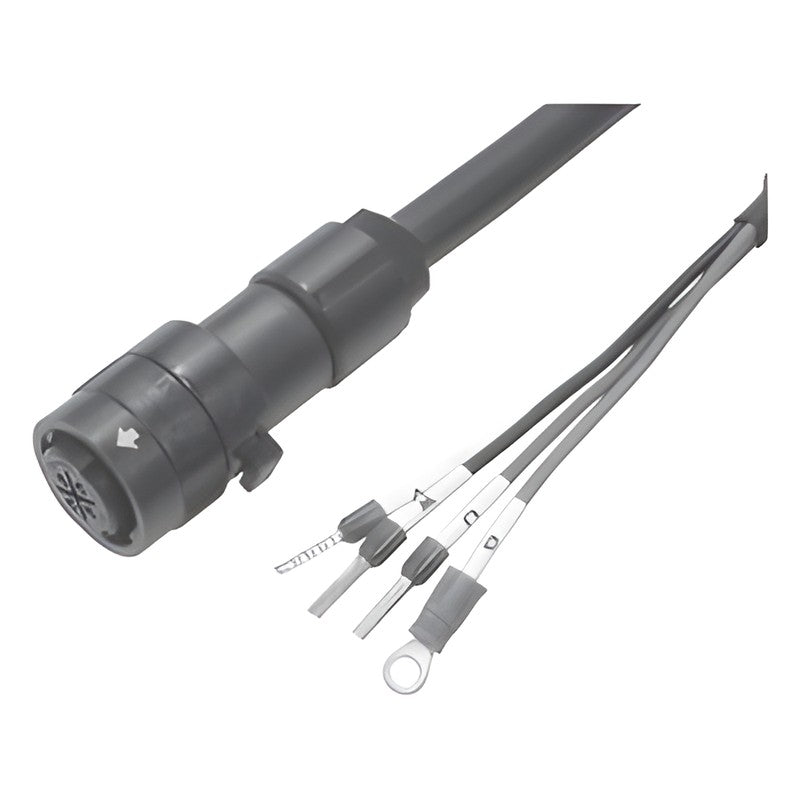

Samwon ACT SWY-CMM60/C7MDN23 Power Cable for Yaskawa Sigma-X SGM7E/SGM7F Flange1

Samwon ACT SWY-CMM60/C7MDN23 Power Cable for Yaskawa Sigma-X SGM7E/SGM7F Flange1

Power cables for Yaskawa Sigma-X SGM7E and SGM7F flange 1 direct drive servo motors.

Key features

  • Power cables for Yaskawa Sigma-X direct drive servo motors SGM7E and SGM7F flange 1
  • Built to the recommended specifications in Yaskawa user manuals and catalogs (some equivalent parts used)
  • Fixed, moving (flex-rated) and custom-specified cables can be made
  • Cable length can be specified freely; custom lengths in 100 mm steps
  • Small-quantity orders (from 1 piece) and short lead times

Specifications

Motor Power Connector JAE JN1DS04FK1 or equivalent
Fixed Cable VCTF PVC insulation cable
Moving Cable PROTERIAL RT-FLEX UL2464 twist pair shielded, ETFE insulation cable
Max. Transmission Length 20M
Length Tolerance +50 to +100 mm
SWY-CMM60-03-E Cable: Fixed | Length: 3M | Yaskawa Model: JZSP-CMM60-03-E
SWY-CMM60-05-E Cable: Fixed | Length: 5M | Yaskawa Model: JZSP-CMM60-05-E
SWY-CMM60-10-E Cable: Fixed | Length: 10M | Yaskawa Model: JZSP-CMM60-10-E
SWY-CMM60-15-E Cable: Fixed | Length: 15M | Yaskawa Model: JZSP-CMM60-15-E
SWY-CMM60-20-E Cable: Fixed | Length: 20M | Yaskawa Model: JZSP-CMM60-20-E
SWY-C7MDN23-03-E Cable: Moving | Length: 3M | Yaskawa Model: JZSP-C7MDN23-03-E
SWY-C7MDN23-05-E Cable: Moving | Length: 5M | Yaskawa Model: JZSP-C7MDN23-05-E
SWY-C7MDN23-10-E Cable: Moving | Length: 10M | Yaskawa Model: JZSP-C7MDN23-10-E
SWY-C7MDN23-15-E Cable: Moving | Length: 15M | Yaskawa Model: JZSP-C7MDN23-15-E
SWY-C7MDN23-20-E Cable: Moving | Length: 20M | Yaskawa Model: JZSP-C7MDN23-20-E
Servo CablesSamwon ACT
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT SWY-CMM60/C7MDN23 Power Cable for Yaskawa Sigma-X SGM7E/SGM7F Flange1

Brand Samwon ACT·Servo Cables

Available part numbers (10)

SWY-CMM60-03-E, SWY-CMM60-05-E, SWY-CMM60-10-E, SWY-CMM60-15-E, SWY-CMM60-20-E, SWY-C7MDN23-03-E, SWY-C7MDN23-05-E, SWY-C7MDN23-10-E, SWY-C7MDN23-15-E, SWY-C7MDN23-20-E

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
