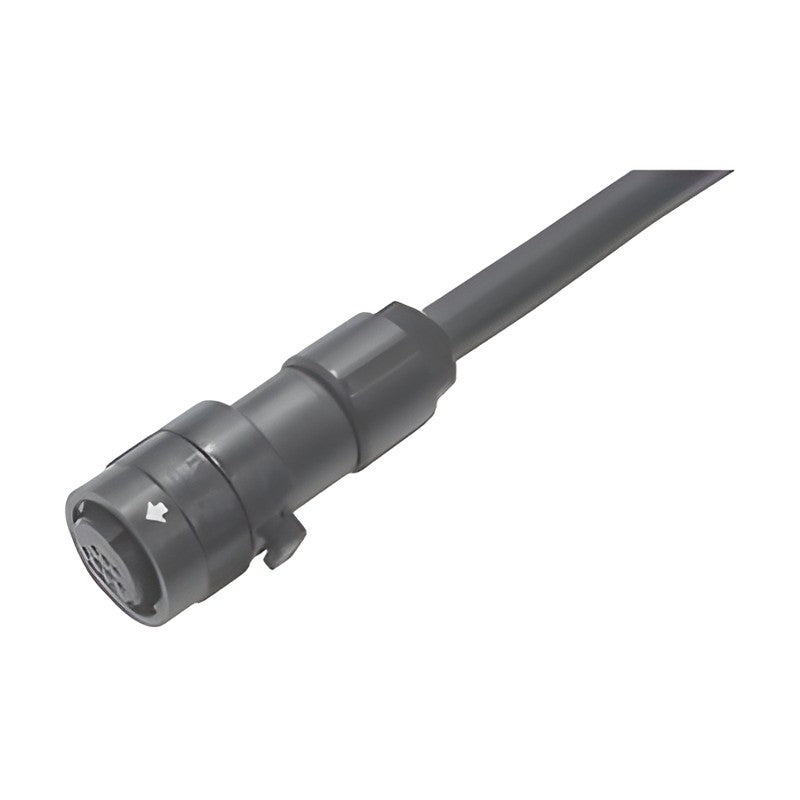

Samwon ACT SWY-CMP60/CSP60/C7PA Encoder Cable for Yaskawa Sigma-X SGM7E/SGM7F Flange1

Samwon ACT SWY-CMP60/CSP60/C7PA Encoder Cable for Yaskawa Sigma-X SGM7E/SGM7F Flange1

Incremental and absolute encoder cables for Yaskawa Sigma-X SGM7E flange 1 and SGM7F flange 1/3 direct drive servo motors.

Key features

  • Encoder cables for Yaskawa Sigma-X direct drive servo motors SGM7E flange 1 and SGM7F flange 1, 3
  • Built to the recommended specifications in Yaskawa user manuals and catalogs (some equivalent parts used)
  • Fixed, moving (flex-rated) and custom-specified cables can be made
  • Cable length can be specified freely; custom lengths in 100 mm steps
  • Small-quantity orders (from 1 piece) and short lead times

Specifications

Amplifier Connector MOLEX 55100-0670 or equivalent
Encoder Connector JAE JN1DS10SL1 or equivalent
Fixed Cable SAMWON ACT UL2464 twist pair shielded, PVC insulation cable
Moving Cable PROTERIAL RT-FLEX UL2464 twist pair shielded, ETFE insulation cable
Max. Transmission Length 20M
Length Tolerance +50 to +100 mm
SWY-CMP60-03-E Encoder: Incremental | Cable: Fixed | Motor: SGM7E-□□□F, SGM7F-□□□F | Length: 3M | Yaskawa Model: JZSP-CMP60-03-E
SWY-CMP60-05-E Encoder: Incremental | Cable: Fixed | Motor: SGM7E-□□□F, SGM7F-□□□F | Length: 5M | Yaskawa Model: JZSP-CMP60-05-E
SWY-CMP60-10-E Encoder: Incremental | Cable: Fixed | Motor: SGM7E-□□□F, SGM7F-□□□F | Length: 10M | Yaskawa Model: JZSP-CMP60-10-E
SWY-CMP60-15-E Encoder: Incremental | Cable: Fixed | Motor: SGM7E-□□□F, SGM7F-□□□F | Length: 15M | Yaskawa Model: JZSP-CMP60-15-E
SWY-CMP60-20-E Encoder: Incremental | Cable: Fixed | Motor: SGM7E-□□□F, SGM7F-□□□F | Length: 20M | Yaskawa Model: JZSP-CMP60-20-E
SWY-CSP60-03-E Encoder: Incremental | Cable: Moving | Motor: SGM7E-□□□F, SGM7F-□□□F | Length: 3M | Yaskawa Model: JZSP-CSP60-03-E
SWY-CSP60-05-E Encoder: Incremental | Cable: Moving | Motor: SGM7E-□□□F, SGM7F-□□□F | Length: 5M | Yaskawa Model: JZSP-CSP60-05-E
SWY-CSP60-10-E Encoder: Incremental | Cable: Moving | Motor: SGM7E-□□□F, SGM7F-□□□F | Length: 10M | Yaskawa Model: JZSP-CSP60-10-E
SWY-CSP60-15-E Encoder: Incremental | Cable: Moving | Motor: SGM7E-□□□F, SGM7F-□□□F | Length: 15M | Yaskawa Model: JZSP-CSP60-15-E
SWY-CSP60-20-E Encoder: Incremental | Cable: Moving | Motor: SGM7E-□□□F, SGM7F-□□□F | Length: 20M | Yaskawa Model: JZSP-CSP60-20-E
Encoder CablesSamwon ACT
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT SWY-CMP60/CSP60/C7PA Encoder Cable for Yaskawa Sigma-X SGM7E/SGM7F Flange1

Brand Samwon ACT·Encoder Cables

Available part numbers (10)

SWY-CMP60-03-E, SWY-CMP60-05-E, SWY-CMP60-10-E, SWY-CMP60-15-E, SWY-CMP60-20-E, SWY-CSP60-03-E, SWY-CSP60-05-E, SWY-CSP60-10-E, SWY-CSP60-15-E, SWY-CSP60-20-E

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SWY-CMP60-03-EEncoder: Incremental | Cable: Fixed | Motor: SGM7E-□□□F, SGM7F-□□□F | Length: 3M | Yaskawa Model: JZSP-CMP60-03-E
SWY-CMP60-05-EEncoder: Incremental | Cable: Fixed | Motor: SGM7E-□□□F, SGM7F-□□□F | Length: 5M | Yaskawa Model: JZSP-CMP60-05-E
SWY-CMP60-10-EEncoder: Incremental | Cable: Fixed | Motor: SGM7E-□□□F, SGM7F-□□□F | Length: 10M | Yaskawa Model: JZSP-CMP60-10-E
SWY-CMP60-15-EEncoder: Incremental | Cable: Fixed | Motor: SGM7E-□□□F, SGM7F-□□□F | Length: 15M | Yaskawa Model: JZSP-CMP60-15-E
SWY-CMP60-20-EEncoder: Incremental | Cable: Fixed | Motor: SGM7E-□□□F, SGM7F-□□□F | Length: 20M | Yaskawa Model: JZSP-CMP60-20-E
SWY-CSP60-03-EEncoder: Incremental | Cable: Moving | Motor: SGM7E-□□□F, SGM7F-□□□F | Length: 3M | Yaskawa Model: JZSP-CSP60-03-E
SWY-CSP60-05-EEncoder: Incremental | Cable: Moving | Motor: SGM7E-□□□F, SGM7F-□□□F | Length: 5M | Yaskawa Model: JZSP-CSP60-05-E
SWY-CSP60-10-EEncoder: Incremental | Cable: Moving | Motor: SGM7E-□□□F, SGM7F-□□□F | Length: 10M | Yaskawa Model: JZSP-CSP60-10-E
SWY-CSP60-15-EEncoder: Incremental | Cable: Moving | Motor: SGM7E-□□□F, SGM7F-□□□F | Length: 15M | Yaskawa Model: JZSP-CSP60-15-E
SWY-CSP60-20-EEncoder: Incremental | Cable: Moving | Motor: SGM7E-□□□F, SGM7F-□□□F | Length: 20M | Yaskawa Model: JZSP-CSP60-20-E
