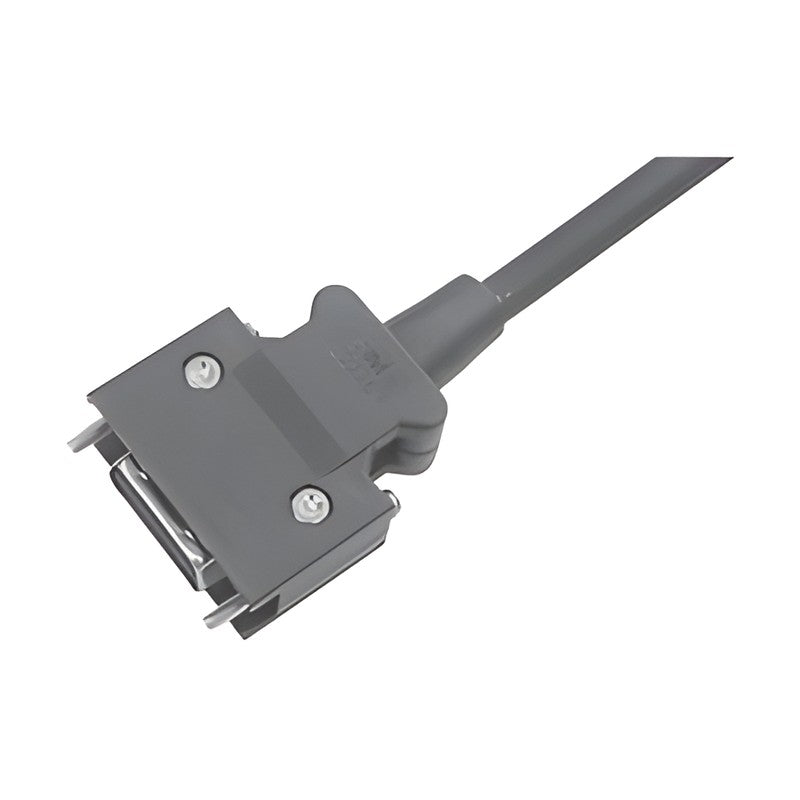

Samwon ACT SWY-CSI02 CN1 I/O Cable and XTB-26H Terminal Block for Yaskawa Sigma-XS

Samwon ACT SWY-CSI02 CN1 I/O Cable and XTB-26H Terminal Block for Yaskawa Sigma-XS

CN1 input/output signal cable for Yaskawa Sigma-XS (MECHATROLINK/EtherCAT) servo amplifiers, offered as a cable with loose end, as a cable for the XTB-26H junction terminal block, or as the terminal block itself.

Key features

  • Cable for the CN1 I/O signal connector of Yaskawa Sigma-XS (MECHATROLINK/EtherCAT) servo amplifiers
  • Use the SAMWON XTB-26H junction terminal block with the junction terminal block cable
  • Built to the recommended specifications in Yaskawa user manuals and catalogs (some equivalent parts used)
  • Small-quantity orders (from 1 piece) and short lead times

Specifications

Amplifier Connector 3M 10260-6000EL / 10326-52A0-008 or equivalent
Terminal Block Side Connector HIROSE HIF3BA-26D-2.54R or equivalent
Max. Transmission Length 3M
Terminal Block Rating 125V, 1A
Terminal Block Connector HIROSE HIF3BA-26PA-2.54DSA or equivalent
Terminal Block Specifications 109.0 x 40.0 mm (W x D), 7.0 mm pitch screw terminals, 85.0 mm mounting hole pitch (2-Ø4.5)
SWY-CSI02-0.5-E Type: CN1 I/O signal cable (servo amplifier side connector) | Length: 0.5M
SWY-CSI02-1-E Type: CN1 I/O signal cable (servo amplifier side connector) | Length: 1M | Yaskawa Model: JZSP-CSI02-1-E
SWY-CSI02-2-E Type: CN1 I/O signal cable (servo amplifier side connector) | Length: 2M | Yaskawa Model: JZSP-CSI02-2-E
SWY-CSI02-3-E Type: CN1 I/O signal cable (servo amplifier side connector) | Length: 3M | Yaskawa Model: JZSP-CSI02-3-E
SWY-CSI02S-0.5-E Type: CN1 I/O junction terminal block cable (for XTB-26H) | Length: 0.5M
SWY-CSI02S-1-E Type: CN1 I/O junction terminal block cable (for XTB-26H) | Length: 1M
SWY-CSI02S-1.5-E Type: CN1 I/O junction terminal block cable (for XTB-26H) | Length: 1.5M
SWY-CSI02S-2-E Type: CN1 I/O junction terminal block cable (for XTB-26H) | Length: 2M
I/O CablesSamwon ACT
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT SWY-CSI02 CN1 I/O Cable and XTB-26H Terminal Block for Yaskawa Sigma-XS

Brand Samwon ACT·I/O Cables

Available part numbers (8)

SWY-CSI02-0.5-E, SWY-CSI02-1-E, SWY-CSI02-2-E, SWY-CSI02-3-E, SWY-CSI02S-0.5-E, SWY-CSI02S-1-E, SWY-CSI02S-1.5-E, SWY-CSI02S-2-E

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SWY-CSI02-0.5-EType: CN1 I/O signal cable (servo amplifier side connector) | Length: 0.5M
SWY-CSI02-1-EType: CN1 I/O signal cable (servo amplifier side connector) | Length: 1M | Yaskawa Model: JZSP-CSI02-1-E
SWY-CSI02-2-EType: CN1 I/O signal cable (servo amplifier side connector) | Length: 2M | Yaskawa Model: JZSP-CSI02-2-E
SWY-CSI02-3-EType: CN1 I/O signal cable (servo amplifier side connector) | Length: 3M | Yaskawa Model: JZSP-CSI02-3-E
SWY-CSI02S-0.5-EType: CN1 I/O junction terminal block cable (for XTB-26H) | Length: 0.5M
SWY-CSI02S-1-EType: CN1 I/O junction terminal block cable (for XTB-26H) | Length: 1M
SWY-CSI02S-1.5-EType: CN1 I/O junction terminal block cable (for XTB-26H) | Length: 1.5M
SWY-CSI02S-2-EType: CN1 I/O junction terminal block cable (for XTB-26H) | Length: 2M
