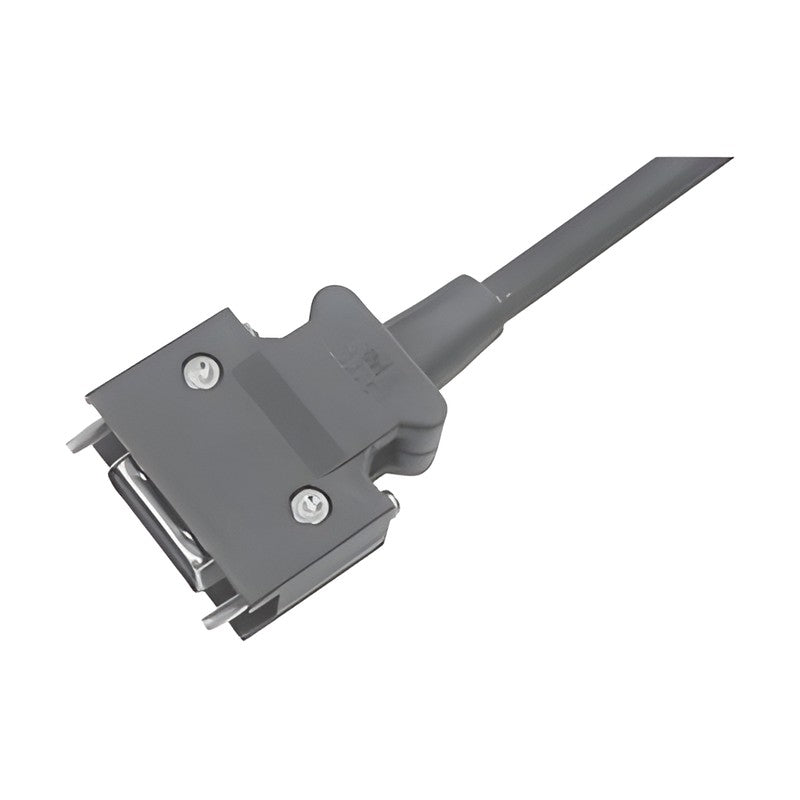

Samwon ACT SWY-CSI03 CN1 I/O Cable and XTB-40H Terminal Block for Yaskawa Sigma-XW

Samwon ACT SWY-CSI03 CN1 I/O Cable and XTB-40H Terminal Block for Yaskawa Sigma-XW

CN1 input/output signal cable for Yaskawa Sigma-XW servo amplifiers, offered as a cable with loose end, as a cable for the XTB-40H junction terminal block, or as the terminal block itself.

Key features

  • Cable for the CN1 I/O signal connector of Yaskawa Sigma-XW servo amplifiers
  • Use the SAMWON XTB-40H junction terminal block with the junction terminal block cable
  • Built to the recommended specifications in Yaskawa user manuals and catalogs (some equivalent parts used)
  • Small-quantity orders (from 1 piece) and short lead times

Specifications

Amplifier Connector 3M 10360-6000EL / 10336-52A0-008 or equivalent
Terminal Block Side Connector HIROSE HIF3BA-40D-2.54R or equivalent
Max. Transmission Length 3M
Terminal Block Rating 125V, 1A
Terminal Block Connector HIROSE HIF3BA-40PA-2.54DSA or equivalent
Terminal Block Specifications 149.0 x 40.5 mm (W x D), 7.0 mm pitch screw terminals, 127.5 mm mounting hole pitch (2-Ø4.5)
SWY-CSI03-0.5-E Type: CN1 I/O signal cable (servo amplifier side connector) | Length: 0.5M
SWY-CSI03-1-E Type: CN1 I/O signal cable (servo amplifier side connector) | Length: 1M | Yaskawa Model: JZSP-CSI03-1-E
SWY-CSI03-2-E Type: CN1 I/O signal cable (servo amplifier side connector) | Length: 2M | Yaskawa Model: JZSP-CSI03-2-E
SWY-CSI03-3-E Type: CN1 I/O signal cable (servo amplifier side connector) | Length: 3M | Yaskawa Model: JZSP-CSI03-3-E
SWY-CSI03S-0.5-E Type: CN1 I/O junction terminal block cable (for XTB-40H) | Length: 0.5M
SWY-CSI03S-1-E Type: CN1 I/O junction terminal block cable (for XTB-40H) | Length: 1M
SWY-CSI03S-2-E Type: CN1 I/O junction terminal block cable (for XTB-40H) | Length: 2M
SWY-CSI03S-3-E Type: CN1 I/O junction terminal block cable (for XTB-40H) | Length: 3M
I/O CablesSamwon ACT
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT SWY-CSI03 CN1 I/O Cable and XTB-40H Terminal Block for Yaskawa Sigma-XW

Brand Samwon ACT·I/O Cables

Available part numbers (8)

SWY-CSI03-0.5-E, SWY-CSI03-1-E, SWY-CSI03-2-E, SWY-CSI03-3-E, SWY-CSI03S-0.5-E, SWY-CSI03S-1-E, SWY-CSI03S-2-E, SWY-CSI03S-3-E

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SWY-CSI03-0.5-EType: CN1 I/O signal cable (servo amplifier side connector) | Length: 0.5M
SWY-CSI03-1-EType: CN1 I/O signal cable (servo amplifier side connector) | Length: 1M | Yaskawa Model: JZSP-CSI03-1-E
SWY-CSI03-2-EType: CN1 I/O signal cable (servo amplifier side connector) | Length: 2M | Yaskawa Model: JZSP-CSI03-2-E
SWY-CSI03-3-EType: CN1 I/O signal cable (servo amplifier side connector) | Length: 3M | Yaskawa Model: JZSP-CSI03-3-E
SWY-CSI03S-0.5-EType: CN1 I/O junction terminal block cable (for XTB-40H) | Length: 0.5M
SWY-CSI03S-1-EType: CN1 I/O junction terminal block cable (for XTB-40H) | Length: 1M
SWY-CSI03S-2-EType: CN1 I/O junction terminal block cable (for XTB-40H) | Length: 2M
SWY-CSI03S-3-EType: CN1 I/O junction terminal block cable (for XTB-40H) | Length: 3M
