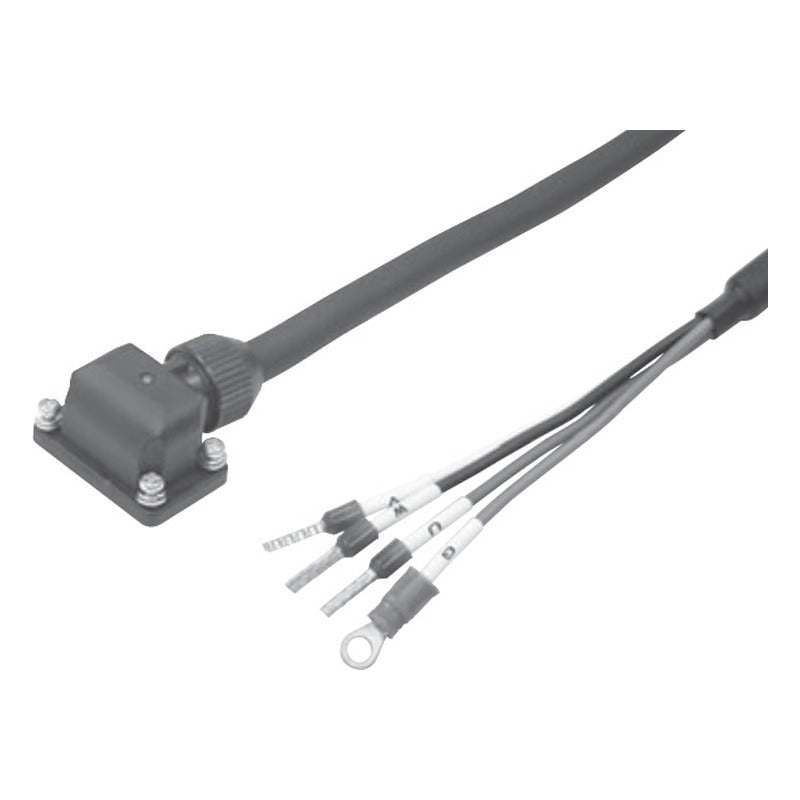

Samwon ACT SWY-CVM Power / Brake Cable for Yaskawa Sigma-X SGMXG-03A/-05A

Samwon ACT SWY-CVM Power / Brake Cable for Yaskawa Sigma-X SGMXG-03A/-05A

Power cable and power cable with integrated brake wires for Yaskawa Sigma-X SGMXG-03A and SGMXG-05A rotary servo motors.

Key features

  • Power and power + brake cables for Yaskawa Sigma-X SGMXG-03A and SGMXG-05A rotary servo motors
  • Built to the recommended specifications in Yaskawa user manuals and catalogs (some equivalent parts used)
  • Fixed, moving (flex-rated) and custom-specified cables can be made
  • Cable length can be specified freely; custom lengths in 100 mm steps
  • Small-quantity orders (from 1 piece) and short lead times

Specifications

Motor Power Connector JAE JNYFX06SJ3 or equivalent
Fixed Cable UL2464 PVC insulation cable
Moving Cable PROTERIAL RT-FLEX UL2464, ETFE insulation cable
Max. Transmission Length 50M
Length Tolerance +50 to +100 mm
SWY-CVM20-03-E Type: Power cable | Cable: Fixed | Length: 3M
SWY-CVM21-03-E Type: Power cable | Cable: Moving | Length: 3M | Yaskawa Model: JZSP-CVM21-03-E
SWY-CVM20-05-E Type: Power cable | Cable: Fixed | Length: 5M
SWY-CVM21-05-E Type: Power cable | Cable: Moving | Length: 5M | Yaskawa Model: JZSP-CVM21-05-E
SWY-CVM20-10-E Type: Power cable | Cable: Fixed | Length: 10M
SWY-CVM21-10-E Type: Power cable | Cable: Moving | Length: 10M | Yaskawa Model: JZSP-CVM21-10-E
SWY-CVM20-15-E Type: Power cable | Cable: Fixed | Length: 15M
SWY-CVM21-15-E Type: Power cable | Cable: Moving | Length: 15M | Yaskawa Model: JZSP-CVM21-15-E
SWY-CVM20-20-E Type: Power cable | Cable: Fixed | Length: 20M
SWY-CVM21-20-E Type: Power cable | Cable: Moving | Length: 20M | Yaskawa Model: JZSP-CVM21-20-E
SWY-CVM20-30-E Type: Power cable | Cable: Fixed | Length: 30M
SWY-CVM21-30-E Type: Power cable | Cable: Moving | Length: 30M | Yaskawa Model: JZSP-CVM21-30-E
SWY-CVM20-40-E Type: Power cable | Cable: Fixed | Length: 40M
SWY-CVM21-40-E Type: Power cable | Cable: Moving | Length: 40M | Yaskawa Model: JZSP-CVM21-40-E
SWY-CVM20-50-E Type: Power cable | Cable: Fixed | Length: 50M
SWY-CVM21-50-E Type: Power cable | Cable: Moving | Length: 50M | Yaskawa Model: JZSP-CVM21-50-E
SWY-CVM40-03-E Type: Power + brake cable | Cable: Fixed | Length: 3M
SWY-CVM41-03-E Type: Power + brake cable | Cable: Moving | Length: 3M | Yaskawa Model: JZSP-CVM41-03-E
SWY-CVM40-05-E Type: Power + brake cable | Cable: Fixed | Length: 5M
SWY-CVM41-05-E Type: Power + brake cable | Cable: Moving | Length: 5M | Yaskawa Model: JZSP-CVM41-05-E
SWY-CVM40-10-E Type: Power + brake cable | Cable: Fixed | Length: 10M
SWY-CVM41-10-E Type: Power + brake cable | Cable: Moving | Length: 10M | Yaskawa Model: JZSP-CVM41-10-E
SWY-CVM40-15-E Type: Power + brake cable | Cable: Fixed | Length: 15M
SWY-CVM41-15-E Type: Power + brake cable | Cable: Moving | Length: 15M | Yaskawa Model: JZSP-CVM41-15-E
SWY-CVM40-20-E Type: Power + brake cable | Cable: Fixed | Length: 20M
SWY-CVM41-20-E Type: Power + brake cable | Cable: Moving | Length: 20M | Yaskawa Model: JZSP-CVM41-20-E
SWY-CVM40-30-E Type: Power + brake cable | Cable: Fixed | Length: 30M
SWY-CVM41-30-E Type: Power + brake cable | Cable: Moving | Length: 30M | Yaskawa Model: JZSP-CVM41-30-E
SWY-CVM40-40-E Type: Power + brake cable | Cable: Fixed | Length: 40M
SWY-CVM41-40-E Type: Power + brake cable | Cable: Moving | Length: 40M | Yaskawa Model: JZSP-CVM41-40-E
SWY-CVM40-50-E Type: Power + brake cable | Cable: Fixed | Length: 50M
SWY-CVM41-50-E Type: Power + brake cable | Cable: Moving | Length: 50M | Yaskawa Model: JZSP-CVM41-50-E
Servo CablesSamwon ACT
32 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT SWY-CVM Power / Brake Cable for Yaskawa Sigma-X SGMXG-03A/-05A

Brand Samwon ACT·Servo Cables

Available part numbers (32)

SWY-CVM20-03-E, SWY-CVM21-03-E, SWY-CVM20-05-E, SWY-CVM21-05-E, SWY-CVM20-10-E, SWY-CVM21-10-E, SWY-CVM20-15-E, SWY-CVM21-15-E, SWY-CVM20-20-E, SWY-CVM21-20-E + 22 more — see full table ↓
