Samwon ACT SWY-CVP Encoder Cable for Yaskawa Sigma-7 SGM7A-15A~70A/SGM7G

Samwon ACT SWY-CVP Encoder Cable for Yaskawa Sigma-7 SGM7A-15A~70A/SGM7G

Incremental and absolute encoder cables with straight or elbow motor connector for Yaskawa Sigma-7 SGM7A-15A~70A and SGM7G rotary servo motors.

Key features

  • Incremental and absolute encoder cables for Yaskawa Sigma-7 SGM7A-15A~70A, SGM7G (straight or elbow connector)
  • Built to the recommended specifications in Yaskawa user manuals and catalogs (some equivalent parts used)
  • Fixed, moving (flex-rated) and custom-specified cables can be made
  • Cable length can be specified freely; custom lengths in 100 mm steps
  • Small-quantity orders (from 1 piece) and short lead times

Specifications

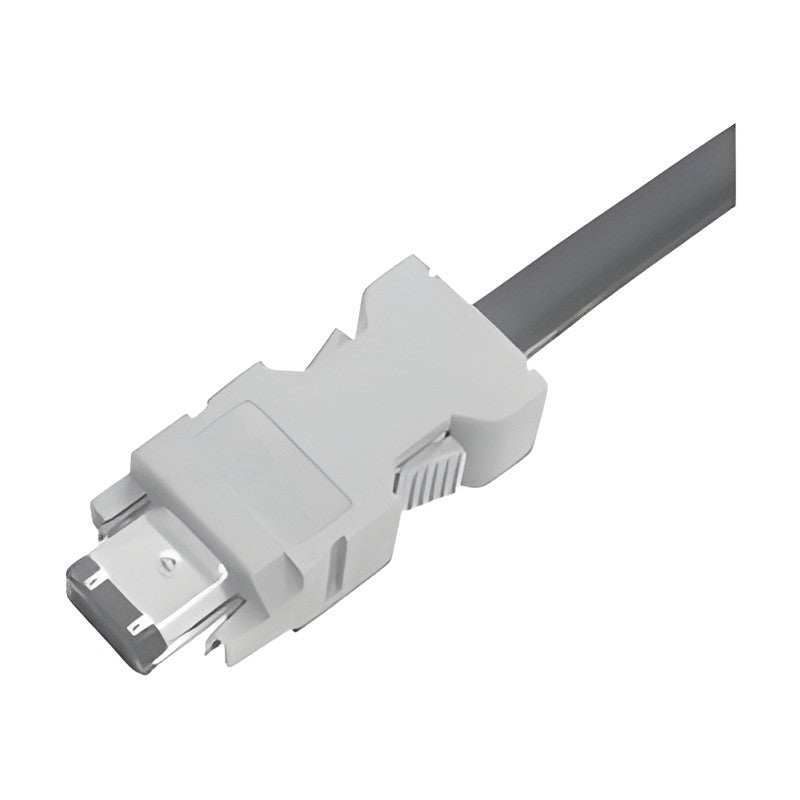

Amplifier Connector MOLEX 55100-0670 or equivalent
Encoder Connector Straight DDK CM10-SP10S-M-D / elbow DDK CM10-AP10S-M-D or equivalent
Battery Case SAMWON BTC01
Fixed Cable UL2464 twist pair shielded, PVC insulation cable
Moving Cable PROTERIAL (formerly Hitachi Metals) RT-FLEX UL2464 twist pair shielded, ETFE insulation cable
Max. Transmission Length 20M
Length Tolerance +50 to +100 mm
SWY-CVP01-03-E Encoder: Incremental | Cable: Fixed | Connector: Straight | Length: 3M | Yaskawa Model: JZSP-CVP01-03-E
SWY-CVP11-03-E Encoder: Incremental | Cable: Moving | Connector: Straight | Length: 3M | Yaskawa Model: JZSP-CVP11-03-E
SWY-CVP01-05-E Encoder: Incremental | Cable: Fixed | Connector: Straight | Length: 5M | Yaskawa Model: JZSP-CVP01-05-E
SWY-CVP11-05-E Encoder: Incremental | Cable: Moving | Connector: Straight | Length: 5M | Yaskawa Model: JZSP-CVP11-05-E
SWY-CVP01-10-E Encoder: Incremental | Cable: Fixed | Connector: Straight | Length: 10M | Yaskawa Model: JZSP-CVP01-10-E
SWY-CVP11-10-E Encoder: Incremental | Cable: Moving | Connector: Straight | Length: 10M | Yaskawa Model: JZSP-CVP11-10-E
SWY-CVP01-15-E Encoder: Incremental | Cable: Fixed | Connector: Straight | Length: 15M | Yaskawa Model: JZSP-CVP01-15-E
SWY-CVP11-15-E Encoder: Incremental | Cable: Moving | Connector: Straight | Length: 15M | Yaskawa Model: JZSP-CVP11-15-E
SWY-CVP01-20-E Encoder: Incremental | Cable: Fixed | Connector: Straight | Length: 20M | Yaskawa Model: JZSP-CVP01-20-E
SWY-CVP11-20-E Encoder: Incremental | Cable: Moving | Connector: Straight | Length: 20M | Yaskawa Model: JZSP-CVP11-20-E
SWY-CVP02-03-E Encoder: Incremental | Cable: Fixed | Connector: Elbow | Length: 3M | Yaskawa Model: JZSP-CVP02-03-E
SWY-CVP12-03-E Encoder: Incremental | Cable: Moving | Connector: Elbow | Length: 3M | Yaskawa Model: JZSP-CVP12-03-E
SWY-CVP02-05-E Encoder: Incremental | Cable: Fixed | Connector: Elbow | Length: 5M | Yaskawa Model: JZSP-CVP02-05-E
SWY-CVP12-05-E Encoder: Incremental | Cable: Moving | Connector: Elbow | Length: 5M | Yaskawa Model: JZSP-CVP12-05-E
SWY-CVP02-10-E Encoder: Incremental | Cable: Fixed | Connector: Elbow | Length: 10M | Yaskawa Model: JZSP-CVP02-10-E
SWY-CVP12-10-E Encoder: Incremental | Cable: Moving | Connector: Elbow | Length: 10M | Yaskawa Model: JZSP-CVP12-10-E
SWY-CVP02-15-E Encoder: Incremental | Cable: Fixed | Connector: Elbow | Length: 15M | Yaskawa Model: JZSP-CVP02-15-E
SWY-CVP12-15-E Encoder: Incremental | Cable: Moving | Connector: Elbow | Length: 15M | Yaskawa Model: JZSP-CVP12-15-E
SWY-CVP02-20-E Encoder: Incremental | Cable: Fixed | Connector: Elbow | Length: 20M | Yaskawa Model: JZSP-CVP02-20-E
SWY-CVP12-20-E Encoder: Incremental | Cable: Moving | Connector: Elbow | Length: 20M | Yaskawa Model: JZSP-CVP12-20-E
SWY-CVP06-03-E Encoder: Absolute | Cable: Fixed | Connector: Straight | Length: 3M | Yaskawa Model: JZSP-CVP06-03-E
SWY-CVP26-03-E Encoder: Absolute | Cable: Moving | Connector: Straight | Length: 3M | Yaskawa Model: JZSP-CVP26-03-E
SWY-CVP06-05-E Encoder: Absolute | Cable: Fixed | Connector: Straight | Length: 5M | Yaskawa Model: JZSP-CVP06-05-E
SWY-CVP26-05-E Encoder: Absolute | Cable: Moving | Connector: Straight | Length: 5M | Yaskawa Model: JZSP-CVP26-05-E
SWY-CVP06-10-E Encoder: Absolute | Cable: Fixed | Connector: Straight | Length: 10M | Yaskawa Model: JZSP-CVP06-10-E
SWY-CVP26-10-E Encoder: Absolute | Cable: Moving | Connector: Straight | Length: 10M | Yaskawa Model: JZSP-CVP26-10-E
SWY-CVP06-15-E Encoder: Absolute | Cable: Fixed | Connector: Straight | Length: 15M | Yaskawa Model: JZSP-CVP06-15-E
SWY-CVP26-15-E Encoder: Absolute | Cable: Moving | Connector: Straight | Length: 15M | Yaskawa Model: JZSP-CVP26-15-E
SWY-CVP06-20-E Encoder: Absolute | Cable: Fixed | Connector: Straight | Length: 20M | Yaskawa Model: JZSP-CVP06-20-E
SWY-CVP26-20-E Encoder: Absolute | Cable: Moving | Connector: Straight | Length: 20M | Yaskawa Model: JZSP-CVP26-20-E
SWY-CVP07-03-E Encoder: Absolute | Cable: Fixed | Connector: Elbow | Length: 3M | Yaskawa Model: JZSP-CVP07-03-E
SWY-CVP27-03-E Encoder: Absolute | Cable: Moving | Connector: Elbow | Length: 3M | Yaskawa Model: JZSP-CVP27-03-E
SWY-CVP07-05-E Encoder: Absolute | Cable: Fixed | Connector: Elbow | Length: 5M | Yaskawa Model: JZSP-CVP07-05-E
SWY-CVP27-05-E Encoder: Absolute | Cable: Moving | Connector: Elbow | Length: 5M | Yaskawa Model: JZSP-CVP27-05-E
SWY-CVP07-10-E Encoder: Absolute | Cable: Fixed | Connector: Elbow | Length: 10M | Yaskawa Model: JZSP-CVP07-10-E
SWY-CVP27-10-E Encoder: Absolute | Cable: Moving | Connector: Elbow | Length: 10M | Yaskawa Model: JZSP-CVP27-10-E
SWY-CVP07-15-E Encoder: Absolute | Cable: Fixed | Connector: Elbow | Length: 15M | Yaskawa Model: JZSP-CVP07-15-E
SWY-CVP27-15-E Encoder: Absolute | Cable: Moving | Connector: Elbow | Length: 15M | Yaskawa Model: JZSP-CVP27-15-E
SWY-CVP07-20-E Encoder: Absolute | Cable: Fixed | Connector: Elbow | Length: 20M | Yaskawa Model: JZSP-CVP07-20-E
SWY-CVP27-20-E Encoder: Absolute | Cable: Moving | Connector: Elbow | Length: 20M | Yaskawa Model: JZSP-CVP27-20-E
Encoder CablesSamwon ACT
40 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT SWY-CVP Encoder Cable for Yaskawa Sigma-7 SGM7A-15A~70A/SGM7G

Brand Samwon ACT·Encoder Cables

Available part numbers (40)

SWY-CVP01-03-E, SWY-CVP11-03-E, SWY-CVP01-05-E, SWY-CVP11-05-E, SWY-CVP01-10-E, SWY-CVP11-10-E, SWY-CVP01-15-E, SWY-CVP11-15-E, SWY-CVP01-20-E, SWY-CVP11-20-E + 30 more — see full table ↓
