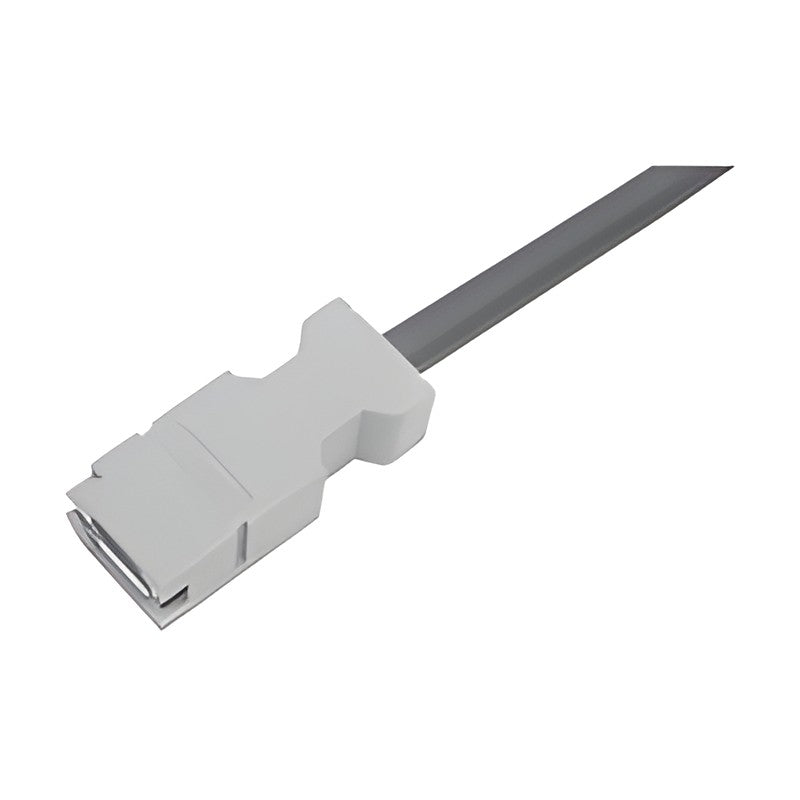

Samwon ACT SWY-UCMP Encoder-Side Extension Cable for Yaskawa SGM7J/SGM7A/SGM7P/SGM7G

Samwon ACT SWY-UCMP Encoder-Side Extension Cable for Yaskawa SGM7J/SGM7A/SGM7P/SGM7G

Encoder-side extension cable, common to incremental and absolute encoders, for Yaskawa Sigma-7 SGM7J, SGM7A, SGM7P and SGM7G motors.

Key features

  • Incremental/absolute common encoder extension cables for Yaskawa Sigma-7 SGM7J, SGM7A, SGM7P, SGM7G
  • Built to the recommended specifications in Yaskawa user manuals and catalogs (some equivalent parts used)
  • Fixed, moving (flex-rated) and custom-specified cables can be made
  • Cable length can be specified freely; custom lengths in 100 mm steps
  • Small-quantity orders (from 1 piece) and short lead times

Specifications

Amplifier Connector MOLEX 55100-0670 or equivalent
Encoder Connector MOLEX 54280-0609 or equivalent
Fixed Cable UL2464 twist pair shielded, PVC insulation cable
Moving Cable PROTERIAL (formerly Hitachi Metals) RT-FLEX UL2464 twist pair shielded, ETFE insulation cable
Max. Transmission Length 50M
Length Tolerance +50 to +100 mm
SWY-UCMP00-30-E Cable: Fixed | Length: 30M | Yaskawa Model: JZSP-UCMP00-30-E
SWY-UCMP00-40-E Cable: Fixed | Length: 40M | Yaskawa Model: JZSP-UCMP00-40-E
SWY-UCMP00-50-E Cable: Fixed | Length: 50M | Yaskawa Model: JZSP-UCMP00-50-E
SWY-UCMP10-30-E Cable: Moving | Length: 30M
SWY-UCMP10-40-E Cable: Moving | Length: 40M
SWY-UCMP10-50-E Cable: Moving | Length: 50M
Encoder CablesSamwon ACT
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT SWY-UCMP Encoder-Side Extension Cable for Yaskawa SGM7J/SGM7A/SGM7P/SGM7G

Brand Samwon ACT·Encoder Cables

Available part numbers (6)

SWY-UCMP00-30-E, SWY-UCMP00-40-E, SWY-UCMP00-50-E, SWY-UCMP10-30-E, SWY-UCMP10-40-E, SWY-UCMP10-50-E

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SWY-UCMP00-30-ECable: Fixed | Length: 30M | Yaskawa Model: JZSP-UCMP00-30-E
SWY-UCMP00-40-ECable: Fixed | Length: 40M | Yaskawa Model: JZSP-UCMP00-40-E
SWY-UCMP00-50-ECable: Fixed | Length: 50M | Yaskawa Model: JZSP-UCMP00-50-E
SWY-UCMP10-30-ECable: Moving | Length: 30M
SWY-UCMP10-40-ECable: Moving | Length: 40M
SWY-UCMP10-50-ECable: Moving | Length: 50M
