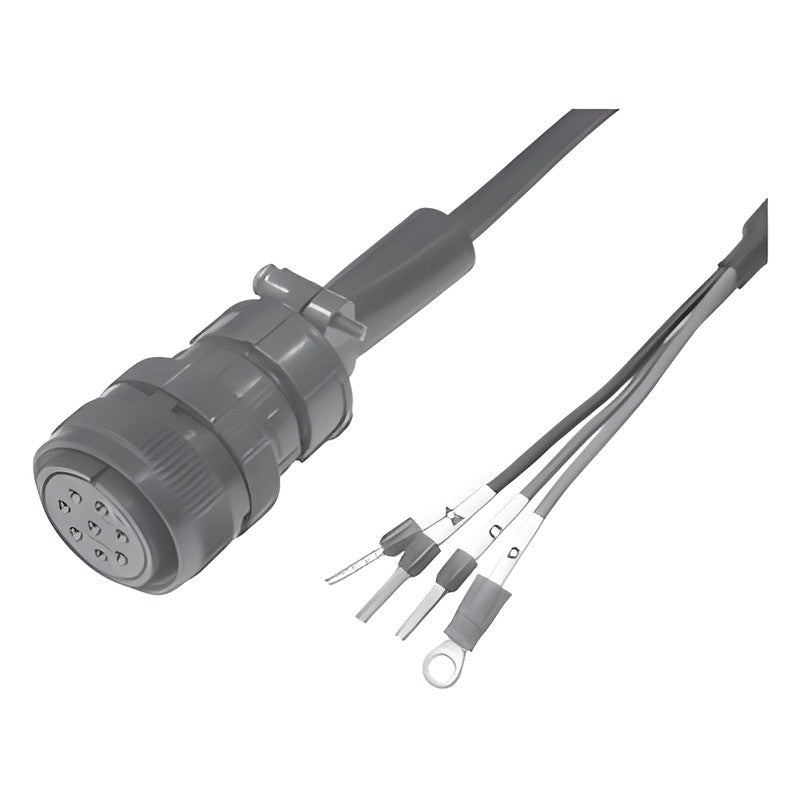

Samwon ACT SWY-UVA Power Cable for Yaskawa Sigma-7 SGM7A-15A~70A/SGM7G

Samwon ACT SWY-UVA Power Cable for Yaskawa Sigma-7 SGM7A-15A~70A/SGM7G

Power cable with MS-type straight or space-saving elbow motor connector for Yaskawa Sigma-7 SGM7A-15A~70A and SGM7G rotary servo motors.

Key features

  • Power cables for Yaskawa Sigma-7 SGM7A 1.5~7.0 kW and SGM7G 0.85~15 kW (straight or space-saving elbow connector)
  • Built to the recommended specifications in Yaskawa user manuals and catalogs (some equivalent parts used)
  • Fixed, moving (flex-rated) and custom-specified cables can be made
  • Cable length can be specified freely; custom lengths in 100 mm steps
  • Small-quantity orders (from 1 piece) and short lead times

Specifications

Motor Power Connector (2.9kW~5.0kW) Straight MS3106B 22-22S / elbow MS3108B 22-22S or equivalent
Motor Power Connector (5.5kW~15kW) Straight MS3106B 32-17S / elbow MS3108B 32-17S or equivalent
Moving Cable (2.5kW~15kW) TAIYO EXT-VP UL2501 PVC insulation cable, IPA class 1
Max. Transmission Length 20M
Length Tolerance +50 to +100 mm
SWY-UVA101-03-E Motor: SGM7A-15A / SGM7G-09A, -13A | Cable: Fixed | Connector: Straight | Length: 3M | Yaskawa Model: JZSP-UVA101-03-E
SWY-UVA121-03-E Motor: SGM7A-15A / SGM7G-09A, -13A | Cable: Moving | Connector: Straight | Length: 3M | Yaskawa Model: JZSP-UVA121-03-E
SWY-UVA301-03-E Motor: SGM7A-20A / SGM7G-20A | Cable: Fixed | Connector: Straight | Length: 3M | Yaskawa Model: JZSP-UVA301-03-E
SWY-UVA321-03-E Motor: SGM7A-20A / SGM7G-20A | Cable: Moving | Connector: Straight | Length: 3M | Yaskawa Model: JZSP-UVA321-03-E
SWY-UVA101-05-E Motor: SGM7A-15A / SGM7G-09A, -13A | Cable: Fixed | Connector: Straight | Length: 5M | Yaskawa Model: JZSP-UVA101-05-E
SWY-UVA121-05-E Motor: SGM7A-15A / SGM7G-09A, -13A | Cable: Moving | Connector: Straight | Length: 5M | Yaskawa Model: JZSP-UVA121-05-E
SWY-UVA301-05-E Motor: SGM7A-20A / SGM7G-20A | Cable: Fixed | Connector: Straight | Length: 5M | Yaskawa Model: JZSP-UVA301-05-E
SWY-UVA321-05-E Motor: SGM7A-20A / SGM7G-20A | Cable: Moving | Connector: Straight | Length: 5M | Yaskawa Model: JZSP-UVA321-05-E
SWY-UVA101-10-E Motor: SGM7A-15A / SGM7G-09A, -13A | Cable: Fixed | Connector: Straight | Length: 10M | Yaskawa Model: JZSP-UVA101-10-E
SWY-UVA121-10-E Motor: SGM7A-15A / SGM7G-09A, -13A | Cable: Moving | Connector: Straight | Length: 10M | Yaskawa Model: JZSP-UVA121-10-E
SWY-UVA301-10-E Motor: SGM7A-20A / SGM7G-20A | Cable: Fixed | Connector: Straight | Length: 10M | Yaskawa Model: JZSP-UVA301-10-E
SWY-UVA321-10-E Motor: SGM7A-20A / SGM7G-20A | Cable: Moving | Connector: Straight | Length: 10M | Yaskawa Model: JZSP-UVA321-10-E
SWY-UVA101-15-E Motor: SGM7A-15A / SGM7G-09A, -13A | Cable: Fixed | Connector: Straight | Length: 15M | Yaskawa Model: JZSP-UVA101-15-E
SWY-UVA121-15-E Motor: SGM7A-15A / SGM7G-09A, -13A | Cable: Moving | Connector: Straight | Length: 15M | Yaskawa Model: JZSP-UVA121-15-E
SWY-UVA301-15-E Motor: SGM7A-20A / SGM7G-20A | Cable: Fixed | Connector: Straight | Length: 15M | Yaskawa Model: JZSP-UVA301-15-E
SWY-UVA321-15-E Motor: SGM7A-20A / SGM7G-20A | Cable: Moving | Connector: Straight | Length: 15M | Yaskawa Model: JZSP-UVA321-15-E
SWY-UVA101-20-E Motor: SGM7A-15A / SGM7G-09A, -13A | Cable: Fixed | Connector: Straight | Length: 20M | Yaskawa Model: JZSP-UVA101-20-E
SWY-UVA121-20-E Motor: SGM7A-15A / SGM7G-09A, -13A | Cable: Moving | Connector: Straight | Length: 20M | Yaskawa Model: JZSP-UVA121-20-E
SWY-UVA301-20-E Motor: SGM7A-20A / SGM7G-20A | Cable: Fixed | Connector: Straight | Length: 20M | Yaskawa Model: JZSP-UVA301-20-E
SWY-UVA102-03-E Motor: SGM7A-15A / SGM7G-09A, -13A | Cable: Fixed | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JZSP-UVA102-03-E
SWY-UVA122-03-E Motor: SGM7A-15A / SGM7G-09A, -13A | Cable: Moving | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JZSP-UVA122-03-E
SWY-UVA302-03-E Motor: SGM7A-20A / SGM7G-20A | Cable: Fixed | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JZSP-UVA302-03-E
SWY-UVA322-03-E Motor: SGM7A-20A / SGM7G-20A | Cable: Moving | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JZSP-UVA322-03-E
SWY-UVA102-05-E Motor: SGM7A-15A / SGM7G-09A, -13A | Cable: Fixed | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JZSP-UVA102-05-E
SWY-UVA122-05-E Motor: SGM7A-15A / SGM7G-09A, -13A | Cable: Moving | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JZSP-UVA122-05-E
SWY-UVA302-05-E Motor: SGM7A-20A / SGM7G-20A | Cable: Fixed | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JZSP-UVA302-05-E
SWY-UVA322-05-E Motor: SGM7A-20A / SGM7G-20A | Cable: Moving | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JZSP-UVA322-05-E
SWY-UVA102-10-E Motor: SGM7A-15A / SGM7G-09A, -13A | Cable: Fixed | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JZSP-UVA102-10-E
SWY-UVA122-10-E Motor: SGM7A-15A / SGM7G-09A, -13A | Cable: Moving | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JZSP-UVA122-10-E
SWY-UVA302-10-E Motor: SGM7A-20A / SGM7G-20A | Cable: Fixed | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JZSP-UVA302-10-E
SWY-UVA322-10-E Motor: SGM7A-20A / SGM7G-20A | Cable: Moving | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JZSP-UVA322-10-E
SWY-UVA102-15-E Motor: SGM7A-15A / SGM7G-09A, -13A | Cable: Fixed | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JZSP-UVA102-15-E
SWY-UVA122-15-E Motor: SGM7A-15A / SGM7G-09A, -13A | Cable: Moving | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JZSP-UVA122-15-E
SWY-UVA302-15-E Motor: SGM7A-20A / SGM7G-20A | Cable: Fixed | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JZSP-UVA302-15-E
SWY-UVA322-15-E Motor: SGM7A-20A / SGM7G-20A | Cable: Moving | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JZSP-UVA322-15-E
SWY-UVA102-20-E Motor: SGM7A-15A / SGM7G-09A, -13A | Cable: Fixed | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JZSP-UVA102-20-E
SWY-UVA122-20-E Motor: SGM7A-15A / SGM7G-09A, -13A | Cable: Moving | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JZSP-UVA122-20-E
SWY-UVA302-20-E Motor: SGM7A-20A / SGM7G-20A | Cable: Fixed | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JZSP-UVA302-20-E
SWY-UVA322-20-E Motor: SGM7A-20A / SGM7G-20A | Cable: Moving | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JZSP-UVA322-20-E
SWY-UVA501-03-E Motor: SGM7A-25A | Cable: Fixed | Connector: Straight | Length: 3M | Yaskawa Model: JZSP-UVA501-03-E
SWY-UVA521-03-E Motor: SGM7A-25A | Cable: Moving | Connector: Straight | Length: 3M | Yaskawa Model: JZSP-UVA521-03-E
SWY-UVA601-03-E Motor: SGM7A-30A | Cable: Fixed | Connector: Straight | Length: 3M | Yaskawa Model: JZSP-UVA601-03-E
SWY-UVA621-03-E Motor: SGM7A-30A | Cable: Moving | Connector: Straight | Length: 3M | Yaskawa Model: JZSP-UVA621-03-E
SWY-UVA501-05-E Motor: SGM7A-25A | Cable: Fixed | Connector: Straight | Length: 5M | Yaskawa Model: JZSP-UVA501-05-E
SWY-UVA521-05-E Motor: SGM7A-25A | Cable: Moving | Connector: Straight | Length: 5M | Yaskawa Model: JZSP-UVA521-05-E
SWY-UVA601-05-E Motor: SGM7A-30A | Cable: Fixed | Connector: Straight | Length: 5M | Yaskawa Model: JZSP-UVA601-05-E
SWY-UVA621-05-E Motor: SGM7A-30A | Cable: Moving | Connector: Straight | Length: 5M | Yaskawa Model: JZSP-UVA621-05-E
SWY-UVA501-10-E Motor: SGM7A-25A | Cable: Fixed | Connector: Straight | Length: 10M | Yaskawa Model: JZSP-UVA501-10-E
SWY-UVA521-10-E Motor: SGM7A-25A | Cable: Moving | Connector: Straight | Length: 10M | Yaskawa Model: JZSP-UVA521-10-E
SWY-UVA601-10-E Motor: SGM7A-30A | Cable: Fixed | Connector: Straight | Length: 10M | Yaskawa Model: JZSP-UVA601-10-E
SWY-UVA621-10-E Motor: SGM7A-30A | Cable: Moving | Connector: Straight | Length: 10M | Yaskawa Model: JZSP-UVA621-10-E
SWY-UVA501-15-E Motor: SGM7A-25A | Cable: Fixed | Connector: Straight | Length: 15M | Yaskawa Model: JZSP-UVA501-15-E
SWY-UVA521-15-E Motor: SGM7A-25A | Cable: Moving | Connector: Straight | Length: 15M | Yaskawa Model: JZSP-UVA521-15-E
SWY-UVA601-15-E Motor: SGM7A-30A | Cable: Fixed | Connector: Straight | Length: 15M | Yaskawa Model: JZSP-UVA601-15-E
SWY-UVA621-15-E Motor: SGM7A-30A | Cable: Moving | Connector: Straight | Length: 15M | Yaskawa Model: JZSP-UVA621-15-E
SWY-UVA501-20-E Motor: SGM7A-25A | Cable: Fixed | Connector: Straight | Length: 20M | Yaskawa Model: JZSP-UVA501-20-E
SWY-UVA521-20-E Motor: SGM7A-25A | Cable: Moving | Connector: Straight | Length: 20M | Yaskawa Model: JZSP-UVA521-20-E
SWY-UVA601-20-E Motor: SGM7A-30A | Cable: Fixed | Connector: Straight | Length: 20M | Yaskawa Model: JZSP-UVA601-20-E
SWY-UVA621-20-E Motor: SGM7A-30A | Cable: Moving | Connector: Straight | Length: 20M | Yaskawa Model: JZSP-UVA621-20-E
SWY-UVA502-03-E Motor: SGM7A-25A | Cable: Fixed | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JZSP-UVA502-03-E
SWY-UVA522-03-E Motor: SGM7A-25A | Cable: Moving | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JZSP-UVA522-03-E
SWY-UVA602-03-E Motor: SGM7A-30A | Cable: Fixed | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JZSP-UVA602-03-E
SWY-UVA622-03-E Motor: SGM7A-30A | Cable: Moving | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JZSP-UVA622-03-E
SWY-UVA502-05-E Motor: SGM7A-25A | Cable: Fixed | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JZSP-UVA502-05-E
SWY-UVA522-05-E Motor: SGM7A-25A | Cable: Moving | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JZSP-UVA522-05-E
SWY-UVA602-05-E Motor: SGM7A-30A | Cable: Fixed | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JZSP-UVA602-05-E
SWY-UVA622-05-E Motor: SGM7A-30A | Cable: Moving | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JZSP-UVA622-05-E
SWY-UVA502-10-E Motor: SGM7A-25A | Cable: Fixed | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JZSP-UVA502-10-E
SWY-UVA522-10-E Motor: SGM7A-25A | Cable: Moving | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JZSP-UVA522-10-E
SWY-UVA602-10-E Motor: SGM7A-30A | Cable: Fixed | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JZSP-UVA602-10-E
SWY-UVA622-10-E Motor: SGM7A-30A | Cable: Moving | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JZSP-UVA622-10-E
SWY-UVA502-15-E Motor: SGM7A-25A | Cable: Fixed | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JZSP-UVA502-15-E
SWY-UVA522-15-E Motor: SGM7A-25A | Cable: Moving | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JZSP-UVA522-15-E
SWY-UVA602-15-E Motor: SGM7A-30A | Cable: Fixed | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JZSP-UVA602-15-E
SWY-UVA622-15-E Motor: SGM7A-30A | Cable: Moving | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JZSP-UVA622-15-E
SWY-UVA502-20-E Motor: SGM7A-25A | Cable: Fixed | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JZSP-UVA502-20-E
SWY-UVA522-20-E Motor: SGM7A-25A | Cable: Moving | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JZSP-UVA522-20-E
SWY-UVA602-20-E Motor: SGM7A-30A | Cable: Fixed | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JZSP-UVA602-20-E
SWY-UVA622-20-E Motor: SGM7A-30A | Cable: Moving | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JZSP-UVA622-20-E
SWY-UVA701-03-E Motor: SGM7A-40A, -50A / SGM7G-30A, -44A | Cable: Fixed | Connector: Straight | Length: 3M | Yaskawa Model: JZSP-UVA701-03-E
SWY-UVA721-03-E Motor: SGM7A-40A, -50A / SGM7G-30A, -44A | Cable: Moving | Connector: Straight | Length: 3M | Yaskawa Model: JZSP-UVA721-03-E
SWY-UVA901-03-E Motor: SGM7A-70A | Cable: Fixed | Connector: Straight | Length: 3M | Yaskawa Model: JZSP-UVA901-03-E
SWY-UVA921-03-E Motor: SGM7A-70A | Cable: Moving | Connector: Straight | Length: 3M | Yaskawa Model: JZSP-UVA921-03-E
SWY-UVA701-05-E Motor: SGM7A-40A, -50A / SGM7G-30A, -44A | Cable: Fixed | Connector: Straight | Length: 5M | Yaskawa Model: JZSP-UVA701-05-E
SWY-UVA721-05-E Motor: SGM7A-40A, -50A / SGM7G-30A, -44A | Cable: Moving | Connector: Straight | Length: 5M | Yaskawa Model: JZSP-UVA721-05-E
SWY-UVA901-05-E Motor: SGM7A-70A | Cable: Fixed | Connector: Straight | Length: 5M | Yaskawa Model: JZSP-UVA901-05-E
SWY-UVA921-05-E Motor: SGM7A-70A | Cable: Moving | Connector: Straight | Length: 5M | Yaskawa Model: JZSP-UVA921-05-E
SWY-UVA701-10-E Motor: SGM7A-40A, -50A / SGM7G-30A, -44A | Cable: Fixed | Connector: Straight | Length: 10M | Yaskawa Model: JZSP-UVA701-10-E
SWY-UVA721-10-E Motor: SGM7A-40A, -50A / SGM7G-30A, -44A | Cable: Moving | Connector: Straight | Length: 10M | Yaskawa Model: JZSP-UVA721-10-E
SWY-UVA901-10-E Motor: SGM7A-70A | Cable: Fixed | Connector: Straight | Length: 10M | Yaskawa Model: JZSP-UVA901-10-E
SWY-UVA921-10-E Motor: SGM7A-70A | Cable: Moving | Connector: Straight | Length: 10M | Yaskawa Model: JZSP-UVA921-10-E
SWY-UVA701-15-E Motor: SGM7A-40A, -50A / SGM7G-30A, -44A | Cable: Fixed | Connector: Straight | Length: 15M | Yaskawa Model: JZSP-UVA701-15-E
SWY-UVA721-15-E Motor: SGM7A-40A, -50A / SGM7G-30A, -44A | Cable: Moving | Connector: Straight | Length: 15M | Yaskawa Model: JZSP-UVA721-15-E
SWY-UVA901-15-E Motor: SGM7A-70A | Cable: Fixed | Connector: Straight | Length: 15M | Yaskawa Model: JZSP-UVA901-15-E
SWY-UVA921-15-E Motor: SGM7A-70A | Cable: Moving | Connector: Straight | Length: 15M | Yaskawa Model: JZSP-UVA921-15-E
SWY-UVA701-20-E Motor: SGM7A-40A, -50A / SGM7G-30A, -44A | Cable: Fixed | Connector: Straight | Length: 20M | Yaskawa Model: JZSP-UVA701-20-E
SWY-UVA721-20-E Motor: SGM7A-40A, -50A / SGM7G-30A, -44A | Cable: Moving | Connector: Straight | Length: 20M | Yaskawa Model: JZSP-UVA721-20-E
SWY-UVA901-20-E Motor: SGM7A-70A | Cable: Fixed | Connector: Straight | Length: 20M | Yaskawa Model: JZSP-UVA901-20-E
SWY-UVA921-20-E Motor: SGM7A-70A | Cable: Moving | Connector: Straight | Length: 20M | Yaskawa Model: JZSP-UVA921-20-E
SWY-UVA702-03-E Motor: SGM7A-40A, -50A / SGM7G-30A, -44A | Cable: Fixed | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JZSP-UVA702-03-E
SWY-UVA722-03-E Motor: SGM7A-40A, -50A / SGM7G-30A, -44A | Cable: Moving | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JZSP-UVA722-03-E
SWY-UVA902-03-E Motor: SGM7A-70A | Cable: Fixed | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JZSP-UVA902-03-E
SWY-UVA922-03-E Motor: SGM7A-70A | Cable: Moving | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JZSP-UVA922-03-E
SWY-UVA702-05-E Motor: SGM7A-40A, -50A / SGM7G-30A, -44A | Cable: Fixed | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JZSP-UVA702-05-E
SWY-UVA722-05-E Motor: SGM7A-40A, -50A / SGM7G-30A, -44A | Cable: Moving | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JZSP-UVA722-05-E
SWY-UVA902-05-E Motor: SGM7A-70A | Cable: Fixed | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JZSP-UVA902-05-E
SWY-UVA922-05-E Motor: SGM7A-70A | Cable: Moving | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JZSP-UVA922-05-E
SWY-UVA702-10-E Motor: SGM7A-40A, -50A / SGM7G-30A, -44A | Cable: Fixed | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JZSP-UVA702-10-E
SWY-UVA722-10-E Motor: SGM7A-40A, -50A / SGM7G-30A, -44A | Cable: Moving | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JZSP-UVA722-10-E
SWY-UVA902-10-E Motor: SGM7A-70A | Cable: Fixed | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JZSP-UVA902-10-E
SWY-UVA922-10-E Motor: SGM7A-70A | Cable: Moving | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JZSP-UVA922-10-E
SWY-UVA702-15-E Motor: SGM7A-40A, -50A / SGM7G-30A, -44A | Cable: Fixed | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JZSP-UVA702-15-E
SWY-UVA722-15-E Motor: SGM7A-40A, -50A / SGM7G-30A, -44A | Cable: Moving | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JZSP-UVA722-15-E
SWY-UVA902-15-E Motor: SGM7A-70A | Cable: Fixed | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JZSP-UVA902-15-E
SWY-UVA922-15-E Motor: SGM7A-70A | Cable: Moving | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JZSP-UVA922-15-E
SWY-UVA702-20-E Motor: SGM7A-40A, -50A / SGM7G-30A, -44A | Cable: Fixed | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JZSP-UVA702-20-E
SWY-UVA722-20-E Motor: SGM7A-40A, -50A / SGM7G-30A, -44A | Cable: Moving | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JZSP-UVA722-20-E
SWY-UVA902-20-E Motor: SGM7A-70A | Cable: Fixed | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JZSP-UVA902-20-E
SWY-UVA922-20-E Motor: SGM7A-70A | Cable: Moving | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JZSP-UVA922-20-E
SWY-UVAA01-03-E Motor: SGM7G-55A, -75A | Cable: Fixed | Connector: Straight | Length: 3M | Yaskawa Model: JZSP-UVAA01-03-E
SWY-UVAA21-03-E Motor: SGM7G-55A, -75A | Cable: Moving | Connector: Straight | Length: 3M | Yaskawa Model: JZSP-UVAA21-03-E
SWY-UVAB01-03-E Motor: SGM7G-1AA, -1EA | Cable: Fixed | Connector: Straight | Length: 3M | Yaskawa Model: JZSP-UVAB01-03-E
SWY-UVAB21-03-E Motor: SGM7G-1AA, -1EA | Cable: Moving | Connector: Straight | Length: 3M | Yaskawa Model: JZSP-UVAB21-03-E
SWY-UVAA01-05-E Motor: SGM7G-55A, -75A | Cable: Fixed | Connector: Straight | Length: 5M | Yaskawa Model: JZSP-UVAA01-05-E
SWY-UVAA21-05-E Motor: SGM7G-55A, -75A | Cable: Moving | Connector: Straight | Length: 5M | Yaskawa Model: JZSP-UVAA21-05-E
SWY-UVAB01-05-E Motor: SGM7G-1AA, -1EA | Cable: Fixed | Connector: Straight | Length: 5M | Yaskawa Model: JZSP-UVAB01-05-E
SWY-UVAB21-05-E Motor: SGM7G-1AA, -1EA | Cable: Moving | Connector: Straight | Length: 5M | Yaskawa Model: JZSP-UVAB21-05-E
SWY-UVAA01-10-E Motor: SGM7G-55A, -75A | Cable: Fixed | Connector: Straight | Length: 10M | Yaskawa Model: JZSP-UVAA01-10-E
SWY-UVAA21-10-E Motor: SGM7G-55A, -75A | Cable: Moving | Connector: Straight | Length: 10M | Yaskawa Model: JZSP-UVAA21-10-E
SWY-UVAB01-10-E Motor: SGM7G-1AA, -1EA | Cable: Fixed | Connector: Straight | Length: 10M | Yaskawa Model: JZSP-UVAB01-10-E
SWY-UVAB21-10-E Motor: SGM7G-1AA, -1EA | Cable: Moving | Connector: Straight | Length: 10M | Yaskawa Model: JZSP-UVAB21-10-E
SWY-UVAA01-15-E Motor: SGM7G-55A, -75A | Cable: Fixed | Connector: Straight | Length: 15M | Yaskawa Model: JZSP-UVAA01-15-E
SWY-UVAA21-15-E Motor: SGM7G-55A, -75A | Cable: Moving | Connector: Straight | Length: 15M | Yaskawa Model: JZSP-UVAA21-15-E
SWY-UVAB01-15-E Motor: SGM7G-1AA, -1EA | Cable: Fixed | Connector: Straight | Length: 15M | Yaskawa Model: JZSP-UVAB01-15-E
SWY-UVAB21-15-E Motor: SGM7G-1AA, -1EA | Cable: Moving | Connector: Straight | Length: 15M | Yaskawa Model: JZSP-UVAB21-15-E
SWY-UVAA01-20-E Motor: SGM7G-55A, -75A | Cable: Fixed | Connector: Straight | Length: 20M | Yaskawa Model: JZSP-UVAA01-20-E
SWY-UVAA21-20-E Motor: SGM7G-55A, -75A | Cable: Moving | Connector: Straight | Length: 20M | Yaskawa Model: JZSP-UVAA21-20-E
SWY-UVAB01-20-E Motor: SGM7G-1AA, -1EA | Cable: Fixed | Connector: Straight | Length: 20M | Yaskawa Model: JZSP-UVAB01-20-E
SWY-UVAB21-20-E Motor: SGM7G-1AA, -1EA | Cable: Moving | Connector: Straight | Length: 20M | Yaskawa Model: JZSP-UVAB21-20-E
SWY-UVAA02-03-E Motor: SGM7G-55A, -75A | Cable: Fixed | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JZSP-UVAA02-03-E
SWY-UVAA22-03-E Motor: SGM7G-55A, -75A | Cable: Moving | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JZSP-UVAA22-03-E
SWY-UVAB02-03-E Motor: SGM7G-1AA, -1EA | Cable: Fixed | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JZSP-UVAB02-03-E
SWY-UVAB22-03-E Motor: SGM7G-1AA, -1EA | Cable: Moving | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JZSP-UVAB22-03-E
SWY-UVAA02-05-E Motor: SGM7G-55A, -75A | Cable: Fixed | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JZSP-UVAA02-05-E
SWY-UVAA22-05-E Motor: SGM7G-55A, -75A | Cable: Moving | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JZSP-UVAA22-05-E
SWY-UVAB02-05-E Motor: SGM7G-1AA, -1EA | Cable: Fixed | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JZSP-UVAB02-05-E
SWY-UVAB22-05-E Motor: SGM7G-1AA, -1EA | Cable: Moving | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JZSP-UVAB22-05-E
SWY-UVAA02-10-E Motor: SGM7G-55A, -75A | Cable: Fixed | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JZSP-UVAA02-10-E
SWY-UVAA22-10-E Motor: SGM7G-55A, -75A | Cable: Moving | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JZSP-UVAA22-10-E
SWY-UVAB02-10-E Motor: SGM7G-1AA, -1EA | Cable: Fixed | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JZSP-UVAB02-10-E
SWY-UVAB22-10-E Motor: SGM7G-1AA, -1EA | Cable: Moving | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JZSP-UVAB22-10-E
SWY-UVAA02-15-E Motor: SGM7G-55A, -75A | Cable: Fixed | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JZSP-UVAA02-15-E
SWY-UVAA22-15-E Motor: SGM7G-55A, -75A | Cable: Moving | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JZSP-UVAA22-15-E
SWY-UVAB02-15-E Motor: SGM7G-1AA, -1EA | Cable: Fixed | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JZSP-UVAB02-15-E
SWY-UVAB22-15-E Motor: SGM7G-1AA, -1EA | Cable: Moving | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JZSP-UVAB22-15-E
SWY-UVAA02-20-E Motor: SGM7G-55A, -75A | Cable: Fixed | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JZSP-UVAA02-20-E
SWY-UVAA22-20-E Motor: SGM7G-55A, -75A | Cable: Moving | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JZSP-UVAA22-20-E
SWY-UVAB02-20-E Motor: SGM7G-1AA, -1EA | Cable: Fixed | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JZSP-UVAB02-20-E
SWY-UVAB22-20-E Motor: SGM7G-1AA, -1EA | Cable: Moving | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JZSP-UVAB22-20-E
Servo CablesSamwon ACT
159 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT SWY-UVA Power Cable for Yaskawa Sigma-7 SGM7A-15A~70A/SGM7G

Brand Samwon ACT·Servo Cables

Available part numbers (159)

SWY-UVA101-03-E, SWY-UVA121-03-E, SWY-UVA301-03-E, SWY-UVA321-03-E, SWY-UVA101-05-E, SWY-UVA121-05-E, SWY-UVA301-05-E, SWY-UVA321-05-E, SWY-UVA101-10-E, SWY-UVA121-10-E + 149 more — see full table ↓

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SWY-UVA101-03-EMotor: SGM7A-15A / SGM7G-09A, -13A | Cable: Fixed | Connector: Straight | Length: 3M | Yaskawa Model: JZSP-UVA101-03-E
SWY-UVA121-03-EMotor: SGM7A-15A / SGM7G-09A, -13A | Cable: Moving | Connector: Straight | Length: 3M | Yaskawa Model: JZSP-UVA121-03-E
SWY-UVA301-03-EMotor: SGM7A-20A / SGM7G-20A | Cable: Fixed | Connector: Straight | Length: 3M | Yaskawa Model: JZSP-UVA301-03-E
SWY-UVA321-03-EMotor: SGM7A-20A / SGM7G-20A | Cable: Moving | Connector: Straight | Length: 3M | Yaskawa Model: JZSP-UVA321-03-E
SWY-UVA101-05-EMotor: SGM7A-15A / SGM7G-09A, -13A | Cable: Fixed | Connector: Straight | Length: 5M | Yaskawa Model: JZSP-UVA101-05-E
SWY-UVA121-05-EMotor: SGM7A-15A / SGM7G-09A, -13A | Cable: Moving | Connector: Straight | Length: 5M | Yaskawa Model: JZSP-UVA121-05-E
SWY-UVA301-05-EMotor: SGM7A-20A / SGM7G-20A | Cable: Fixed | Connector: Straight | Length: 5M | Yaskawa Model: JZSP-UVA301-05-E
SWY-UVA321-05-EMotor: SGM7A-20A / SGM7G-20A | Cable: Moving | Connector: Straight | Length: 5M | Yaskawa Model: JZSP-UVA321-05-E
SWY-UVA101-10-EMotor: SGM7A-15A / SGM7G-09A, -13A | Cable: Fixed | Connector: Straight | Length: 10M | Yaskawa Model: JZSP-UVA101-10-E
SWY-UVA121-10-EMotor: SGM7A-15A / SGM7G-09A, -13A | Cable: Moving | Connector: Straight | Length: 10M | Yaskawa Model: JZSP-UVA121-10-E
SWY-UVA301-10-EMotor: SGM7A-20A / SGM7G-20A | Cable: Fixed | Connector: Straight | Length: 10M | Yaskawa Model: JZSP-UVA301-10-E
SWY-UVA321-10-EMotor: SGM7A-20A / SGM7G-20A | Cable: Moving | Connector: Straight | Length: 10M | Yaskawa Model: JZSP-UVA321-10-E
SWY-UVA101-15-EMotor: SGM7A-15A / SGM7G-09A, -13A | Cable: Fixed | Connector: Straight | Length: 15M | Yaskawa Model: JZSP-UVA101-15-E
SWY-UVA121-15-EMotor: SGM7A-15A / SGM7G-09A, -13A | Cable: Moving | Connector: Straight | Length: 15M | Yaskawa Model: JZSP-UVA121-15-E
SWY-UVA301-15-EMotor: SGM7A-20A / SGM7G-20A | Cable: Fixed | Connector: Straight | Length: 15M | Yaskawa Model: JZSP-UVA301-15-E
SWY-UVA321-15-EMotor: SGM7A-20A / SGM7G-20A | Cable: Moving | Connector: Straight | Length: 15M | Yaskawa Model: JZSP-UVA321-15-E
SWY-UVA101-20-EMotor: SGM7A-15A / SGM7G-09A, -13A | Cable: Fixed | Connector: Straight | Length: 20M | Yaskawa Model: JZSP-UVA101-20-E
SWY-UVA121-20-EMotor: SGM7A-15A / SGM7G-09A, -13A | Cable: Moving | Connector: Straight | Length: 20M | Yaskawa Model: JZSP-UVA121-20-E
SWY-UVA301-20-EMotor: SGM7A-20A / SGM7G-20A | Cable: Fixed | Connector: Straight | Length: 20M | Yaskawa Model: JZSP-UVA301-20-E
SWY-UVA102-03-EMotor: SGM7A-15A / SGM7G-09A, -13A | Cable: Fixed | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JZSP-UVA102-03-E
SWY-UVA122-03-EMotor: SGM7A-15A / SGM7G-09A, -13A | Cable: Moving | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JZSP-UVA122-03-E
SWY-UVA302-03-EMotor: SGM7A-20A / SGM7G-20A | Cable: Fixed | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JZSP-UVA302-03-E
SWY-UVA322-03-EMotor: SGM7A-20A / SGM7G-20A | Cable: Moving | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JZSP-UVA322-03-E
SWY-UVA102-05-EMotor: SGM7A-15A / SGM7G-09A, -13A | Cable: Fixed | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JZSP-UVA102-05-E
SWY-UVA122-05-EMotor: SGM7A-15A / SGM7G-09A, -13A | Cable: Moving | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JZSP-UVA122-05-E
SWY-UVA302-05-EMotor: SGM7A-20A / SGM7G-20A | Cable: Fixed | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JZSP-UVA302-05-E
SWY-UVA322-05-EMotor: SGM7A-20A / SGM7G-20A | Cable: Moving | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JZSP-UVA322-05-E
SWY-UVA102-10-EMotor: SGM7A-15A / SGM7G-09A, -13A | Cable: Fixed | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JZSP-UVA102-10-E
SWY-UVA122-10-EMotor: SGM7A-15A / SGM7G-09A, -13A | Cable: Moving | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JZSP-UVA122-10-E
SWY-UVA302-10-EMotor: SGM7A-20A / SGM7G-20A | Cable: Fixed | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JZSP-UVA302-10-E
SWY-UVA322-10-EMotor: SGM7A-20A / SGM7G-20A | Cable: Moving | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JZSP-UVA322-10-E
SWY-UVA102-15-EMotor: SGM7A-15A / SGM7G-09A, -13A | Cable: Fixed | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JZSP-UVA102-15-E
SWY-UVA122-15-EMotor: SGM7A-15A / SGM7G-09A, -13A | Cable: Moving | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JZSP-UVA122-15-E
SWY-UVA302-15-EMotor: SGM7A-20A / SGM7G-20A | Cable: Fixed | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JZSP-UVA302-15-E
SWY-UVA322-15-EMotor: SGM7A-20A / SGM7G-20A | Cable: Moving | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JZSP-UVA322-15-E
SWY-UVA102-20-EMotor: SGM7A-15A / SGM7G-09A, -13A | Cable: Fixed | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JZSP-UVA102-20-E
SWY-UVA122-20-EMotor: SGM7A-15A / SGM7G-09A, -13A | Cable: Moving | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JZSP-UVA122-20-E
SWY-UVA302-20-EMotor: SGM7A-20A / SGM7G-20A | Cable: Fixed | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JZSP-UVA302-20-E
SWY-UVA322-20-EMotor: SGM7A-20A / SGM7G-20A | Cable: Moving | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JZSP-UVA322-20-E
SWY-UVA501-03-EMotor: SGM7A-25A | Cable: Fixed | Connector: Straight | Length: 3M | Yaskawa Model: JZSP-UVA501-03-E
SWY-UVA521-03-EMotor: SGM7A-25A | Cable: Moving | Connector: Straight | Length: 3M | Yaskawa Model: JZSP-UVA521-03-E
SWY-UVA601-03-EMotor: SGM7A-30A | Cable: Fixed | Connector: Straight | Length: 3M | Yaskawa Model: JZSP-UVA601-03-E
SWY-UVA621-03-EMotor: SGM7A-30A | Cable: Moving | Connector: Straight | Length: 3M | Yaskawa Model: JZSP-UVA621-03-E
SWY-UVA501-05-EMotor: SGM7A-25A | Cable: Fixed | Connector: Straight | Length: 5M | Yaskawa Model: JZSP-UVA501-05-E
SWY-UVA521-05-EMotor: SGM7A-25A | Cable: Moving | Connector: Straight | Length: 5M | Yaskawa Model: JZSP-UVA521-05-E
SWY-UVA601-05-EMotor: SGM7A-30A | Cable: Fixed | Connector: Straight | Length: 5M | Yaskawa Model: JZSP-UVA601-05-E
SWY-UVA621-05-EMotor: SGM7A-30A | Cable: Moving | Connector: Straight | Length: 5M | Yaskawa Model: JZSP-UVA621-05-E
SWY-UVA501-10-EMotor: SGM7A-25A | Cable: Fixed | Connector: Straight | Length: 10M | Yaskawa Model: JZSP-UVA501-10-E
SWY-UVA521-10-EMotor: SGM7A-25A | Cable: Moving | Connector: Straight | Length: 10M | Yaskawa Model: JZSP-UVA521-10-E
SWY-UVA601-10-EMotor: SGM7A-30A | Cable: Fixed | Connector: Straight | Length: 10M | Yaskawa Model: JZSP-UVA601-10-E
SWY-UVA621-10-EMotor: SGM7A-30A | Cable: Moving | Connector: Straight | Length: 10M | Yaskawa Model: JZSP-UVA621-10-E
SWY-UVA501-15-EMotor: SGM7A-25A | Cable: Fixed | Connector: Straight | Length: 15M | Yaskawa Model: JZSP-UVA501-15-E
SWY-UVA521-15-EMotor: SGM7A-25A | Cable: Moving | Connector: Straight | Length: 15M | Yaskawa Model: JZSP-UVA521-15-E
SWY-UVA601-15-EMotor: SGM7A-30A | Cable: Fixed | Connector: Straight | Length: 15M | Yaskawa Model: JZSP-UVA601-15-E
SWY-UVA621-15-EMotor: SGM7A-30A | Cable: Moving | Connector: Straight | Length: 15M | Yaskawa Model: JZSP-UVA621-15-E
SWY-UVA501-20-EMotor: SGM7A-25A | Cable: Fixed | Connector: Straight | Length: 20M | Yaskawa Model: JZSP-UVA501-20-E
SWY-UVA521-20-EMotor: SGM7A-25A | Cable: Moving | Connector: Straight | Length: 20M | Yaskawa Model: JZSP-UVA521-20-E
SWY-UVA601-20-EMotor: SGM7A-30A | Cable: Fixed | Connector: Straight | Length: 20M | Yaskawa Model: JZSP-UVA601-20-E
SWY-UVA621-20-EMotor: SGM7A-30A | Cable: Moving | Connector: Straight | Length: 20M | Yaskawa Model: JZSP-UVA621-20-E
SWY-UVA502-03-EMotor: SGM7A-25A | Cable: Fixed | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JZSP-UVA502-03-E
SWY-UVA522-03-EMotor: SGM7A-25A | Cable: Moving | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JZSP-UVA522-03-E
SWY-UVA602-03-EMotor: SGM7A-30A | Cable: Fixed | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JZSP-UVA602-03-E
SWY-UVA622-03-EMotor: SGM7A-30A | Cable: Moving | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JZSP-UVA622-03-E
SWY-UVA502-05-EMotor: SGM7A-25A | Cable: Fixed | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JZSP-UVA502-05-E
SWY-UVA522-05-EMotor: SGM7A-25A | Cable: Moving | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JZSP-UVA522-05-E
SWY-UVA602-05-EMotor: SGM7A-30A | Cable: Fixed | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JZSP-UVA602-05-E
SWY-UVA622-05-EMotor: SGM7A-30A | Cable: Moving | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JZSP-UVA622-05-E
SWY-UVA502-10-EMotor: SGM7A-25A | Cable: Fixed | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JZSP-UVA502-10-E
SWY-UVA522-10-EMotor: SGM7A-25A | Cable: Moving | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JZSP-UVA522-10-E
SWY-UVA602-10-EMotor: SGM7A-30A | Cable: Fixed | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JZSP-UVA602-10-E
SWY-UVA622-10-EMotor: SGM7A-30A | Cable: Moving | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JZSP-UVA622-10-E
SWY-UVA502-15-EMotor: SGM7A-25A | Cable: Fixed | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JZSP-UVA502-15-E
SWY-UVA522-15-EMotor: SGM7A-25A | Cable: Moving | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JZSP-UVA522-15-E
SWY-UVA602-15-EMotor: SGM7A-30A | Cable: Fixed | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JZSP-UVA602-15-E
SWY-UVA622-15-EMotor: SGM7A-30A | Cable: Moving | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JZSP-UVA622-15-E
SWY-UVA502-20-EMotor: SGM7A-25A | Cable: Fixed | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JZSP-UVA502-20-E
SWY-UVA522-20-EMotor: SGM7A-25A | Cable: Moving | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JZSP-UVA522-20-E
SWY-UVA602-20-EMotor: SGM7A-30A | Cable: Fixed | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JZSP-UVA602-20-E
SWY-UVA622-20-EMotor: SGM7A-30A | Cable: Moving | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JZSP-UVA622-20-E
SWY-UVA701-03-EMotor: SGM7A-40A, -50A / SGM7G-30A, -44A | Cable: Fixed | Connector: Straight | Length: 3M | Yaskawa Model: JZSP-UVA701-03-E
SWY-UVA721-03-EMotor: SGM7A-40A, -50A / SGM7G-30A, -44A | Cable: Moving | Connector: Straight | Length: 3M | Yaskawa Model: JZSP-UVA721-03-E
SWY-UVA901-03-EMotor: SGM7A-70A | Cable: Fixed | Connector: Straight | Length: 3M | Yaskawa Model: JZSP-UVA901-03-E
SWY-UVA921-03-EMotor: SGM7A-70A | Cable: Moving | Connector: Straight | Length: 3M | Yaskawa Model: JZSP-UVA921-03-E
SWY-UVA701-05-EMotor: SGM7A-40A, -50A / SGM7G-30A, -44A | Cable: Fixed | Connector: Straight | Length: 5M | Yaskawa Model: JZSP-UVA701-05-E
SWY-UVA721-05-EMotor: SGM7A-40A, -50A / SGM7G-30A, -44A | Cable: Moving | Connector: Straight | Length: 5M | Yaskawa Model: JZSP-UVA721-05-E
SWY-UVA901-05-EMotor: SGM7A-70A | Cable: Fixed | Connector: Straight | Length: 5M | Yaskawa Model: JZSP-UVA901-05-E
SWY-UVA921-05-EMotor: SGM7A-70A | Cable: Moving | Connector: Straight | Length: 5M | Yaskawa Model: JZSP-UVA921-05-E
SWY-UVA701-10-EMotor: SGM7A-40A, -50A / SGM7G-30A, -44A | Cable: Fixed | Connector: Straight | Length: 10M | Yaskawa Model: JZSP-UVA701-10-E
SWY-UVA721-10-EMotor: SGM7A-40A, -50A / SGM7G-30A, -44A | Cable: Moving | Connector: Straight | Length: 10M | Yaskawa Model: JZSP-UVA721-10-E
SWY-UVA901-10-EMotor: SGM7A-70A | Cable: Fixed | Connector: Straight | Length: 10M | Yaskawa Model: JZSP-UVA901-10-E
SWY-UVA921-10-EMotor: SGM7A-70A | Cable: Moving | Connector: Straight | Length: 10M | Yaskawa Model: JZSP-UVA921-10-E
SWY-UVA701-15-EMotor: SGM7A-40A, -50A / SGM7G-30A, -44A | Cable: Fixed | Connector: Straight | Length: 15M | Yaskawa Model: JZSP-UVA701-15-E
SWY-UVA721-15-EMotor: SGM7A-40A, -50A / SGM7G-30A, -44A | Cable: Moving | Connector: Straight | Length: 15M | Yaskawa Model: JZSP-UVA721-15-E
SWY-UVA901-15-EMotor: SGM7A-70A | Cable: Fixed | Connector: Straight | Length: 15M | Yaskawa Model: JZSP-UVA901-15-E
SWY-UVA921-15-EMotor: SGM7A-70A | Cable: Moving | Connector: Straight | Length: 15M | Yaskawa Model: JZSP-UVA921-15-E
SWY-UVA701-20-EMotor: SGM7A-40A, -50A / SGM7G-30A, -44A | Cable: Fixed | Connector: Straight | Length: 20M | Yaskawa Model: JZSP-UVA701-20-E
SWY-UVA721-20-EMotor: SGM7A-40A, -50A / SGM7G-30A, -44A | Cable: Moving | Connector: Straight | Length: 20M | Yaskawa Model: JZSP-UVA721-20-E
SWY-UVA901-20-EMotor: SGM7A-70A | Cable: Fixed | Connector: Straight | Length: 20M | Yaskawa Model: JZSP-UVA901-20-E
SWY-UVA921-20-EMotor: SGM7A-70A | Cable: Moving | Connector: Straight | Length: 20M | Yaskawa Model: JZSP-UVA921-20-E
SWY-UVA702-03-EMotor: SGM7A-40A, -50A / SGM7G-30A, -44A | Cable: Fixed | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JZSP-UVA702-03-E
SWY-UVA722-03-EMotor: SGM7A-40A, -50A / SGM7G-30A, -44A | Cable: Moving | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JZSP-UVA722-03-E
SWY-UVA902-03-EMotor: SGM7A-70A | Cable: Fixed | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JZSP-UVA902-03-E
SWY-UVA922-03-EMotor: SGM7A-70A | Cable: Moving | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JZSP-UVA922-03-E
SWY-UVA702-05-EMotor: SGM7A-40A, -50A / SGM7G-30A, -44A | Cable: Fixed | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JZSP-UVA702-05-E
SWY-UVA722-05-EMotor: SGM7A-40A, -50A / SGM7G-30A, -44A | Cable: Moving | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JZSP-UVA722-05-E
SWY-UVA902-05-EMotor: SGM7A-70A | Cable: Fixed | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JZSP-UVA902-05-E
SWY-UVA922-05-EMotor: SGM7A-70A | Cable: Moving | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JZSP-UVA922-05-E
SWY-UVA702-10-EMotor: SGM7A-40A, -50A / SGM7G-30A, -44A | Cable: Fixed | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JZSP-UVA702-10-E
SWY-UVA722-10-EMotor: SGM7A-40A, -50A / SGM7G-30A, -44A | Cable: Moving | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JZSP-UVA722-10-E
SWY-UVA902-10-EMotor: SGM7A-70A | Cable: Fixed | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JZSP-UVA902-10-E
SWY-UVA922-10-EMotor: SGM7A-70A | Cable: Moving | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JZSP-UVA922-10-E
SWY-UVA702-15-EMotor: SGM7A-40A, -50A / SGM7G-30A, -44A | Cable: Fixed | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JZSP-UVA702-15-E
SWY-UVA722-15-EMotor: SGM7A-40A, -50A / SGM7G-30A, -44A | Cable: Moving | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JZSP-UVA722-15-E
SWY-UVA902-15-EMotor: SGM7A-70A | Cable: Fixed | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JZSP-UVA902-15-E
SWY-UVA922-15-EMotor: SGM7A-70A | Cable: Moving | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JZSP-UVA922-15-E
SWY-UVA702-20-EMotor: SGM7A-40A, -50A / SGM7G-30A, -44A | Cable: Fixed | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JZSP-UVA702-20-E
SWY-UVA722-20-EMotor: SGM7A-40A, -50A / SGM7G-30A, -44A | Cable: Moving | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JZSP-UVA722-20-E
SWY-UVA902-20-EMotor: SGM7A-70A | Cable: Fixed | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JZSP-UVA902-20-E
SWY-UVA922-20-EMotor: SGM7A-70A | Cable: Moving | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JZSP-UVA922-20-E
SWY-UVAA01-03-EMotor: SGM7G-55A, -75A | Cable: Fixed | Connector: Straight | Length: 3M | Yaskawa Model: JZSP-UVAA01-03-E
SWY-UVAA21-03-EMotor: SGM7G-55A, -75A | Cable: Moving | Connector: Straight | Length: 3M | Yaskawa Model: JZSP-UVAA21-03-E
SWY-UVAB01-03-EMotor: SGM7G-1AA, -1EA | Cable: Fixed | Connector: Straight | Length: 3M | Yaskawa Model: JZSP-UVAB01-03-E
SWY-UVAB21-03-EMotor: SGM7G-1AA, -1EA | Cable: Moving | Connector: Straight | Length: 3M | Yaskawa Model: JZSP-UVAB21-03-E
SWY-UVAA01-05-EMotor: SGM7G-55A, -75A | Cable: Fixed | Connector: Straight | Length: 5M | Yaskawa Model: JZSP-UVAA01-05-E
SWY-UVAA21-05-EMotor: SGM7G-55A, -75A | Cable: Moving | Connector: Straight | Length: 5M | Yaskawa Model: JZSP-UVAA21-05-E
SWY-UVAB01-05-EMotor: SGM7G-1AA, -1EA | Cable: Fixed | Connector: Straight | Length: 5M | Yaskawa Model: JZSP-UVAB01-05-E
SWY-UVAB21-05-EMotor: SGM7G-1AA, -1EA | Cable: Moving | Connector: Straight | Length: 5M | Yaskawa Model: JZSP-UVAB21-05-E
SWY-UVAA01-10-EMotor: SGM7G-55A, -75A | Cable: Fixed | Connector: Straight | Length: 10M | Yaskawa Model: JZSP-UVAA01-10-E
SWY-UVAA21-10-EMotor: SGM7G-55A, -75A | Cable: Moving | Connector: Straight | Length: 10M | Yaskawa Model: JZSP-UVAA21-10-E
SWY-UVAB01-10-EMotor: SGM7G-1AA, -1EA | Cable: Fixed | Connector: Straight | Length: 10M | Yaskawa Model: JZSP-UVAB01-10-E
SWY-UVAB21-10-EMotor: SGM7G-1AA, -1EA | Cable: Moving | Connector: Straight | Length: 10M | Yaskawa Model: JZSP-UVAB21-10-E
SWY-UVAA01-15-EMotor: SGM7G-55A, -75A | Cable: Fixed | Connector: Straight | Length: 15M | Yaskawa Model: JZSP-UVAA01-15-E
SWY-UVAA21-15-EMotor: SGM7G-55A, -75A | Cable: Moving | Connector: Straight | Length: 15M | Yaskawa Model: JZSP-UVAA21-15-E
SWY-UVAB01-15-EMotor: SGM7G-1AA, -1EA | Cable: Fixed | Connector: Straight | Length: 15M | Yaskawa Model: JZSP-UVAB01-15-E
SWY-UVAB21-15-EMotor: SGM7G-1AA, -1EA | Cable: Moving | Connector: Straight | Length: 15M | Yaskawa Model: JZSP-UVAB21-15-E
SWY-UVAA01-20-EMotor: SGM7G-55A, -75A | Cable: Fixed | Connector: Straight | Length: 20M | Yaskawa Model: JZSP-UVAA01-20-E
SWY-UVAA21-20-EMotor: SGM7G-55A, -75A | Cable: Moving | Connector: Straight | Length: 20M | Yaskawa Model: JZSP-UVAA21-20-E
SWY-UVAB01-20-EMotor: SGM7G-1AA, -1EA | Cable: Fixed | Connector: Straight | Length: 20M | Yaskawa Model: JZSP-UVAB01-20-E
SWY-UVAB21-20-EMotor: SGM7G-1AA, -1EA | Cable: Moving | Connector: Straight | Length: 20M | Yaskawa Model: JZSP-UVAB21-20-E
SWY-UVAA02-03-EMotor: SGM7G-55A, -75A | Cable: Fixed | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JZSP-UVAA02-03-E
SWY-UVAA22-03-EMotor: SGM7G-55A, -75A | Cable: Moving | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JZSP-UVAA22-03-E
SWY-UVAB02-03-EMotor: SGM7G-1AA, -1EA | Cable: Fixed | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JZSP-UVAB02-03-E
SWY-UVAB22-03-EMotor: SGM7G-1AA, -1EA | Cable: Moving | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JZSP-UVAB22-03-E
SWY-UVAA02-05-EMotor: SGM7G-55A, -75A | Cable: Fixed | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JZSP-UVAA02-05-E
SWY-UVAA22-05-EMotor: SGM7G-55A, -75A | Cable: Moving | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JZSP-UVAA22-05-E
SWY-UVAB02-05-EMotor: SGM7G-1AA, -1EA | Cable: Fixed | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JZSP-UVAB02-05-E
SWY-UVAB22-05-EMotor: SGM7G-1AA, -1EA | Cable: Moving | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JZSP-UVAB22-05-E
SWY-UVAA02-10-EMotor: SGM7G-55A, -75A | Cable: Fixed | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JZSP-UVAA02-10-E
SWY-UVAA22-10-EMotor: SGM7G-55A, -75A | Cable: Moving | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JZSP-UVAA22-10-E
SWY-UVAB02-10-EMotor: SGM7G-1AA, -1EA | Cable: Fixed | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JZSP-UVAB02-10-E
SWY-UVAB22-10-EMotor: SGM7G-1AA, -1EA | Cable: Moving | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JZSP-UVAB22-10-E
SWY-UVAA02-15-EMotor: SGM7G-55A, -75A | Cable: Fixed | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JZSP-UVAA02-15-E
SWY-UVAA22-15-EMotor: SGM7G-55A, -75A | Cable: Moving | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JZSP-UVAA22-15-E
SWY-UVAB02-15-EMotor: SGM7G-1AA, -1EA | Cable: Fixed | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JZSP-UVAB02-15-E
SWY-UVAB22-15-EMotor: SGM7G-1AA, -1EA | Cable: Moving | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JZSP-UVAB22-15-E
SWY-UVAA02-20-EMotor: SGM7G-55A, -75A | Cable: Fixed | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JZSP-UVAA02-20-E
SWY-UVAA22-20-EMotor: SGM7G-55A, -75A | Cable: Moving | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JZSP-UVAA22-20-E
SWY-UVAB02-20-EMotor: SGM7G-1AA, -1EA | Cable: Fixed | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JZSP-UVAB02-20-E
SWY-UVAB22-20-EMotor: SGM7G-1AA, -1EA | Cable: Moving | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JZSP-UVAB22-20-E

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Electrical & Lighting →
