Samwon ACT SWY-XM Power Cable for Yaskawa Sigma-X SGMXA-15A~70A/SGMXG-09A~1EA

Samwon ACT SWY-XM Power Cable for Yaskawa Sigma-X SGMXA-15A~70A/SGMXG-09A~1EA

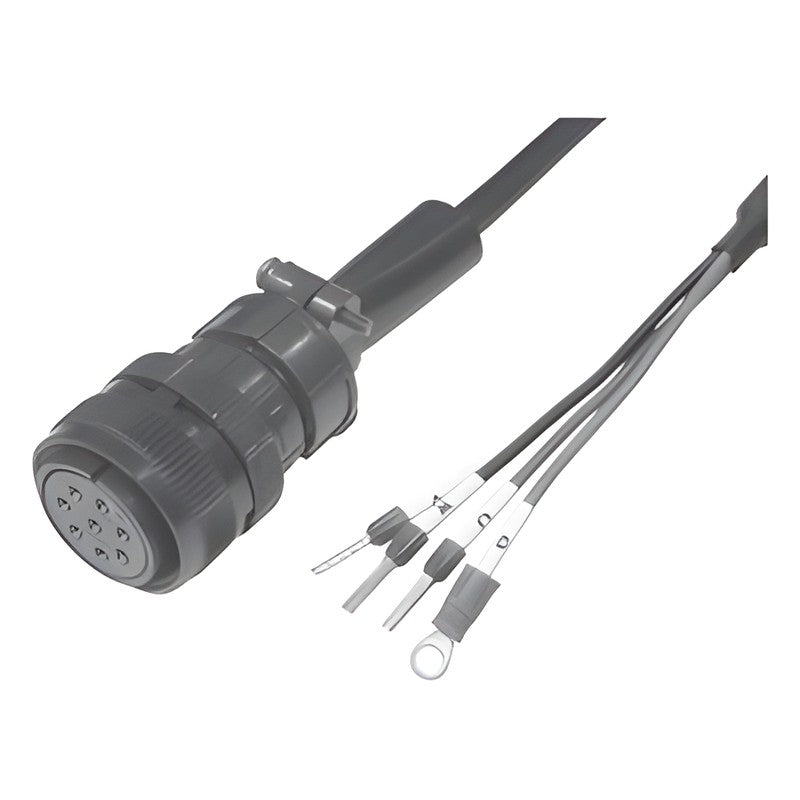

Power cable with MS-type motor connector (straight or space-saving elbow) for Yaskawa Sigma-X SGMXA-15A~70A and SGMXG-09A~1EA rotary servo motors.

Key features

  • Power cables for Yaskawa Sigma-X SGMXA-15A~70A and SGMXG-09A~1EA, straight or space-saving elbow motor connector
  • Built to the recommended specifications in Yaskawa user manuals and catalogs (some equivalent parts used)
  • Fixed, moving (flex-rated) and custom-specified cables can be made
  • Cable length can be specified freely; custom lengths in 100 mm steps
  • Small-quantity orders (from 1 piece) and short lead times

Specifications

Motor Power Connector (850W~1.5kW) Straight MS3106B 18-10S / elbow MS3108B 18-10S or equivalent
Motor Power Connector (1.8kW~5kW) Straight MS3106B 22-22S / elbow MS3108B 22-22 or equivalent
Motor Power Connector (5.5kW~15kW) Straight MS3106B 32-17S / elbow MS3108B 32-17S or equivalent
Fixed Cable VCTF, VCT, PVC insulation cable
Moving Cable (850W~1.5kW) KURAMO VCTF23NXX UL2517 300V heat-resistant insulation cable
Moving Cable (1.8kW~7.0kW) KURAMO VCT531XX UL2501 600V heat-resistant insulation cable
Max. Transmission Length 50M
Length Tolerance +50 to +100 mm
SWY-XM15NSS-03 Motor: SGMXA-15A / SGMXG-09A, -13A | Cable: Fixed | Connector: Straight | Length: 3M | Yaskawa Model: JWSP-XM15NSS-03
SWY-XM15NFS-03 Motor: SGMXA-15A / SGMXG-09A, -13A | Cable: Moving | Connector: Straight | Length: 3M | Yaskawa Model: JWSP-XM15NFS-03
SWY-XM20NSS-03 Motor: SGMXA-20A, -25A / SGMXG-20A | Cable: Fixed | Connector: Straight | Length: 3M | Yaskawa Model: JWSP-XM20NSS-03
SWY-XM20NFS-03 Motor: SGMXA-20A, -25A / SGMXG-20A | Cable: Moving | Connector: Straight | Length: 3M | Yaskawa Model: JWSP-XM20NFS-03
SWY-XM15NSS-05 Motor: SGMXA-15A / SGMXG-09A, -13A | Cable: Fixed | Connector: Straight | Length: 5M | Yaskawa Model: JWSP-XM15NSS-05
SWY-XM15NFS-05 Motor: SGMXA-15A / SGMXG-09A, -13A | Cable: Moving | Connector: Straight | Length: 5M | Yaskawa Model: JWSP-XM15NFS-05
SWY-XM20NSS-05 Motor: SGMXA-20A, -25A / SGMXG-20A | Cable: Fixed | Connector: Straight | Length: 5M | Yaskawa Model: JWSP-XM20NSS-05
SWY-XM20NFS-05 Motor: SGMXA-20A, -25A / SGMXG-20A | Cable: Moving | Connector: Straight | Length: 5M | Yaskawa Model: JWSP-XM20NFS-05
SWY-XM15NSS-10 Motor: SGMXA-15A / SGMXG-09A, -13A | Cable: Fixed | Connector: Straight | Length: 10M | Yaskawa Model: JWSP-XM15NSS-10
SWY-XM15NFS-10 Motor: SGMXA-15A / SGMXG-09A, -13A | Cable: Moving | Connector: Straight | Length: 10M | Yaskawa Model: JWSP-XM15NFS-10
SWY-XM20NSS-10 Motor: SGMXA-20A, -25A / SGMXG-20A | Cable: Fixed | Connector: Straight | Length: 10M | Yaskawa Model: JWSP-XM20NSS-10
SWY-XM20NFS-10 Motor: SGMXA-20A, -25A / SGMXG-20A | Cable: Moving | Connector: Straight | Length: 10M | Yaskawa Model: JWSP-XM20NFS-10
SWY-XM15NSS-15 Motor: SGMXA-15A / SGMXG-09A, -13A | Cable: Fixed | Connector: Straight | Length: 15M | Yaskawa Model: JWSP-XM15NSS-15
SWY-XM15NFS-15 Motor: SGMXA-15A / SGMXG-09A, -13A | Cable: Moving | Connector: Straight | Length: 15M | Yaskawa Model: JWSP-XM15NFS-15
SWY-XM20NSS-15 Motor: SGMXA-20A, -25A / SGMXG-20A | Cable: Fixed | Connector: Straight | Length: 15M | Yaskawa Model: JWSP-XM20NSS-15
SWY-XM20NFS-15 Motor: SGMXA-20A, -25A / SGMXG-20A | Cable: Moving | Connector: Straight | Length: 15M | Yaskawa Model: JWSP-XM20NFS-15
SWY-XM15NSS-20 Motor: SGMXA-15A / SGMXG-09A, -13A | Cable: Fixed | Connector: Straight | Length: 20M | Yaskawa Model: JWSP-XM15NSS-20
SWY-XM15NFS-20 Motor: SGMXA-15A / SGMXG-09A, -13A | Cable: Moving | Connector: Straight | Length: 20M | Yaskawa Model: JWSP-XM15NFS-20
SWY-XM20NSS-20 Motor: SGMXA-20A, -25A / SGMXG-20A | Cable: Fixed | Connector: Straight | Length: 20M | Yaskawa Model: JWSP-XM20NSS-20
SWY-XM20NFS-20 Motor: SGMXA-20A, -25A / SGMXG-20A | Cable: Moving | Connector: Straight | Length: 20M | Yaskawa Model: JWSP-XM20NFS-20
SWY-XM15NSL-03 Motor: SGMXA-15A / SGMXG-09A, -13A | Cable: Fixed | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JWSP-XM15NSL-03
SWY-XM15NFL-03 Motor: SGMXA-15A / SGMXG-09A, -13A | Cable: Moving | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JWSP-XM15NFL-03
SWY-XM20NSL-03 Motor: SGMXA-20A, -25A / SGMXG-20A | Cable: Fixed | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JWSP-XM20NSL-03
SWY-XM20NFL-03 Motor: SGMXA-20A, -25A / SGMXG-20A | Cable: Moving | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JWSP-XM20NFL-03
SWY-XM15NSL-05 Motor: SGMXA-15A / SGMXG-09A, -13A | Cable: Fixed | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JWSP-XM15NSL-05
SWY-XM15NFL-05 Motor: SGMXA-15A / SGMXG-09A, -13A | Cable: Moving | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JWSP-XM15NFL-05
SWY-XM20NSL-05 Motor: SGMXA-20A, -25A / SGMXG-20A | Cable: Fixed | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JWSP-XM20NSL-05
SWY-XM20NFL-05 Motor: SGMXA-20A, -25A / SGMXG-20A | Cable: Moving | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JWSP-XM20NFL-05
SWY-XM15NSL-10 Motor: SGMXA-15A / SGMXG-09A, -13A | Cable: Fixed | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JWSP-XM15NSL-10
SWY-XM15NFL-10 Motor: SGMXA-15A / SGMXG-09A, -13A | Cable: Moving | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JWSP-XM15NFL-10
SWY-XM20NSL-10 Motor: SGMXA-20A, -25A / SGMXG-20A | Cable: Fixed | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JWSP-XM20NSL-10
SWY-XM20NFL-10 Motor: SGMXA-20A, -25A / SGMXG-20A | Cable: Moving | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JWSP-XM20NFL-10
SWY-XM15NSL-15 Motor: SGMXA-15A / SGMXG-09A, -13A | Cable: Fixed | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JWSP-XM15NSL-15
SWY-XM15NFL-15 Motor: SGMXA-15A / SGMXG-09A, -13A | Cable: Moving | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JWSP-XM15NFL-15
SWY-XM20NSL-15 Motor: SGMXA-20A, -25A / SGMXG-20A | Cable: Fixed | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JWSP-XM20NSL-15
SWY-XM20NFL-15 Motor: SGMXA-20A, -25A / SGMXG-20A | Cable: Moving | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JWSP-XM20NFL-15
SWY-XM15NSL-20 Motor: SGMXA-15A / SGMXG-09A, -13A | Cable: Fixed | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JWSP-XM15NSL-20
SWY-XM15NFL-20 Motor: SGMXA-15A / SGMXG-09A, -13A | Cable: Moving | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JWSP-XM15NFL-20
SWY-XM20NSL-20 Motor: SGMXA-20A, -25A / SGMXG-20A | Cable: Fixed | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JWSP-XM20NSL-20
SWY-XM20NFL-20 Motor: SGMXA-20A, -25A / SGMXG-20A | Cable: Moving | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JWSP-XM20NFL-20
SWY-XM30NSS-03 Motor: SGMXA-30A / SGMXG-30A (with SGDXS-200A) | Cable: Fixed | Connector: Straight | Length: 3M | Yaskawa Model: JWSP-XM30NSS-03
SWY-XM30NFS-03 Motor: SGMXA-30A / SGMXG-30A (with SGDXS-200A) | Cable: Moving | Connector: Straight | Length: 3M | Yaskawa Model: JWSP-XM30NFS-03
SWY-XM40NSS-03 Motor: SGMXA-40A, -50A / SGMXG-30A, -44A | Cable: Fixed | Connector: Straight | Length: 3M | Yaskawa Model: JWSP-XM40NSS-03
SWY-XM40NFS-03 Motor: SGMXA-40A, -50A / SGMXG-30A, -44A | Cable: Moving | Connector: Straight | Length: 3M | Yaskawa Model: JWSP-XM40NFS-03
SWY-XM30NSS-05 Motor: SGMXA-30A / SGMXG-30A (with SGDXS-200A) | Cable: Fixed | Connector: Straight | Length: 5M | Yaskawa Model: JWSP-XM30NSS-05
SWY-XM30NFS-05 Motor: SGMXA-30A / SGMXG-30A (with SGDXS-200A) | Cable: Moving | Connector: Straight | Length: 5M | Yaskawa Model: JWSP-XM30NFS-05
SWY-XM40NSS-05 Motor: SGMXA-40A, -50A / SGMXG-30A, -44A | Cable: Fixed | Connector: Straight | Length: 5M | Yaskawa Model: JWSP-XM40NSS-05
SWY-XM40NFS-05 Motor: SGMXA-40A, -50A / SGMXG-30A, -44A | Cable: Moving | Connector: Straight | Length: 5M | Yaskawa Model: JWSP-XM40NFS-05
SWY-XM30NSS-10 Motor: SGMXA-30A / SGMXG-30A (with SGDXS-200A) | Cable: Fixed | Connector: Straight | Length: 10M | Yaskawa Model: JWSP-XM30NSS-10
SWY-XM30NFS-10 Motor: SGMXA-30A / SGMXG-30A (with SGDXS-200A) | Cable: Moving | Connector: Straight | Length: 10M | Yaskawa Model: JWSP-XM30NFS-10
SWY-XM40NSS-10 Motor: SGMXA-40A, -50A / SGMXG-30A, -44A | Cable: Fixed | Connector: Straight | Length: 10M | Yaskawa Model: JWSP-XM40NSS-10
SWY-XM40NFS-10 Motor: SGMXA-40A, -50A / SGMXG-30A, -44A | Cable: Moving | Connector: Straight | Length: 10M | Yaskawa Model: JWSP-XM40NFS-10
SWY-XM30NSS-15 Motor: SGMXA-30A / SGMXG-30A (with SGDXS-200A) | Cable: Fixed | Connector: Straight | Length: 15M | Yaskawa Model: JWSP-XM30NSS-15
SWY-XM30NFS-15 Motor: SGMXA-30A / SGMXG-30A (with SGDXS-200A) | Cable: Moving | Connector: Straight | Length: 15M | Yaskawa Model: JWSP-XM30NFS-15
SWY-XM40NSS-15 Motor: SGMXA-40A, -50A / SGMXG-30A, -44A | Cable: Fixed | Connector: Straight | Length: 15M | Yaskawa Model: JWSP-XM40NSS-15
SWY-XM40NFS-15 Motor: SGMXA-40A, -50A / SGMXG-30A, -44A | Cable: Moving | Connector: Straight | Length: 15M | Yaskawa Model: JWSP-XM40NFS-15
SWY-XM30NSS-20 Motor: SGMXA-30A / SGMXG-30A (with SGDXS-200A) | Cable: Fixed | Connector: Straight | Length: 20M | Yaskawa Model: JWSP-XM30NSS-20
SWY-XM30NFS-20 Motor: SGMXA-30A / SGMXG-30A (with SGDXS-200A) | Cable: Moving | Connector: Straight | Length: 20M | Yaskawa Model: JWSP-XM30NFS-20
SWY-XM40NSS-20 Motor: SGMXA-40A, -50A / SGMXG-30A, -44A | Cable: Fixed | Connector: Straight | Length: 20M | Yaskawa Model: JWSP-XM40NSS-20
SWY-XM40NFS-20 Motor: SGMXA-40A, -50A / SGMXG-30A, -44A | Cable: Moving | Connector: Straight | Length: 20M | Yaskawa Model: JWSP-XM40NFS-20
SWY-XM30NSL-03 Motor: SGMXA-30A / SGMXG-30A (with SGDXS-200A) | Cable: Fixed | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JWSP-XM30NSL-03
SWY-XM30NFL-03 Motor: SGMXA-30A / SGMXG-30A (with SGDXS-200A) | Cable: Moving | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JWSP-XM30NFL-03
SWY-XM40NSL-03 Motor: SGMXA-40A, -50A / SGMXG-30A, -44A | Cable: Fixed | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JWSP-XM40NSL-03
SWY-XM40NFL-03 Motor: SGMXA-40A, -50A / SGMXG-30A, -44A | Cable: Moving | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JWSP-XM40NFL-03
SWY-XM30NSL-05 Motor: SGMXA-30A / SGMXG-30A (with SGDXS-200A) | Cable: Fixed | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JWSP-XM30NSL-05
SWY-XM30NFL-05 Motor: SGMXA-30A / SGMXG-30A (with SGDXS-200A) | Cable: Moving | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JWSP-XM30NFL-05
SWY-XM40NSL-05 Motor: SGMXA-40A, -50A / SGMXG-30A, -44A | Cable: Fixed | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JWSP-XM40NSL-05
SWY-XM40NFL-05 Motor: SGMXA-40A, -50A / SGMXG-30A, -44A | Cable: Moving | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JWSP-XM40NFL-05
SWY-XM30NSL-10 Motor: SGMXA-30A / SGMXG-30A (with SGDXS-200A) | Cable: Fixed | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JWSP-XM30NSL-10
SWY-XM30NFL-10 Motor: SGMXA-30A / SGMXG-30A (with SGDXS-200A) | Cable: Moving | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JWSP-XM30NFL-10
SWY-XM40NSL-10 Motor: SGMXA-40A, -50A / SGMXG-30A, -44A | Cable: Fixed | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JWSP-XM40NSL-10
SWY-XM40NFL-10 Motor: SGMXA-40A, -50A / SGMXG-30A, -44A | Cable: Moving | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JWSP-XM40NFL-10
SWY-XM30NSL-15 Motor: SGMXA-30A / SGMXG-30A (with SGDXS-200A) | Cable: Fixed | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JWSP-XM30NSL-15
SWY-XM30NFL-15 Motor: SGMXA-30A / SGMXG-30A (with SGDXS-200A) | Cable: Moving | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JWSP-XM30NFL-15
SWY-XM40NSL-15 Motor: SGMXA-40A, -50A / SGMXG-30A, -44A | Cable: Fixed | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JWSP-XM40NSL-15
SWY-XM40NFL-15 Motor: SGMXA-40A, -50A / SGMXG-30A, -44A | Cable: Moving | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JWSP-XM40NFL-15
SWY-XM30NSL-20 Motor: SGMXA-30A / SGMXG-30A (with SGDXS-200A) | Cable: Fixed | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JWSP-XM30NSL-20
SWY-XM30NFL-20 Motor: SGMXA-30A / SGMXG-30A (with SGDXS-200A) | Cable: Moving | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JWSP-XM30NFL-20
SWY-XM40NSL-20 Motor: SGMXA-40A, -50A / SGMXG-30A, -44A | Cable: Fixed | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JWSP-XM40NSL-20
SWY-XM40NFL-20 Motor: SGMXA-40A, -50A / SGMXG-30A, -44A | Cable: Moving | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JWSP-XM40NFL-20
SWY-XM55NSS-03 Motor: SGMXG-55A, -75A | Cable: Fixed | Connector: Straight | Length: 3M | Yaskawa Model: JWSP-XM55NSS-03
SWY-XM55NFS-03 Motor: SGMXG-55A, -75A | Cable: Moving | Connector: Straight | Length: 3M | Yaskawa Model: JWSP-XM55NFS-03
SWY-XM70NSS-03 Motor: SGMXA-70A | Cable: Fixed | Connector: Straight | Length: 3M
SWY-XM70NFS-03 Motor: SGMXA-70A | Cable: Moving | Connector: Straight | Length: 3M | Yaskawa Model: JWSP-XM70NFS-03
SWY-XM55NSS-05 Motor: SGMXG-55A, -75A | Cable: Fixed | Connector: Straight | Length: 5M | Yaskawa Model: JWSP-XM55NSS-05
SWY-XM55NFS-05 Motor: SGMXG-55A, -75A | Cable: Moving | Connector: Straight | Length: 5M | Yaskawa Model: JWSP-XM55NFS-05
SWY-XM70NSS-05 Motor: SGMXA-70A | Cable: Fixed | Connector: Straight | Length: 5M
SWY-XM70NFS-05 Motor: SGMXA-70A | Cable: Moving | Connector: Straight | Length: 5M | Yaskawa Model: JWSP-XM70NFS-05
SWY-XM55NSS-10 Motor: SGMXG-55A, -75A | Cable: Fixed | Connector: Straight | Length: 10M | Yaskawa Model: JWSP-XM55NSS-10
SWY-XM55NFS-10 Motor: SGMXG-55A, -75A | Cable: Moving | Connector: Straight | Length: 10M | Yaskawa Model: JWSP-XM55NFS-10
SWY-XM70NSS-10 Motor: SGMXA-70A | Cable: Fixed | Connector: Straight | Length: 10M
SWY-XM70NFS-10 Motor: SGMXA-70A | Cable: Moving | Connector: Straight | Length: 10M | Yaskawa Model: JWSP-XM70NFS-10
SWY-XM55NSS-15 Motor: SGMXG-55A, -75A | Cable: Fixed | Connector: Straight | Length: 15M | Yaskawa Model: JWSP-XM55NSS-15
SWY-XM55NFS-15 Motor: SGMXG-55A, -75A | Cable: Moving | Connector: Straight | Length: 15M | Yaskawa Model: JWSP-XM55NFS-15
SWY-XM70NSS-15 Motor: SGMXA-70A | Cable: Fixed | Connector: Straight | Length: 15M
SWY-XM70NFS-15 Motor: SGMXA-70A | Cable: Moving | Connector: Straight | Length: 15M | Yaskawa Model: JWSP-XM70NFS-15
SWY-XM55NSS-20 Motor: SGMXG-55A, -75A | Cable: Fixed | Connector: Straight | Length: 20M | Yaskawa Model: JWSP-XM55NSS-20
SWY-XM55NFS-20 Motor: SGMXG-55A, -75A | Cable: Moving | Connector: Straight | Length: 20M | Yaskawa Model: JWSP-XM55NFS-20
SWY-XM70NSS-20 Motor: SGMXA-70A | Cable: Fixed | Connector: Straight | Length: 20M
SWY-XM70NFS-20 Motor: SGMXA-70A | Cable: Moving | Connector: Straight | Length: 20M | Yaskawa Model: JWSP-XM70NFS-20
SWY-XM55NSL-03 Motor: SGMXG-55A, -75A | Cable: Fixed | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JWSP-XM55NSL-03
SWY-XM55NFL-03 Motor: SGMXG-55A, -75A | Cable: Moving | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JWSP-XM55NFL-03
SWY-XM70NSL-03 Motor: SGMXA-70A | Cable: Fixed | Connector: Space-saving elbow | Length: 3M
SWY-XM70NFL-03 Motor: SGMXA-70A | Cable: Moving | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JWSP-XM70NFL-03
SWY-XM55NSL-05 Motor: SGMXG-55A, -75A | Cable: Fixed | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JWSP-XM55NSL-05
SWY-XM55NFL-05 Motor: SGMXG-55A, -75A | Cable: Moving | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JWSP-XM55NFL-05
SWY-XM70NSL-05 Motor: SGMXA-70A | Cable: Fixed | Connector: Space-saving elbow | Length: 5M
SWY-XM70NFL-05 Motor: SGMXA-70A | Cable: Moving | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JWSP-XM70NFL-05
SWY-XM55NSL-10 Motor: SGMXG-55A, -75A | Cable: Fixed | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JWSP-XM55NSL-10
SWY-XM55NFL-10 Motor: SGMXG-55A, -75A | Cable: Moving | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JWSP-XM55NFL-10
SWY-XM70NSL-10 Motor: SGMXA-70A | Cable: Fixed | Connector: Space-saving elbow | Length: 10M
SWY-XM70NFL-10 Motor: SGMXA-70A | Cable: Moving | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JWSP-XM70NFL-10
SWY-XM55NSL-15 Motor: SGMXG-55A, -75A | Cable: Fixed | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JWSP-XM55NSL-15
SWY-XM55NFL-15 Motor: SGMXG-55A, -75A | Cable: Moving | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JWSP-XM55NFL-15
SWY-XM70NSL-15 Motor: SGMXA-70A | Cable: Fixed | Connector: Space-saving elbow | Length: 15M
SWY-XM70NFL-15 Motor: SGMXA-70A | Cable: Moving | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JWSP-XM70NFL-15
SWY-XM55NSL-20 Motor: SGMXG-55A, -75A | Cable: Fixed | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JWSP-XM55NSL-20
SWY-XM55NFL-20 Motor: SGMXG-55A, -75A | Cable: Moving | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JWSP-XM55NFL-20
SWY-XM70NSL-20 Motor: SGMXA-70A | Cable: Fixed | Connector: Space-saving elbow | Length: 20M
SWY-XM70NFL-20 Motor: SGMXA-70A | Cable: Moving | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JWSP-XM70NFL-20
SWY-XM1ANSS-03 Motor: SGMXG-1AA, SGMXF-1EA | Cable: Fixed | Connector: Straight | Length: 3M
SWY-XM1ANFS-03 Motor: SGMXG-1AA, SGMXF-1EA | Cable: Moving | Connector: Straight | Length: 3M | Yaskawa Model: JWSP-XM1ANFS-03
SWY-XM1ANSS-05 Motor: SGMXG-1AA, SGMXF-1EA | Cable: Fixed | Connector: Straight | Length: 5M
SWY-XM1ANFS-05 Motor: SGMXG-1AA, SGMXF-1EA | Cable: Moving | Connector: Straight | Length: 5M | Yaskawa Model: JWSP-XM1ANFS-05
SWY-XM1ANSS-10 Motor: SGMXG-1AA, SGMXF-1EA | Cable: Fixed | Connector: Straight | Length: 10M
SWY-XM1ANFS-10 Motor: SGMXG-1AA, SGMXF-1EA | Cable: Moving | Connector: Straight | Length: 10M | Yaskawa Model: JWSP-XM1ANFS-10
SWY-XM1ANSS-15 Motor: SGMXG-1AA, SGMXF-1EA | Cable: Fixed | Connector: Straight | Length: 15M
SWY-XM1ANFS-15 Motor: SGMXG-1AA, SGMXF-1EA | Cable: Moving | Connector: Straight | Length: 15M | Yaskawa Model: JWSP-XM1ANFS-15
SWY-XM1ANSS-20 Motor: SGMXG-1AA, SGMXF-1EA | Cable: Fixed | Connector: Straight | Length: 20M
SWY-XM1ANFS-20 Motor: SGMXG-1AA, SGMXF-1EA | Cable: Moving | Connector: Straight | Length: 20M | Yaskawa Model: JWSP-XM1ANFS-20
SWY-XM1ANSL-03 Motor: SGMXG-1AA, SGMXF-1EA | Cable: Fixed | Connector: Space-saving elbow | Length: 3M
SWY-XM1ANFL-03 Motor: SGMXG-1AA, SGMXF-1EA | Cable: Moving | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JWSP-XM1ANFL-03
SWY-XM1ANSL-05 Motor: SGMXG-1AA, SGMXF-1EA | Cable: Fixed | Connector: Space-saving elbow | Length: 5M
SWY-XM1ANFL-05 Motor: SGMXG-1AA, SGMXF-1EA | Cable: Moving | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JWSP-XM1ANFL-05
SWY-XM1ANSL-10 Motor: SGMXG-1AA, SGMXF-1EA | Cable: Fixed | Connector: Space-saving elbow | Length: 10M
SWY-XM1ANFL-10 Motor: SGMXG-1AA, SGMXF-1EA | Cable: Moving | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JWSP-XM1ANFL-10
SWY-XM1ANSL-15 Motor: SGMXG-1AA, SGMXF-1EA | Cable: Fixed | Connector: Space-saving elbow | Length: 15M
SWY-XM1ANFL-15 Motor: SGMXG-1AA, SGMXF-1EA | Cable: Moving | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JWSP-XM1ANFL-15
SWY-XM1ANSL-20 Motor: SGMXG-1AA, SGMXF-1EA | Cable: Fixed | Connector: Space-saving elbow | Length: 20M
SWY-XM1ANFL-20 Motor: SGMXG-1AA, SGMXF-1EA | Cable: Moving | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JWSP-XM1ANFL-20
Servo CablesSamwon ACT
140 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT SWY-XM Power Cable for Yaskawa Sigma-X SGMXA-15A~70A/SGMXG-09A~1EA

Brand Samwon ACT·Servo Cables

Available part numbers (140)

SWY-XM15NSS-03, SWY-XM15NFS-03, SWY-XM20NSS-03, SWY-XM20NFS-03, SWY-XM15NSS-05, SWY-XM15NFS-05, SWY-XM20NSS-05, SWY-XM20NFS-05, SWY-XM15NSS-10, SWY-XM15NFS-10 + 130 more — see full table ↓

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SWY-XM15NSS-03Motor: SGMXA-15A / SGMXG-09A, -13A | Cable: Fixed | Connector: Straight | Length: 3M | Yaskawa Model: JWSP-XM15NSS-03
SWY-XM15NFS-03Motor: SGMXA-15A / SGMXG-09A, -13A | Cable: Moving | Connector: Straight | Length: 3M | Yaskawa Model: JWSP-XM15NFS-03
SWY-XM20NSS-03Motor: SGMXA-20A, -25A / SGMXG-20A | Cable: Fixed | Connector: Straight | Length: 3M | Yaskawa Model: JWSP-XM20NSS-03
SWY-XM20NFS-03Motor: SGMXA-20A, -25A / SGMXG-20A | Cable: Moving | Connector: Straight | Length: 3M | Yaskawa Model: JWSP-XM20NFS-03
SWY-XM15NSS-05Motor: SGMXA-15A / SGMXG-09A, -13A | Cable: Fixed | Connector: Straight | Length: 5M | Yaskawa Model: JWSP-XM15NSS-05
SWY-XM15NFS-05Motor: SGMXA-15A / SGMXG-09A, -13A | Cable: Moving | Connector: Straight | Length: 5M | Yaskawa Model: JWSP-XM15NFS-05
SWY-XM20NSS-05Motor: SGMXA-20A, -25A / SGMXG-20A | Cable: Fixed | Connector: Straight | Length: 5M | Yaskawa Model: JWSP-XM20NSS-05
SWY-XM20NFS-05Motor: SGMXA-20A, -25A / SGMXG-20A | Cable: Moving | Connector: Straight | Length: 5M | Yaskawa Model: JWSP-XM20NFS-05
SWY-XM15NSS-10Motor: SGMXA-15A / SGMXG-09A, -13A | Cable: Fixed | Connector: Straight | Length: 10M | Yaskawa Model: JWSP-XM15NSS-10
SWY-XM15NFS-10Motor: SGMXA-15A / SGMXG-09A, -13A | Cable: Moving | Connector: Straight | Length: 10M | Yaskawa Model: JWSP-XM15NFS-10
SWY-XM20NSS-10Motor: SGMXA-20A, -25A / SGMXG-20A | Cable: Fixed | Connector: Straight | Length: 10M | Yaskawa Model: JWSP-XM20NSS-10
SWY-XM20NFS-10Motor: SGMXA-20A, -25A / SGMXG-20A | Cable: Moving | Connector: Straight | Length: 10M | Yaskawa Model: JWSP-XM20NFS-10
SWY-XM15NSS-15Motor: SGMXA-15A / SGMXG-09A, -13A | Cable: Fixed | Connector: Straight | Length: 15M | Yaskawa Model: JWSP-XM15NSS-15
SWY-XM15NFS-15Motor: SGMXA-15A / SGMXG-09A, -13A | Cable: Moving | Connector: Straight | Length: 15M | Yaskawa Model: JWSP-XM15NFS-15
SWY-XM20NSS-15Motor: SGMXA-20A, -25A / SGMXG-20A | Cable: Fixed | Connector: Straight | Length: 15M | Yaskawa Model: JWSP-XM20NSS-15
SWY-XM20NFS-15Motor: SGMXA-20A, -25A / SGMXG-20A | Cable: Moving | Connector: Straight | Length: 15M | Yaskawa Model: JWSP-XM20NFS-15
SWY-XM15NSS-20Motor: SGMXA-15A / SGMXG-09A, -13A | Cable: Fixed | Connector: Straight | Length: 20M | Yaskawa Model: JWSP-XM15NSS-20
SWY-XM15NFS-20Motor: SGMXA-15A / SGMXG-09A, -13A | Cable: Moving | Connector: Straight | Length: 20M | Yaskawa Model: JWSP-XM15NFS-20
SWY-XM20NSS-20Motor: SGMXA-20A, -25A / SGMXG-20A | Cable: Fixed | Connector: Straight | Length: 20M | Yaskawa Model: JWSP-XM20NSS-20
SWY-XM20NFS-20Motor: SGMXA-20A, -25A / SGMXG-20A | Cable: Moving | Connector: Straight | Length: 20M | Yaskawa Model: JWSP-XM20NFS-20
SWY-XM15NSL-03Motor: SGMXA-15A / SGMXG-09A, -13A | Cable: Fixed | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JWSP-XM15NSL-03
SWY-XM15NFL-03Motor: SGMXA-15A / SGMXG-09A, -13A | Cable: Moving | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JWSP-XM15NFL-03
SWY-XM20NSL-03Motor: SGMXA-20A, -25A / SGMXG-20A | Cable: Fixed | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JWSP-XM20NSL-03
SWY-XM20NFL-03Motor: SGMXA-20A, -25A / SGMXG-20A | Cable: Moving | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JWSP-XM20NFL-03
SWY-XM15NSL-05Motor: SGMXA-15A / SGMXG-09A, -13A | Cable: Fixed | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JWSP-XM15NSL-05
SWY-XM15NFL-05Motor: SGMXA-15A / SGMXG-09A, -13A | Cable: Moving | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JWSP-XM15NFL-05
SWY-XM20NSL-05Motor: SGMXA-20A, -25A / SGMXG-20A | Cable: Fixed | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JWSP-XM20NSL-05
SWY-XM20NFL-05Motor: SGMXA-20A, -25A / SGMXG-20A | Cable: Moving | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JWSP-XM20NFL-05
SWY-XM15NSL-10Motor: SGMXA-15A / SGMXG-09A, -13A | Cable: Fixed | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JWSP-XM15NSL-10
SWY-XM15NFL-10Motor: SGMXA-15A / SGMXG-09A, -13A | Cable: Moving | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JWSP-XM15NFL-10
SWY-XM20NSL-10Motor: SGMXA-20A, -25A / SGMXG-20A | Cable: Fixed | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JWSP-XM20NSL-10
SWY-XM20NFL-10Motor: SGMXA-20A, -25A / SGMXG-20A | Cable: Moving | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JWSP-XM20NFL-10
SWY-XM15NSL-15Motor: SGMXA-15A / SGMXG-09A, -13A | Cable: Fixed | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JWSP-XM15NSL-15
SWY-XM15NFL-15Motor: SGMXA-15A / SGMXG-09A, -13A | Cable: Moving | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JWSP-XM15NFL-15
SWY-XM20NSL-15Motor: SGMXA-20A, -25A / SGMXG-20A | Cable: Fixed | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JWSP-XM20NSL-15
SWY-XM20NFL-15Motor: SGMXA-20A, -25A / SGMXG-20A | Cable: Moving | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JWSP-XM20NFL-15
SWY-XM15NSL-20Motor: SGMXA-15A / SGMXG-09A, -13A | Cable: Fixed | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JWSP-XM15NSL-20
SWY-XM15NFL-20Motor: SGMXA-15A / SGMXG-09A, -13A | Cable: Moving | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JWSP-XM15NFL-20
SWY-XM20NSL-20Motor: SGMXA-20A, -25A / SGMXG-20A | Cable: Fixed | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JWSP-XM20NSL-20
SWY-XM20NFL-20Motor: SGMXA-20A, -25A / SGMXG-20A | Cable: Moving | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JWSP-XM20NFL-20
SWY-XM30NSS-03Motor: SGMXA-30A / SGMXG-30A (with SGDXS-200A) | Cable: Fixed | Connector: Straight | Length: 3M | Yaskawa Model: JWSP-XM30NSS-03
SWY-XM30NFS-03Motor: SGMXA-30A / SGMXG-30A (with SGDXS-200A) | Cable: Moving | Connector: Straight | Length: 3M | Yaskawa Model: JWSP-XM30NFS-03
SWY-XM40NSS-03Motor: SGMXA-40A, -50A / SGMXG-30A, -44A | Cable: Fixed | Connector: Straight | Length: 3M | Yaskawa Model: JWSP-XM40NSS-03
SWY-XM40NFS-03Motor: SGMXA-40A, -50A / SGMXG-30A, -44A | Cable: Moving | Connector: Straight | Length: 3M | Yaskawa Model: JWSP-XM40NFS-03
SWY-XM30NSS-05Motor: SGMXA-30A / SGMXG-30A (with SGDXS-200A) | Cable: Fixed | Connector: Straight | Length: 5M | Yaskawa Model: JWSP-XM30NSS-05
SWY-XM30NFS-05Motor: SGMXA-30A / SGMXG-30A (with SGDXS-200A) | Cable: Moving | Connector: Straight | Length: 5M | Yaskawa Model: JWSP-XM30NFS-05
SWY-XM40NSS-05Motor: SGMXA-40A, -50A / SGMXG-30A, -44A | Cable: Fixed | Connector: Straight | Length: 5M | Yaskawa Model: JWSP-XM40NSS-05
SWY-XM40NFS-05Motor: SGMXA-40A, -50A / SGMXG-30A, -44A | Cable: Moving | Connector: Straight | Length: 5M | Yaskawa Model: JWSP-XM40NFS-05
SWY-XM30NSS-10Motor: SGMXA-30A / SGMXG-30A (with SGDXS-200A) | Cable: Fixed | Connector: Straight | Length: 10M | Yaskawa Model: JWSP-XM30NSS-10
SWY-XM30NFS-10Motor: SGMXA-30A / SGMXG-30A (with SGDXS-200A) | Cable: Moving | Connector: Straight | Length: 10M | Yaskawa Model: JWSP-XM30NFS-10
SWY-XM40NSS-10Motor: SGMXA-40A, -50A / SGMXG-30A, -44A | Cable: Fixed | Connector: Straight | Length: 10M | Yaskawa Model: JWSP-XM40NSS-10
SWY-XM40NFS-10Motor: SGMXA-40A, -50A / SGMXG-30A, -44A | Cable: Moving | Connector: Straight | Length: 10M | Yaskawa Model: JWSP-XM40NFS-10
SWY-XM30NSS-15Motor: SGMXA-30A / SGMXG-30A (with SGDXS-200A) | Cable: Fixed | Connector: Straight | Length: 15M | Yaskawa Model: JWSP-XM30NSS-15
SWY-XM30NFS-15Motor: SGMXA-30A / SGMXG-30A (with SGDXS-200A) | Cable: Moving | Connector: Straight | Length: 15M | Yaskawa Model: JWSP-XM30NFS-15
SWY-XM40NSS-15Motor: SGMXA-40A, -50A / SGMXG-30A, -44A | Cable: Fixed | Connector: Straight | Length: 15M | Yaskawa Model: JWSP-XM40NSS-15
SWY-XM40NFS-15Motor: SGMXA-40A, -50A / SGMXG-30A, -44A | Cable: Moving | Connector: Straight | Length: 15M | Yaskawa Model: JWSP-XM40NFS-15
SWY-XM30NSS-20Motor: SGMXA-30A / SGMXG-30A (with SGDXS-200A) | Cable: Fixed | Connector: Straight | Length: 20M | Yaskawa Model: JWSP-XM30NSS-20
SWY-XM30NFS-20Motor: SGMXA-30A / SGMXG-30A (with SGDXS-200A) | Cable: Moving | Connector: Straight | Length: 20M | Yaskawa Model: JWSP-XM30NFS-20
SWY-XM40NSS-20Motor: SGMXA-40A, -50A / SGMXG-30A, -44A | Cable: Fixed | Connector: Straight | Length: 20M | Yaskawa Model: JWSP-XM40NSS-20
SWY-XM40NFS-20Motor: SGMXA-40A, -50A / SGMXG-30A, -44A | Cable: Moving | Connector: Straight | Length: 20M | Yaskawa Model: JWSP-XM40NFS-20
SWY-XM30NSL-03Motor: SGMXA-30A / SGMXG-30A (with SGDXS-200A) | Cable: Fixed | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JWSP-XM30NSL-03
SWY-XM30NFL-03Motor: SGMXA-30A / SGMXG-30A (with SGDXS-200A) | Cable: Moving | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JWSP-XM30NFL-03
SWY-XM40NSL-03Motor: SGMXA-40A, -50A / SGMXG-30A, -44A | Cable: Fixed | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JWSP-XM40NSL-03
SWY-XM40NFL-03Motor: SGMXA-40A, -50A / SGMXG-30A, -44A | Cable: Moving | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JWSP-XM40NFL-03
SWY-XM30NSL-05Motor: SGMXA-30A / SGMXG-30A (with SGDXS-200A) | Cable: Fixed | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JWSP-XM30NSL-05
SWY-XM30NFL-05Motor: SGMXA-30A / SGMXG-30A (with SGDXS-200A) | Cable: Moving | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JWSP-XM30NFL-05
SWY-XM40NSL-05Motor: SGMXA-40A, -50A / SGMXG-30A, -44A | Cable: Fixed | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JWSP-XM40NSL-05
SWY-XM40NFL-05Motor: SGMXA-40A, -50A / SGMXG-30A, -44A | Cable: Moving | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JWSP-XM40NFL-05
SWY-XM30NSL-10Motor: SGMXA-30A / SGMXG-30A (with SGDXS-200A) | Cable: Fixed | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JWSP-XM30NSL-10
SWY-XM30NFL-10Motor: SGMXA-30A / SGMXG-30A (with SGDXS-200A) | Cable: Moving | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JWSP-XM30NFL-10
SWY-XM40NSL-10Motor: SGMXA-40A, -50A / SGMXG-30A, -44A | Cable: Fixed | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JWSP-XM40NSL-10
SWY-XM40NFL-10Motor: SGMXA-40A, -50A / SGMXG-30A, -44A | Cable: Moving | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JWSP-XM40NFL-10
SWY-XM30NSL-15Motor: SGMXA-30A / SGMXG-30A (with SGDXS-200A) | Cable: Fixed | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JWSP-XM30NSL-15
SWY-XM30NFL-15Motor: SGMXA-30A / SGMXG-30A (with SGDXS-200A) | Cable: Moving | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JWSP-XM30NFL-15
SWY-XM40NSL-15Motor: SGMXA-40A, -50A / SGMXG-30A, -44A | Cable: Fixed | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JWSP-XM40NSL-15
SWY-XM40NFL-15Motor: SGMXA-40A, -50A / SGMXG-30A, -44A | Cable: Moving | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JWSP-XM40NFL-15
SWY-XM30NSL-20Motor: SGMXA-30A / SGMXG-30A (with SGDXS-200A) | Cable: Fixed | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JWSP-XM30NSL-20
SWY-XM30NFL-20Motor: SGMXA-30A / SGMXG-30A (with SGDXS-200A) | Cable: Moving | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JWSP-XM30NFL-20
SWY-XM40NSL-20Motor: SGMXA-40A, -50A / SGMXG-30A, -44A | Cable: Fixed | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JWSP-XM40NSL-20
SWY-XM40NFL-20Motor: SGMXA-40A, -50A / SGMXG-30A, -44A | Cable: Moving | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JWSP-XM40NFL-20
SWY-XM55NSS-03Motor: SGMXG-55A, -75A | Cable: Fixed | Connector: Straight | Length: 3M | Yaskawa Model: JWSP-XM55NSS-03
SWY-XM55NFS-03Motor: SGMXG-55A, -75A | Cable: Moving | Connector: Straight | Length: 3M | Yaskawa Model: JWSP-XM55NFS-03
SWY-XM70NSS-03Motor: SGMXA-70A | Cable: Fixed | Connector: Straight | Length: 3M
SWY-XM70NFS-03Motor: SGMXA-70A | Cable: Moving | Connector: Straight | Length: 3M | Yaskawa Model: JWSP-XM70NFS-03
SWY-XM55NSS-05Motor: SGMXG-55A, -75A | Cable: Fixed | Connector: Straight | Length: 5M | Yaskawa Model: JWSP-XM55NSS-05
SWY-XM55NFS-05Motor: SGMXG-55A, -75A | Cable: Moving | Connector: Straight | Length: 5M | Yaskawa Model: JWSP-XM55NFS-05
SWY-XM70NSS-05Motor: SGMXA-70A | Cable: Fixed | Connector: Straight | Length: 5M
SWY-XM70NFS-05Motor: SGMXA-70A | Cable: Moving | Connector: Straight | Length: 5M | Yaskawa Model: JWSP-XM70NFS-05
SWY-XM55NSS-10Motor: SGMXG-55A, -75A | Cable: Fixed | Connector: Straight | Length: 10M | Yaskawa Model: JWSP-XM55NSS-10
SWY-XM55NFS-10Motor: SGMXG-55A, -75A | Cable: Moving | Connector: Straight | Length: 10M | Yaskawa Model: JWSP-XM55NFS-10
SWY-XM70NSS-10Motor: SGMXA-70A | Cable: Fixed | Connector: Straight | Length: 10M
SWY-XM70NFS-10Motor: SGMXA-70A | Cable: Moving | Connector: Straight | Length: 10M | Yaskawa Model: JWSP-XM70NFS-10
SWY-XM55NSS-15Motor: SGMXG-55A, -75A | Cable: Fixed | Connector: Straight | Length: 15M | Yaskawa Model: JWSP-XM55NSS-15
SWY-XM55NFS-15Motor: SGMXG-55A, -75A | Cable: Moving | Connector: Straight | Length: 15M | Yaskawa Model: JWSP-XM55NFS-15
SWY-XM70NSS-15Motor: SGMXA-70A | Cable: Fixed | Connector: Straight | Length: 15M
SWY-XM70NFS-15Motor: SGMXA-70A | Cable: Moving | Connector: Straight | Length: 15M | Yaskawa Model: JWSP-XM70NFS-15
SWY-XM55NSS-20Motor: SGMXG-55A, -75A | Cable: Fixed | Connector: Straight | Length: 20M | Yaskawa Model: JWSP-XM55NSS-20
SWY-XM55NFS-20Motor: SGMXG-55A, -75A | Cable: Moving | Connector: Straight | Length: 20M | Yaskawa Model: JWSP-XM55NFS-20
SWY-XM70NSS-20Motor: SGMXA-70A | Cable: Fixed | Connector: Straight | Length: 20M
SWY-XM70NFS-20Motor: SGMXA-70A | Cable: Moving | Connector: Straight | Length: 20M | Yaskawa Model: JWSP-XM70NFS-20
SWY-XM55NSL-03Motor: SGMXG-55A, -75A | Cable: Fixed | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JWSP-XM55NSL-03
SWY-XM55NFL-03Motor: SGMXG-55A, -75A | Cable: Moving | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JWSP-XM55NFL-03
SWY-XM70NSL-03Motor: SGMXA-70A | Cable: Fixed | Connector: Space-saving elbow | Length: 3M
SWY-XM70NFL-03Motor: SGMXA-70A | Cable: Moving | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JWSP-XM70NFL-03
SWY-XM55NSL-05Motor: SGMXG-55A, -75A | Cable: Fixed | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JWSP-XM55NSL-05
SWY-XM55NFL-05Motor: SGMXG-55A, -75A | Cable: Moving | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JWSP-XM55NFL-05
SWY-XM70NSL-05Motor: SGMXA-70A | Cable: Fixed | Connector: Space-saving elbow | Length: 5M
SWY-XM70NFL-05Motor: SGMXA-70A | Cable: Moving | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JWSP-XM70NFL-05
SWY-XM55NSL-10Motor: SGMXG-55A, -75A | Cable: Fixed | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JWSP-XM55NSL-10
SWY-XM55NFL-10Motor: SGMXG-55A, -75A | Cable: Moving | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JWSP-XM55NFL-10
SWY-XM70NSL-10Motor: SGMXA-70A | Cable: Fixed | Connector: Space-saving elbow | Length: 10M
SWY-XM70NFL-10Motor: SGMXA-70A | Cable: Moving | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JWSP-XM70NFL-10
SWY-XM55NSL-15Motor: SGMXG-55A, -75A | Cable: Fixed | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JWSP-XM55NSL-15
SWY-XM55NFL-15Motor: SGMXG-55A, -75A | Cable: Moving | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JWSP-XM55NFL-15
SWY-XM70NSL-15Motor: SGMXA-70A | Cable: Fixed | Connector: Space-saving elbow | Length: 15M
SWY-XM70NFL-15Motor: SGMXA-70A | Cable: Moving | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JWSP-XM70NFL-15
SWY-XM55NSL-20Motor: SGMXG-55A, -75A | Cable: Fixed | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JWSP-XM55NSL-20
SWY-XM55NFL-20Motor: SGMXG-55A, -75A | Cable: Moving | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JWSP-XM55NFL-20
SWY-XM70NSL-20Motor: SGMXA-70A | Cable: Fixed | Connector: Space-saving elbow | Length: 20M
SWY-XM70NFL-20Motor: SGMXA-70A | Cable: Moving | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JWSP-XM70NFL-20
SWY-XM1ANSS-03Motor: SGMXG-1AA, SGMXF-1EA | Cable: Fixed | Connector: Straight | Length: 3M
SWY-XM1ANFS-03Motor: SGMXG-1AA, SGMXF-1EA | Cable: Moving | Connector: Straight | Length: 3M | Yaskawa Model: JWSP-XM1ANFS-03
SWY-XM1ANSS-05Motor: SGMXG-1AA, SGMXF-1EA | Cable: Fixed | Connector: Straight | Length: 5M
SWY-XM1ANFS-05Motor: SGMXG-1AA, SGMXF-1EA | Cable: Moving | Connector: Straight | Length: 5M | Yaskawa Model: JWSP-XM1ANFS-05
SWY-XM1ANSS-10Motor: SGMXG-1AA, SGMXF-1EA | Cable: Fixed | Connector: Straight | Length: 10M
SWY-XM1ANFS-10Motor: SGMXG-1AA, SGMXF-1EA | Cable: Moving | Connector: Straight | Length: 10M | Yaskawa Model: JWSP-XM1ANFS-10
SWY-XM1ANSS-15Motor: SGMXG-1AA, SGMXF-1EA | Cable: Fixed | Connector: Straight | Length: 15M
SWY-XM1ANFS-15Motor: SGMXG-1AA, SGMXF-1EA | Cable: Moving | Connector: Straight | Length: 15M | Yaskawa Model: JWSP-XM1ANFS-15
SWY-XM1ANSS-20Motor: SGMXG-1AA, SGMXF-1EA | Cable: Fixed | Connector: Straight | Length: 20M
SWY-XM1ANFS-20Motor: SGMXG-1AA, SGMXF-1EA | Cable: Moving | Connector: Straight | Length: 20M | Yaskawa Model: JWSP-XM1ANFS-20
SWY-XM1ANSL-03Motor: SGMXG-1AA, SGMXF-1EA | Cable: Fixed | Connector: Space-saving elbow | Length: 3M
SWY-XM1ANFL-03Motor: SGMXG-1AA, SGMXF-1EA | Cable: Moving | Connector: Space-saving elbow | Length: 3M | Yaskawa Model: JWSP-XM1ANFL-03
SWY-XM1ANSL-05Motor: SGMXG-1AA, SGMXF-1EA | Cable: Fixed | Connector: Space-saving elbow | Length: 5M
SWY-XM1ANFL-05Motor: SGMXG-1AA, SGMXF-1EA | Cable: Moving | Connector: Space-saving elbow | Length: 5M | Yaskawa Model: JWSP-XM1ANFL-05
SWY-XM1ANSL-10Motor: SGMXG-1AA, SGMXF-1EA | Cable: Fixed | Connector: Space-saving elbow | Length: 10M
SWY-XM1ANFL-10Motor: SGMXG-1AA, SGMXF-1EA | Cable: Moving | Connector: Space-saving elbow | Length: 10M | Yaskawa Model: JWSP-XM1ANFL-10
SWY-XM1ANSL-15Motor: SGMXG-1AA, SGMXF-1EA | Cable: Fixed | Connector: Space-saving elbow | Length: 15M
SWY-XM1ANFL-15Motor: SGMXG-1AA, SGMXF-1EA | Cable: Moving | Connector: Space-saving elbow | Length: 15M | Yaskawa Model: JWSP-XM1ANFL-15
SWY-XM1ANSL-20Motor: SGMXG-1AA, SGMXF-1EA | Cable: Fixed | Connector: Space-saving elbow | Length: 20M
SWY-XM1ANFL-20Motor: SGMXG-1AA, SGMXF-1EA | Cable: Moving | Connector: Space-saving elbow | Length: 20M | Yaskawa Model: JWSP-XM1ANFL-20

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Electrical & Lighting →
