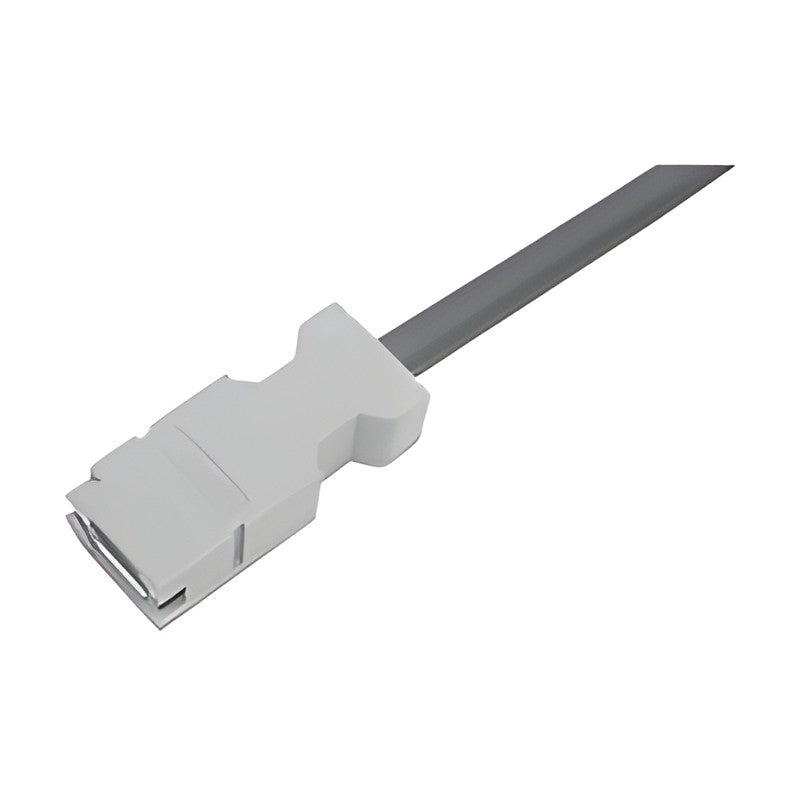

Samwon ACT SWY-XP1 Amplifier-Side Extension Encoder Cable for Yaskawa Sigma-X

Samwon ACT SWY-XP1 Amplifier-Side Extension Encoder Cable for Yaskawa Sigma-X

Servo-amplifier-side extension cable for incremental and absolute encoders of Yaskawa Sigma-X SGMXJ, SGMXA, SGMXP and SGMXG rotary servo motors.

Key features

  • Incremental and absolute encoder extension cables (amplifier side) for Yaskawa Sigma-X SGMXJ, SGMXA, SGMXP, SGMXG
  • Built to the recommended specifications in Yaskawa user manuals and catalogs (some equivalent parts used)
  • Fixed, moving (flex-rated) and custom-specified cables can be made
  • Cable length can be specified freely; custom lengths in 100 mm steps
  • Small-quantity orders (from 1 piece) and short lead times

Specifications

Amplifier Connector MOLEX 55100-0670 or equivalent
Encoder Connector MOLEX 54280-0609 or equivalent
Battery Case SAMWON BTC01
Fixed Cable UL2464 twist pair shielded, PVC insulation cable
Moving Cable PROTERIAL RT-FLEX UL2464 twist pair shielded, ETFE insulation cable
Max. Transmission Length 25M
Cable Color Black
Length Tolerance +50 to +100 mm
SWY-XP1IS0-00P3 Encoder: Incremental | Cable: Fixed | Length: 0.3M | Yaskawa Model: JWSP-XP1IS0-00P3
SWY-XP1IS0-03 Encoder: Incremental | Cable: Fixed | Length: 3M | Yaskawa Model: JWSP-XP1IS0-03
SWY-XP1IS0-05 Encoder: Incremental | Cable: Fixed | Length: 5M | Yaskawa Model: JWSP-XP1IS0-05
SWY-XP1IS0-10 Encoder: Incremental | Cable: Fixed | Length: 10M | Yaskawa Model: JWSP-XP1IS0-10
SWY-XP1IS0-15 Encoder: Incremental | Cable: Fixed | Length: 15M | Yaskawa Model: JWSP-XP1IS0-15
SWY-XP1IS0-20 Encoder: Incremental | Cable: Fixed | Length: 20M | Yaskawa Model: JWSP-XP1IS0-20
SWY-XP1IS0-25 Encoder: Incremental | Cable: Fixed | Length: 25M | Yaskawa Model: JWSP-XP1IS0-25
SWY-XP1IF0-00P3 Encoder: Incremental | Cable: Moving | Length: 0.3M | Yaskawa Model: JWSP-XP1IF0-00P3
SWY-XP1IF0-03 Encoder: Incremental | Cable: Moving | Length: 3M | Yaskawa Model: JWSP-XP1IF0-03
SWY-XP1IF0-05 Encoder: Incremental | Cable: Moving | Length: 5M | Yaskawa Model: JWSP-XP1IF0-05
SWY-XP1IF0-10 Encoder: Incremental | Cable: Moving | Length: 10M | Yaskawa Model: JWSP-XP1IF0-10
SWY-XP1IF0-15 Encoder: Incremental | Cable: Moving | Length: 15M | Yaskawa Model: JWSP-XP1IF0-15
SWY-XP1IF0-20 Encoder: Incremental | Cable: Moving | Length: 20M | Yaskawa Model: JWSP-XP1IF0-20
SWY-XP1IF0-25 Encoder: Incremental | Cable: Moving | Length: 25M | Yaskawa Model: JWSP-XP1IF0-25
SWY-XP1AS0-00P3 Encoder: Absolute (with battery case) | Cable: Fixed | Length: 0.3M | Yaskawa Model: JWSP-XP1AS0-00P3
SWY-XP1AS0-03 Encoder: Absolute (with battery case) | Cable: Fixed | Length: 3M | Yaskawa Model: JWSP-XP1AS0-03
SWY-XP1AS0-05 Encoder: Absolute (with battery case) | Cable: Fixed | Length: 5M | Yaskawa Model: JWSP-XP1AS0-05
SWY-XP1AS0-10 Encoder: Absolute (with battery case) | Cable: Fixed | Length: 10M | Yaskawa Model: JWSP-XP1AS0-10
SWY-XP1AS0-15 Encoder: Absolute (with battery case) | Cable: Fixed | Length: 15M | Yaskawa Model: JWSP-XP1AS0-15
SWY-XP1AS0-20 Encoder: Absolute (with battery case) | Cable: Fixed | Length: 20M | Yaskawa Model: JWSP-XP1AS0-20
SWY-XP1AS0-25 Encoder: Absolute (with battery case) | Cable: Fixed | Length: 25M | Yaskawa Model: JWSP-XP1AS0-25
SWY-XP1AF0-00P3 Encoder: Absolute (with battery case) | Cable: Moving | Length: 0.3M | Yaskawa Model: JWSP-XP1AF0-00P3
SWY-XP1AF0-03 Encoder: Absolute (with battery case) | Cable: Moving | Length: 3M | Yaskawa Model: JWSP-XP1AF0-03
SWY-XP1AF0-05 Encoder: Absolute (with battery case) | Cable: Moving | Length: 5M | Yaskawa Model: JWSP-XP1AF0-05
SWY-XP1AF0-10 Encoder: Absolute (with battery case) | Cable: Moving | Length: 10M | Yaskawa Model: JWSP-XP1AF0-10
SWY-XP1AF0-15 Encoder: Absolute (with battery case) | Cable: Moving | Length: 15M | Yaskawa Model: JWSP-XP1AF0-15
SWY-XP1AF0-20 Encoder: Absolute (with battery case) | Cable: Moving | Length: 20M | Yaskawa Model: JWSP-XP1AF0-20
SWY-XP1AF0-25 Encoder: Absolute (with battery case) | Cable: Moving | Length: 25M | Yaskawa Model: JWSP-XP1AF0-25
Encoder CablesSamwon ACT
28 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT SWY-XP1 Amplifier-Side Extension Encoder Cable for Yaskawa Sigma-X

Brand Samwon ACT·Encoder Cables

Available part numbers (28)

SWY-XP1IS0-00P3, SWY-XP1IS0-03, SWY-XP1IS0-05, SWY-XP1IS0-10, SWY-XP1IS0-15, SWY-XP1IS0-20, SWY-XP1IS0-25, SWY-XP1IF0-00P3, SWY-XP1IF0-03, SWY-XP1IF0-05 + 18 more — see full table ↓

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SWY-XP1IS0-00P3Encoder: Incremental | Cable: Fixed | Length: 0.3M | Yaskawa Model: JWSP-XP1IS0-00P3
SWY-XP1IS0-03Encoder: Incremental | Cable: Fixed | Length: 3M | Yaskawa Model: JWSP-XP1IS0-03
SWY-XP1IS0-05Encoder: Incremental | Cable: Fixed | Length: 5M | Yaskawa Model: JWSP-XP1IS0-05
SWY-XP1IS0-10Encoder: Incremental | Cable: Fixed | Length: 10M | Yaskawa Model: JWSP-XP1IS0-10
SWY-XP1IS0-15Encoder: Incremental | Cable: Fixed | Length: 15M | Yaskawa Model: JWSP-XP1IS0-15
SWY-XP1IS0-20Encoder: Incremental | Cable: Fixed | Length: 20M | Yaskawa Model: JWSP-XP1IS0-20
SWY-XP1IS0-25Encoder: Incremental | Cable: Fixed | Length: 25M | Yaskawa Model: JWSP-XP1IS0-25
SWY-XP1IF0-00P3Encoder: Incremental | Cable: Moving | Length: 0.3M | Yaskawa Model: JWSP-XP1IF0-00P3
SWY-XP1IF0-03Encoder: Incremental | Cable: Moving | Length: 3M | Yaskawa Model: JWSP-XP1IF0-03
SWY-XP1IF0-05Encoder: Incremental | Cable: Moving | Length: 5M | Yaskawa Model: JWSP-XP1IF0-05
SWY-XP1IF0-10Encoder: Incremental | Cable: Moving | Length: 10M | Yaskawa Model: JWSP-XP1IF0-10
SWY-XP1IF0-15Encoder: Incremental | Cable: Moving | Length: 15M | Yaskawa Model: JWSP-XP1IF0-15
SWY-XP1IF0-20Encoder: Incremental | Cable: Moving | Length: 20M | Yaskawa Model: JWSP-XP1IF0-20
SWY-XP1IF0-25Encoder: Incremental | Cable: Moving | Length: 25M | Yaskawa Model: JWSP-XP1IF0-25
SWY-XP1AS0-00P3Encoder: Absolute (with battery case) | Cable: Fixed | Length: 0.3M | Yaskawa Model: JWSP-XP1AS0-00P3
SWY-XP1AS0-03Encoder: Absolute (with battery case) | Cable: Fixed | Length: 3M | Yaskawa Model: JWSP-XP1AS0-03
SWY-XP1AS0-05Encoder: Absolute (with battery case) | Cable: Fixed | Length: 5M | Yaskawa Model: JWSP-XP1AS0-05
SWY-XP1AS0-10Encoder: Absolute (with battery case) | Cable: Fixed | Length: 10M | Yaskawa Model: JWSP-XP1AS0-10
SWY-XP1AS0-15Encoder: Absolute (with battery case) | Cable: Fixed | Length: 15M | Yaskawa Model: JWSP-XP1AS0-15
SWY-XP1AS0-20Encoder: Absolute (with battery case) | Cable: Fixed | Length: 20M | Yaskawa Model: JWSP-XP1AS0-20
SWY-XP1AS0-25Encoder: Absolute (with battery case) | Cable: Fixed | Length: 25M | Yaskawa Model: JWSP-XP1AS0-25
SWY-XP1AF0-00P3Encoder: Absolute (with battery case) | Cable: Moving | Length: 0.3M | Yaskawa Model: JWSP-XP1AF0-00P3
SWY-XP1AF0-03Encoder: Absolute (with battery case) | Cable: Moving | Length: 3M | Yaskawa Model: JWSP-XP1AF0-03
SWY-XP1AF0-05Encoder: Absolute (with battery case) | Cable: Moving | Length: 5M | Yaskawa Model: JWSP-XP1AF0-05
SWY-XP1AF0-10Encoder: Absolute (with battery case) | Cable: Moving | Length: 10M | Yaskawa Model: JWSP-XP1AF0-10
SWY-XP1AF0-15Encoder: Absolute (with battery case) | Cable: Moving | Length: 15M | Yaskawa Model: JWSP-XP1AF0-15
SWY-XP1AF0-20Encoder: Absolute (with battery case) | Cable: Moving | Length: 20M | Yaskawa Model: JWSP-XP1AF0-20
SWY-XP1AF0-25Encoder: Absolute (with battery case) | Cable: Moving | Length: 25M | Yaskawa Model: JWSP-XP1AF0-25
