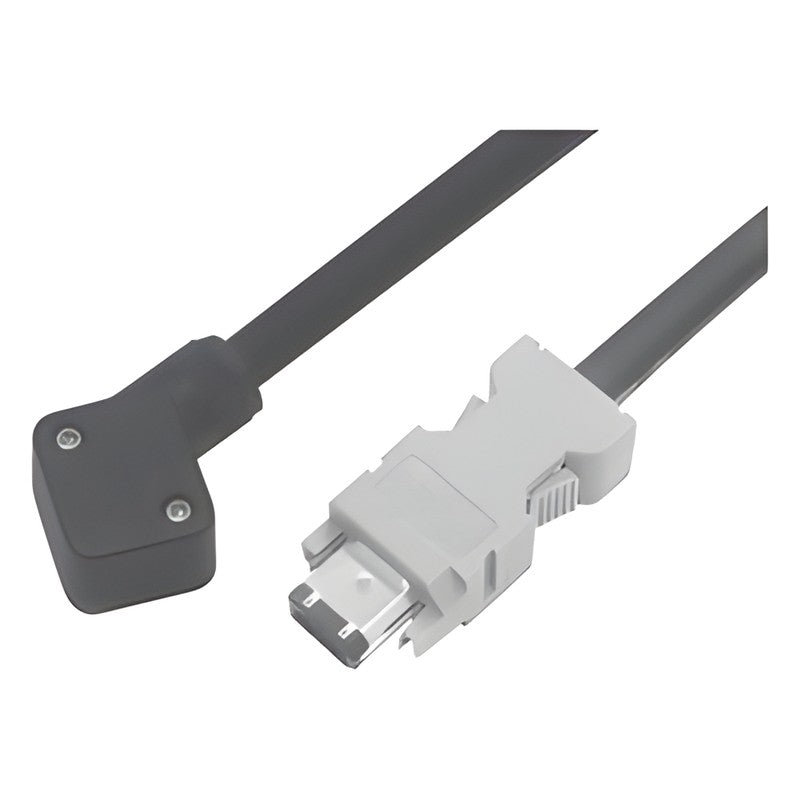

Samwon ACT SWY-XP2 Encoder-Side Extension Cable for Yaskawa Sigma-X SGMXJ/XA/XP/XG

Samwon ACT SWY-XP2 Encoder-Side Extension Cable for Yaskawa Sigma-X SGMXJ/XA/XP/XG

Encoder-side extension cable for incremental and absolute encoders of Yaskawa Sigma-X SGMXJ, SGMXA-A5~70, SGMXP and SGMXG rotary servo motors.

Key features

  • Incremental and absolute encoder cables for Yaskawa Sigma-X rotary servo motors SGMXJ, SGMXA-A5~70, SGMXP, SGMXG
  • Built to the recommended specifications in Yaskawa user manuals and catalogs (some equivalent parts used)
  • Fixed, moving (flex-rated) and custom-specified cables can be made
  • Cable length can be specified freely; custom lengths in 100 mm steps
  • Small-quantity orders (from 1 piece) and short lead times

Specifications

Amplifier Connector MOLEX 55100-0670 or equivalent
Encoder Connector MOLEX 207752-1002 or equivalent
Battery Case SAMWON BTC01
Fixed Cable UL2464 twist pair shielded, PVC insulation cable
Moving Cable PROTERIAL RT-FLEX UL2464 twist pair shielded, ETFE insulation cable
Max. Transmission Length 50M
Cable Color Black
Length Tolerance +50 to +100 mm
SWY-XP2IS1-03 Encoder: Incremental | Cable: Fixed | Lead-Out: Load side (left) | Length: 3M | Yaskawa Model: JWSP-XP2IS1-03
SWY-XP2IF1-03 Encoder: Incremental | Cable: Moving | Lead-Out: Load side (left) | Length: 3M | Yaskawa Model: JWSP-XP2IF1-03
SWY-XP2IS1-05 Encoder: Incremental | Cable: Fixed | Lead-Out: Load side (left) | Length: 5M | Yaskawa Model: JWSP-XP2IS1-05
SWY-XP2IF1-05 Encoder: Incremental | Cable: Moving | Lead-Out: Load side (left) | Length: 5M | Yaskawa Model: JWSP-XP2IF1-05
SWY-XP2IS1-10 Encoder: Incremental | Cable: Fixed | Lead-Out: Load side (left) | Length: 10M | Yaskawa Model: JWSP-XP2IS1-10
SWY-XP2IF1-10 Encoder: Incremental | Cable: Moving | Lead-Out: Load side (left) | Length: 10M | Yaskawa Model: JWSP-XP2IF1-10
SWY-XP2IS1-15 Encoder: Incremental | Cable: Fixed | Lead-Out: Load side (left) | Length: 15M | Yaskawa Model: JWSP-XP2IS1-15
SWY-XP2IF1-15 Encoder: Incremental | Cable: Moving | Lead-Out: Load side (left) | Length: 15M | Yaskawa Model: JWSP-XP2IF1-15
SWY-XP2IS1-20 Encoder: Incremental | Cable: Fixed | Lead-Out: Load side (left) | Length: 20M | Yaskawa Model: JWSP-XP2IS1-20
SWY-XP2IF1-20 Encoder: Incremental | Cable: Moving | Lead-Out: Load side (left) | Length: 20M | Yaskawa Model: JWSP-XP2IF1-20
SWY-XP2IS1-30 Encoder: Incremental | Cable: Fixed | Lead-Out: Load side (left) | Length: 30M | Yaskawa Model: JWSP-XP2IS1-30
SWY-XP2IF1-30 Encoder: Incremental | Cable: Moving | Lead-Out: Load side (left) | Length: 30M | Yaskawa Model: JWSP-XP2IF1-30
SWY-XP2IS1-40 Encoder: Incremental | Cable: Fixed | Lead-Out: Load side (left) | Length: 40M | Yaskawa Model: JWSP-XP2IS1-40
SWY-XP2IF1-40 Encoder: Incremental | Cable: Moving | Lead-Out: Load side (left) | Length: 40M | Yaskawa Model: JWSP-XP2IF1-40
SWY-XP2IS1-50 Encoder: Incremental | Cable: Fixed | Lead-Out: Load side (left) | Length: 50M | Yaskawa Model: JWSP-XP2IS1-50
SWY-XP2IF1-50 Encoder: Incremental | Cable: Moving | Lead-Out: Load side (left) | Length: 50M | Yaskawa Model: JWSP-XP2IF1-50
SWY-XP2IS2-03 Encoder: Incremental | Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 3M | Yaskawa Model: JWSP-XP2IS2-03
SWY-XP2IF2-03 Encoder: Incremental | Cable: Moving | Lead-Out: Opposite load side (right) | Length: 3M | Yaskawa Model: JWSP-XP2IF2-03
SWY-XP2IS2-05 Encoder: Incremental | Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 5M | Yaskawa Model: JWSP-XP2IS2-05
SWY-XP2IF2-05 Encoder: Incremental | Cable: Moving | Lead-Out: Opposite load side (right) | Length: 5M | Yaskawa Model: JWSP-XP2IF2-05
SWY-XP2IS2-10 Encoder: Incremental | Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 10M | Yaskawa Model: JWSP-XP2IS2-10
SWY-XP2IF2-10 Encoder: Incremental | Cable: Moving | Lead-Out: Opposite load side (right) | Length: 10M | Yaskawa Model: JWSP-XP2IF2-10
SWY-XP2IS2-15 Encoder: Incremental | Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 15M | Yaskawa Model: JWSP-XP2IS2-15
SWY-XP2IF2-15 Encoder: Incremental | Cable: Moving | Lead-Out: Opposite load side (right) | Length: 15M | Yaskawa Model: JWSP-XP2IF2-15
SWY-XP2IS2-20 Encoder: Incremental | Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 20M | Yaskawa Model: JWSP-XP2IS2-20
SWY-XP2IF2-20 Encoder: Incremental | Cable: Moving | Lead-Out: Opposite load side (right) | Length: 20M | Yaskawa Model: JWSP-XP2IF2-20
SWY-XP2IS2-30 Encoder: Incremental | Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 30M | Yaskawa Model: JWSP-XP2IS2-30
SWY-XP2IF2-30 Encoder: Incremental | Cable: Moving | Lead-Out: Opposite load side (right) | Length: 30M | Yaskawa Model: JWSP-XP2IF2-30
SWY-XP2IS2-40 Encoder: Incremental | Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 40M | Yaskawa Model: JWSP-XP2IS2-40
SWY-XP2IF2-40 Encoder: Incremental | Cable: Moving | Lead-Out: Opposite load side (right) | Length: 40M | Yaskawa Model: JWSP-XP2IF2-40
SWY-XP2IS2-50 Encoder: Incremental | Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 50M | Yaskawa Model: JWSP-XP2IS2-50
SWY-XP2IF2-50 Encoder: Incremental | Cable: Moving | Lead-Out: Opposite load side (right) | Length: 50M | Yaskawa Model: JWSP-XP2IF2-50
SWY-XP2AS1-03 Encoder: Absolute (with battery case) | Cable: Fixed | Lead-Out: Load side (left) | Length: 3M | Yaskawa Model: JWSP-XP2AS1-03
SWY-XP2AF1-03 Encoder: Absolute (with battery case) | Cable: Moving | Lead-Out: Load side (left) | Length: 3M | Yaskawa Model: JWSP-XP2AF1-03
SWY-XP2AS1-05 Encoder: Absolute (with battery case) | Cable: Fixed | Lead-Out: Load side (left) | Length: 5M | Yaskawa Model: JWSP-XP2AS1-05
SWY-XP2AF1-05 Encoder: Absolute (with battery case) | Cable: Moving | Lead-Out: Load side (left) | Length: 5M | Yaskawa Model: JWSP-XP2AF1-05
SWY-XP2AS1-10 Encoder: Absolute (with battery case) | Cable: Fixed | Lead-Out: Load side (left) | Length: 10M | Yaskawa Model: JWSP-XP2AS1-10
SWY-XP2AF1-10 Encoder: Absolute (with battery case) | Cable: Moving | Lead-Out: Load side (left) | Length: 10M | Yaskawa Model: JWSP-XP2AF1-10
SWY-XP2AS1-15 Encoder: Absolute (with battery case) | Cable: Fixed | Lead-Out: Load side (left) | Length: 15M | Yaskawa Model: JWSP-XP2AS1-15
SWY-XP2AF1-15 Encoder: Absolute (with battery case) | Cable: Moving | Lead-Out: Load side (left) | Length: 15M | Yaskawa Model: JWSP-XP2AF1-15
SWY-XP2AS1-20 Encoder: Absolute (with battery case) | Cable: Fixed | Lead-Out: Load side (left) | Length: 20M | Yaskawa Model: JWSP-XP2AS1-20
SWY-XP2AF1-20 Encoder: Absolute (with battery case) | Cable: Moving | Lead-Out: Load side (left) | Length: 20M | Yaskawa Model: JWSP-XP2AF1-20
SWY-XP2AS1-30 Encoder: Absolute (with battery case) | Cable: Fixed | Lead-Out: Load side (left) | Length: 30M | Yaskawa Model: JWSP-XP2AS1-30
SWY-XP2AF1-30 Encoder: Absolute (with battery case) | Cable: Moving | Lead-Out: Load side (left) | Length: 30M | Yaskawa Model: JWSP-XP2AF1-30
SWY-XP2AS1-40 Encoder: Absolute (with battery case) | Cable: Fixed | Lead-Out: Load side (left) | Length: 40M | Yaskawa Model: JWSP-XP2AS1-40
SWY-XP2AF1-40 Encoder: Absolute (with battery case) | Cable: Moving | Lead-Out: Load side (left) | Length: 40M | Yaskawa Model: JWSP-XP2AF1-40
SWY-XP2AS1-50 Encoder: Absolute (with battery case) | Cable: Fixed | Lead-Out: Load side (left) | Length: 50M | Yaskawa Model: JWSP-XP2AS1-50
SWY-XP2AF1-50 Encoder: Absolute (with battery case) | Cable: Moving | Lead-Out: Load side (left) | Length: 50M | Yaskawa Model: JWSP-XP2AF1-50
SWY-XP2AS2-03 Encoder: Absolute (with battery case) | Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 3M | Yaskawa Model: JWSP-XP2AS2-03
SWY-XP2AF2-03 Encoder: Absolute (with battery case) | Cable: Moving | Lead-Out: Opposite load side (right) | Length: 3M | Yaskawa Model: JWSP-XP2AF2-03
SWY-XP2AS2-05 Encoder: Absolute (with battery case) | Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 5M | Yaskawa Model: JWSP-XP2AS2-05
SWY-XP2AF2-05 Encoder: Absolute (with battery case) | Cable: Moving | Lead-Out: Opposite load side (right) | Length: 5M | Yaskawa Model: JWSP-XP2AF2-05
SWY-XP2AS2-10 Encoder: Absolute (with battery case) | Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 10M | Yaskawa Model: JWSP-XP2AS2-10
SWY-XP2AF2-10 Encoder: Absolute (with battery case) | Cable: Moving | Lead-Out: Opposite load side (right) | Length: 10M | Yaskawa Model: JWSP-XP2AF2-10
SWY-XP2AS2-15 Encoder: Absolute (with battery case) | Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 15M | Yaskawa Model: JWSP-XP2AS2-15
SWY-XP2AF2-15 Encoder: Absolute (with battery case) | Cable: Moving | Lead-Out: Opposite load side (right) | Length: 15M | Yaskawa Model: JWSP-XP2AF2-15
SWY-XP2AS2-20 Encoder: Absolute (with battery case) | Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 20M | Yaskawa Model: JWSP-XP2AS2-20
SWY-XP2AF2-20 Encoder: Absolute (with battery case) | Cable: Moving | Lead-Out: Opposite load side (right) | Length: 20M | Yaskawa Model: JWSP-XP2AF2-20
SWY-XP2AS2-30 Encoder: Absolute (with battery case) | Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 30M | Yaskawa Model: JWSP-XP2AS2-30
SWY-XP2AF2-30 Encoder: Absolute (with battery case) | Cable: Moving | Lead-Out: Opposite load side (right) | Length: 30M | Yaskawa Model: JWSP-XP2AF2-30
SWY-XP2AS2-40 Encoder: Absolute (with battery case) | Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 40M | Yaskawa Model: JWSP-XP2AS2-40
SWY-XP2AF2-40 Encoder: Absolute (with battery case) | Cable: Moving | Lead-Out: Opposite load side (right) | Length: 40M | Yaskawa Model: JWSP-XP2AF2-40
SWY-XP2AS2-50 Encoder: Absolute (with battery case) | Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 50M | Yaskawa Model: JWSP-XP2AS2-50
SWY-XP2AF2-50 Encoder: Absolute (with battery case) | Cable: Moving | Lead-Out: Opposite load side (right) | Length: 50M | Yaskawa Model: JWSP-XP2AF2-50
Encoder CablesSamwon ACT
64 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT SWY-XP2 Encoder-Side Extension Cable for Yaskawa Sigma-X SGMXJ/XA/XP/XG

Brand Samwon ACT·Encoder Cables

Available part numbers (64)

SWY-XP2IS1-03, SWY-XP2IF1-03, SWY-XP2IS1-05, SWY-XP2IF1-05, SWY-XP2IS1-10, SWY-XP2IF1-10, SWY-XP2IS1-15, SWY-XP2IF1-15, SWY-XP2IS1-20, SWY-XP2IF1-20 + 54 more — see full table ↓

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SWY-XP2IS1-03Encoder: Incremental | Cable: Fixed | Lead-Out: Load side (left) | Length: 3M | Yaskawa Model: JWSP-XP2IS1-03
SWY-XP2IF1-03Encoder: Incremental | Cable: Moving | Lead-Out: Load side (left) | Length: 3M | Yaskawa Model: JWSP-XP2IF1-03
SWY-XP2IS1-05Encoder: Incremental | Cable: Fixed | Lead-Out: Load side (left) | Length: 5M | Yaskawa Model: JWSP-XP2IS1-05
SWY-XP2IF1-05Encoder: Incremental | Cable: Moving | Lead-Out: Load side (left) | Length: 5M | Yaskawa Model: JWSP-XP2IF1-05
SWY-XP2IS1-10Encoder: Incremental | Cable: Fixed | Lead-Out: Load side (left) | Length: 10M | Yaskawa Model: JWSP-XP2IS1-10
SWY-XP2IF1-10Encoder: Incremental | Cable: Moving | Lead-Out: Load side (left) | Length: 10M | Yaskawa Model: JWSP-XP2IF1-10
SWY-XP2IS1-15Encoder: Incremental | Cable: Fixed | Lead-Out: Load side (left) | Length: 15M | Yaskawa Model: JWSP-XP2IS1-15
SWY-XP2IF1-15Encoder: Incremental | Cable: Moving | Lead-Out: Load side (left) | Length: 15M | Yaskawa Model: JWSP-XP2IF1-15
SWY-XP2IS1-20Encoder: Incremental | Cable: Fixed | Lead-Out: Load side (left) | Length: 20M | Yaskawa Model: JWSP-XP2IS1-20
SWY-XP2IF1-20Encoder: Incremental | Cable: Moving | Lead-Out: Load side (left) | Length: 20M | Yaskawa Model: JWSP-XP2IF1-20
SWY-XP2IS1-30Encoder: Incremental | Cable: Fixed | Lead-Out: Load side (left) | Length: 30M | Yaskawa Model: JWSP-XP2IS1-30
SWY-XP2IF1-30Encoder: Incremental | Cable: Moving | Lead-Out: Load side (left) | Length: 30M | Yaskawa Model: JWSP-XP2IF1-30
SWY-XP2IS1-40Encoder: Incremental | Cable: Fixed | Lead-Out: Load side (left) | Length: 40M | Yaskawa Model: JWSP-XP2IS1-40
SWY-XP2IF1-40Encoder: Incremental | Cable: Moving | Lead-Out: Load side (left) | Length: 40M | Yaskawa Model: JWSP-XP2IF1-40
SWY-XP2IS1-50Encoder: Incremental | Cable: Fixed | Lead-Out: Load side (left) | Length: 50M | Yaskawa Model: JWSP-XP2IS1-50
SWY-XP2IF1-50Encoder: Incremental | Cable: Moving | Lead-Out: Load side (left) | Length: 50M | Yaskawa Model: JWSP-XP2IF1-50
SWY-XP2IS2-03Encoder: Incremental | Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 3M | Yaskawa Model: JWSP-XP2IS2-03
SWY-XP2IF2-03Encoder: Incremental | Cable: Moving | Lead-Out: Opposite load side (right) | Length: 3M | Yaskawa Model: JWSP-XP2IF2-03
SWY-XP2IS2-05Encoder: Incremental | Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 5M | Yaskawa Model: JWSP-XP2IS2-05
SWY-XP2IF2-05Encoder: Incremental | Cable: Moving | Lead-Out: Opposite load side (right) | Length: 5M | Yaskawa Model: JWSP-XP2IF2-05
SWY-XP2IS2-10Encoder: Incremental | Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 10M | Yaskawa Model: JWSP-XP2IS2-10
SWY-XP2IF2-10Encoder: Incremental | Cable: Moving | Lead-Out: Opposite load side (right) | Length: 10M | Yaskawa Model: JWSP-XP2IF2-10
SWY-XP2IS2-15Encoder: Incremental | Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 15M | Yaskawa Model: JWSP-XP2IS2-15
SWY-XP2IF2-15Encoder: Incremental | Cable: Moving | Lead-Out: Opposite load side (right) | Length: 15M | Yaskawa Model: JWSP-XP2IF2-15
SWY-XP2IS2-20Encoder: Incremental | Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 20M | Yaskawa Model: JWSP-XP2IS2-20
SWY-XP2IF2-20Encoder: Incremental | Cable: Moving | Lead-Out: Opposite load side (right) | Length: 20M | Yaskawa Model: JWSP-XP2IF2-20
SWY-XP2IS2-30Encoder: Incremental | Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 30M | Yaskawa Model: JWSP-XP2IS2-30
SWY-XP2IF2-30Encoder: Incremental | Cable: Moving | Lead-Out: Opposite load side (right) | Length: 30M | Yaskawa Model: JWSP-XP2IF2-30
SWY-XP2IS2-40Encoder: Incremental | Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 40M | Yaskawa Model: JWSP-XP2IS2-40
SWY-XP2IF2-40Encoder: Incremental | Cable: Moving | Lead-Out: Opposite load side (right) | Length: 40M | Yaskawa Model: JWSP-XP2IF2-40
SWY-XP2IS2-50Encoder: Incremental | Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 50M | Yaskawa Model: JWSP-XP2IS2-50
SWY-XP2IF2-50Encoder: Incremental | Cable: Moving | Lead-Out: Opposite load side (right) | Length: 50M | Yaskawa Model: JWSP-XP2IF2-50
SWY-XP2AS1-03Encoder: Absolute (with battery case) | Cable: Fixed | Lead-Out: Load side (left) | Length: 3M | Yaskawa Model: JWSP-XP2AS1-03
SWY-XP2AF1-03Encoder: Absolute (with battery case) | Cable: Moving | Lead-Out: Load side (left) | Length: 3M | Yaskawa Model: JWSP-XP2AF1-03
SWY-XP2AS1-05Encoder: Absolute (with battery case) | Cable: Fixed | Lead-Out: Load side (left) | Length: 5M | Yaskawa Model: JWSP-XP2AS1-05
SWY-XP2AF1-05Encoder: Absolute (with battery case) | Cable: Moving | Lead-Out: Load side (left) | Length: 5M | Yaskawa Model: JWSP-XP2AF1-05
SWY-XP2AS1-10Encoder: Absolute (with battery case) | Cable: Fixed | Lead-Out: Load side (left) | Length: 10M | Yaskawa Model: JWSP-XP2AS1-10
SWY-XP2AF1-10Encoder: Absolute (with battery case) | Cable: Moving | Lead-Out: Load side (left) | Length: 10M | Yaskawa Model: JWSP-XP2AF1-10
SWY-XP2AS1-15Encoder: Absolute (with battery case) | Cable: Fixed | Lead-Out: Load side (left) | Length: 15M | Yaskawa Model: JWSP-XP2AS1-15
SWY-XP2AF1-15Encoder: Absolute (with battery case) | Cable: Moving | Lead-Out: Load side (left) | Length: 15M | Yaskawa Model: JWSP-XP2AF1-15
SWY-XP2AS1-20Encoder: Absolute (with battery case) | Cable: Fixed | Lead-Out: Load side (left) | Length: 20M | Yaskawa Model: JWSP-XP2AS1-20
SWY-XP2AF1-20Encoder: Absolute (with battery case) | Cable: Moving | Lead-Out: Load side (left) | Length: 20M | Yaskawa Model: JWSP-XP2AF1-20
SWY-XP2AS1-30Encoder: Absolute (with battery case) | Cable: Fixed | Lead-Out: Load side (left) | Length: 30M | Yaskawa Model: JWSP-XP2AS1-30
SWY-XP2AF1-30Encoder: Absolute (with battery case) | Cable: Moving | Lead-Out: Load side (left) | Length: 30M | Yaskawa Model: JWSP-XP2AF1-30
SWY-XP2AS1-40Encoder: Absolute (with battery case) | Cable: Fixed | Lead-Out: Load side (left) | Length: 40M | Yaskawa Model: JWSP-XP2AS1-40
SWY-XP2AF1-40Encoder: Absolute (with battery case) | Cable: Moving | Lead-Out: Load side (left) | Length: 40M | Yaskawa Model: JWSP-XP2AF1-40
SWY-XP2AS1-50Encoder: Absolute (with battery case) | Cable: Fixed | Lead-Out: Load side (left) | Length: 50M | Yaskawa Model: JWSP-XP2AS1-50
SWY-XP2AF1-50Encoder: Absolute (with battery case) | Cable: Moving | Lead-Out: Load side (left) | Length: 50M | Yaskawa Model: JWSP-XP2AF1-50
SWY-XP2AS2-03Encoder: Absolute (with battery case) | Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 3M | Yaskawa Model: JWSP-XP2AS2-03
SWY-XP2AF2-03Encoder: Absolute (with battery case) | Cable: Moving | Lead-Out: Opposite load side (right) | Length: 3M | Yaskawa Model: JWSP-XP2AF2-03
SWY-XP2AS2-05Encoder: Absolute (with battery case) | Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 5M | Yaskawa Model: JWSP-XP2AS2-05
SWY-XP2AF2-05Encoder: Absolute (with battery case) | Cable: Moving | Lead-Out: Opposite load side (right) | Length: 5M | Yaskawa Model: JWSP-XP2AF2-05
SWY-XP2AS2-10Encoder: Absolute (with battery case) | Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 10M | Yaskawa Model: JWSP-XP2AS2-10
SWY-XP2AF2-10Encoder: Absolute (with battery case) | Cable: Moving | Lead-Out: Opposite load side (right) | Length: 10M | Yaskawa Model: JWSP-XP2AF2-10
SWY-XP2AS2-15Encoder: Absolute (with battery case) | Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 15M | Yaskawa Model: JWSP-XP2AS2-15
SWY-XP2AF2-15Encoder: Absolute (with battery case) | Cable: Moving | Lead-Out: Opposite load side (right) | Length: 15M | Yaskawa Model: JWSP-XP2AF2-15
SWY-XP2AS2-20Encoder: Absolute (with battery case) | Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 20M | Yaskawa Model: JWSP-XP2AS2-20
SWY-XP2AF2-20Encoder: Absolute (with battery case) | Cable: Moving | Lead-Out: Opposite load side (right) | Length: 20M | Yaskawa Model: JWSP-XP2AF2-20
SWY-XP2AS2-30Encoder: Absolute (with battery case) | Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 30M | Yaskawa Model: JWSP-XP2AS2-30
SWY-XP2AF2-30Encoder: Absolute (with battery case) | Cable: Moving | Lead-Out: Opposite load side (right) | Length: 30M | Yaskawa Model: JWSP-XP2AF2-30
SWY-XP2AS2-40Encoder: Absolute (with battery case) | Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 40M | Yaskawa Model: JWSP-XP2AS2-40
SWY-XP2AF2-40Encoder: Absolute (with battery case) | Cable: Moving | Lead-Out: Opposite load side (right) | Length: 40M | Yaskawa Model: JWSP-XP2AF2-40
SWY-XP2AS2-50Encoder: Absolute (with battery case) | Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 50M | Yaskawa Model: JWSP-XP2AS2-50
SWY-XP2AF2-50Encoder: Absolute (with battery case) | Cable: Moving | Lead-Out: Opposite load side (right) | Length: 50M | Yaskawa Model: JWSP-XP2AF2-50

Need a different model, or a part not listed here? Send us your parts list →
