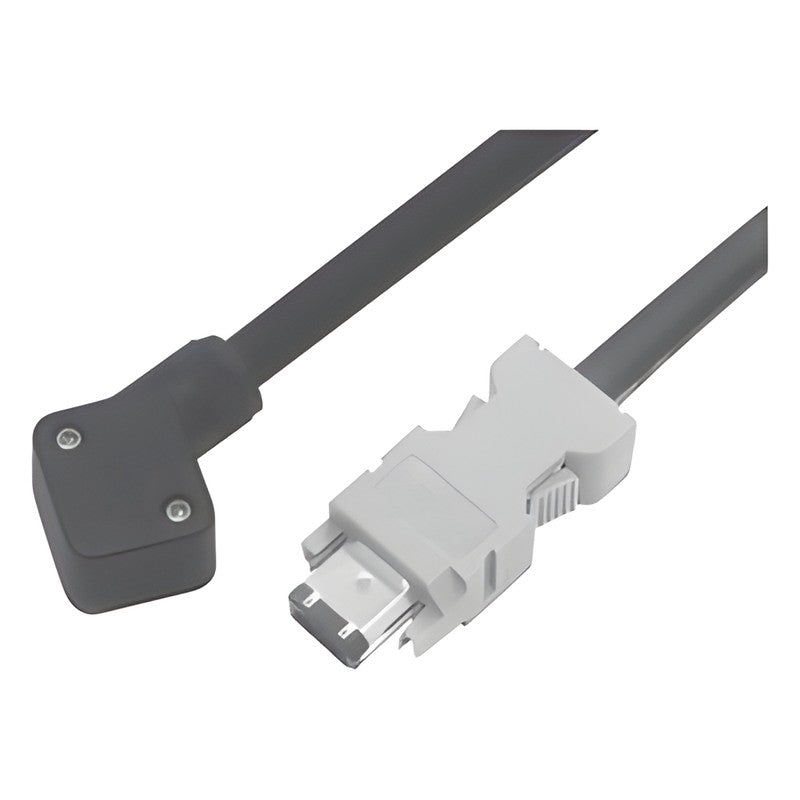

Samwon ACT SWY-XP3 Incremental Encoder Cable for Yaskawa Sigma-X SGMXJ/SGMXA/SGMXP

Samwon ACT SWY-XP3 Incremental Encoder Cable for Yaskawa Sigma-X SGMXJ/SGMXA/SGMXP

Incremental encoder cable connecting Yaskawa Sigma-X SGMXJ, SGMXA-A5~70 and SGMXP rotary servo motors to the servo amplifier.

Key features

  • Incremental encoder cables for Yaskawa Sigma-X rotary servo motors SGMXJ, SGMXA-A5~70, SGMXP
  • Built to the recommended specifications in Yaskawa user manuals and catalogs (some equivalent parts used)
  • Fixed, moving (flex-rated) and custom-specified cables can be made
  • Cable length can be specified freely; custom lengths in 100 mm steps
  • Small-quantity orders (from 1 piece) and short lead times

Specifications

Amplifier Connector MOLEX 55100-0670 or equivalent
Encoder Connector MOLEX 207752-1002 or equivalent
Fixed Cable UL2464 twist pair shielded, PVC insulation cable
Moving Cable PROTERIAL RT-FLEX UL2464 twist pair shielded, ETFE insulation cable
Max. Transmission Length 50M
Cable Color Black
Length Tolerance +50 to +100 mm
SWY-XP3IS1-00P3 Cable: Fixed | Lead-Out: Load side (left) | Length: 0.3M | Yaskawa Model: JWSP-XP3IS1-00P3
SWY-XP3IS1-01 Cable: Fixed | Lead-Out: Load side (left) | Length: 1M | Yaskawa Model: JWSP-XP3IS1-01
SWY-XP3IS1-03 Cable: Fixed | Lead-Out: Load side (left) | Length: 3M | Yaskawa Model: JWSP-XP3IS1-03
SWY-XP3IS1-05 Cable: Fixed | Lead-Out: Load side (left) | Length: 5M | Yaskawa Model: JWSP-XP3IS1-05
SWY-XP3IS1-10 Cable: Fixed | Lead-Out: Load side (left) | Length: 10M | Yaskawa Model: JWSP-XP3IS1-10
SWY-XP3IS1-20 Cable: Fixed | Lead-Out: Load side (left) | Length: 20M | Yaskawa Model: JWSP-XP3IS1-20
SWY-XP3IS1-30 Cable: Fixed | Lead-Out: Load side (left) | Length: 30M | Yaskawa Model: JWSP-XP3IS1-30
SWY-XP3IS1-40 Cable: Fixed | Lead-Out: Load side (left) | Length: 40M | Yaskawa Model: JWSP-XP3IS1-40
SWY-XP3IS1-50 Cable: Fixed | Lead-Out: Load side (left) | Length: 50M | Yaskawa Model: JWSP-XP3IS1-50
SWY-XP3IF1-00P3 Cable: Moving | Lead-Out: Load side (left) | Length: 0.3M | Yaskawa Model: JWSP-XP3IF1-00P3
SWY-XP3IF1-01 Cable: Moving | Lead-Out: Load side (left) | Length: 1M | Yaskawa Model: JWSP-XP3IF1-01
SWY-XP3IF1-03 Cable: Moving | Lead-Out: Load side (left) | Length: 3M | Yaskawa Model: JWSP-XP3IF1-03
SWY-XP3IF1-05 Cable: Moving | Lead-Out: Load side (left) | Length: 5M | Yaskawa Model: JWSP-XP3IF1-05
SWY-XP3IF1-10 Cable: Moving | Lead-Out: Load side (left) | Length: 10M | Yaskawa Model: JWSP-XP3IF1-10
SWY-XP3IF1-20 Cable: Moving | Lead-Out: Load side (left) | Length: 20M | Yaskawa Model: JWSP-XP3IF1-20
SWY-XP3IF1-30 Cable: Moving | Lead-Out: Load side (left) | Length: 30M | Yaskawa Model: JWSP-XP3IF1-30
SWY-XP3IF1-40 Cable: Moving | Lead-Out: Load side (left) | Length: 40M | Yaskawa Model: JWSP-XP3IF1-40
SWY-XP3IF1-50 Cable: Moving | Lead-Out: Load side (left) | Length: 50M | Yaskawa Model: JWSP-XP3IF1-50
SWY-XP3IS2-00P3 Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 0.3M | Yaskawa Model: JWSP-XP3IS2-00P3
SWY-XP3IS2-01 Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 1M | Yaskawa Model: JWSP-XP3IS2-01
SWY-XP3IS2-03 Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 3M | Yaskawa Model: JWSP-XP3IS2-03
SWY-XP3IS2-05 Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 5M | Yaskawa Model: JWSP-XP3IS2-05
SWY-XP3IS2-10 Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 10M | Yaskawa Model: JWSP-XP3IS2-10
SWY-XP3IS2-20 Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 20M | Yaskawa Model: JWSP-XP3IS2-20
SWY-XP3IS2-30 Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 30M | Yaskawa Model: JWSP-XP3IS2-30
SWY-XP3IS2-40 Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 40M | Yaskawa Model: JWSP-XP3IS2-40
SWY-XP3IS2-50 Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 50M | Yaskawa Model: JWSP-XP3IS2-50
SWY-XP3IF2-00P3 Cable: Moving | Lead-Out: Opposite load side (right) | Length: 0.3M | Yaskawa Model: JWSP-XP3IF2-00P3
SWY-XP3IF2-01 Cable: Moving | Lead-Out: Opposite load side (right) | Length: 1M | Yaskawa Model: JWSP-XP3IF2-01
SWY-XP3IF2-03 Cable: Moving | Lead-Out: Opposite load side (right) | Length: 3M | Yaskawa Model: JWSP-XP3IF2-03
SWY-XP3IF2-05 Cable: Moving | Lead-Out: Opposite load side (right) | Length: 5M | Yaskawa Model: JWSP-XP3IF2-05
SWY-XP3IF2-10 Cable: Moving | Lead-Out: Opposite load side (right) | Length: 10M | Yaskawa Model: JWSP-XP3IF2-10
SWY-XP3IF2-20 Cable: Moving | Lead-Out: Opposite load side (right) | Length: 20M | Yaskawa Model: JWSP-XP3IF2-20
SWY-XP3IF2-30 Cable: Moving | Lead-Out: Opposite load side (right) | Length: 30M | Yaskawa Model: JWSP-XP3IF2-30
SWY-XP3IF2-40 Cable: Moving | Lead-Out: Opposite load side (right) | Length: 40M | Yaskawa Model: JWSP-XP3IF2-40
SWY-XP3IF2-50 Cable: Moving | Lead-Out: Opposite load side (right) | Length: 50M | Yaskawa Model: JWSP-XP3IF2-50
Encoder CablesSamwon ACT
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT SWY-XP3 Incremental Encoder Cable for Yaskawa Sigma-X SGMXJ/SGMXA/SGMXP

Brand Samwon ACT·Encoder Cables

Available part numbers (36)

SWY-XP3IS1-00P3, SWY-XP3IS1-01, SWY-XP3IS1-03, SWY-XP3IS1-05, SWY-XP3IS1-10, SWY-XP3IS1-20, SWY-XP3IS1-30, SWY-XP3IS1-40, SWY-XP3IS1-50, SWY-XP3IF1-00P3 + 26 more — see full table ↓

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SWY-XP3IS1-00P3Cable: Fixed | Lead-Out: Load side (left) | Length: 0.3M | Yaskawa Model: JWSP-XP3IS1-00P3
SWY-XP3IS1-01Cable: Fixed | Lead-Out: Load side (left) | Length: 1M | Yaskawa Model: JWSP-XP3IS1-01
SWY-XP3IS1-03Cable: Fixed | Lead-Out: Load side (left) | Length: 3M | Yaskawa Model: JWSP-XP3IS1-03
SWY-XP3IS1-05Cable: Fixed | Lead-Out: Load side (left) | Length: 5M | Yaskawa Model: JWSP-XP3IS1-05
SWY-XP3IS1-10Cable: Fixed | Lead-Out: Load side (left) | Length: 10M | Yaskawa Model: JWSP-XP3IS1-10
SWY-XP3IS1-20Cable: Fixed | Lead-Out: Load side (left) | Length: 20M | Yaskawa Model: JWSP-XP3IS1-20
SWY-XP3IS1-30Cable: Fixed | Lead-Out: Load side (left) | Length: 30M | Yaskawa Model: JWSP-XP3IS1-30
SWY-XP3IS1-40Cable: Fixed | Lead-Out: Load side (left) | Length: 40M | Yaskawa Model: JWSP-XP3IS1-40
SWY-XP3IS1-50Cable: Fixed | Lead-Out: Load side (left) | Length: 50M | Yaskawa Model: JWSP-XP3IS1-50
SWY-XP3IF1-00P3Cable: Moving | Lead-Out: Load side (left) | Length: 0.3M | Yaskawa Model: JWSP-XP3IF1-00P3
SWY-XP3IF1-01Cable: Moving | Lead-Out: Load side (left) | Length: 1M | Yaskawa Model: JWSP-XP3IF1-01
SWY-XP3IF1-03Cable: Moving | Lead-Out: Load side (left) | Length: 3M | Yaskawa Model: JWSP-XP3IF1-03
SWY-XP3IF1-05Cable: Moving | Lead-Out: Load side (left) | Length: 5M | Yaskawa Model: JWSP-XP3IF1-05
SWY-XP3IF1-10Cable: Moving | Lead-Out: Load side (left) | Length: 10M | Yaskawa Model: JWSP-XP3IF1-10
SWY-XP3IF1-20Cable: Moving | Lead-Out: Load side (left) | Length: 20M | Yaskawa Model: JWSP-XP3IF1-20
SWY-XP3IF1-30Cable: Moving | Lead-Out: Load side (left) | Length: 30M | Yaskawa Model: JWSP-XP3IF1-30
SWY-XP3IF1-40Cable: Moving | Lead-Out: Load side (left) | Length: 40M | Yaskawa Model: JWSP-XP3IF1-40
SWY-XP3IF1-50Cable: Moving | Lead-Out: Load side (left) | Length: 50M | Yaskawa Model: JWSP-XP3IF1-50
SWY-XP3IS2-00P3Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 0.3M | Yaskawa Model: JWSP-XP3IS2-00P3
SWY-XP3IS2-01Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 1M | Yaskawa Model: JWSP-XP3IS2-01
SWY-XP3IS2-03Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 3M | Yaskawa Model: JWSP-XP3IS2-03
SWY-XP3IS2-05Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 5M | Yaskawa Model: JWSP-XP3IS2-05
SWY-XP3IS2-10Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 10M | Yaskawa Model: JWSP-XP3IS2-10
SWY-XP3IS2-20Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 20M | Yaskawa Model: JWSP-XP3IS2-20
SWY-XP3IS2-30Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 30M | Yaskawa Model: JWSP-XP3IS2-30
SWY-XP3IS2-40Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 40M | Yaskawa Model: JWSP-XP3IS2-40
SWY-XP3IS2-50Cable: Fixed | Lead-Out: Opposite load side (right) | Length: 50M | Yaskawa Model: JWSP-XP3IS2-50
SWY-XP3IF2-00P3Cable: Moving | Lead-Out: Opposite load side (right) | Length: 0.3M | Yaskawa Model: JWSP-XP3IF2-00P3
SWY-XP3IF2-01Cable: Moving | Lead-Out: Opposite load side (right) | Length: 1M | Yaskawa Model: JWSP-XP3IF2-01
SWY-XP3IF2-03Cable: Moving | Lead-Out: Opposite load side (right) | Length: 3M | Yaskawa Model: JWSP-XP3IF2-03
SWY-XP3IF2-05Cable: Moving | Lead-Out: Opposite load side (right) | Length: 5M | Yaskawa Model: JWSP-XP3IF2-05
SWY-XP3IF2-10Cable: Moving | Lead-Out: Opposite load side (right) | Length: 10M | Yaskawa Model: JWSP-XP3IF2-10
SWY-XP3IF2-20Cable: Moving | Lead-Out: Opposite load side (right) | Length: 20M | Yaskawa Model: JWSP-XP3IF2-20
SWY-XP3IF2-30Cable: Moving | Lead-Out: Opposite load side (right) | Length: 30M | Yaskawa Model: JWSP-XP3IF2-30
SWY-XP3IF2-40Cable: Moving | Lead-Out: Opposite load side (right) | Length: 40M | Yaskawa Model: JWSP-XP3IF2-40
SWY-XP3IF2-50Cable: Moving | Lead-Out: Opposite load side (right) | Length: 50M | Yaskawa Model: JWSP-XP3IF2-50
