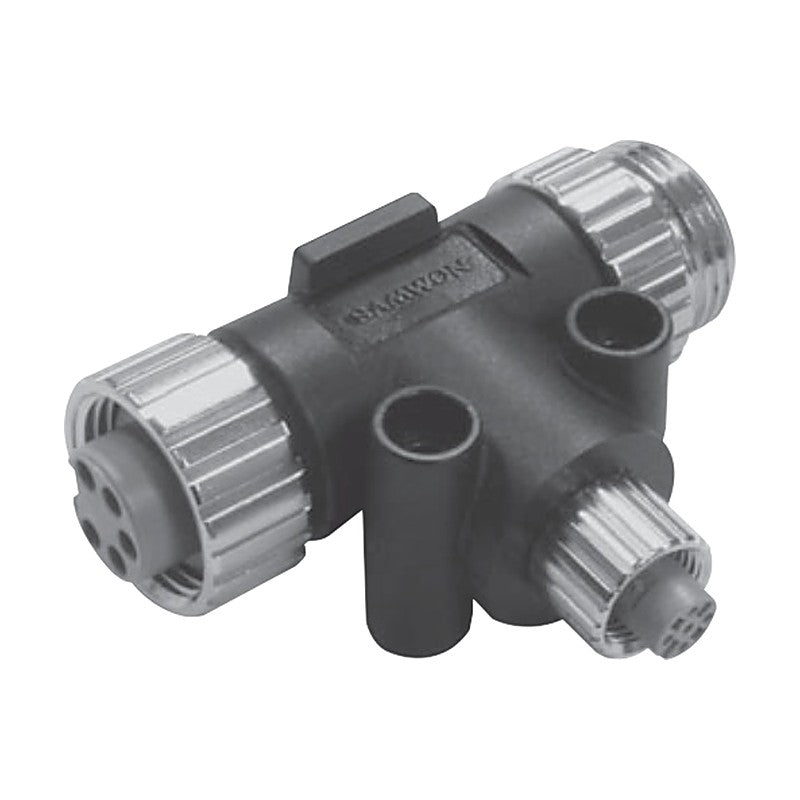

Samwon ACT U78T-5DN-M12 DeviceNet 7/8" to M12 T-Splitter Connector

T-type branch connector joining a 7/8" DeviceNet thick-cable trunk with an M12 DeviceNet thin-cable drop.

Key features

Branches 7/8" DeviceNet thick cable to M12 DeviceNet thin cable
Suitable for DeviceNet BUS branching
IP67 protection suitable for field wiring
Mounting holes for easy installation

Specifications

Rated voltage	7/8": 300 V, M12: 30 V
Rated current	7/8": 8 A, M12: 3 A
Insulation resistance	1,000 MOhm min. (500 V DC)
Dielectric strength	1,500 V AC for 1 min
Degree of protection	IP67 (when mated)
Insertion durability	50 cycles min.
Operating temperature	-25 to +70 C
Cover / contact block	TPU / TPU
Contact	Brass, gold-plated

U78T-5DN-M12

Poles: 5 | Branch: M12 connector, DeviceNet

ConnectorsSamwon ACT

1 product code available in this family
