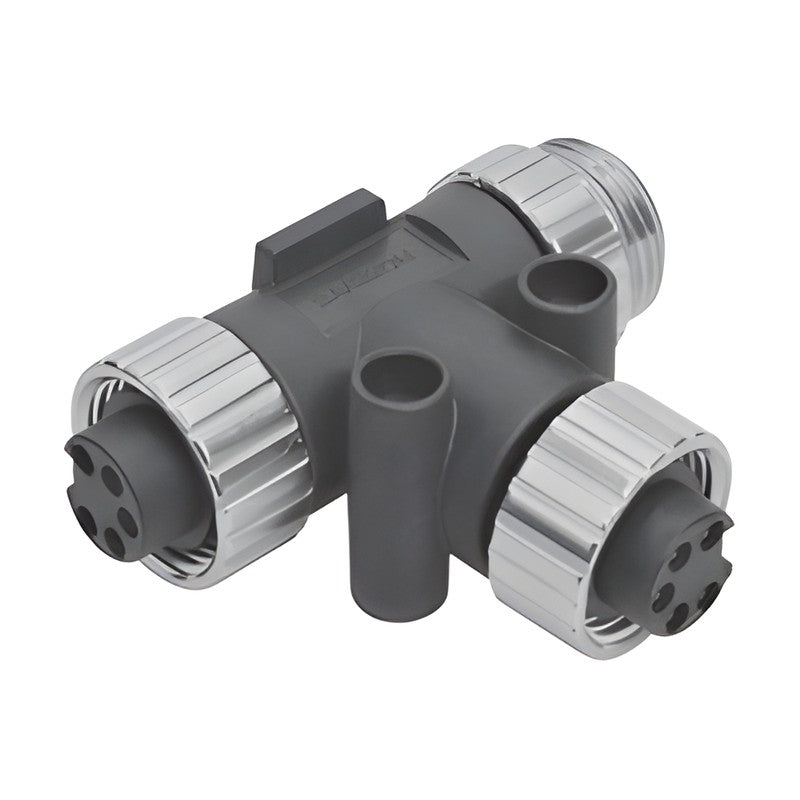

Samwon ACT U78T 7/8"-16UN T-Splitter Connectors

7/8"-16UN T-type branch connectors for DeviceNet bus or power line branching (parallel connection).

Key features

T-type branch connector with 7/8"-16UN connectors for DeviceNet BUS and power branching (parallel connection)
IP67 protection suitable for field wiring
Mounting holes for easy installation

Specifications

Rated voltage	300 V
Rated current	8 A
Insulation resistance	1,000 MOhm min. (500 V DC)
Dielectric strength	1,500 V AC for 1 min
Degree of protection	IP67 (when mated)
Insertion durability	50 cycles min.
Operating temperature	-25 to +70 C
Cover / contact block	TPU / TPU
Contact	Brass, gold-plated

U78T-5DN		Poles: 5 \| Branch: DeviceNet
U78T-5PW		Poles: 5 \| Branch: Power
U78T-4PW		Poles: 4 \| Branch: Power

ConnectorsSamwon ACT

3 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT U78T 7/8"-16UN T-Splitter Connectors

Brand Samwon ACT·Connectors

Available part numbers (3)

U78T-5DN, U78T-5PW, U78T-4PW
