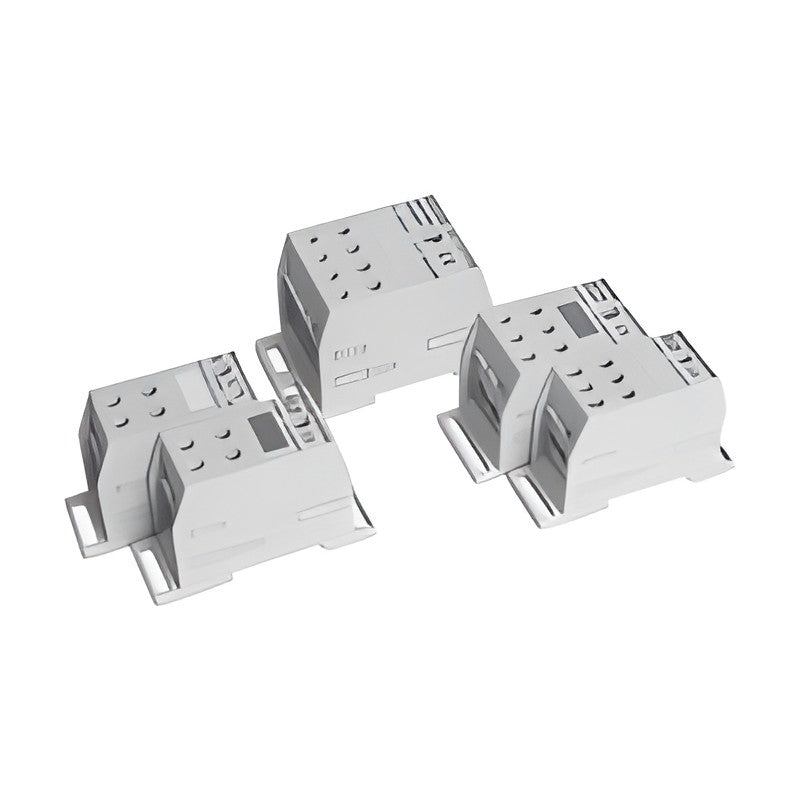

Samwon ACT XK2 Series European-Style Wiring Power Distribution Blocks 690V

Samwon ACT XK2 Series European-Style Wiring Power Distribution Blocks 690V

European-style 690 V wiring power distribution blocks that distribute one or two input cables to 4-12 outputs without busbar fabrication.

Key features

  • High-voltage 690 V rated distribution blocks
  • Case-integrated touch-safe construction (IP20)
  • No busbar work needed; reduces panel size
  • Screw or DIN rail (channel) mounting
  • No cable lug required for wiring
  • Conforms to IEC 60947-7-1; built-in color code plates

Specifications

Rated Voltage 690 V
Mounting Screw M4
Withstand Voltage 2,200 V, 1 min
Operating Temperature -5 to +40 C (no condensation)
Temperature Rise Conductor temperature rise 45 C max.
Material Case: Nylon; Conductor: Brass
Protection IP20
Mounting Screw / DIN rail (channel)
Certification CE
XK2-35/4*9 Inputs: 1 | Outputs: 9 | Rated current: 125 A | Input wire: 10-35 mm2 | Output wire: 1.5-4 mm2 | Output screw: M3
XK2-35/10*4 Inputs: 1 | Outputs: 4 | Rated current: 125 A | Input wire: 10-35 mm2 | Output wire: 2.5-10 mm2 | Output screw: M4
XK2-35+25/16*4 Inputs: 2 | Outputs: 4 | Rated current: 125 A (35 mm2) / 101 A (25 mm2) | Input wire: 10-35 mm2 + 16-25 mm2 | Output wire: 4-16 mm2 | Output screw: M4
XK2-50/10*6 Inputs: 1 | Outputs: 6 | Rated current: 150 A | Input wire: 16-50 mm2 | Output wire: 2.5-10 mm2 | Output screw: M4
XK2-50/16*4 Inputs: 1 | Outputs: 4 | Rated current: 150 A | Input wire: 16-50 mm2 | Output wire: 4-16 mm2 | Output screw: M4
XK2-70/6*12 Inputs: 1 | Outputs: 12 | Rated current: 192 A | Input wire: 25-70 mm2 | Output wire: 1.5-6 mm2 | Output screw: M3.5
XK2-70/10*8 Inputs: 1 | Outputs: 8 | Rated current: 192 A | Input wire: 25-70 mm2 | Output wire: 2.5-10 mm2 | Output screw: M4
XK2-70*2/10*8 Inputs: 2 | Outputs: 8 | Rated current: 192 A | Input wire: 25-70 mm2 | Output wire: 2.5-10 mm2 | Output screw: M4
XK2-70/16*6 Inputs: 1 | Outputs: 6 | Rated current: 192 A | Input wire: 25-70 mm2 | Output wire: 4-16 mm2 | Output screw: M4
XK2-95/25*4 Inputs: 1 | Outputs: 4 | Rated current: 232 A | Input wire: 25-95 mm2 | Output wire: 6-25 mm2 | Output screw: M5
XK2-120/16*8 Inputs: 1 | Outputs: 8 | Rated current: 309 A | Input wire: 35-120 mm2 | Output wire: 4-16 mm2 | Output screw: M4
XK2-185/35*8 Inputs: 1 | Outputs: 8 | Rated current: 353 A | Input wire: 70-185 mm2 | Output wire: 10-35 mm2 | Output screw: M8
XK2-120B/16*8 Inputs: 1 (busbar 255 mm) | Outputs: 8 | Rated current: 269 A | Output wire: 4-16 mm2 | Output screw: M4
Power Distribution BlocksSamwon ACT
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT XK2 Series European-Style Wiring Power Distribution Blocks 690V

Brand Samwon ACT·Power Distribution Blocks

Available part numbers (13)

XK2-35/4*9, XK2-35/10*4, XK2-35+25/16*4, XK2-50/10*6, XK2-50/16*4, XK2-70/6*12, XK2-70/10*8, XK2-70*2/10*8, XK2-70/16*6, XK2-95/25*4 + 3 more — see full table ↓

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
XK2-35/4*9Inputs: 1 | Outputs: 9 | Rated current: 125 A | Input wire: 10-35 mm2 | Output wire: 1.5-4 mm2 | Output screw: M3
XK2-35/10*4Inputs: 1 | Outputs: 4 | Rated current: 125 A | Input wire: 10-35 mm2 | Output wire: 2.5-10 mm2 | Output screw: M4
XK2-35+25/16*4Inputs: 2 | Outputs: 4 | Rated current: 125 A (35 mm2) / 101 A (25 mm2) | Input wire: 10-35 mm2 + 16-25 mm2 | Output wire: 4-16 mm2 | Output screw: M4
XK2-50/10*6Inputs: 1 | Outputs: 6 | Rated current: 150 A | Input wire: 16-50 mm2 | Output wire: 2.5-10 mm2 | Output screw: M4
XK2-50/16*4Inputs: 1 | Outputs: 4 | Rated current: 150 A | Input wire: 16-50 mm2 | Output wire: 4-16 mm2 | Output screw: M4
XK2-70/6*12Inputs: 1 | Outputs: 12 | Rated current: 192 A | Input wire: 25-70 mm2 | Output wire: 1.5-6 mm2 | Output screw: M3.5
XK2-70/10*8Inputs: 1 | Outputs: 8 | Rated current: 192 A | Input wire: 25-70 mm2 | Output wire: 2.5-10 mm2 | Output screw: M4
XK2-70*2/10*8Inputs: 2 | Outputs: 8 | Rated current: 192 A | Input wire: 25-70 mm2 | Output wire: 2.5-10 mm2 | Output screw: M4
XK2-70/16*6Inputs: 1 | Outputs: 6 | Rated current: 192 A | Input wire: 25-70 mm2 | Output wire: 4-16 mm2 | Output screw: M4
XK2-95/25*4Inputs: 1 | Outputs: 4 | Rated current: 232 A | Input wire: 25-95 mm2 | Output wire: 6-25 mm2 | Output screw: M5
XK2-120/16*8Inputs: 1 | Outputs: 8 | Rated current: 309 A | Input wire: 35-120 mm2 | Output wire: 4-16 mm2 | Output screw: M4
XK2-185/35*8Inputs: 1 | Outputs: 8 | Rated current: 353 A | Input wire: 70-185 mm2 | Output wire: 10-35 mm2 | Output screw: M8
XK2-120B/16*8Inputs: 1 (busbar 255 mm) | Outputs: 8 | Rated current: 269 A | Output wire: 4-16 mm2 | Output screw: M4
