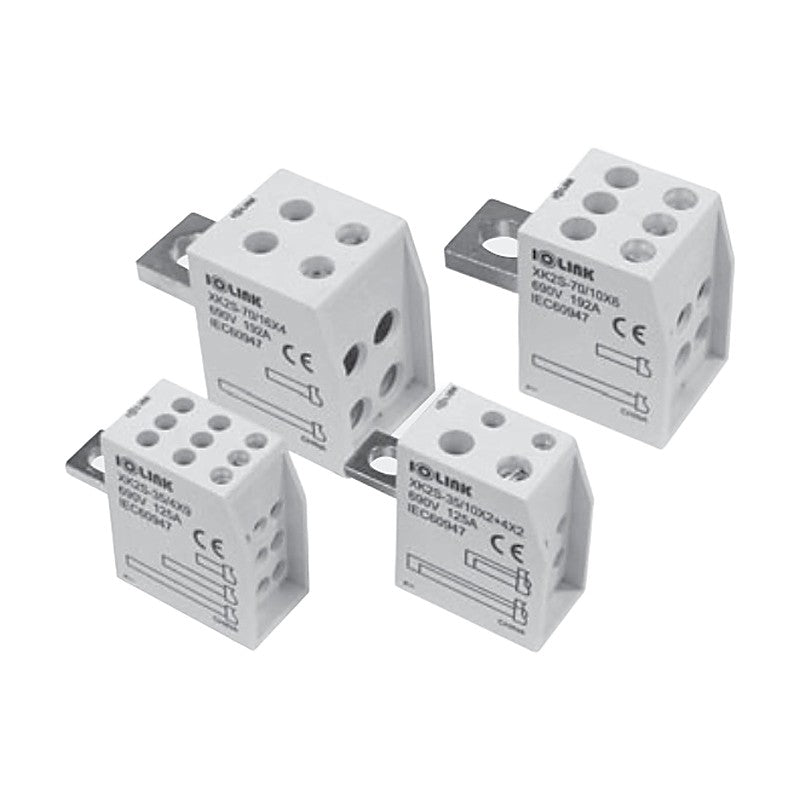

Samwon ACT XK2S Series European-Style Breaker Direct-Connection Power Distribution Blocks

Samwon ACT XK2S Series European-Style Breaker Direct-Connection Power Distribution Blocks

European-style 690 V power distribution blocks that connect directly to circuit breaker terminals and branch to 4 or 6 outputs as a safer alternative to busbars.

Key features

  • Direct connection to breaker terminals reduces connection points
  • Case-integrated touch-safe construction (IP20)
  • No cable lug required for wiring
  • Compact size reduces panel size and eases maintenance
  • Conforms to IEC 60947-7-1

Specifications

Rated Voltage 690 V
Withstand Voltage 2,200 V, 1 min
Operating Temperature -5 to +40 C (no condensation)
Temperature Rise Conductor temperature rise 45 C max.
Material Case: Nylon; Conductor: Brass
Protection IP20
Certification CE
XK2S-25/10*2+4*2 Outputs: 4 | Rated current: 101 A | Output wire: 2 x 4-10 mm2, 2 x 1.5-4 mm2 | Output screw: M3, M4
XK2S-35/10*2+4*2 Outputs: 4 | Rated current: 125 A | Output wire: 2 x 4-10 mm2, 2 x 1.5-4 mm2 | Output screw: M3, M4
XK2S-70/16*4 Outputs: 4 | Rated current: 192 A | Output wire: 4 x 6-16 mm2 | Output screw: M4
XK2S-70/10*6 Outputs: 6 | Rated current: 192 A | Output wire: 6 x 4-10 mm2 | Output screw: M4
Power Distribution BlocksSamwon ACT
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT XK2S Series European-Style Breaker Direct-Connection Power Distribution Blocks

Brand Samwon ACT·Power Distribution Blocks

Available part numbers (4)

XK2S-25/10*2+4*2, XK2S-35/10*2+4*2, XK2S-70/16*4, XK2S-70/10*6

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
XK2S-25/10*2+4*2Outputs: 4 | Rated current: 101 A | Output wire: 2 x 4-10 mm2, 2 x 1.5-4 mm2 | Output screw: M3, M4
XK2S-35/10*2+4*2Outputs: 4 | Rated current: 125 A | Output wire: 2 x 4-10 mm2, 2 x 1.5-4 mm2 | Output screw: M3, M4
XK2S-70/16*4Outputs: 4 | Rated current: 192 A | Output wire: 4 x 6-16 mm2 | Output screw: M4
XK2S-70/10*6Outputs: 6 | Rated current: 192 A | Output wire: 6 x 4-10 mm2 | Output screw: M4
