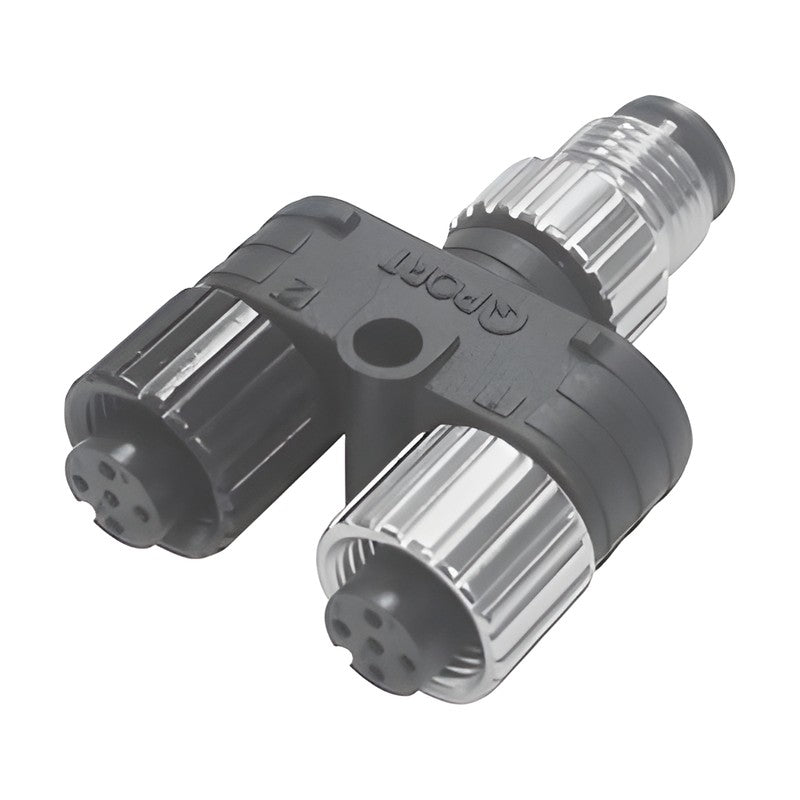

Samwon ACT Y12W M12 Wide 2-Signal Branch / Conversion Connectors

Wide-body M12 Y-type branch connectors (1 male to 2 female) with mounting hole, for 2-signal branching, bridging or parallel connection.

Key features

Branch connector for QPORT boards and field wiring
Wiring for signal branching and parallel connection makes wiring easy
Allows B-contact proximity sensors on 2-signal boards (Y12W-BR)
Accepts M12 connectors up to 21 mm width
Mounting hole allows fixing to panels
Standard M12 waterproof connector suitable for IP67

Specifications

Rated voltage	DC 125 V
Rated current	3 A
Insulation resistance	1,000 MOhm min. (300 V DC)
Dielectric strength	AC 1,500 V for 1 min
Degree of protection	IP67 (when mated)
Insertion durability	200 cycles
Operating temperature	-25 to +75 C
Contact block / cover	TPU
Contact	Brass, gold-plated
Coupling	Brass, nickel-plated

Y12W-ID		Connection: 2/4 signal branch
Y12W-BR		Connection: 2/4 bridge (2-signal branch)
Y12W-PD		Connection: Parallel connection

ConnectorsSamwon ACT

3 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT Y12W M12 Wide 2-Signal Branch / Conversion Connectors

Brand Samwon ACT·Connectors

Available part numbers (3)

Y12W-ID, Y12W-BR, Y12W-PD
