• Samwon ACT YASKAWA Sigma-X SGM7M-A1A to A3A Power / Power+Brake Cables
1 1

Samwon ACT YASKAWA Sigma-X SGM7M-A1A to A3A Power / Power+Brake Cables

Samwon ACT YASKAWA Sigma-X SGM7M-A1A to A3A Power / Power+Brake Cables

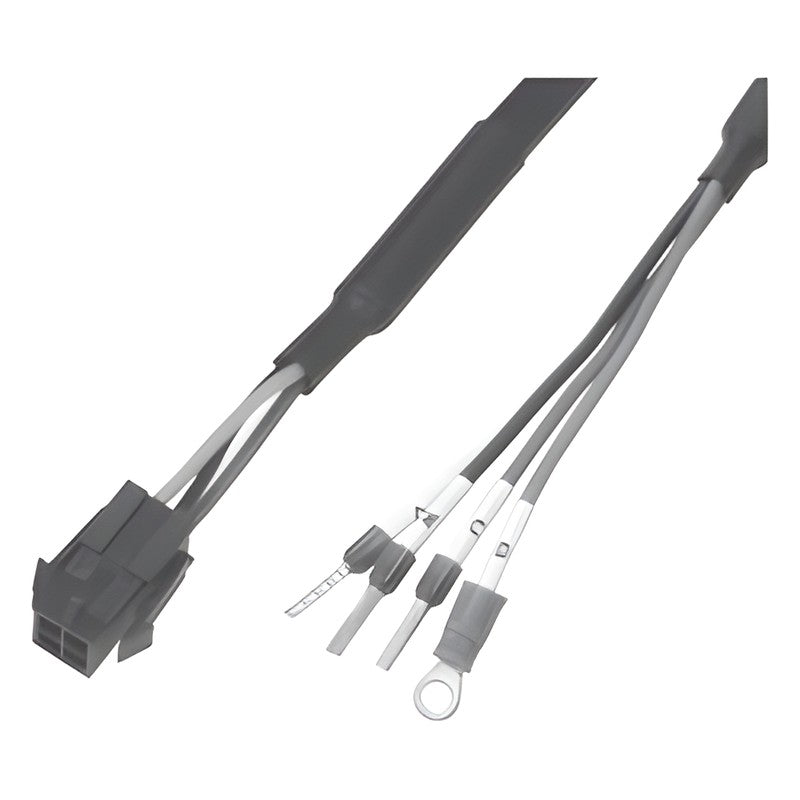

Motor power cables and brake-integrated power cables for YASKAWA Sigma-X SGM7M-A1A, A2A and A3A rotary servo motors.

Key features

  • Power and power + brake cables for YASKAWA Sigma-X SGM7M-A1A to A3A motors
  • Recommended specification from YASKAWA user manuals and catalogs (some equivalent parts used)
  • Fixed, moving and custom cables can be produced
  • Cable length can be specified freely (made to order in 100 mm steps)
  • Small-quantity orders (from 1 pc) with short lead time

Specifications

Motor connector Power: MOLEX 43020-0401; power + brake: MOLEX 43020-0601, or equivalent
Fixed cable UL2464, PVC insulation
Moving cable PROTERIAL RT-FLEX UL2464, ETFE insulation
Max. transmission length 20 m (longer on request)
Cable color Black
Applicable motors SGM7M-A1A, SGM7M-A2A, SGM7M-A3A
Length tolerance +50 to +100 mm
SWY-CF2M00-03-E Type: Power cable | Cable: Fixed | Length: 3 m | YASKAWA equivalent: JZSP-CF2M00-03-E
SWY-CF2M00-05-E Type: Power cable | Cable: Fixed | Length: 5 m | YASKAWA equivalent: JZSP-CF2M00-05-E
SWY-CF2M00-10-E Type: Power cable | Cable: Fixed | Length: 10 m | YASKAWA equivalent: JZSP-CF2M00-10-E
SWY-CF2M00-15-E Type: Power cable | Cable: Fixed | Length: 15 m | YASKAWA equivalent: JZSP-CF2M00-15-E
SWY-CF2M00-20-E Type: Power cable | Cable: Fixed | Length: 20 m | YASKAWA equivalent: JZSP-CF2M00-20-E
SWY-CF2M20-03-E Type: Power cable | Cable: Moving | Length: 3 m | YASKAWA equivalent: JZSP-CF2M20-03-E
SWY-CF2M20-05-E Type: Power cable | Cable: Moving | Length: 5 m | YASKAWA equivalent: JZSP-CF2M20-05-E
SWY-CF2M20-10-E Type: Power cable | Cable: Moving | Length: 10 m | YASKAWA equivalent: JZSP-CF2M20-10-E
SWY-CF2M20-15-E Type: Power cable | Cable: Moving | Length: 15 m | YASKAWA equivalent: JZSP-CF2M20-15-E
SWY-CF2M20-20-E Type: Power cable | Cable: Moving | Length: 20 m | YASKAWA equivalent: JZSP-CF2M20-20-E
SWY-CF2M03-03-E Type: Power + Brake cable | Cable: Fixed | Length: 3 m | YASKAWA equivalent: JZSP-CF2M03-03-E
SWY-CF2M03-05-E Type: Power + Brake cable | Cable: Fixed | Length: 5 m | YASKAWA equivalent: JZSP-CF2M03-05-E
SWY-CF2M03-10-E Type: Power + Brake cable | Cable: Fixed | Length: 10 m | YASKAWA equivalent: JZSP-CF2M03-10-E
SWY-CF2M03-15-E Type: Power + Brake cable | Cable: Fixed | Length: 15 m | YASKAWA equivalent: JZSP-CF2M03-15-E
SWY-CF2M03-20-E Type: Power + Brake cable | Cable: Fixed | Length: 20 m | YASKAWA equivalent: JZSP-CF2M03-20-E
SWY-CF2M23-03-E Type: Power + Brake cable | Cable: Moving | Length: 3 m | YASKAWA equivalent: JZSP-CF2M23-03-E
SWY-CF2M23-05-E Type: Power + Brake cable | Cable: Moving | Length: 5 m | YASKAWA equivalent: JZSP-CF2M23-05-E
SWY-CF2M23-10-E Type: Power + Brake cable | Cable: Moving | Length: 10 m | YASKAWA equivalent: JZSP-CF2M23-10-E
SWY-CF2M23-15-E Type: Power + Brake cable | Cable: Moving | Length: 15 m | YASKAWA equivalent: JZSP-CF2M23-15-E
SWY-CF2M23-20-E Type: Power + Brake cable | Cable: Moving | Length: 20 m | YASKAWA equivalent: JZSP-CF2M23-20-E
Servo CablesSamwon ACT
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT YASKAWA Sigma-X SGM7M-A1A to A3A Power / Power+Brake Cables

Brand Samwon ACT·Servo Cables

Available part numbers (20)

SWY-CF2M00-03-E, SWY-CF2M00-05-E, SWY-CF2M00-10-E, SWY-CF2M00-15-E, SWY-CF2M00-20-E, SWY-CF2M20-03-E, SWY-CF2M20-05-E, SWY-CF2M20-10-E, SWY-CF2M20-15-E, SWY-CF2M20-20-E + 10 more — see full table ↓

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SWY-CF2M00-03-EType: Power cable | Cable: Fixed | Length: 3 m | YASKAWA equivalent: JZSP-CF2M00-03-E
SWY-CF2M00-05-EType: Power cable | Cable: Fixed | Length: 5 m | YASKAWA equivalent: JZSP-CF2M00-05-E
SWY-CF2M00-10-EType: Power cable | Cable: Fixed | Length: 10 m | YASKAWA equivalent: JZSP-CF2M00-10-E
SWY-CF2M00-15-EType: Power cable | Cable: Fixed | Length: 15 m | YASKAWA equivalent: JZSP-CF2M00-15-E
SWY-CF2M00-20-EType: Power cable | Cable: Fixed | Length: 20 m | YASKAWA equivalent: JZSP-CF2M00-20-E
SWY-CF2M20-03-EType: Power cable | Cable: Moving | Length: 3 m | YASKAWA equivalent: JZSP-CF2M20-03-E
SWY-CF2M20-05-EType: Power cable | Cable: Moving | Length: 5 m | YASKAWA equivalent: JZSP-CF2M20-05-E
SWY-CF2M20-10-EType: Power cable | Cable: Moving | Length: 10 m | YASKAWA equivalent: JZSP-CF2M20-10-E
SWY-CF2M20-15-EType: Power cable | Cable: Moving | Length: 15 m | YASKAWA equivalent: JZSP-CF2M20-15-E
SWY-CF2M20-20-EType: Power cable | Cable: Moving | Length: 20 m | YASKAWA equivalent: JZSP-CF2M20-20-E
SWY-CF2M03-03-EType: Power + Brake cable | Cable: Fixed | Length: 3 m | YASKAWA equivalent: JZSP-CF2M03-03-E
SWY-CF2M03-05-EType: Power + Brake cable | Cable: Fixed | Length: 5 m | YASKAWA equivalent: JZSP-CF2M03-05-E
SWY-CF2M03-10-EType: Power + Brake cable | Cable: Fixed | Length: 10 m | YASKAWA equivalent: JZSP-CF2M03-10-E
SWY-CF2M03-15-EType: Power + Brake cable | Cable: Fixed | Length: 15 m | YASKAWA equivalent: JZSP-CF2M03-15-E
SWY-CF2M03-20-EType: Power + Brake cable | Cable: Fixed | Length: 20 m | YASKAWA equivalent: JZSP-CF2M03-20-E
SWY-CF2M23-03-EType: Power + Brake cable | Cable: Moving | Length: 3 m | YASKAWA equivalent: JZSP-CF2M23-03-E
SWY-CF2M23-05-EType: Power + Brake cable | Cable: Moving | Length: 5 m | YASKAWA equivalent: JZSP-CF2M23-05-E
SWY-CF2M23-10-EType: Power + Brake cable | Cable: Moving | Length: 10 m | YASKAWA equivalent: JZSP-CF2M23-10-E
SWY-CF2M23-15-EType: Power + Brake cable | Cable: Moving | Length: 15 m | YASKAWA equivalent: JZSP-CF2M23-15-E
SWY-CF2M23-20-EType: Power + Brake cable | Cable: Moving | Length: 20 m | YASKAWA equivalent: JZSP-CF2M23-20-E
