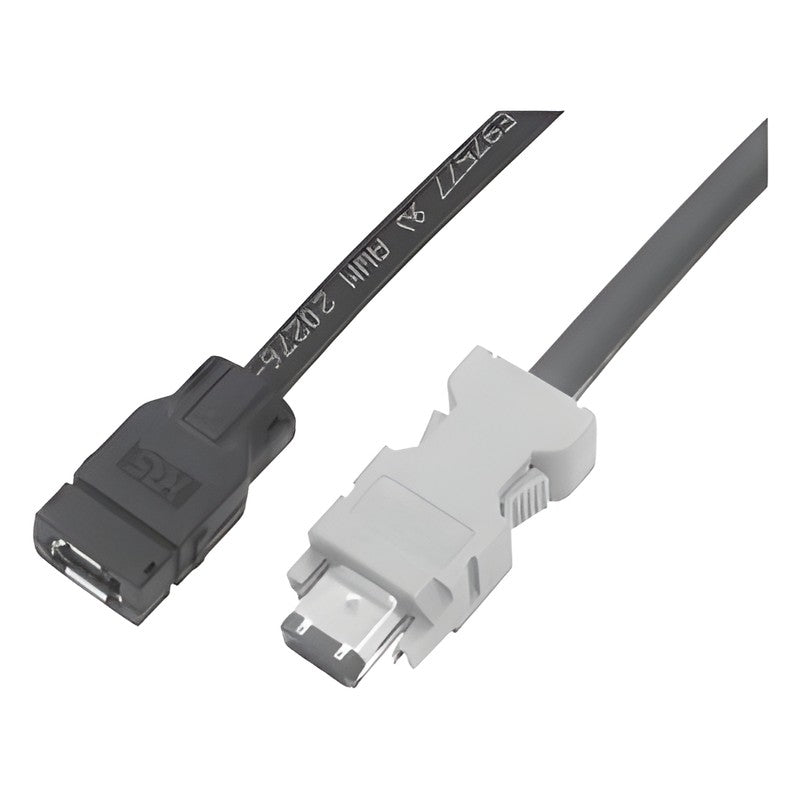

Samwon ACT YASKAWA Sigma-X SGM7M Incremental / Absolute Encoder Cables

Samwon ACT YASKAWA Sigma-X SGM7M Incremental / Absolute Encoder Cables

Incremental and absolute (battery case type) encoder cables for YASKAWA Sigma-X SGM7M rotary servo motors.

Key features

  • Encoder cable for YASKAWA Sigma-X SGM7M rotary servo motors (incremental or absolute)
  • Recommended specification from YASKAWA user manuals and catalogs (some equivalent parts used)
  • Fixed, moving and custom cables can be produced
  • Cable length can be specified freely (made to order in 100 mm steps)
  • Small-quantity orders (from 1 pc) with short lead time

Specifications

Amplifier connector MOLEX 55100-0670 or equivalent
Encoder connector HIROSE IX40-A-8P-JC or equivalent
Battery case SAMWON BTC01 (absolute type)
Fixed cable UL2464 twisted pair shielded, PVC insulation
Moving cable PROTERIAL RT-FLEX UL2464 twisted pair shielded, ETFE insulation
Max. transmission length 20 m (longer on request)
Cable color Black
Length tolerance +50 to +100 mm
SWY-C7MP01-03-E Type: Incremental encoder cable | Cable: Fixed | Length: 3 m | YASKAWA equivalent: JZSP-C7MP01-03-E
SWY-C7MP01-05-E Type: Incremental encoder cable | Cable: Fixed | Length: 5 m | YASKAWA equivalent: JZSP-C7MP01-05-E
SWY-C7MP01-10-E Type: Incremental encoder cable | Cable: Fixed | Length: 10 m | YASKAWA equivalent: JZSP-C7MP01-10-E
SWY-C7MP01-15-E Type: Incremental encoder cable | Cable: Fixed | Length: 15 m | YASKAWA equivalent: JZSP-C7MP01-15-E
SWY-C7MP01-20-E Type: Incremental encoder cable | Cable: Fixed | Length: 20 m | YASKAWA equivalent: JZSP-C7MP01-20-E
SWY-C7MP21-03-E Type: Incremental encoder cable | Cable: Moving | Length: 3 m | YASKAWA equivalent: JZSP-C7MP21-03-E
SWY-C7MP21-05-E Type: Incremental encoder cable | Cable: Moving | Length: 5 m | YASKAWA equivalent: JZSP-C7MP21-05-E
SWY-C7MP21-10-E Type: Incremental encoder cable | Cable: Moving | Length: 10 m | YASKAWA equivalent: JZSP-C7MP21-10-E
SWY-C7MP21-15-E Type: Incremental encoder cable | Cable: Moving | Length: 15 m | YASKAWA equivalent: JZSP-C7MP21-15-E
SWY-C7MP21-20-E Type: Incremental encoder cable | Cable: Moving | Length: 20 m | YASKAWA equivalent: JZSP-C7MP21-20-E
SWY-C7MP19-03-E Type: Absolute encoder cable (with battery case) | Cable: Fixed | Length: 3 m | YASKAWA equivalent: JZSP-C7MP19-03-E
SWY-C7MP19-05-E Type: Absolute encoder cable (with battery case) | Cable: Fixed | Length: 5 m | YASKAWA equivalent: JZSP-C7MP19-05-E
SWY-C7MP19-10-E Type: Absolute encoder cable (with battery case) | Cable: Fixed | Length: 10 m | YASKAWA equivalent: JZSP-C7MP19-10-E
SWY-C7MP19-15-E Type: Absolute encoder cable (with battery case) | Cable: Fixed | Length: 15 m | YASKAWA equivalent: JZSP-C7MP19-15-E
SWY-C7MP19-20-E Type: Absolute encoder cable (with battery case) | Cable: Fixed | Length: 20 m | YASKAWA equivalent: JZSP-C7MP19-20-E
SWY-C7MP29-03-E Type: Absolute encoder cable (with battery case) | Cable: Moving | Length: 3 m | YASKAWA equivalent: JZSP-C7MP29-03-E
SWY-C7MP29-05-E Type: Absolute encoder cable (with battery case) | Cable: Moving | Length: 5 m | YASKAWA equivalent: JZSP-C7MP29-05-E
SWY-C7MP29-10-E Type: Absolute encoder cable (with battery case) | Cable: Moving | Length: 10 m | YASKAWA equivalent: JZSP-C7MP29-10-E
SWY-C7MP29-15-E Type: Absolute encoder cable (with battery case) | Cable: Moving | Length: 15 m | YASKAWA equivalent: JZSP-C7MP29-15-E
SWY-C7MP29-20-E Type: Absolute encoder cable (with battery case) | Cable: Moving | Length: 20 m | YASKAWA equivalent: JZSP-C7MP29-20-E
Encoder CablesSamwon ACT
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT YASKAWA Sigma-X SGM7M Incremental / Absolute Encoder Cables

Brand Samwon ACT·Encoder Cables

Available part numbers (20)

SWY-C7MP01-03-E, SWY-C7MP01-05-E, SWY-C7MP01-10-E, SWY-C7MP01-15-E, SWY-C7MP01-20-E, SWY-C7MP21-03-E, SWY-C7MP21-05-E, SWY-C7MP21-10-E, SWY-C7MP21-15-E, SWY-C7MP21-20-E + 10 more — see full table ↓

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SWY-C7MP01-03-EType: Incremental encoder cable | Cable: Fixed | Length: 3 m | YASKAWA equivalent: JZSP-C7MP01-03-E
SWY-C7MP01-05-EType: Incremental encoder cable | Cable: Fixed | Length: 5 m | YASKAWA equivalent: JZSP-C7MP01-05-E
SWY-C7MP01-10-EType: Incremental encoder cable | Cable: Fixed | Length: 10 m | YASKAWA equivalent: JZSP-C7MP01-10-E
SWY-C7MP01-15-EType: Incremental encoder cable | Cable: Fixed | Length: 15 m | YASKAWA equivalent: JZSP-C7MP01-15-E
SWY-C7MP01-20-EType: Incremental encoder cable | Cable: Fixed | Length: 20 m | YASKAWA equivalent: JZSP-C7MP01-20-E
SWY-C7MP21-03-EType: Incremental encoder cable | Cable: Moving | Length: 3 m | YASKAWA equivalent: JZSP-C7MP21-03-E
SWY-C7MP21-05-EType: Incremental encoder cable | Cable: Moving | Length: 5 m | YASKAWA equivalent: JZSP-C7MP21-05-E
SWY-C7MP21-10-EType: Incremental encoder cable | Cable: Moving | Length: 10 m | YASKAWA equivalent: JZSP-C7MP21-10-E
SWY-C7MP21-15-EType: Incremental encoder cable | Cable: Moving | Length: 15 m | YASKAWA equivalent: JZSP-C7MP21-15-E
SWY-C7MP21-20-EType: Incremental encoder cable | Cable: Moving | Length: 20 m | YASKAWA equivalent: JZSP-C7MP21-20-E
SWY-C7MP19-03-EType: Absolute encoder cable (with battery case) | Cable: Fixed | Length: 3 m | YASKAWA equivalent: JZSP-C7MP19-03-E
SWY-C7MP19-05-EType: Absolute encoder cable (with battery case) | Cable: Fixed | Length: 5 m | YASKAWA equivalent: JZSP-C7MP19-05-E
SWY-C7MP19-10-EType: Absolute encoder cable (with battery case) | Cable: Fixed | Length: 10 m | YASKAWA equivalent: JZSP-C7MP19-10-E
SWY-C7MP19-15-EType: Absolute encoder cable (with battery case) | Cable: Fixed | Length: 15 m | YASKAWA equivalent: JZSP-C7MP19-15-E
SWY-C7MP19-20-EType: Absolute encoder cable (with battery case) | Cable: Fixed | Length: 20 m | YASKAWA equivalent: JZSP-C7MP19-20-E
SWY-C7MP29-03-EType: Absolute encoder cable (with battery case) | Cable: Moving | Length: 3 m | YASKAWA equivalent: JZSP-C7MP29-03-E
SWY-C7MP29-05-EType: Absolute encoder cable (with battery case) | Cable: Moving | Length: 5 m | YASKAWA equivalent: JZSP-C7MP29-05-E
SWY-C7MP29-10-EType: Absolute encoder cable (with battery case) | Cable: Moving | Length: 10 m | YASKAWA equivalent: JZSP-C7MP29-10-E
SWY-C7MP29-15-EType: Absolute encoder cable (with battery case) | Cable: Moving | Length: 15 m | YASKAWA equivalent: JZSP-C7MP29-15-E
SWY-C7MP29-20-EType: Absolute encoder cable (with battery case) | Cable: Moving | Length: 20 m | YASKAWA equivalent: JZSP-C7MP29-20-E
