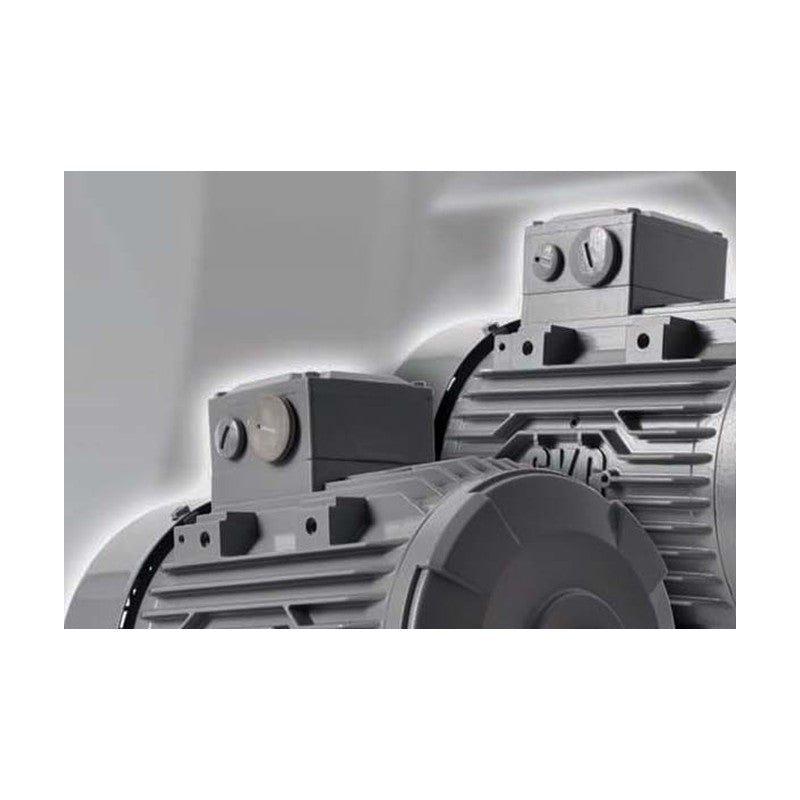

Samyang Motor SC Series Three-Phase Induction Motor (0.75-200 kW)

Samyang Motor SC Series Three-Phase Induction Motor (0.75-200 kW)

Samyang Motor SC series (overseas OEM) three-phase low-voltage induction motors, totally enclosed fan-cooled, 0.75 to 200 kW in 2, 4, 6 and 8 poles for 220/380 V 60 Hz.

Key features

  • High-efficiency (E) grade, 2/4/6/8 poles, frames 80M to 355M
  • Frames 225S (37 kW 6P), 250M (45 kW 6P) and 280S (75 kW 6P) on inquiry
  • Also built in 0.12, 0.18, 0.25, 0.37, 0.55, 1.1, 3 and 4 kW ratings (codes on request)
  • Model name per chart: series, efficiency grade, structure, mounting, phase, output, voltage, poles
  • Totally enclosed fan-cooled (C) design; other structures (drip-proof, explosion-proof, brake, capacitor types) and gear-motor flanges MG/M2/HM to order
  • Mounting B3 foot (H), B5 flange (V) or B35 foot and flange (C)
  • Other voltages by code letter (e.g. Q 380 V 50 Hz, X 220/380 V 50/60 Hz); options A-L to order

Specifications

Phase Three-phase (T)
Structure Totally enclosed fan-cooled (C)
Voltage (code K) 220/380 V, 60 Hz
Efficiency grade E high efficiency
Frames on inquiry 37 kW 6P 225S, 45 kW 6P 250M, 75 kW 6P 280S
Code example SKECH-T1HPK4 (SK prefix; SC = overseas OEM)
Source Samyang Low Voltage Induction Motor catalog, p. 10-11, 14-15
SCECH-T1HPK2 Output: 0.75 kW | Poles: 2P | Frame: 80M | Mounting: Foot B3 (H) | Efficiency: 75.5 %
SCECV-T1HPK2 Output: 0.75 kW | Poles: 2P | Frame: 80M | Mounting: Flange B5 (V) | Efficiency: 75.5 %
SCECC-T1HPK2 Output: 0.75 kW | Poles: 2P | Frame: 80M | Mounting: Foot+flange B35 (C) | Efficiency: 75.5 %
SCECH-T1HPK4 Output: 0.75 kW | Poles: 4P | Frame: 80M | Mounting: Foot B3 (H) | Efficiency: 82.5 %
SCECV-T1HPK4 Output: 0.75 kW | Poles: 4P | Frame: 80M | Mounting: Flange B5 (V) | Efficiency: 82.5 %
SCECC-T1HPK4 Output: 0.75 kW | Poles: 4P | Frame: 80M | Mounting: Foot+flange B35 (C) | Efficiency: 82.5 %
SCECH-T1HPK6 Output: 0.75 kW | Poles: 6P | Frame: 90S | Mounting: Foot B3 (H) | Efficiency: 80.0 %
SCECV-T1HPK6 Output: 0.75 kW | Poles: 6P | Frame: 90S | Mounting: Flange B5 (V) | Efficiency: 80.0 %
SCECC-T1HPK6 Output: 0.75 kW | Poles: 6P | Frame: 90S | Mounting: Foot+flange B35 (C) | Efficiency: 80.0 %
SCECH-T1HPK8 Output: 0.75 kW | Poles: 8P | Frame: 100L | Mounting: Foot B3 (H) | Efficiency: 74.0 %
SCECV-T1HPK8 Output: 0.75 kW | Poles: 8P | Frame: 100L | Mounting: Flange B5 (V) | Efficiency: 74.0 %
SCECC-T1HPK8 Output: 0.75 kW | Poles: 8P | Frame: 100L | Mounting: Foot+flange B35 (C) | Efficiency: 74.0 %
SCECH-T015K2 Output: 1.5 kW | Poles: 2P | Frame: 90S | Mounting: Foot B3 (H) | Efficiency: 84.0 %
SCECV-T015K2 Output: 1.5 kW | Poles: 2P | Frame: 90S | Mounting: Flange B5 (V) | Efficiency: 84.0 %
SCECC-T015K2 Output: 1.5 kW | Poles: 2P | Frame: 90S | Mounting: Foot+flange B35 (C) | Efficiency: 84.0 %
SCECH-T015K4 Output: 1.5 kW | Poles: 4P | Frame: 90L | Mounting: Foot B3 (H) | Efficiency: 84.0 %
SCECV-T015K4 Output: 1.5 kW | Poles: 4P | Frame: 90L | Mounting: Flange B5 (V) | Efficiency: 84.0 %
SCECC-T015K4 Output: 1.5 kW | Poles: 4P | Frame: 90L | Mounting: Foot+flange B35 (C) | Efficiency: 84.0 %
SCECH-T015K6 Output: 1.5 kW | Poles: 6P | Frame: 100L | Mounting: Foot B3 (H) | Efficiency: 86.5 %
SCECV-T015K6 Output: 1.5 kW | Poles: 6P | Frame: 100L | Mounting: Flange B5 (V) | Efficiency: 86.5 %
SCECC-T015K6 Output: 1.5 kW | Poles: 6P | Frame: 100L | Mounting: Foot+flange B35 (C) | Efficiency: 86.5 %
SCECH-T015K8 Output: 1.5 kW | Poles: 8P | Frame: 112M | Mounting: Foot B3 (H) | Efficiency: 82.5 %
SCECV-T015K8 Output: 1.5 kW | Poles: 8P | Frame: 112M | Mounting: Flange B5 (V) | Efficiency: 82.5 %
SCECC-T015K8 Output: 1.5 kW | Poles: 8P | Frame: 112M | Mounting: Foot+flange B35 (C) | Efficiency: 82.5 %
SCECH-T022K2 Output: 2.2 kW | Poles: 2P | Frame: 90L | Mounting: Foot B3 (H) | Efficiency: 85.5 %
SCECV-T022K2 Output: 2.2 kW | Poles: 2P | Frame: 90L | Mounting: Flange B5 (V) | Efficiency: 85.5 %
SCECC-T022K2 Output: 2.2 kW | Poles: 2P | Frame: 90L | Mounting: Foot+flange B35 (C) | Efficiency: 85.5 %
SCECH-T022K4 Output: 2.2 kW | Poles: 4P | Frame: 100L | Mounting: Foot B3 (H) | Efficiency: 87.5 %
SCECV-T022K4 Output: 2.2 kW | Poles: 4P | Frame: 100L | Mounting: Flange B5 (V) | Efficiency: 87.5 %
SCECC-T022K4 Output: 2.2 kW | Poles: 4P | Frame: 100L | Mounting: Foot+flange B35 (C) | Efficiency: 87.5 %
SCECH-T022K6 Output: 2.2 kW | Poles: 6P | Frame: 112M | Mounting: Foot B3 (H) | Efficiency: 87.5 %
SCECV-T022K6 Output: 2.2 kW | Poles: 6P | Frame: 112M | Mounting: Flange B5 (V) | Efficiency: 87.5 %
SCECC-T022K6 Output: 2.2 kW | Poles: 6P | Frame: 112M | Mounting: Foot+flange B35 (C) | Efficiency: 87.5 %
SCECH-T022K8 Output: 2.2 kW | Poles: 8P | Frame: 132S | Mounting: Foot B3 (H) | Efficiency: 84.0 %
SCECV-T022K8 Output: 2.2 kW | Poles: 8P | Frame: 132S | Mounting: Flange B5 (V) | Efficiency: 84.0 %
SCECC-T022K8 Output: 2.2 kW | Poles: 8P | Frame: 132S | Mounting: Foot+flange B35 (C) | Efficiency: 84.0 %
SCECH-T055K2 Output: 5.5 kW | Poles: 2P | Frame: 132S | Mounting: Foot B3 (H) | Efficiency: 88.5 %
SCECV-T055K2 Output: 5.5 kW | Poles: 2P | Frame: 132S | Mounting: Flange B5 (V) | Efficiency: 88.5 %
SCECC-T055K2 Output: 5.5 kW | Poles: 2P | Frame: 132S | Mounting: Foot+flange B35 (C) | Efficiency: 88.5 %
SCECH-T055K4 Output: 5.5 kW | Poles: 4P | Frame: 132S | Mounting: Foot B3 (H) | Efficiency: 89.5 %
SCECV-T055K4 Output: 5.5 kW | Poles: 4P | Frame: 132S | Mounting: Flange B5 (V) | Efficiency: 89.5 %
SCECC-T055K4 Output: 5.5 kW | Poles: 4P | Frame: 132S | Mounting: Foot+flange B35 (C) | Efficiency: 89.5 %
SCECH-T055K6 Output: 5.5 kW | Poles: 6P | Frame: 132M | Mounting: Foot B3 (H) | Efficiency: 89.5 %
SCECV-T055K6 Output: 5.5 kW | Poles: 6P | Frame: 132M | Mounting: Flange B5 (V) | Efficiency: 89.5 %
SCECC-T055K6 Output: 5.5 kW | Poles: 6P | Frame: 132M | Mounting: Foot+flange B35 (C) | Efficiency: 89.5 %
SCECH-T055K8 Output: 5.5 kW | Poles: 8P | Frame: 160M | Mounting: Foot B3 (H) | Efficiency: 85.5 %
SCECV-T055K8 Output: 5.5 kW | Poles: 8P | Frame: 160M | Mounting: Flange B5 (V) | Efficiency: 85.5 %
SCECC-T055K8 Output: 5.5 kW | Poles: 8P | Frame: 160M | Mounting: Foot+flange B35 (C) | Efficiency: 85.5 %
SCECH-T075K2 Output: 7.5 kW | Poles: 2P | Frame: 132S | Mounting: Foot B3 (H) | Efficiency: 89.5 %
SCECV-T075K2 Output: 7.5 kW | Poles: 2P | Frame: 132S | Mounting: Flange B5 (V) | Efficiency: 89.5 %
SCECC-T075K2 Output: 7.5 kW | Poles: 2P | Frame: 132S | Mounting: Foot+flange B35 (C) | Efficiency: 89.5 %
SCECH-T075K4 Output: 7.5 kW | Poles: 4P | Frame: 132M | Mounting: Foot B3 (H) | Efficiency: 89.5 %
SCECV-T075K4 Output: 7.5 kW | Poles: 4P | Frame: 132M | Mounting: Flange B5 (V) | Efficiency: 89.5 %
SCECC-T075K4 Output: 7.5 kW | Poles: 4P | Frame: 132M | Mounting: Foot+flange B35 (C) | Efficiency: 89.5 %
SCECH-T075K6 Output: 7.5 kW | Poles: 6P | Frame: 160M | Mounting: Foot B3 (H) | Efficiency: 89.5 %
SCECV-T075K6 Output: 7.5 kW | Poles: 6P | Frame: 160M | Mounting: Flange B5 (V) | Efficiency: 89.5 %
SCECC-T075K6 Output: 7.5 kW | Poles: 6P | Frame: 160M | Mounting: Foot+flange B35 (C) | Efficiency: 89.5 %
SCECH-T075K8 Output: 7.5 kW | Poles: 8P | Frame: 160L | Mounting: Foot B3 (H) | Efficiency: 88.5 %
SCECV-T075K8 Output: 7.5 kW | Poles: 8P | Frame: 160L | Mounting: Flange B5 (V) | Efficiency: 88.5 %
SCECC-T075K8 Output: 7.5 kW | Poles: 8P | Frame: 160L | Mounting: Foot+flange B35 (C) | Efficiency: 88.5 %
SCECH-T110K2 Output: 11 kW | Poles: 2P | Frame: 160M | Mounting: Foot B3 (H) | Efficiency: 90.2 %
SCECV-T110K2 Output: 11 kW | Poles: 2P | Frame: 160M | Mounting: Flange B5 (V) | Efficiency: 90.2 %
SCECC-T110K2 Output: 11 kW | Poles: 2P | Frame: 160M | Mounting: Foot+flange B35 (C) | Efficiency: 90.2 %
SCECH-T110K4 Output: 11 kW | Poles: 4P | Frame: 160M | Mounting: Foot B3 (H) | Efficiency: 91.0 %
SCECV-T110K4 Output: 11 kW | Poles: 4P | Frame: 160M | Mounting: Flange B5 (V) | Efficiency: 91.0 %
SCECC-T110K4 Output: 11 kW | Poles: 4P | Frame: 160M | Mounting: Foot+flange B35 (C) | Efficiency: 91.0 %
SCECH-T110K6 Output: 11 kW | Poles: 6P | Frame: 160L | Mounting: Foot B3 (H) | Efficiency: 90.2 %
SCECV-T110K6 Output: 11 kW | Poles: 6P | Frame: 160L | Mounting: Flange B5 (V) | Efficiency: 90.2 %
SCECC-T110K6 Output: 11 kW | Poles: 6P | Frame: 160L | Mounting: Foot+flange B35 (C) | Efficiency: 90.2 %
SCECH-T110K8 Output: 11 kW | Poles: 8P | Frame: 180L | Mounting: Foot B3 (H) | Efficiency: 88.5 %
SCECV-T110K8 Output: 11 kW | Poles: 8P | Frame: 180L | Mounting: Flange B5 (V) | Efficiency: 88.5 %
SCECC-T110K8 Output: 11 kW | Poles: 8P | Frame: 180L | Mounting: Foot+flange B35 (C) | Efficiency: 88.5 %
SCECH-T150K2 Output: 15 kW | Poles: 2P | Frame: 160M | Mounting: Foot B3 (H) | Efficiency: 90.2 %
SCECV-T150K2 Output: 15 kW | Poles: 2P | Frame: 160M | Mounting: Flange B5 (V) | Efficiency: 90.2 %
SCECC-T150K2 Output: 15 kW | Poles: 2P | Frame: 160M | Mounting: Foot+flange B35 (C) | Efficiency: 90.2 %
SCECH-T150K4 Output: 15 kW | Poles: 4P | Frame: 160L | Mounting: Foot B3 (H) | Efficiency: 91.0 %
SCECV-T150K4 Output: 15 kW | Poles: 4P | Frame: 160L | Mounting: Flange B5 (V) | Efficiency: 91.0 %
SCECC-T150K4 Output: 15 kW | Poles: 4P | Frame: 160L | Mounting: Foot+flange B35 (C) | Efficiency: 91.0 %
SCECH-T150K6 Output: 15 kW | Poles: 6P | Frame: 180L | Mounting: Foot B3 (H) | Efficiency: 90.2 %
SCECV-T150K6 Output: 15 kW | Poles: 6P | Frame: 180L | Mounting: Flange B5 (V) | Efficiency: 90.2 %
SCECC-T150K6 Output: 15 kW | Poles: 6P | Frame: 180L | Mounting: Foot+flange B35 (C) | Efficiency: 90.2 %
SCECH-T150K8 Output: 15 kW | Poles: 8P | Frame: 200L | Mounting: Foot B3 (H) | Efficiency: 89.5 %
SCECV-T150K8 Output: 15 kW | Poles: 8P | Frame: 200L | Mounting: Flange B5 (V) | Efficiency: 89.5 %
SCECC-T150K8 Output: 15 kW | Poles: 8P | Frame: 200L | Mounting: Foot+flange B35 (C) | Efficiency: 89.5 %
SCECH-T185K2 Output: 18.5 kW | Poles: 2P | Frame: 160L | Mounting: Foot B3 (H) | Efficiency: 91.0 %
SCECV-T185K2 Output: 18.5 kW | Poles: 2P | Frame: 160L | Mounting: Flange B5 (V) | Efficiency: 91.0 %
SCECC-T185K2 Output: 18.5 kW | Poles: 2P | Frame: 160L | Mounting: Foot+flange B35 (C) | Efficiency: 91.0 %
SCECH-T185K4 Output: 18.5 kW | Poles: 4P | Frame: 180M | Mounting: Foot B3 (H) | Efficiency: 92.4 %
SCECV-T185K4 Output: 18.5 kW | Poles: 4P | Frame: 180M | Mounting: Flange B5 (V) | Efficiency: 92.4 %
SCECC-T185K4 Output: 18.5 kW | Poles: 4P | Frame: 180M | Mounting: Foot+flange B35 (C) | Efficiency: 92.4 %
SCECH-T185K6 Output: 18.5 kW | Poles: 6P | Frame: 200L | Mounting: Foot B3 (H) | Efficiency: 91.7 %
SCECV-T185K6 Output: 18.5 kW | Poles: 6P | Frame: 200L | Mounting: Flange B5 (V) | Efficiency: 91.7 %
SCECC-T185K6 Output: 18.5 kW | Poles: 6P | Frame: 200L | Mounting: Foot+flange B35 (C) | Efficiency: 91.7 %
SCECH-T185K8 Output: 18.5 kW | Poles: 8P | Frame: 225S | Mounting: Foot B3 (H) | Efficiency: 89.5 %
SCECV-T185K8 Output: 18.5 kW | Poles: 8P | Frame: 225S | Mounting: Flange B5 (V) | Efficiency: 89.5 %
SCECC-T185K8 Output: 18.5 kW | Poles: 8P | Frame: 225S | Mounting: Foot+flange B35 (C) | Efficiency: 89.5 %
SCECH-T220K2 Output: 22 kW | Poles: 2P | Frame: 180M | Mounting: Foot B3 (H) | Efficiency: 91.0 %
SCECV-T220K2 Output: 22 kW | Poles: 2P | Frame: 180M | Mounting: Flange B5 (V) | Efficiency: 91.0 %
SCECC-T220K2 Output: 22 kW | Poles: 2P | Frame: 180M | Mounting: Foot+flange B35 (C) | Efficiency: 91.0 %
SCECH-T220K4 Output: 22 kW | Poles: 4P | Frame: 180L | Mounting: Foot B3 (H) | Efficiency: 92.4 %
SCECV-T220K4 Output: 22 kW | Poles: 4P | Frame: 180L | Mounting: Flange B5 (V) | Efficiency: 92.4 %
SCECC-T220K4 Output: 22 kW | Poles: 4P | Frame: 180L | Mounting: Foot+flange B35 (C) | Efficiency: 92.4 %
SCECH-T220K6 Output: 22 kW | Poles: 6P | Frame: 200L | Mounting: Foot B3 (H) | Efficiency: 91.7 %
SCECV-T220K6 Output: 22 kW | Poles: 6P | Frame: 200L | Mounting: Flange B5 (V) | Efficiency: 91.7 %
SCECC-T220K6 Output: 22 kW | Poles: 6P | Frame: 200L | Mounting: Foot+flange B35 (C) | Efficiency: 91.7 %
SCECH-T220K8 Output: 22 kW | Poles: 8P | Frame: 225M | Mounting: Foot B3 (H) | Efficiency: 91.0 %
SCECV-T220K8 Output: 22 kW | Poles: 8P | Frame: 225M | Mounting: Flange B5 (V) | Efficiency: 91.0 %
SCECC-T220K8 Output: 22 kW | Poles: 8P | Frame: 225M | Mounting: Foot+flange B35 (C) | Efficiency: 91.0 %
SCECH-T300K2 Output: 30 kW | Poles: 2P | Frame: 200L | Mounting: Foot B3 (H) | Efficiency: 91.7 %
SCECV-T300K2 Output: 30 kW | Poles: 2P | Frame: 200L | Mounting: Flange B5 (V) | Efficiency: 91.7 %
SCECC-T300K2 Output: 30 kW | Poles: 2P | Frame: 200L | Mounting: Foot+flange B35 (C) | Efficiency: 91.7 %
SCECH-T300K4 Output: 30 kW | Poles: 4P | Frame: 200L | Mounting: Foot B3 (H) | Efficiency: 93.0 %
SCECV-T300K4 Output: 30 kW | Poles: 4P | Frame: 200L | Mounting: Flange B5 (V) | Efficiency: 93.0 %
SCECC-T300K4 Output: 30 kW | Poles: 4P | Frame: 200L | Mounting: Foot+flange B35 (C) | Efficiency: 93.0 %
SCECH-T300K6 Output: 30 kW | Poles: 6P | Frame: 225M | Mounting: Foot B3 (H) | Efficiency: 93.0 %
SCECV-T300K6 Output: 30 kW | Poles: 6P | Frame: 225M | Mounting: Flange B5 (V) | Efficiency: 93.0 %
SCECC-T300K6 Output: 30 kW | Poles: 6P | Frame: 225M | Mounting: Foot+flange B35 (C) | Efficiency: 93.0 %
SCECH-T300K8 Output: 30 kW | Poles: 8P | Frame: 250M | Mounting: Foot B3 (H) | Efficiency: 91.0 %
SCECV-T300K8 Output: 30 kW | Poles: 8P | Frame: 250M | Mounting: Flange B5 (V) | Efficiency: 91.0 %
SCECC-T300K8 Output: 30 kW | Poles: 8P | Frame: 250M | Mounting: Foot+flange B35 (C) | Efficiency: 91.0 %
SCECH-T370K2 Output: 37 kW | Poles: 2P | Frame: 200L | Mounting: Foot B3 (H) | Efficiency: 92.4 %
SCECV-T370K2 Output: 37 kW | Poles: 2P | Frame: 200L | Mounting: Flange B5 (V) | Efficiency: 92.4 %
SCECC-T370K2 Output: 37 kW | Poles: 2P | Frame: 200L | Mounting: Foot+flange B35 (C) | Efficiency: 92.4 %
SCECH-T370K4 Output: 37 kW | Poles: 4P | Frame: 225S | Mounting: Foot B3 (H) | Efficiency: 93.0 %
SCECV-T370K4 Output: 37 kW | Poles: 4P | Frame: 225S | Mounting: Flange B5 (V) | Efficiency: 93.0 %
SCECC-T370K4 Output: 37 kW | Poles: 4P | Frame: 225S | Mounting: Foot+flange B35 (C) | Efficiency: 93.0 %
SCECH-T370K6 Output: 37 kW | Poles: 6P | Frame: 225S | Mounting: Foot B3 (H) | Efficiency: 93.0 %
SCECV-T370K6 Output: 37 kW | Poles: 6P | Frame: 225S | Mounting: Flange B5 (V) | Efficiency: 93.0 %
SCECC-T370K6 Output: 37 kW | Poles: 6P | Frame: 225S | Mounting: Foot+flange B35 (C) | Efficiency: 93.0 %
SCECH-T370K8 Output: 37 kW | Poles: 8P | Frame: 280S | Mounting: Foot B3 (H) | Efficiency: 91.7 %
SCECV-T370K8 Output: 37 kW | Poles: 8P | Frame: 280S | Mounting: Flange B5 (V) | Efficiency: 91.7 %
SCECC-T370K8 Output: 37 kW | Poles: 8P | Frame: 280S | Mounting: Foot+flange B35 (C) | Efficiency: 91.7 %
SCECH-T450K2 Output: 45 kW | Poles: 2P | Frame: 225M | Mounting: Foot B3 (H) | Efficiency: 93.0 %
SCECV-T450K2 Output: 45 kW | Poles: 2P | Frame: 225M | Mounting: Flange B5 (V) | Efficiency: 93.0 %
SCECC-T450K2 Output: 45 kW | Poles: 2P | Frame: 225M | Mounting: Foot+flange B35 (C) | Efficiency: 93.0 %
SCECH-T450K4 Output: 45 kW | Poles: 4P | Frame: 225M | Mounting: Foot B3 (H) | Efficiency: 93.6 %
SCECV-T450K4 Output: 45 kW | Poles: 4P | Frame: 225M | Mounting: Flange B5 (V) | Efficiency: 93.6 %
SCECC-T450K4 Output: 45 kW | Poles: 4P | Frame: 225M | Mounting: Foot+flange B35 (C) | Efficiency: 93.6 %
SCECH-T450K6 Output: 45 kW | Poles: 6P | Frame: 250M | Mounting: Foot B3 (H) | Efficiency: 93.6 %
SCECV-T450K6 Output: 45 kW | Poles: 6P | Frame: 250M | Mounting: Flange B5 (V) | Efficiency: 93.6 %
SCECC-T450K6 Output: 45 kW | Poles: 6P | Frame: 250M | Mounting: Foot+flange B35 (C) | Efficiency: 93.6 %
SCECH-T450K8 Output: 45 kW | Poles: 8P | Frame: 280M | Mounting: Foot B3 (H) | Efficiency: 91.7 %
SCECV-T450K8 Output: 45 kW | Poles: 8P | Frame: 280M | Mounting: Flange B5 (V) | Efficiency: 91.7 %
SCECC-T450K8 Output: 45 kW | Poles: 8P | Frame: 280M | Mounting: Foot+flange B35 (C) | Efficiency: 91.7 %
SCECH-T550K2 Output: 55 kW | Poles: 2P | Frame: 250M | Mounting: Foot B3 (H) | Efficiency: 93.0 %
SCECV-T550K2 Output: 55 kW | Poles: 2P | Frame: 250M | Mounting: Flange B5 (V) | Efficiency: 93.0 %
SCECC-T550K2 Output: 55 kW | Poles: 2P | Frame: 250M | Mounting: Foot+flange B35 (C) | Efficiency: 93.0 %
SCECH-T550K4 Output: 55 kW | Poles: 4P | Frame: 250M | Mounting: Foot B3 (H) | Efficiency: 94.1 %
SCECV-T550K4 Output: 55 kW | Poles: 4P | Frame: 250M | Mounting: Flange B5 (V) | Efficiency: 94.1 %
SCECC-T550K4 Output: 55 kW | Poles: 4P | Frame: 250M | Mounting: Foot+flange B35 (C) | Efficiency: 94.1 %
SCECH-T550K6 Output: 55 kW | Poles: 6P | Frame: 280M | Mounting: Foot B3 (H) | Efficiency: 93.6 %
SCECV-T550K6 Output: 55 kW | Poles: 6P | Frame: 280M | Mounting: Flange B5 (V) | Efficiency: 93.6 %
SCECC-T550K6 Output: 55 kW | Poles: 6P | Frame: 280M | Mounting: Foot+flange B35 (C) | Efficiency: 93.6 %
SCECH-T550K8 Output: 55 kW | Poles: 8P | Frame: 315S | Mounting: Foot B3 (H) | Efficiency: 93.0 %
SCECV-T550K8 Output: 55 kW | Poles: 8P | Frame: 315S | Mounting: Flange B5 (V) | Efficiency: 93.0 %
SCECC-T550K8 Output: 55 kW | Poles: 8P | Frame: 315S | Mounting: Foot+flange B35 (C) | Efficiency: 93.0 %
SCECH-T750K2 Output: 75 kW | Poles: 2P | Frame: 280S | Mounting: Foot B3 (H) | Efficiency: 93.6 %
SCECV-T750K2 Output: 75 kW | Poles: 2P | Frame: 280S | Mounting: Flange B5 (V) | Efficiency: 93.6 %
SCECC-T750K2 Output: 75 kW | Poles: 2P | Frame: 280S | Mounting: Foot+flange B35 (C) | Efficiency: 93.6 %
SCECH-T750K4 Output: 75 kW | Poles: 4P | Frame: 280S | Mounting: Foot B3 (H) | Efficiency: 94.5 %
SCECV-T750K4 Output: 75 kW | Poles: 4P | Frame: 280S | Mounting: Flange B5 (V) | Efficiency: 94.5 %
SCECC-T750K4 Output: 75 kW | Poles: 4P | Frame: 280S | Mounting: Foot+flange B35 (C) | Efficiency: 94.5 %
SCECH-T750K6 Output: 75 kW | Poles: 6P | Frame: 280S | Mounting: Foot B3 (H) | Efficiency: 94.1 %
SCECV-T750K6 Output: 75 kW | Poles: 6P | Frame: 280S | Mounting: Flange B5 (V) | Efficiency: 94.1 %
SCECC-T750K6 Output: 75 kW | Poles: 6P | Frame: 280S | Mounting: Foot+flange B35 (C) | Efficiency: 94.1 %
SCECH-T750K8 Output: 75 kW | Poles: 8P | Frame: 315M | Mounting: Foot B3 (H) | Efficiency: 93.0 %
SCECV-T750K8 Output: 75 kW | Poles: 8P | Frame: 315M | Mounting: Flange B5 (V) | Efficiency: 93.0 %
SCECC-T750K8 Output: 75 kW | Poles: 8P | Frame: 315M | Mounting: Foot+flange B35 (C) | Efficiency: 93.0 %
SCECH-T900K2 Output: 90 kW | Poles: 2P | Frame: 280M | Mounting: Foot B3 (H) | Efficiency: 94.5 %
SCECV-T900K2 Output: 90 kW | Poles: 2P | Frame: 280M | Mounting: Flange B5 (V) | Efficiency: 94.5 %
SCECC-T900K2 Output: 90 kW | Poles: 2P | Frame: 280M | Mounting: Foot+flange B35 (C) | Efficiency: 94.5 %
SCECH-T900K4 Output: 90 kW | Poles: 4P | Frame: 280M | Mounting: Foot B3 (H) | Efficiency: 94.5 %
SCECV-T900K4 Output: 90 kW | Poles: 4P | Frame: 280M | Mounting: Flange B5 (V) | Efficiency: 94.5 %
SCECC-T900K4 Output: 90 kW | Poles: 4P | Frame: 280M | Mounting: Foot+flange B35 (C) | Efficiency: 94.5 %
SCECH-T900K6 Output: 90 kW | Poles: 6P | Frame: 315M | Mounting: Foot B3 (H) | Efficiency: 94.1 %
SCECV-T900K6 Output: 90 kW | Poles: 6P | Frame: 315M | Mounting: Flange B5 (V) | Efficiency: 94.1 %
SCECC-T900K6 Output: 90 kW | Poles: 6P | Frame: 315M | Mounting: Foot+flange B35 (C) | Efficiency: 94.1 %
SCECH-T900K8 Output: 90 kW | Poles: 8P | Frame: 315L1 | Mounting: Foot B3 (H) | Efficiency: 93.6 %
SCECV-T900K8 Output: 90 kW | Poles: 8P | Frame: 315L1 | Mounting: Flange B5 (V) | Efficiency: 93.6 %
SCECC-T900K8 Output: 90 kW | Poles: 8P | Frame: 315L1 | Mounting: Foot+flange B35 (C) | Efficiency: 93.6 %
SCECH-TA10K2 Output: 110 kW | Poles: 2P | Frame: 315S | Mounting: Foot B3 (H) | Efficiency: 94.5 %
SCECV-TA10K2 Output: 110 kW | Poles: 2P | Frame: 315S | Mounting: Flange B5 (V) | Efficiency: 94.5 %
SCECC-TA10K2 Output: 110 kW | Poles: 2P | Frame: 315S | Mounting: Foot+flange B35 (C) | Efficiency: 94.5 %
SCECH-TA10K4 Output: 110 kW | Poles: 4P | Frame: 315S | Mounting: Foot B3 (H) | Efficiency: 95.0 %
SCECV-TA10K4 Output: 110 kW | Poles: 4P | Frame: 315S | Mounting: Flange B5 (V) | Efficiency: 95.0 %
SCECC-TA10K4 Output: 110 kW | Poles: 4P | Frame: 315S | Mounting: Foot+flange B35 (C) | Efficiency: 95.0 %
SCECH-TA10K6 Output: 110 kW | Poles: 6P | Frame: 315L | Mounting: Foot B3 (H) | Efficiency: 95.0 %
SCECV-TA10K6 Output: 110 kW | Poles: 6P | Frame: 315L | Mounting: Flange B5 (V) | Efficiency: 95.0 %
SCECC-TA10K6 Output: 110 kW | Poles: 6P | Frame: 315L | Mounting: Foot+flange B35 (C) | Efficiency: 95.0 %
SCECH-TA10K8 Output: 110 kW | Poles: 8P | Frame: 315L | Mounting: Foot B3 (H) | Efficiency: 93.6 %
SCECV-TA10K8 Output: 110 kW | Poles: 8P | Frame: 315L | Mounting: Flange B5 (V) | Efficiency: 93.6 %
SCECC-TA10K8 Output: 110 kW | Poles: 8P | Frame: 315L | Mounting: Foot+flange B35 (C) | Efficiency: 93.6 %
SCECH-TA32K2 Output: 132 kW | Poles: 2P | Frame: 315M | Mounting: Foot B3 (H) | Efficiency: 94.5 %
SCECV-TA32K2 Output: 132 kW | Poles: 2P | Frame: 315M | Mounting: Flange B5 (V) | Efficiency: 94.5 %
SCECC-TA32K2 Output: 132 kW | Poles: 2P | Frame: 315M | Mounting: Foot+flange B35 (C) | Efficiency: 94.5 %
SCECH-TA32K4 Output: 132 kW | Poles: 4P | Frame: 315M | Mounting: Foot B3 (H) | Efficiency: 95.0 %
SCECV-TA32K4 Output: 132 kW | Poles: 4P | Frame: 315M | Mounting: Flange B5 (V) | Efficiency: 95.0 %
SCECC-TA32K4 Output: 132 kW | Poles: 4P | Frame: 315M | Mounting: Foot+flange B35 (C) | Efficiency: 95.0 %
SCECH-TA32K6 Output: 132 kW | Poles: 6P | Frame: 315L | Mounting: Foot B3 (H) | Efficiency: 95.0 %
SCECV-TA32K6 Output: 132 kW | Poles: 6P | Frame: 315L | Mounting: Flange B5 (V) | Efficiency: 95.0 %
SCECC-TA32K6 Output: 132 kW | Poles: 6P | Frame: 315L | Mounting: Foot+flange B35 (C) | Efficiency: 95.0 %
SCECH-TA60K2 Output: 160 kW | Poles: 2P | Frame: 315L | Mounting: Foot B3 (H) | Efficiency: 95.0 %
SCECV-TA60K2 Output: 160 kW | Poles: 2P | Frame: 315L | Mounting: Flange B5 (V) | Efficiency: 95.0 %
SCECC-TA60K2 Output: 160 kW | Poles: 2P | Frame: 315L | Mounting: Foot+flange B35 (C) | Efficiency: 95.0 %
SCECH-TA60K4 Output: 160 kW | Poles: 4P | Frame: 315L | Mounting: Foot B3 (H) | Efficiency: 95.0 %
SCECV-TA60K4 Output: 160 kW | Poles: 4P | Frame: 315L | Mounting: Flange B5 (V) | Efficiency: 95.0 %
SCECC-TA60K4 Output: 160 kW | Poles: 4P | Frame: 315L | Mounting: Foot+flange B35 (C) | Efficiency: 95.0 %
SCECH-TA60K6 Output: 160 kW | Poles: 6P | Frame: 355M | Mounting: Foot B3 (H) | Efficiency: 95.0 %
SCECV-TA60K6 Output: 160 kW | Poles: 6P | Frame: 355M | Mounting: Flange B5 (V) | Efficiency: 95.0 %
SCECC-TA60K6 Output: 160 kW | Poles: 6P | Frame: 355M | Mounting: Foot+flange B35 (C) | Efficiency: 95.0 %
SCECH-TB00K2 Output: 200 kW | Poles: 2P | Frame: 315L | Mounting: Foot B3 (H) | Efficiency: 95.0 %
SCECV-TB00K2 Output: 200 kW | Poles: 2P | Frame: 315L | Mounting: Flange B5 (V) | Efficiency: 95.0 %
SCECC-TB00K2 Output: 200 kW | Poles: 2P | Frame: 315L | Mounting: Foot+flange B35 (C) | Efficiency: 95.0 %
SCECH-TB00K4 Output: 200 kW | Poles: 4P | Frame: 315L | Mounting: Foot B3 (H) | Efficiency: 95.0 %
SCECV-TB00K4 Output: 200 kW | Poles: 4P | Frame: 315L | Mounting: Flange B5 (V) | Efficiency: 95.0 %
SCECC-TB00K4 Output: 200 kW | Poles: 4P | Frame: 315L | Mounting: Foot+flange B35 (C) | Efficiency: 95.0 %
AC Induction MotorsSamyang Motor
216 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samyang Motor SC Series Three-Phase Induction Motor (0.75-200 kW)

Brand Samyang Motor·AC Induction Motors

Available part numbers (216)

SCECH-T1HPK2, SCECV-T1HPK2, SCECC-T1HPK2, SCECH-T1HPK4, SCECV-T1HPK4, SCECC-T1HPK4, SCECH-T1HPK6, SCECV-T1HPK6, SCECC-T1HPK6, SCECH-T1HPK8 + 206 more — see full table ↓

How to order

Send the Samyang Motor part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SCECH-T1HPK2Output: 0.75 kW | Poles: 2P | Frame: 80M | Mounting: Foot B3 (H) | Efficiency: 75.5 %
SCECV-T1HPK2Output: 0.75 kW | Poles: 2P | Frame: 80M | Mounting: Flange B5 (V) | Efficiency: 75.5 %
SCECC-T1HPK2Output: 0.75 kW | Poles: 2P | Frame: 80M | Mounting: Foot+flange B35 (C) | Efficiency: 75.5 %
SCECH-T1HPK4Output: 0.75 kW | Poles: 4P | Frame: 80M | Mounting: Foot B3 (H) | Efficiency: 82.5 %
SCECV-T1HPK4Output: 0.75 kW | Poles: 4P | Frame: 80M | Mounting: Flange B5 (V) | Efficiency: 82.5 %
SCECC-T1HPK4Output: 0.75 kW | Poles: 4P | Frame: 80M | Mounting: Foot+flange B35 (C) | Efficiency: 82.5 %
SCECH-T1HPK6Output: 0.75 kW | Poles: 6P | Frame: 90S | Mounting: Foot B3 (H) | Efficiency: 80.0 %
SCECV-T1HPK6Output: 0.75 kW | Poles: 6P | Frame: 90S | Mounting: Flange B5 (V) | Efficiency: 80.0 %
SCECC-T1HPK6Output: 0.75 kW | Poles: 6P | Frame: 90S | Mounting: Foot+flange B35 (C) | Efficiency: 80.0 %
SCECH-T1HPK8Output: 0.75 kW | Poles: 8P | Frame: 100L | Mounting: Foot B3 (H) | Efficiency: 74.0 %
SCECV-T1HPK8Output: 0.75 kW | Poles: 8P | Frame: 100L | Mounting: Flange B5 (V) | Efficiency: 74.0 %
SCECC-T1HPK8Output: 0.75 kW | Poles: 8P | Frame: 100L | Mounting: Foot+flange B35 (C) | Efficiency: 74.0 %
SCECH-T015K2Output: 1.5 kW | Poles: 2P | Frame: 90S | Mounting: Foot B3 (H) | Efficiency: 84.0 %
SCECV-T015K2Output: 1.5 kW | Poles: 2P | Frame: 90S | Mounting: Flange B5 (V) | Efficiency: 84.0 %
SCECC-T015K2Output: 1.5 kW | Poles: 2P | Frame: 90S | Mounting: Foot+flange B35 (C) | Efficiency: 84.0 %
SCECH-T015K4Output: 1.5 kW | Poles: 4P | Frame: 90L | Mounting: Foot B3 (H) | Efficiency: 84.0 %
SCECV-T015K4Output: 1.5 kW | Poles: 4P | Frame: 90L | Mounting: Flange B5 (V) | Efficiency: 84.0 %
SCECC-T015K4Output: 1.5 kW | Poles: 4P | Frame: 90L | Mounting: Foot+flange B35 (C) | Efficiency: 84.0 %
SCECH-T015K6Output: 1.5 kW | Poles: 6P | Frame: 100L | Mounting: Foot B3 (H) | Efficiency: 86.5 %
SCECV-T015K6Output: 1.5 kW | Poles: 6P | Frame: 100L | Mounting: Flange B5 (V) | Efficiency: 86.5 %
SCECC-T015K6Output: 1.5 kW | Poles: 6P | Frame: 100L | Mounting: Foot+flange B35 (C) | Efficiency: 86.5 %
SCECH-T015K8Output: 1.5 kW | Poles: 8P | Frame: 112M | Mounting: Foot B3 (H) | Efficiency: 82.5 %
SCECV-T015K8Output: 1.5 kW | Poles: 8P | Frame: 112M | Mounting: Flange B5 (V) | Efficiency: 82.5 %
SCECC-T015K8Output: 1.5 kW | Poles: 8P | Frame: 112M | Mounting: Foot+flange B35 (C) | Efficiency: 82.5 %
SCECH-T022K2Output: 2.2 kW | Poles: 2P | Frame: 90L | Mounting: Foot B3 (H) | Efficiency: 85.5 %
SCECV-T022K2Output: 2.2 kW | Poles: 2P | Frame: 90L | Mounting: Flange B5 (V) | Efficiency: 85.5 %
SCECC-T022K2Output: 2.2 kW | Poles: 2P | Frame: 90L | Mounting: Foot+flange B35 (C) | Efficiency: 85.5 %
SCECH-T022K4Output: 2.2 kW | Poles: 4P | Frame: 100L | Mounting: Foot B3 (H) | Efficiency: 87.5 %
SCECV-T022K4Output: 2.2 kW | Poles: 4P | Frame: 100L | Mounting: Flange B5 (V) | Efficiency: 87.5 %
SCECC-T022K4Output: 2.2 kW | Poles: 4P | Frame: 100L | Mounting: Foot+flange B35 (C) | Efficiency: 87.5 %
SCECH-T022K6Output: 2.2 kW | Poles: 6P | Frame: 112M | Mounting: Foot B3 (H) | Efficiency: 87.5 %
SCECV-T022K6Output: 2.2 kW | Poles: 6P | Frame: 112M | Mounting: Flange B5 (V) | Efficiency: 87.5 %
SCECC-T022K6Output: 2.2 kW | Poles: 6P | Frame: 112M | Mounting: Foot+flange B35 (C) | Efficiency: 87.5 %
SCECH-T022K8Output: 2.2 kW | Poles: 8P | Frame: 132S | Mounting: Foot B3 (H) | Efficiency: 84.0 %
SCECV-T022K8Output: 2.2 kW | Poles: 8P | Frame: 132S | Mounting: Flange B5 (V) | Efficiency: 84.0 %
SCECC-T022K8Output: 2.2 kW | Poles: 8P | Frame: 132S | Mounting: Foot+flange B35 (C) | Efficiency: 84.0 %
SCECH-T055K2Output: 5.5 kW | Poles: 2P | Frame: 132S | Mounting: Foot B3 (H) | Efficiency: 88.5 %
SCECV-T055K2Output: 5.5 kW | Poles: 2P | Frame: 132S | Mounting: Flange B5 (V) | Efficiency: 88.5 %
SCECC-T055K2Output: 5.5 kW | Poles: 2P | Frame: 132S | Mounting: Foot+flange B35 (C) | Efficiency: 88.5 %
SCECH-T055K4Output: 5.5 kW | Poles: 4P | Frame: 132S | Mounting: Foot B3 (H) | Efficiency: 89.5 %
SCECV-T055K4Output: 5.5 kW | Poles: 4P | Frame: 132S | Mounting: Flange B5 (V) | Efficiency: 89.5 %
SCECC-T055K4Output: 5.5 kW | Poles: 4P | Frame: 132S | Mounting: Foot+flange B35 (C) | Efficiency: 89.5 %
SCECH-T055K6Output: 5.5 kW | Poles: 6P | Frame: 132M | Mounting: Foot B3 (H) | Efficiency: 89.5 %
SCECV-T055K6Output: 5.5 kW | Poles: 6P | Frame: 132M | Mounting: Flange B5 (V) | Efficiency: 89.5 %
SCECC-T055K6Output: 5.5 kW | Poles: 6P | Frame: 132M | Mounting: Foot+flange B35 (C) | Efficiency: 89.5 %
SCECH-T055K8Output: 5.5 kW | Poles: 8P | Frame: 160M | Mounting: Foot B3 (H) | Efficiency: 85.5 %
SCECV-T055K8Output: 5.5 kW | Poles: 8P | Frame: 160M | Mounting: Flange B5 (V) | Efficiency: 85.5 %
SCECC-T055K8Output: 5.5 kW | Poles: 8P | Frame: 160M | Mounting: Foot+flange B35 (C) | Efficiency: 85.5 %
SCECH-T075K2Output: 7.5 kW | Poles: 2P | Frame: 132S | Mounting: Foot B3 (H) | Efficiency: 89.5 %
SCECV-T075K2Output: 7.5 kW | Poles: 2P | Frame: 132S | Mounting: Flange B5 (V) | Efficiency: 89.5 %
SCECC-T075K2Output: 7.5 kW | Poles: 2P | Frame: 132S | Mounting: Foot+flange B35 (C) | Efficiency: 89.5 %
SCECH-T075K4Output: 7.5 kW | Poles: 4P | Frame: 132M | Mounting: Foot B3 (H) | Efficiency: 89.5 %
SCECV-T075K4Output: 7.5 kW | Poles: 4P | Frame: 132M | Mounting: Flange B5 (V) | Efficiency: 89.5 %
SCECC-T075K4Output: 7.5 kW | Poles: 4P | Frame: 132M | Mounting: Foot+flange B35 (C) | Efficiency: 89.5 %
SCECH-T075K6Output: 7.5 kW | Poles: 6P | Frame: 160M | Mounting: Foot B3 (H) | Efficiency: 89.5 %
SCECV-T075K6Output: 7.5 kW | Poles: 6P | Frame: 160M | Mounting: Flange B5 (V) | Efficiency: 89.5 %
SCECC-T075K6Output: 7.5 kW | Poles: 6P | Frame: 160M | Mounting: Foot+flange B35 (C) | Efficiency: 89.5 %
SCECH-T075K8Output: 7.5 kW | Poles: 8P | Frame: 160L | Mounting: Foot B3 (H) | Efficiency: 88.5 %
SCECV-T075K8Output: 7.5 kW | Poles: 8P | Frame: 160L | Mounting: Flange B5 (V) | Efficiency: 88.5 %
SCECC-T075K8Output: 7.5 kW | Poles: 8P | Frame: 160L | Mounting: Foot+flange B35 (C) | Efficiency: 88.5 %
SCECH-T110K2Output: 11 kW | Poles: 2P | Frame: 160M | Mounting: Foot B3 (H) | Efficiency: 90.2 %
SCECV-T110K2Output: 11 kW | Poles: 2P | Frame: 160M | Mounting: Flange B5 (V) | Efficiency: 90.2 %
SCECC-T110K2Output: 11 kW | Poles: 2P | Frame: 160M | Mounting: Foot+flange B35 (C) | Efficiency: 90.2 %
SCECH-T110K4Output: 11 kW | Poles: 4P | Frame: 160M | Mounting: Foot B3 (H) | Efficiency: 91.0 %
SCECV-T110K4Output: 11 kW | Poles: 4P | Frame: 160M | Mounting: Flange B5 (V) | Efficiency: 91.0 %
SCECC-T110K4Output: 11 kW | Poles: 4P | Frame: 160M | Mounting: Foot+flange B35 (C) | Efficiency: 91.0 %
SCECH-T110K6Output: 11 kW | Poles: 6P | Frame: 160L | Mounting: Foot B3 (H) | Efficiency: 90.2 %
SCECV-T110K6Output: 11 kW | Poles: 6P | Frame: 160L | Mounting: Flange B5 (V) | Efficiency: 90.2 %
SCECC-T110K6Output: 11 kW | Poles: 6P | Frame: 160L | Mounting: Foot+flange B35 (C) | Efficiency: 90.2 %
SCECH-T110K8Output: 11 kW | Poles: 8P | Frame: 180L | Mounting: Foot B3 (H) | Efficiency: 88.5 %
SCECV-T110K8Output: 11 kW | Poles: 8P | Frame: 180L | Mounting: Flange B5 (V) | Efficiency: 88.5 %
SCECC-T110K8Output: 11 kW | Poles: 8P | Frame: 180L | Mounting: Foot+flange B35 (C) | Efficiency: 88.5 %
SCECH-T150K2Output: 15 kW | Poles: 2P | Frame: 160M | Mounting: Foot B3 (H) | Efficiency: 90.2 %
SCECV-T150K2Output: 15 kW | Poles: 2P | Frame: 160M | Mounting: Flange B5 (V) | Efficiency: 90.2 %
SCECC-T150K2Output: 15 kW | Poles: 2P | Frame: 160M | Mounting: Foot+flange B35 (C) | Efficiency: 90.2 %
SCECH-T150K4Output: 15 kW | Poles: 4P | Frame: 160L | Mounting: Foot B3 (H) | Efficiency: 91.0 %
SCECV-T150K4Output: 15 kW | Poles: 4P | Frame: 160L | Mounting: Flange B5 (V) | Efficiency: 91.0 %
SCECC-T150K4Output: 15 kW | Poles: 4P | Frame: 160L | Mounting: Foot+flange B35 (C) | Efficiency: 91.0 %
SCECH-T150K6Output: 15 kW | Poles: 6P | Frame: 180L | Mounting: Foot B3 (H) | Efficiency: 90.2 %
SCECV-T150K6Output: 15 kW | Poles: 6P | Frame: 180L | Mounting: Flange B5 (V) | Efficiency: 90.2 %
SCECC-T150K6Output: 15 kW | Poles: 6P | Frame: 180L | Mounting: Foot+flange B35 (C) | Efficiency: 90.2 %
SCECH-T150K8Output: 15 kW | Poles: 8P | Frame: 200L | Mounting: Foot B3 (H) | Efficiency: 89.5 %
SCECV-T150K8Output: 15 kW | Poles: 8P | Frame: 200L | Mounting: Flange B5 (V) | Efficiency: 89.5 %
SCECC-T150K8Output: 15 kW | Poles: 8P | Frame: 200L | Mounting: Foot+flange B35 (C) | Efficiency: 89.5 %
SCECH-T185K2Output: 18.5 kW | Poles: 2P | Frame: 160L | Mounting: Foot B3 (H) | Efficiency: 91.0 %
SCECV-T185K2Output: 18.5 kW | Poles: 2P | Frame: 160L | Mounting: Flange B5 (V) | Efficiency: 91.0 %
SCECC-T185K2Output: 18.5 kW | Poles: 2P | Frame: 160L | Mounting: Foot+flange B35 (C) | Efficiency: 91.0 %
SCECH-T185K4Output: 18.5 kW | Poles: 4P | Frame: 180M | Mounting: Foot B3 (H) | Efficiency: 92.4 %
SCECV-T185K4Output: 18.5 kW | Poles: 4P | Frame: 180M | Mounting: Flange B5 (V) | Efficiency: 92.4 %
SCECC-T185K4Output: 18.5 kW | Poles: 4P | Frame: 180M | Mounting: Foot+flange B35 (C) | Efficiency: 92.4 %
SCECH-T185K6Output: 18.5 kW | Poles: 6P | Frame: 200L | Mounting: Foot B3 (H) | Efficiency: 91.7 %
SCECV-T185K6Output: 18.5 kW | Poles: 6P | Frame: 200L | Mounting: Flange B5 (V) | Efficiency: 91.7 %
SCECC-T185K6Output: 18.5 kW | Poles: 6P | Frame: 200L | Mounting: Foot+flange B35 (C) | Efficiency: 91.7 %
SCECH-T185K8Output: 18.5 kW | Poles: 8P | Frame: 225S | Mounting: Foot B3 (H) | Efficiency: 89.5 %
SCECV-T185K8Output: 18.5 kW | Poles: 8P | Frame: 225S | Mounting: Flange B5 (V) | Efficiency: 89.5 %
SCECC-T185K8Output: 18.5 kW | Poles: 8P | Frame: 225S | Mounting: Foot+flange B35 (C) | Efficiency: 89.5 %
SCECH-T220K2Output: 22 kW | Poles: 2P | Frame: 180M | Mounting: Foot B3 (H) | Efficiency: 91.0 %
SCECV-T220K2Output: 22 kW | Poles: 2P | Frame: 180M | Mounting: Flange B5 (V) | Efficiency: 91.0 %
SCECC-T220K2Output: 22 kW | Poles: 2P | Frame: 180M | Mounting: Foot+flange B35 (C) | Efficiency: 91.0 %
SCECH-T220K4Output: 22 kW | Poles: 4P | Frame: 180L | Mounting: Foot B3 (H) | Efficiency: 92.4 %
SCECV-T220K4Output: 22 kW | Poles: 4P | Frame: 180L | Mounting: Flange B5 (V) | Efficiency: 92.4 %
SCECC-T220K4Output: 22 kW | Poles: 4P | Frame: 180L | Mounting: Foot+flange B35 (C) | Efficiency: 92.4 %
SCECH-T220K6Output: 22 kW | Poles: 6P | Frame: 200L | Mounting: Foot B3 (H) | Efficiency: 91.7 %
SCECV-T220K6Output: 22 kW | Poles: 6P | Frame: 200L | Mounting: Flange B5 (V) | Efficiency: 91.7 %
SCECC-T220K6Output: 22 kW | Poles: 6P | Frame: 200L | Mounting: Foot+flange B35 (C) | Efficiency: 91.7 %
SCECH-T220K8Output: 22 kW | Poles: 8P | Frame: 225M | Mounting: Foot B3 (H) | Efficiency: 91.0 %
SCECV-T220K8Output: 22 kW | Poles: 8P | Frame: 225M | Mounting: Flange B5 (V) | Efficiency: 91.0 %
SCECC-T220K8Output: 22 kW | Poles: 8P | Frame: 225M | Mounting: Foot+flange B35 (C) | Efficiency: 91.0 %
SCECH-T300K2Output: 30 kW | Poles: 2P | Frame: 200L | Mounting: Foot B3 (H) | Efficiency: 91.7 %
SCECV-T300K2Output: 30 kW | Poles: 2P | Frame: 200L | Mounting: Flange B5 (V) | Efficiency: 91.7 %
SCECC-T300K2Output: 30 kW | Poles: 2P | Frame: 200L | Mounting: Foot+flange B35 (C) | Efficiency: 91.7 %
SCECH-T300K4Output: 30 kW | Poles: 4P | Frame: 200L | Mounting: Foot B3 (H) | Efficiency: 93.0 %
SCECV-T300K4Output: 30 kW | Poles: 4P | Frame: 200L | Mounting: Flange B5 (V) | Efficiency: 93.0 %
SCECC-T300K4Output: 30 kW | Poles: 4P | Frame: 200L | Mounting: Foot+flange B35 (C) | Efficiency: 93.0 %
SCECH-T300K6Output: 30 kW | Poles: 6P | Frame: 225M | Mounting: Foot B3 (H) | Efficiency: 93.0 %
SCECV-T300K6Output: 30 kW | Poles: 6P | Frame: 225M | Mounting: Flange B5 (V) | Efficiency: 93.0 %
SCECC-T300K6Output: 30 kW | Poles: 6P | Frame: 225M | Mounting: Foot+flange B35 (C) | Efficiency: 93.0 %
SCECH-T300K8Output: 30 kW | Poles: 8P | Frame: 250M | Mounting: Foot B3 (H) | Efficiency: 91.0 %
SCECV-T300K8Output: 30 kW | Poles: 8P | Frame: 250M | Mounting: Flange B5 (V) | Efficiency: 91.0 %
SCECC-T300K8Output: 30 kW | Poles: 8P | Frame: 250M | Mounting: Foot+flange B35 (C) | Efficiency: 91.0 %
SCECH-T370K2Output: 37 kW | Poles: 2P | Frame: 200L | Mounting: Foot B3 (H) | Efficiency: 92.4 %
SCECV-T370K2Output: 37 kW | Poles: 2P | Frame: 200L | Mounting: Flange B5 (V) | Efficiency: 92.4 %
SCECC-T370K2Output: 37 kW | Poles: 2P | Frame: 200L | Mounting: Foot+flange B35 (C) | Efficiency: 92.4 %
SCECH-T370K4Output: 37 kW | Poles: 4P | Frame: 225S | Mounting: Foot B3 (H) | Efficiency: 93.0 %
SCECV-T370K4Output: 37 kW | Poles: 4P | Frame: 225S | Mounting: Flange B5 (V) | Efficiency: 93.0 %
SCECC-T370K4Output: 37 kW | Poles: 4P | Frame: 225S | Mounting: Foot+flange B35 (C) | Efficiency: 93.0 %
SCECH-T370K6Output: 37 kW | Poles: 6P | Frame: 225S | Mounting: Foot B3 (H) | Efficiency: 93.0 %
SCECV-T370K6Output: 37 kW | Poles: 6P | Frame: 225S | Mounting: Flange B5 (V) | Efficiency: 93.0 %
SCECC-T370K6Output: 37 kW | Poles: 6P | Frame: 225S | Mounting: Foot+flange B35 (C) | Efficiency: 93.0 %
SCECH-T370K8Output: 37 kW | Poles: 8P | Frame: 280S | Mounting: Foot B3 (H) | Efficiency: 91.7 %
SCECV-T370K8Output: 37 kW | Poles: 8P | Frame: 280S | Mounting: Flange B5 (V) | Efficiency: 91.7 %
SCECC-T370K8Output: 37 kW | Poles: 8P | Frame: 280S | Mounting: Foot+flange B35 (C) | Efficiency: 91.7 %
SCECH-T450K2Output: 45 kW | Poles: 2P | Frame: 225M | Mounting: Foot B3 (H) | Efficiency: 93.0 %
SCECV-T450K2Output: 45 kW | Poles: 2P | Frame: 225M | Mounting: Flange B5 (V) | Efficiency: 93.0 %
SCECC-T450K2Output: 45 kW | Poles: 2P | Frame: 225M | Mounting: Foot+flange B35 (C) | Efficiency: 93.0 %
SCECH-T450K4Output: 45 kW | Poles: 4P | Frame: 225M | Mounting: Foot B3 (H) | Efficiency: 93.6 %
SCECV-T450K4Output: 45 kW | Poles: 4P | Frame: 225M | Mounting: Flange B5 (V) | Efficiency: 93.6 %
SCECC-T450K4Output: 45 kW | Poles: 4P | Frame: 225M | Mounting: Foot+flange B35 (C) | Efficiency: 93.6 %
SCECH-T450K6Output: 45 kW | Poles: 6P | Frame: 250M | Mounting: Foot B3 (H) | Efficiency: 93.6 %
SCECV-T450K6Output: 45 kW | Poles: 6P | Frame: 250M | Mounting: Flange B5 (V) | Efficiency: 93.6 %
SCECC-T450K6Output: 45 kW | Poles: 6P | Frame: 250M | Mounting: Foot+flange B35 (C) | Efficiency: 93.6 %
SCECH-T450K8Output: 45 kW | Poles: 8P | Frame: 280M | Mounting: Foot B3 (H) | Efficiency: 91.7 %
SCECV-T450K8Output: 45 kW | Poles: 8P | Frame: 280M | Mounting: Flange B5 (V) | Efficiency: 91.7 %
SCECC-T450K8Output: 45 kW | Poles: 8P | Frame: 280M | Mounting: Foot+flange B35 (C) | Efficiency: 91.7 %
SCECH-T550K2Output: 55 kW | Poles: 2P | Frame: 250M | Mounting: Foot B3 (H) | Efficiency: 93.0 %
SCECV-T550K2Output: 55 kW | Poles: 2P | Frame: 250M | Mounting: Flange B5 (V) | Efficiency: 93.0 %
SCECC-T550K2Output: 55 kW | Poles: 2P | Frame: 250M | Mounting: Foot+flange B35 (C) | Efficiency: 93.0 %
SCECH-T550K4Output: 55 kW | Poles: 4P | Frame: 250M | Mounting: Foot B3 (H) | Efficiency: 94.1 %
SCECV-T550K4Output: 55 kW | Poles: 4P | Frame: 250M | Mounting: Flange B5 (V) | Efficiency: 94.1 %
SCECC-T550K4Output: 55 kW | Poles: 4P | Frame: 250M | Mounting: Foot+flange B35 (C) | Efficiency: 94.1 %
SCECH-T550K6Output: 55 kW | Poles: 6P | Frame: 280M | Mounting: Foot B3 (H) | Efficiency: 93.6 %
SCECV-T550K6Output: 55 kW | Poles: 6P | Frame: 280M | Mounting: Flange B5 (V) | Efficiency: 93.6 %
SCECC-T550K6Output: 55 kW | Poles: 6P | Frame: 280M | Mounting: Foot+flange B35 (C) | Efficiency: 93.6 %
SCECH-T550K8Output: 55 kW | Poles: 8P | Frame: 315S | Mounting: Foot B3 (H) | Efficiency: 93.0 %
SCECV-T550K8Output: 55 kW | Poles: 8P | Frame: 315S | Mounting: Flange B5 (V) | Efficiency: 93.0 %
SCECC-T550K8Output: 55 kW | Poles: 8P | Frame: 315S | Mounting: Foot+flange B35 (C) | Efficiency: 93.0 %
SCECH-T750K2Output: 75 kW | Poles: 2P | Frame: 280S | Mounting: Foot B3 (H) | Efficiency: 93.6 %
SCECV-T750K2Output: 75 kW | Poles: 2P | Frame: 280S | Mounting: Flange B5 (V) | Efficiency: 93.6 %
SCECC-T750K2Output: 75 kW | Poles: 2P | Frame: 280S | Mounting: Foot+flange B35 (C) | Efficiency: 93.6 %
SCECH-T750K4Output: 75 kW | Poles: 4P | Frame: 280S | Mounting: Foot B3 (H) | Efficiency: 94.5 %
SCECV-T750K4Output: 75 kW | Poles: 4P | Frame: 280S | Mounting: Flange B5 (V) | Efficiency: 94.5 %
SCECC-T750K4Output: 75 kW | Poles: 4P | Frame: 280S | Mounting: Foot+flange B35 (C) | Efficiency: 94.5 %
SCECH-T750K6Output: 75 kW | Poles: 6P | Frame: 280S | Mounting: Foot B3 (H) | Efficiency: 94.1 %
SCECV-T750K6Output: 75 kW | Poles: 6P | Frame: 280S | Mounting: Flange B5 (V) | Efficiency: 94.1 %
SCECC-T750K6Output: 75 kW | Poles: 6P | Frame: 280S | Mounting: Foot+flange B35 (C) | Efficiency: 94.1 %
SCECH-T750K8Output: 75 kW | Poles: 8P | Frame: 315M | Mounting: Foot B3 (H) | Efficiency: 93.0 %
SCECV-T750K8Output: 75 kW | Poles: 8P | Frame: 315M | Mounting: Flange B5 (V) | Efficiency: 93.0 %
SCECC-T750K8Output: 75 kW | Poles: 8P | Frame: 315M | Mounting: Foot+flange B35 (C) | Efficiency: 93.0 %
SCECH-T900K2Output: 90 kW | Poles: 2P | Frame: 280M | Mounting: Foot B3 (H) | Efficiency: 94.5 %
SCECV-T900K2Output: 90 kW | Poles: 2P | Frame: 280M | Mounting: Flange B5 (V) | Efficiency: 94.5 %
SCECC-T900K2Output: 90 kW | Poles: 2P | Frame: 280M | Mounting: Foot+flange B35 (C) | Efficiency: 94.5 %
SCECH-T900K4Output: 90 kW | Poles: 4P | Frame: 280M | Mounting: Foot B3 (H) | Efficiency: 94.5 %
SCECV-T900K4Output: 90 kW | Poles: 4P | Frame: 280M | Mounting: Flange B5 (V) | Efficiency: 94.5 %
SCECC-T900K4Output: 90 kW | Poles: 4P | Frame: 280M | Mounting: Foot+flange B35 (C) | Efficiency: 94.5 %
SCECH-T900K6Output: 90 kW | Poles: 6P | Frame: 315M | Mounting: Foot B3 (H) | Efficiency: 94.1 %
SCECV-T900K6Output: 90 kW | Poles: 6P | Frame: 315M | Mounting: Flange B5 (V) | Efficiency: 94.1 %
SCECC-T900K6Output: 90 kW | Poles: 6P | Frame: 315M | Mounting: Foot+flange B35 (C) | Efficiency: 94.1 %
SCECH-T900K8Output: 90 kW | Poles: 8P | Frame: 315L1 | Mounting: Foot B3 (H) | Efficiency: 93.6 %
SCECV-T900K8Output: 90 kW | Poles: 8P | Frame: 315L1 | Mounting: Flange B5 (V) | Efficiency: 93.6 %
SCECC-T900K8Output: 90 kW | Poles: 8P | Frame: 315L1 | Mounting: Foot+flange B35 (C) | Efficiency: 93.6 %
SCECH-TA10K2Output: 110 kW | Poles: 2P | Frame: 315S | Mounting: Foot B3 (H) | Efficiency: 94.5 %
SCECV-TA10K2Output: 110 kW | Poles: 2P | Frame: 315S | Mounting: Flange B5 (V) | Efficiency: 94.5 %
SCECC-TA10K2Output: 110 kW | Poles: 2P | Frame: 315S | Mounting: Foot+flange B35 (C) | Efficiency: 94.5 %
SCECH-TA10K4Output: 110 kW | Poles: 4P | Frame: 315S | Mounting: Foot B3 (H) | Efficiency: 95.0 %
SCECV-TA10K4Output: 110 kW | Poles: 4P | Frame: 315S | Mounting: Flange B5 (V) | Efficiency: 95.0 %
SCECC-TA10K4Output: 110 kW | Poles: 4P | Frame: 315S | Mounting: Foot+flange B35 (C) | Efficiency: 95.0 %
SCECH-TA10K6Output: 110 kW | Poles: 6P | Frame: 315L | Mounting: Foot B3 (H) | Efficiency: 95.0 %
SCECV-TA10K6Output: 110 kW | Poles: 6P | Frame: 315L | Mounting: Flange B5 (V) | Efficiency: 95.0 %
SCECC-TA10K6Output: 110 kW | Poles: 6P | Frame: 315L | Mounting: Foot+flange B35 (C) | Efficiency: 95.0 %
SCECH-TA10K8Output: 110 kW | Poles: 8P | Frame: 315L | Mounting: Foot B3 (H) | Efficiency: 93.6 %
SCECV-TA10K8Output: 110 kW | Poles: 8P | Frame: 315L | Mounting: Flange B5 (V) | Efficiency: 93.6 %
SCECC-TA10K8Output: 110 kW | Poles: 8P | Frame: 315L | Mounting: Foot+flange B35 (C) | Efficiency: 93.6 %
SCECH-TA32K2Output: 132 kW | Poles: 2P | Frame: 315M | Mounting: Foot B3 (H) | Efficiency: 94.5 %
SCECV-TA32K2Output: 132 kW | Poles: 2P | Frame: 315M | Mounting: Flange B5 (V) | Efficiency: 94.5 %
SCECC-TA32K2Output: 132 kW | Poles: 2P | Frame: 315M | Mounting: Foot+flange B35 (C) | Efficiency: 94.5 %
SCECH-TA32K4Output: 132 kW | Poles: 4P | Frame: 315M | Mounting: Foot B3 (H) | Efficiency: 95.0 %
SCECV-TA32K4Output: 132 kW | Poles: 4P | Frame: 315M | Mounting: Flange B5 (V) | Efficiency: 95.0 %
SCECC-TA32K4Output: 132 kW | Poles: 4P | Frame: 315M | Mounting: Foot+flange B35 (C) | Efficiency: 95.0 %
SCECH-TA32K6Output: 132 kW | Poles: 6P | Frame: 315L | Mounting: Foot B3 (H) | Efficiency: 95.0 %
SCECV-TA32K6Output: 132 kW | Poles: 6P | Frame: 315L | Mounting: Flange B5 (V) | Efficiency: 95.0 %
SCECC-TA32K6Output: 132 kW | Poles: 6P | Frame: 315L | Mounting: Foot+flange B35 (C) | Efficiency: 95.0 %
SCECH-TA60K2Output: 160 kW | Poles: 2P | Frame: 315L | Mounting: Foot B3 (H) | Efficiency: 95.0 %
SCECV-TA60K2Output: 160 kW | Poles: 2P | Frame: 315L | Mounting: Flange B5 (V) | Efficiency: 95.0 %
SCECC-TA60K2Output: 160 kW | Poles: 2P | Frame: 315L | Mounting: Foot+flange B35 (C) | Efficiency: 95.0 %
SCECH-TA60K4Output: 160 kW | Poles: 4P | Frame: 315L | Mounting: Foot B3 (H) | Efficiency: 95.0 %
SCECV-TA60K4Output: 160 kW | Poles: 4P | Frame: 315L | Mounting: Flange B5 (V) | Efficiency: 95.0 %
SCECC-TA60K4Output: 160 kW | Poles: 4P | Frame: 315L | Mounting: Foot+flange B35 (C) | Efficiency: 95.0 %
SCECH-TA60K6Output: 160 kW | Poles: 6P | Frame: 355M | Mounting: Foot B3 (H) | Efficiency: 95.0 %
SCECV-TA60K6Output: 160 kW | Poles: 6P | Frame: 355M | Mounting: Flange B5 (V) | Efficiency: 95.0 %
SCECC-TA60K6Output: 160 kW | Poles: 6P | Frame: 355M | Mounting: Foot+flange B35 (C) | Efficiency: 95.0 %
SCECH-TB00K2Output: 200 kW | Poles: 2P | Frame: 315L | Mounting: Foot B3 (H) | Efficiency: 95.0 %
SCECV-TB00K2Output: 200 kW | Poles: 2P | Frame: 315L | Mounting: Flange B5 (V) | Efficiency: 95.0 %
SCECC-TB00K2Output: 200 kW | Poles: 2P | Frame: 315L | Mounting: Foot+flange B35 (C) | Efficiency: 95.0 %
SCECH-TB00K4Output: 200 kW | Poles: 4P | Frame: 315L | Mounting: Foot B3 (H) | Efficiency: 95.0 %
SCECV-TB00K4Output: 200 kW | Poles: 4P | Frame: 315L | Mounting: Flange B5 (V) | Efficiency: 95.0 %
SCECC-TB00K4Output: 200 kW | Poles: 4P | Frame: 315L | Mounting: Foot+flange B35 (C) | Efficiency: 95.0 %

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
