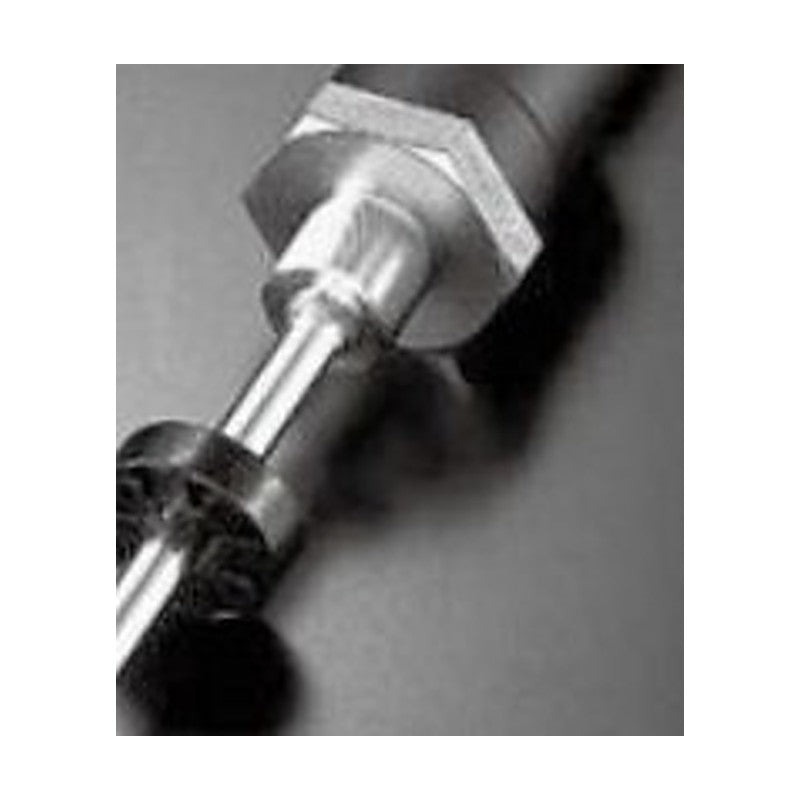

Santest GYcAT4 Magnetostrictive Position Sensor (analog, 15-3500 mm)

Santest GYcAT4 is the analog-output successor to the GYLS/GYLT magnetostrictive displacement sensors, giving non-contact absolute position with voltage or current output and 35 MPa pressure-resistant rod.

Key features

Successor to GYLS/GYLT; existing connectors and cables can be reused
Voltage (0-10 V / 10-0 V) or current (4-20 / 20-4 mA) output
Non-contact absolute position measurement
Linearity +/-0.05 % F.S. typ., repeatability +/-0.01 % F.S.
35 MPa pressure-resistant probe rod
IP67, various mounting threads and magnet options

Specifications

Effective stroke	15 to 3500 mm
Linearity	+/-0.05 % F.S. or less (typ.)
Resolution	0.01 % F.S. or less
Repeatability	+/-0.01 % F.S. or less
Temperature characteristic	+/-40 ppm F.S./C or less
Supply	+24 V +/-2 V DC (50 mA)
Sampling	1 kHz standard (to 1250 mm stroke)
Operating temperature	-20 to +80 C
Vibration / shock	6 G / 50 G (2 ms)
Protection	IP67
Note	Accuracy specs apply to strokes of 300 mm or more
Source	Santest GYcAT4 page

GYcAT4

Stroke: 15 to 3500 mm | Output: 0-10 V or 4-20 mA | Rod: 35 MPa | Options: See model code table
