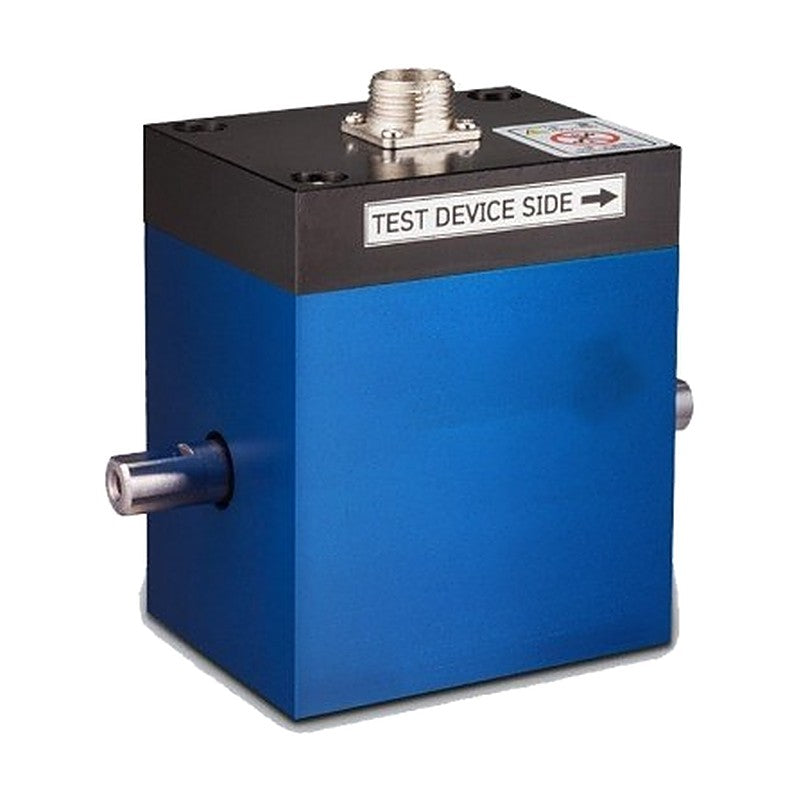

Senstech SC Series Torque Sensor (5 to 1000 kgf.cm)

Senstech SC Series Torque Sensor (5 to 1000 kgf.cm)

Senstech SC series rotary torque sensors with 1.3 mV/V strain-gauge output for 5 to 1000 kgf.cm.

Key features

  • Rated output 1.3 +/-0.3 mV/V
  • Combined error <= 0.25 % R.O.
  • 352 Ohm bridge, 5 or 10 V DC excitation
  • 150 % R.C. safe overload
  • Use with DI-10W / DI-100 indicators

Specifications

Rated capacity 5 to 1000 kgf.cm
Rated output 1.3 +/-0.3 mV/V
Combined error <= 0.25 % R.O.
Repeatability <= 0.25 % R.O.
Zero balance 0 +/-0.05 mV/V
Bridge resistance 352 Ohm +/-1 %
Excitation 5 V, 10 V DC
Safe overload 150 % R.C.
Compensated temp. range -10 to 60 C
Cable 5 mm shielded, 5 m
Source Senstech SC series page
SC-5KC Capacity: 5 kgf.cm | Type: Rotary torque | Output: 1.3 mV/V
SC-10KC Capacity: 10 kgf.cm | Type: Rotary torque | Output: 1.3 mV/V
SC-20KC Capacity: 20 kgf.cm | Type: Rotary torque | Output: 1.3 mV/V
SC-50KC Capacity: 50 kgf.cm | Type: Rotary torque | Output: 1.3 mV/V
SC-100KC Capacity: 100 kgf.cm | Type: Rotary torque | Output: 1.3 mV/V
SC-200KC Capacity: 200 kgf.cm | Type: Rotary torque | Output: 1.3 mV/V
SC-500KC Capacity: 500 kgf.cm | Type: Rotary torque | Output: 1.3 mV/V
SC-1000KC Capacity: 1000 kgf.cm | Type: Rotary torque | Output: 1.3 mV/V
Torque SensorSenstech
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Senstech SC Series Torque Sensor (5 to 1000 kgf.cm)

Brand Senstech·Torque Sensor

Available part numbers (8)

SC-5KC, SC-10KC, SC-20KC, SC-50KC, SC-100KC, SC-200KC, SC-500KC, SC-1000KC

How to order

Send the Senstech part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SC-5KCCapacity: 5 kgf.cm | Type: Rotary torque | Output: 1.3 mV/V
SC-10KCCapacity: 10 kgf.cm | Type: Rotary torque | Output: 1.3 mV/V
SC-20KCCapacity: 20 kgf.cm | Type: Rotary torque | Output: 1.3 mV/V
SC-50KCCapacity: 50 kgf.cm | Type: Rotary torque | Output: 1.3 mV/V
SC-100KCCapacity: 100 kgf.cm | Type: Rotary torque | Output: 1.3 mV/V
SC-200KCCapacity: 200 kgf.cm | Type: Rotary torque | Output: 1.3 mV/V
SC-500KCCapacity: 500 kgf.cm | Type: Rotary torque | Output: 1.3 mV/V
SC-1000KCCapacity: 1000 kgf.cm | Type: Rotary torque | Output: 1.3 mV/V
