• SHC SBS Sight Glass (PT 1/4 to PT 2)
1 1

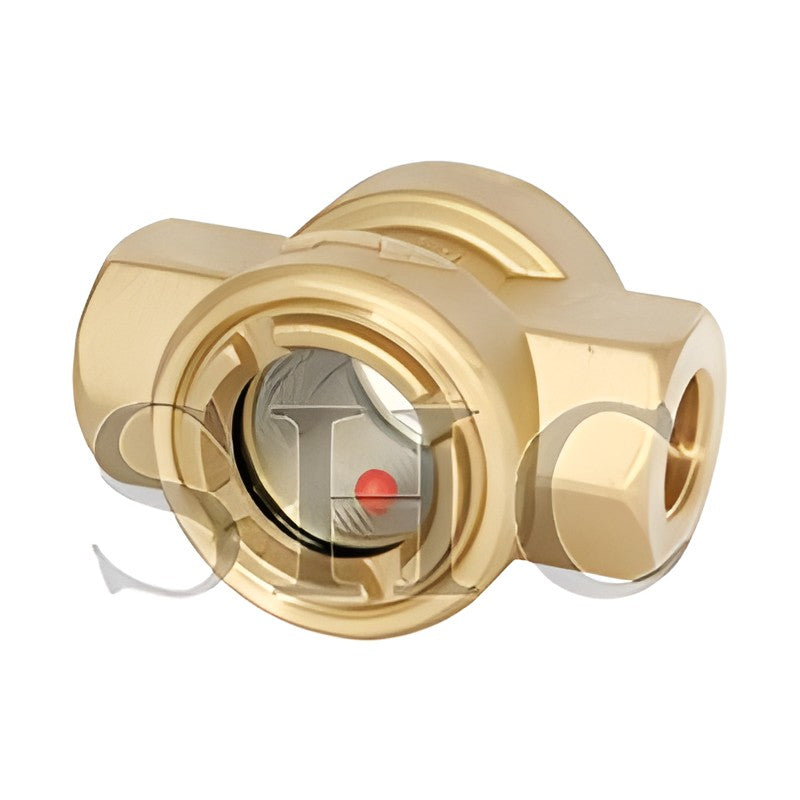

SHC SBS Sight Glass (PT 1/4 to PT 2)

SHC SBS Sight Glass (PT 1/4 to PT 2)

SBS sight glasses are threaded in-line sight windows for monitoring oil flow and condition.

Key features

  • PT 1/4 to PT 2 thread
  • In-line sight window
  • Manufactured in Korea by Sejin Hydraulics (SHC)
  • Ordered by printed SHC part number

Specifications

Connection PT thread
Brand SHC
Manufacturer Sejin Hydraulics Mfg. Co. (Korea)
Product type Sight Glass
Series SBS
Ordering By printed part number
Source SHC E-Catalog 2018 V1.0, p.27
SBS-8A Thread: PT 1/4 | A: 45 mm | B: 65 mm
SBS-10A Thread: PT 3/8 | A: 45 mm | B: 65 mm
SBS-15A Thread: PT 1/2 | A: 60 mm | B: 88 mm
SBS-20A Thread: PT 3/4 | A: 60 mm | B: 88 mm
SBS-25A Thread: PT 1 | A: 82 mm | B: 108 mm
SBS-32A Thread: PT 1-1/4 | A: 103 mm | B: 137 mm
SBS-40A Thread: PT 1-1/2 | A: 103 mm | B: 137 mm
SBS-50A Thread: PT 2 | A: 110 mm | B: 160 mm
Sight GlassSHC
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SHC SBS Sight Glass (PT 1/4 to PT 2)

Brand SHC·Sight Glass

Available part numbers (8)

SBS-8A, SBS-10A, SBS-15A, SBS-20A, SBS-25A, SBS-32A, SBS-40A, SBS-50A

How to order

Send the SHC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SBS-8AThread: PT 1/4 | A: 45 mm | B: 65 mm
SBS-10AThread: PT 3/8 | A: 45 mm | B: 65 mm
SBS-15AThread: PT 1/2 | A: 60 mm | B: 88 mm
SBS-20AThread: PT 3/4 | A: 60 mm | B: 88 mm
SBS-25AThread: PT 1 | A: 82 mm | B: 108 mm
SBS-32AThread: PT 1-1/4 | A: 103 mm | B: 137 mm
SBS-40AThread: PT 1-1/2 | A: 103 mm | B: 137 mm
SBS-50AThread: PT 2 | A: 110 mm | B: 160 mm
