SHC SCH / SHS Oil Level Window (PF 3/8 to PF 1, M22, M30)

SHC SCH / SHS Oil Level Window (PF 3/8 to PF 1, M22, M30)

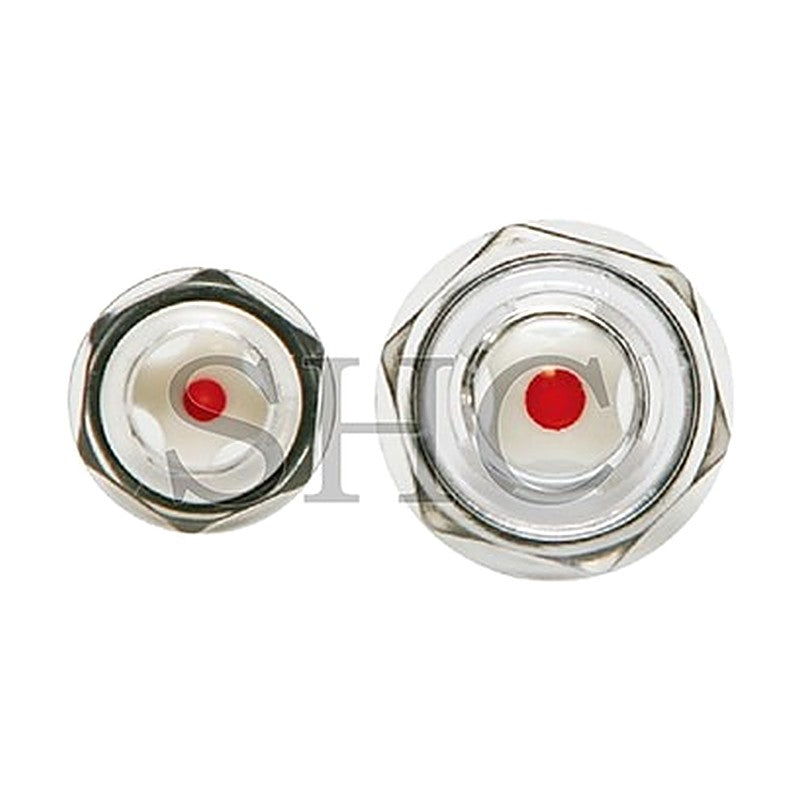

SCH (plastic body) and SHS (aluminium body) screw-in oil level windows provide a round sight glass for tanks and gearboxes.

Key features

  • SCH: plastic body
  • SHS: aluminium body
  • PF and metric threads
  • Manufactured in Korea by Sejin Hydraulics (SHC)

Specifications

Mounting Screw-in
Brand SHC
Manufacturer Sejin Hydraulics Mfg. Co. (Korea)
Product type Oil Level Window
Series SCH / SHS
Ordering By printed part number
Source SHC E-Catalog 2018 V1.0, p.28
SCH-15A Series: SCH (plastic body) | Thread: PF 1/2 | A: 27 mm
SCH-20A Series: SCH (plastic body) | Thread: PF 3/4 | A: 36 mm
SCH-25A Series: SCH (plastic body) | Thread: PF 1 | A: 42 mm
SHS-10A Series: SHS (aluminium body) | Thread: PF 3/8 | A: 20 mm
SHS-15A Series: SHS (aluminium body) | Thread: PF 1/2 | A: 26.5 mm
SHS-20A Series: SHS (aluminium body) | Thread: PF 3/4 | A: 34 mm
SHS-25A Series: SHS (aluminium body) | Thread: PF 1 | A: 42 mm
SHS-M22 Series: SHS (aluminium body) | Thread: M22x1.5 | A: 28 mm
SHS-M30 Series: SHS (aluminium body) | Thread: M30x1.5 | A: 40 mm
Oil Level WindowSHC
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SHC SCH / SHS Oil Level Window (PF 3/8 to PF 1, M22, M30)

Brand SHC·Oil Level Window

Available part numbers (9)

SCH-15A, SCH-20A, SCH-25A, SHS-10A, SHS-15A, SHS-20A, SHS-25A, SHS-M22, SHS-M30

How to order

Send the SHC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SCH-15ASeries: SCH (plastic body) | Thread: PF 1/2 | A: 27 mm
SCH-20ASeries: SCH (plastic body) | Thread: PF 3/4 | A: 36 mm
SCH-25ASeries: SCH (plastic body) | Thread: PF 1 | A: 42 mm
SHS-10ASeries: SHS (aluminium body) | Thread: PF 3/8 | A: 20 mm
SHS-15ASeries: SHS (aluminium body) | Thread: PF 1/2 | A: 26.5 mm
SHS-20ASeries: SHS (aluminium body) | Thread: PF 3/4 | A: 34 mm
SHS-25ASeries: SHS (aluminium body) | Thread: PF 1 | A: 42 mm
SHS-M22Series: SHS (aluminium body) | Thread: M22x1.5 | A: 28 mm
SHS-M30Series: SHS (aluminium body) | Thread: M30x1.5 | A: 40 mm
