• SHC SGCB / SGCF Gauge Adapter (plug and flange types)
1 1

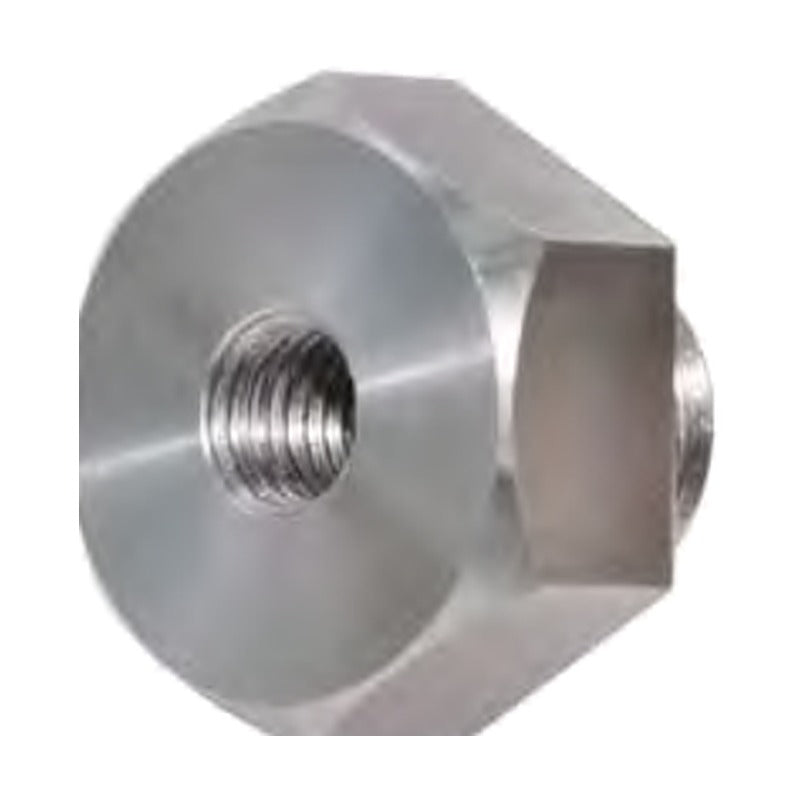

SHC SGCB / SGCF Gauge Adapter (plug and flange types)

SHC SGCB / SGCF Gauge Adapter (plug and flange types)

SGCB and SGCF adapters allow oil level gauges to be fitted and checked via a threaded plug or flange connection.

Key features

  • SGCB: hex plug adapter
  • SGCF: flange adapter
  • For M12 gauge bolts
  • Manufactured in Korea by Sejin Hydraulics (SHC)

Specifications

Use Oil gauge mounting adapter
Body STS304 (STS316 option)
Function Built-in steel ball check for leak-free gauge change
Bolt M12 (M16 option)
Brand SHC
Manufacturer Sejin Hydraulics Mfg. Co. (Korea)
Source SHC E-Catalog 2018 V1.0, p.25
SGCB Type: Oil gauge adapter (hex plug) | Connection: M12 bolt / PF 1/2 thread | Size: 36 hex x 37 L
SGCF Type: Adapter flange | Connection: M12 bolt / KS 10K 20A flange | Size: dia 100 / PCD 75 x 37 L
Gauge AdapterSHC
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SHC SGCB / SGCF Gauge Adapter (plug and flange types)

Brand SHC·Gauge Adapter

Available part numbers (2)

SGCB, SGCF

How to order

Send the SHC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SGCBType: Oil gauge adapter (hex plug) | Connection: M12 bolt / PF 1/2 thread | Size: 36 hex x 37 L
SGCFType: Adapter flange | Connection: M12 bolt / KS 10K 20A flange | Size: dia 100 / PCD 75 x 37 L
