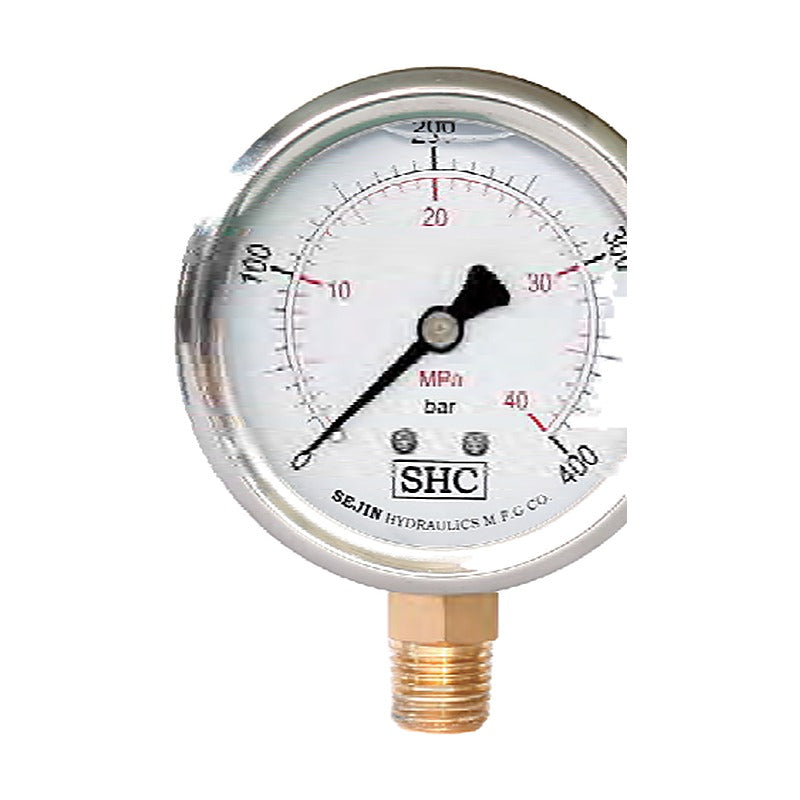

• SHC SPG Pressure Gauge (dia 63, 10 to 400 bar)
1 1

SHC SPG Pressure Gauge (dia 63, 10 to 400 bar)

SHC SPG Pressure Gauge (dia 63, 10 to 400 bar)

SPG liquid (glycerine) filled pressure gauges with stainless steel case for vibration and pressure pulsation.

Key features

  • STS304 case, brass movement
  • Glycerine filled
  • Dia 63, accuracy 1.5%
  • Dual scale bar / MPa
  • A-type bottom and BD-type back flange

Specifications

Case STS304
Size Dia 63
Accuracy 1.5%
Fill Glycerine
Connection PT 1/4 brass (400 bar: STS304)
Brand SHC
Source SHC E-Catalog 2018 V1.0, p.66
SPG A-TYPE Mount: Bottom connection | Range: 0-10 / 60 / 100 / 160 / 250 / 400
SPG BD-TYPE Mount: Back connection with front flange | Range: 0-10 / 60 / 100 / 160 / 250 / 400
Pressure GaugeSHC
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SHC SPG Pressure Gauge (dia 63, 10 to 400 bar)

Brand SHC·Pressure Gauge

Available part numbers (2)

SPG A-TYPE, SPG BD-TYPE

How to order

Send the SHC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SPG A-TYPEMount: Bottom connection | Range: 0-10 / 60 / 100 / 160 / 250 / 400
SPG BD-TYPEMount: Back connection with front flange | Range: 0-10 / 60 / 100 / 160 / 250 / 400

Need a different model, or a part not listed here? Send us your parts list →
