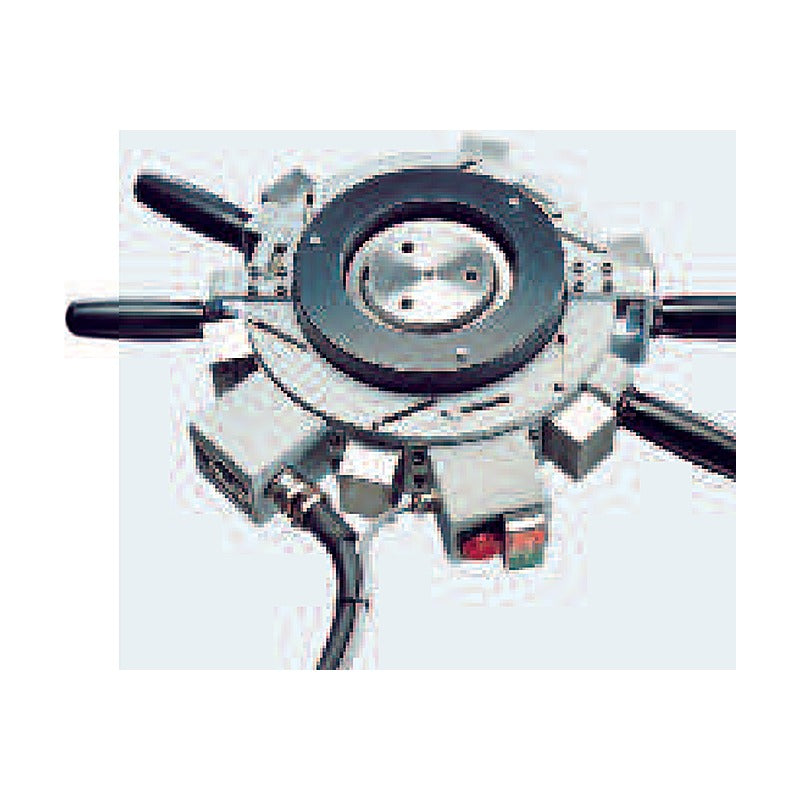

SKF EAZ Adjustable Induction Heaters (EAZ 80/130, EAZ 130/170)

SKF EAZ Adjustable Induction Heaters (EAZ 80/130, EAZ 130/170)

SKF EAZ 80/130 and EAZ 130/170 adjustable induction heaters are used for frequent dismounting of cylindrical roller bearing inner rings of 65 to 130 mm bore.

Key features

  • Covers most cylindrical roller bearings of 65-130 mm bore
  • Wide range of power supplies
  • Avoids shaft and bearing inner ring damage
  • Fast and reliable bearing removal, up to n6 interference fit

Specifications

Connection cable 5 m
Source SKF Maintenance and Lubrication Products, p. 56
EAZ 80/130A Power supply: 2 x 230 V/50 Hz | Current: 40 A | Ring range: 80-132 mm | Weight: 28 kg
EAZ 80/130B Power supply: 2 x 400 V/50 Hz | Current: 45 A | Ring range: 80-132 mm | Weight: 28 kg
EAZ 80/130C Power supply: 2 x 460 V/60 Hz | Current: 25 A | Ring range: 80-132 mm | Weight: 28 kg
EAZ 80/130D Power supply: 2 x 415 V/50 Hz | Current: 35 A | Ring range: 80-132 mm | Weight: 28 kg
EAZ 130/170A Power supply: 2 x 230 V/50 Hz | Current: 60 A | Ring range: 130-172 mm | Weight: 35 kg
EAZ 130/170B Power supply: 2 x 400 V/50 Hz | Current: 45 A | Ring range: 130-172 mm | Weight: 35 kg
EAZ 130/170D Power supply: 3 x 230 V/50 Hz | Current: 43 A | Ring range: 130-172 mm | Weight: 35 kg
EAZ 130/170E Power supply: 3 x 400 V/50 Hz | Current: 35 A | Ring range: 130-172 mm | Weight: 35 kg
EAZ 130/170H Power supply: 3 x 415 V/50 Hz | Current: 30 A | Ring range: 130-172 mm | Weight: 35 kg
Induction HeatersSKF
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF EAZ Adjustable Induction Heaters (EAZ 80/130, EAZ 130/170)

Brand SKF·Induction Heaters

Available part numbers (9)

EAZ 80/130A, EAZ 80/130B, EAZ 80/130C, EAZ 80/130D, EAZ 130/170A, EAZ 130/170B, EAZ 130/170D, EAZ 130/170E, EAZ 130/170H

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
EAZ 80/130APower supply: 2 x 230 V/50 Hz | Current: 40 A | Ring range: 80-132 mm | Weight: 28 kg
EAZ 80/130BPower supply: 2 x 400 V/50 Hz | Current: 45 A | Ring range: 80-132 mm | Weight: 28 kg
EAZ 80/130CPower supply: 2 x 460 V/60 Hz | Current: 25 A | Ring range: 80-132 mm | Weight: 28 kg
EAZ 80/130DPower supply: 2 x 415 V/50 Hz | Current: 35 A | Ring range: 80-132 mm | Weight: 28 kg
EAZ 130/170APower supply: 2 x 230 V/50 Hz | Current: 60 A | Ring range: 130-172 mm | Weight: 35 kg
EAZ 130/170BPower supply: 2 x 400 V/50 Hz | Current: 45 A | Ring range: 130-172 mm | Weight: 35 kg
EAZ 130/170DPower supply: 3 x 230 V/50 Hz | Current: 43 A | Ring range: 130-172 mm | Weight: 35 kg
EAZ 130/170EPower supply: 3 x 400 V/50 Hz | Current: 35 A | Ring range: 130-172 mm | Weight: 35 kg
EAZ 130/170HPower supply: 3 x 415 V/50 Hz | Current: 30 A | Ring range: 130-172 mm | Weight: 35 kg
