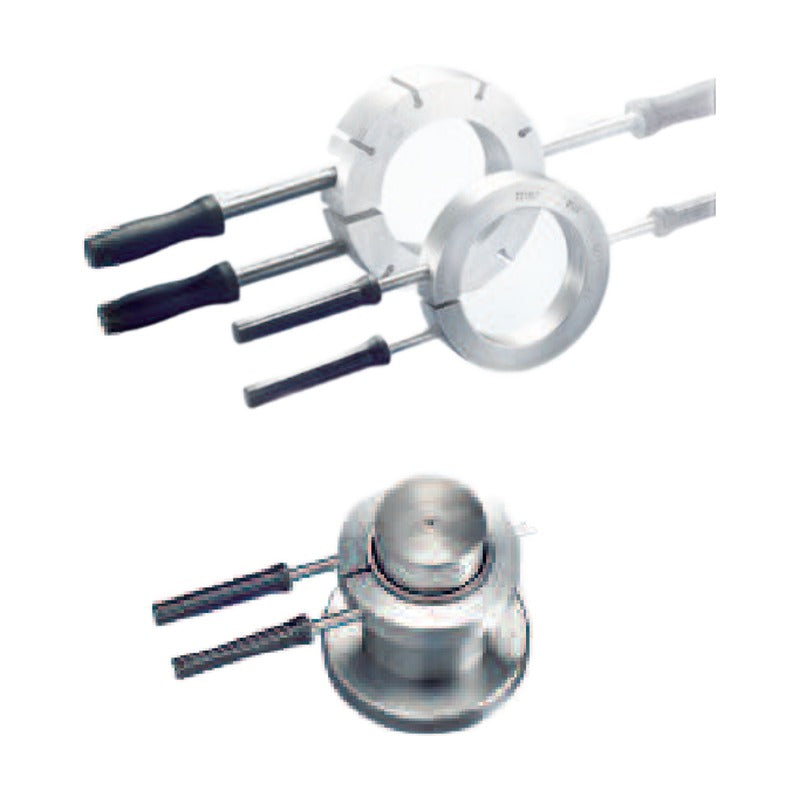

SKF TMBR Aluminium Heating Rings for Cylindrical Roller Bearings

SKF TMBR Aluminium Heating Rings for Cylindrical Roller Bearings

SKF TMBR aluminium heating rings are made to fit a specific cylindrical roller bearing inner ring; pre-heated to 280 C and clamped on the ring, they expand it for easy dismounting.

Key features

  • Simple and easy-to-use dismounting of CRB inner rings
  • Avoids shaft and bearing inner ring damage
  • Produced to accurately fit a specific bearing ring
  • Pre-heat to 280 C; maximum temperature 300 C

Specifications

Material Aluminium
Max. temperature 300 C
Designation TMBR + bearing designation
Source SKF Maintenance and Lubrication Products, p. 52-53
TMBR NJ218E For bearing/ring: NJ 218 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NJ2318E For bearing/ring: NJ 2318 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NUP215 For bearing/ring: NUP 215 | Material: Aluminium | Max. temperature: 300 C
TMBR 313822 For bearing/ring: 313822 | Material: Aluminium | Max. temperature: 300 C
TMBR 120X240 For bearing/ring: NJ/NJP 120x240 TN/VA820 | Material: Aluminium | Max. temperature: 300 C
TMBR NJ130X240 For bearing/ring: NJ/NJP 130x240 TN/VA820 | Material: Aluminium | Max. temperature: 300 C
TMBR NU1011EC For bearing/ring: NU 1011 and NU 1011 E... | Material: Aluminium | Max. temperature: 300 C
TMBR NU1018 For bearing/ring: NU 1018 M | Material: Aluminium | Max. temperature: 300 C
TMBR NU1034 For bearing/ring: NU 1034 | Material: Aluminium | Max. temperature: 300 C
TMBR NU1036 For bearing/ring: NU 1036 ML | Material: Aluminium | Max. temperature: 300 C
TMBR NU206EC For bearing/ring: NU 206 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NU209E For bearing/ring: NU 209 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NU210EC For bearing/ring: NU 210 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NU212 For bearing/ring: NU 212 | Material: Aluminium | Max. temperature: 300 C
TMBR NU213 For bearing/ring: NU 213 | Material: Aluminium | Max. temperature: 300 C
TMBR NU213E For bearing/ring: NU 213 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NU214 For bearing/ring: NU 214 | Material: Aluminium | Max. temperature: 300 C
TMBR NU214EC For bearing/ring: NU 214 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NU215 For bearing/ring: NU 215 and NU 215 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NU216EC For bearing/ring: NU 216 and NU 216 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NU217 For bearing/ring: NU 217 | Material: Aluminium | Max. temperature: 300 C
TMBR NU217EC For bearing/ring: NU 217 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NU218 For bearing/ring: NU 218 and NU 218 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NU219E For bearing/ring: NU 219 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NU2212EC For bearing/ring: NU 2212 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NU2213E For bearing/ring: NU 2213 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NU2214E For bearing/ring: NU 2214 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NU222 For bearing/ring: NU 222 | Material: Aluminium | Max. temperature: 300 C
TMBR NU2224E For bearing/ring: NU 2224 and NU 2224 E... | Material: Aluminium | Max. temperature: 300 C
TMBR NU226EC For bearing/ring: NU 226 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NU236E For bearing/ring: NU 236 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NU238EC For bearing/ring: NU 238 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NU310 For bearing/ring: NU 310 | Material: Aluminium | Max. temperature: 300 C
TMBR NU311 For bearing/ring: NU 311 | Material: Aluminium | Max. temperature: 300 C
TMBR NU312 For bearing/ring: NU 312 | Material: Aluminium | Max. temperature: 300 C
TMBR NU312EC For bearing/ring: NU 312 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NU313 For bearing/ring: NU 313 | Material: Aluminium | Max. temperature: 300 C
TMBR NU313EC For bearing/ring: NU 313 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NU314 For bearing/ring: NU 314 | Material: Aluminium | Max. temperature: 300 C
TMBR NU315 For bearing/ring: NU 315 | Material: Aluminium | Max. temperature: 300 C
TMBR NU316 For bearing/ring: NU 316 | Material: Aluminium | Max. temperature: 300 C
TMBR NU316E For bearing/ring: NU 316 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NU317 For bearing/ring: NU 317 | Material: Aluminium | Max. temperature: 300 C
TMBR NU318E For bearing/ring: NU 318 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NU319 For bearing/ring: NU 319 | Material: Aluminium | Max. temperature: 300 C
TMBR NU320EC For bearing/ring: NU 320 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NU322 For bearing/ring: NU 322 and NU 322 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NU324 For bearing/ring: NU 324 | Material: Aluminium | Max. temperature: 300 C
Induction HeatersSKF
48 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF TMBR Aluminium Heating Rings for Cylindrical Roller Bearings

Brand SKF·Induction Heaters

Available part numbers (48)

TMBR NJ218E, TMBR NJ2318E, TMBR NUP215, TMBR 313822, TMBR 120X240, TMBR NJ130X240, TMBR NU1011EC, TMBR NU1018, TMBR NU1034, TMBR NU1036 + 38 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TMBR NJ218EFor bearing/ring: NJ 218 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NJ2318EFor bearing/ring: NJ 2318 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NUP215For bearing/ring: NUP 215 | Material: Aluminium | Max. temperature: 300 C
TMBR 313822For bearing/ring: 313822 | Material: Aluminium | Max. temperature: 300 C
TMBR 120X240For bearing/ring: NJ/NJP 120x240 TN/VA820 | Material: Aluminium | Max. temperature: 300 C
TMBR NJ130X240For bearing/ring: NJ/NJP 130x240 TN/VA820 | Material: Aluminium | Max. temperature: 300 C
TMBR NU1011ECFor bearing/ring: NU 1011 and NU 1011 E... | Material: Aluminium | Max. temperature: 300 C
TMBR NU1018For bearing/ring: NU 1018 M | Material: Aluminium | Max. temperature: 300 C
TMBR NU1034For bearing/ring: NU 1034 | Material: Aluminium | Max. temperature: 300 C
TMBR NU1036For bearing/ring: NU 1036 ML | Material: Aluminium | Max. temperature: 300 C
TMBR NU206ECFor bearing/ring: NU 206 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NU209EFor bearing/ring: NU 209 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NU210ECFor bearing/ring: NU 210 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NU212For bearing/ring: NU 212 | Material: Aluminium | Max. temperature: 300 C
TMBR NU213For bearing/ring: NU 213 | Material: Aluminium | Max. temperature: 300 C
TMBR NU213EFor bearing/ring: NU 213 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NU214For bearing/ring: NU 214 | Material: Aluminium | Max. temperature: 300 C
TMBR NU214ECFor bearing/ring: NU 214 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NU215For bearing/ring: NU 215 and NU 215 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NU216ECFor bearing/ring: NU 216 and NU 216 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NU217For bearing/ring: NU 217 | Material: Aluminium | Max. temperature: 300 C
TMBR NU217ECFor bearing/ring: NU 217 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NU218For bearing/ring: NU 218 and NU 218 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NU219EFor bearing/ring: NU 219 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NU2212ECFor bearing/ring: NU 2212 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NU2213EFor bearing/ring: NU 2213 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NU2214EFor bearing/ring: NU 2214 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NU222For bearing/ring: NU 222 | Material: Aluminium | Max. temperature: 300 C
TMBR NU2224EFor bearing/ring: NU 2224 and NU 2224 E... | Material: Aluminium | Max. temperature: 300 C
TMBR NU226ECFor bearing/ring: NU 226 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NU236EFor bearing/ring: NU 236 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NU238ECFor bearing/ring: NU 238 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NU310For bearing/ring: NU 310 | Material: Aluminium | Max. temperature: 300 C
TMBR NU311For bearing/ring: NU 311 | Material: Aluminium | Max. temperature: 300 C
TMBR NU312For bearing/ring: NU 312 | Material: Aluminium | Max. temperature: 300 C
TMBR NU312ECFor bearing/ring: NU 312 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NU313For bearing/ring: NU 313 | Material: Aluminium | Max. temperature: 300 C
TMBR NU313ECFor bearing/ring: NU 313 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NU314For bearing/ring: NU 314 | Material: Aluminium | Max. temperature: 300 C
TMBR NU315For bearing/ring: NU 315 | Material: Aluminium | Max. temperature: 300 C
TMBR NU316For bearing/ring: NU 316 | Material: Aluminium | Max. temperature: 300 C
TMBR NU316EFor bearing/ring: NU 316 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NU317For bearing/ring: NU 317 | Material: Aluminium | Max. temperature: 300 C
TMBR NU318EFor bearing/ring: NU 318 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NU319For bearing/ring: NU 319 | Material: Aluminium | Max. temperature: 300 C
TMBR NU320ECFor bearing/ring: NU 320 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NU322For bearing/ring: NU 322 and NU 322 E ... | Material: Aluminium | Max. temperature: 300 C
TMBR NU324For bearing/ring: NU 324 | Material: Aluminium | Max. temperature: 300 C
