SKF TWIM 15 Portable Induction Heater (230 V, 110 V)

SKF TWIM 15 Portable Induction Heater (230 V, 110 V)

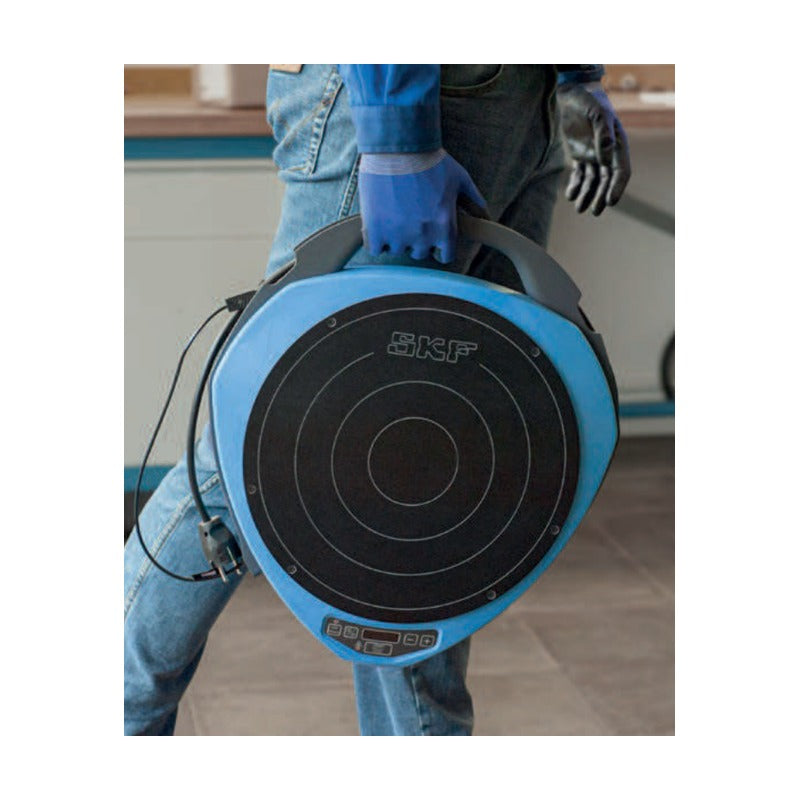

The SKF TWIM 15 is a lightweight portable induction heater with a flat induction plate that heats bearings and ring-shaped metallic components without support yokes.

Key features

  • Flat induction plate - no support yokes required
  • Low temperature difference between inner and outer ring
  • Two power levels and a non-bearing power configuration
  • Automatic temperature monitoring and demagnetisation
  • Supplied with magnetic temperature probe TWIM 15-3 and gloves TMBA G11

Specifications

Max. bearing weight 20 kg
Min. bore 20 mm
Max. bearing OD 320 mm
Max. bearing width 85 mm
Temperature control 20-200 C
Dimensions 450 x 500 x 100 mm
Weight 6.6 kg
Source SKF Maintenance and Lubrication Products, p. 44-45
TWIM 15/230V Voltage: 230 V, 50 Hz | Max. power: 2.3 kVA | Max. current: 10 A
TWIM 15/110V Voltage: 110 V, 60 Hz | Max. power: 1.8 kVA | Max. current: 16 A
Induction HeatersSKF
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF TWIM 15 Portable Induction Heater (230 V, 110 V)

Brand SKF·Induction Heaters

Available part numbers (2)

TWIM 15/230V, TWIM 15/110V

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TWIM 15/230VVoltage: 230 V, 50 Hz | Max. power: 2.3 kVA | Max. current: 10 A
TWIM 15/110VVoltage: 110 V, 60 Hz | Max. power: 1.8 kVA | Max. current: 16 A
