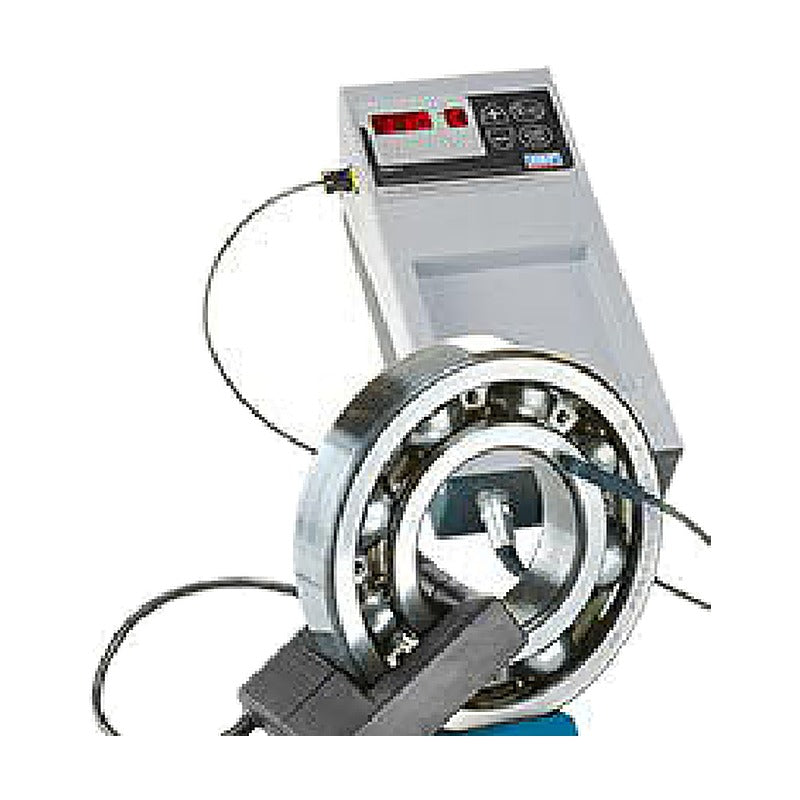

SKF TMBH 1 High Frequency Portable Induction Heater

The SKF TMBH 1 is a portable high-frequency induction heater with a heating clamp, designed for heating small bearings and other ring-shaped ferromagnetic parts such as gears, pulleys and bushings.

Key features

Patented high-frequency induction heating with heating clamp
No demagnetisation needed - high frequency current creates no residual magnetism
Clamp and unit stay at room temperature during operation
Suitable for greased and sealed bearings; 110 C recommended max.
Supplied with heating clamp, temperature sensor, power cable and case

Specifications

Recommended max. temperature	110 C
Input fuse	5 A
Source	SKF TMBH 1 Portable Induction Heater presentation, p. 2

TMBH 1

Bearing bore: 80-100 mm | Max. bearing weight: 4-5 kg | Output limit: 1.2 V, 400 V | Supply: Clamp, sensor, cable, case

Induction HeatersSKF

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF TMBH 1 High Frequency Portable Induction Heater

Brand SKF·Induction Heaters

Available part numbers (1)

TMBH 1

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
