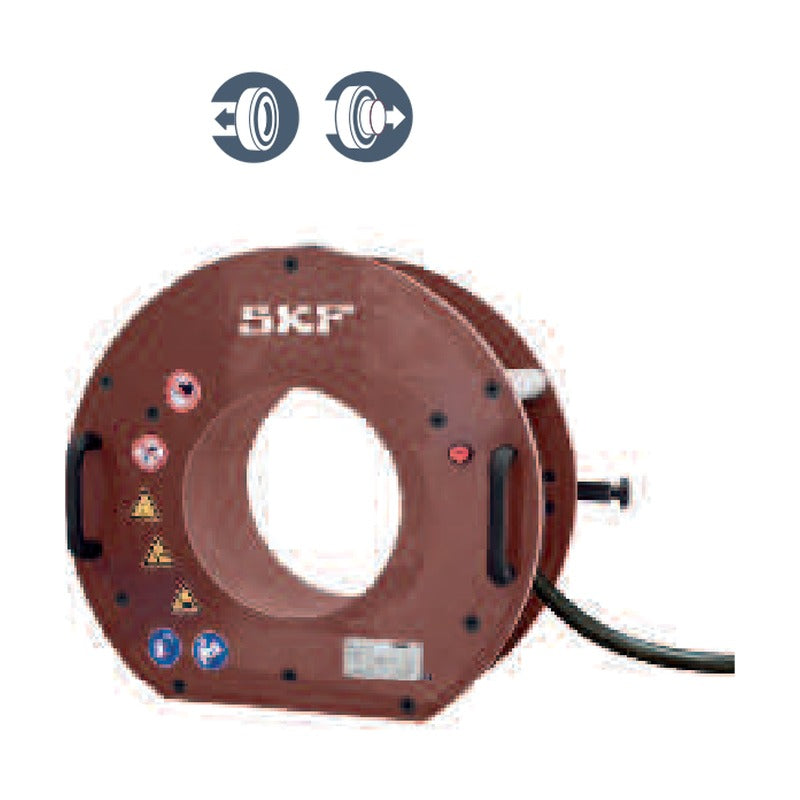

SKF EAZ Fixed Induction Heaters and Control Cabinets

SKF fixed-size EAZ induction coils, matched to a specific cylindrical roller bearing inner ring, and EAZ control cabinets dismount and mount tightly fitted inner rings in about 3 minutes.

Key features

EAZ coils designed for a given inner ring for optimum dismounting
Lifting eye, handles and ring locking mechanism for safe handling
Coil overheating protection circuit
Touch-screen control cabinets with automatic temperature control and demagnetisation
CCD versions operate two permanently connected coils

Specifications

Application	CRB inner ring mounting/dismounting
Source	SKF Maintenance and Lubrication Products, p. 54-55

EAZ F179MV		Bearing: 315189 A \| Ring F: 179 mm \| Ring B: 168 mm \| Ring d: 160 mm \| MV / HV: 400V 105A / 500V 80A
EAZ F180MV		Bearing: 314190 \| Ring F: 180 mm \| Ring B: 130 mm \| Ring d: 160 mm \| MV / HV: 400V 85A / 500V 65A
EAZ F202MV		Bearing: 313812 \| Ring F: 202 mm \| Ring B: 168 mm \| Ring d: 180 mm \| MV / HV: 400V 85A / 500V 65A
EAZ F222MV		Bearing: 313893 \| Ring F: 222 mm \| Ring B: 200 mm \| Ring d: 200 mm \| MV / HV: 400V 125A / 500V 95A
EAZ F226MV		Bearing: 313811 \| Ring F: 226 mm \| Ring B: 192 mm \| Ring d: 200 mm \| MV / HV: 400V 120A / 500V 95A
EAZ F260MV		Bearing: 313824 \| Ring F: 260 mm \| Ring B: 206 mm \| Ring d: 230 mm \| MV / HV: 400V 160A / 500V 120A
EAZ F312MV		Bearing: 313822 \| Ring F: 312 mm \| Ring B: 220 mm \| Ring d: 280 mm \| MV / HV: 400V 160A / 500V 120A
EAZ CC225B		Outputs: 1x EAZ coil \| Voltage: 400V \| Frequency: 50 Hz \| Max. amperage: 225A
EAZ CC350B		Outputs: 1x EAZ coil \| Voltage: 400V \| Frequency: 50 Hz \| Max. amperage: 350A
EAZ CC225A		Outputs: 1x EAZ coil \| Voltage: 500V \| Frequency: 50 Hz \| Max. amperage: 225A
EAZ CC350A		Outputs: 1x EAZ coil \| Voltage: 500V \| Frequency: 50 Hz \| Max. amperage: 350A
EAZ CCD225B		Outputs: 2x EAZ coil \| Voltage: 400V \| Frequency: 50 Hz \| Max. amperage: 225A
EAZ CCD350B		Outputs: 2x EAZ coil \| Voltage: 400V \| Frequency: 50 Hz \| Max. amperage: 350A
EAZ CCD225A		Outputs: 2x EAZ coil \| Voltage: 500V \| Frequency: 50 Hz \| Max. amperage: 225A
EAZ CCD350A		Outputs: 2x EAZ coil \| Voltage: 500V \| Frequency: 50 Hz \| Max. amperage: 350A
